- Compact 45-liter case from Lian Li
- Independent cooling in three chambers for optimal performance
- Direct GPU cooling thanks to placement in the front area of the case
- Radiator for water cooling possible on the right side
- Fan holder outside the case for VRM, DRAM and M.2 cooling
- Includes three pre-installed 120 mm fans
- Minimal space requirement, maximum cooling: The SUP-01 case
- Compact 45-liter case from Lian Li
- Independent cooling in three chambers for optimal performance
- Direct GPU cooling thanks to placement in the front area of the case
- Radiator for water cooling possible on the right side
- Fan holder outside the case for VRM, DRAM and M.2 cooling
- Includes three pre-installed 120 mm fans
- Minimal space requirement, maximum cooling: The SUP-01 case
- Compact 45-liter case from Lian Li
- Independent cooling in three chambers for optimal performance
- Direct GPU cooling thanks to placement in the front area of the case
- Radiator for water cooling possible on the right side
- Fan holder outside the case for VRM, DRAM and M.2 cooling
- Includes three pre-installed 120 mm fans
- Minimal space requirement, maximum cooling: The SUP-01 case
– Compact 45-liter case from Lian Li
– Independent cooling in three chambers for optimal performance
– Direct GPU cooling thanks to placement in the front area of the case
– Radiator for water cooling possible on the right side
– Fan holder outside the case for VRM, DRAM and M.2 cooling
– Includes three pre-installed 120 mm fans
– Minimal space requirement, maximum cooling: The SUP-01 case

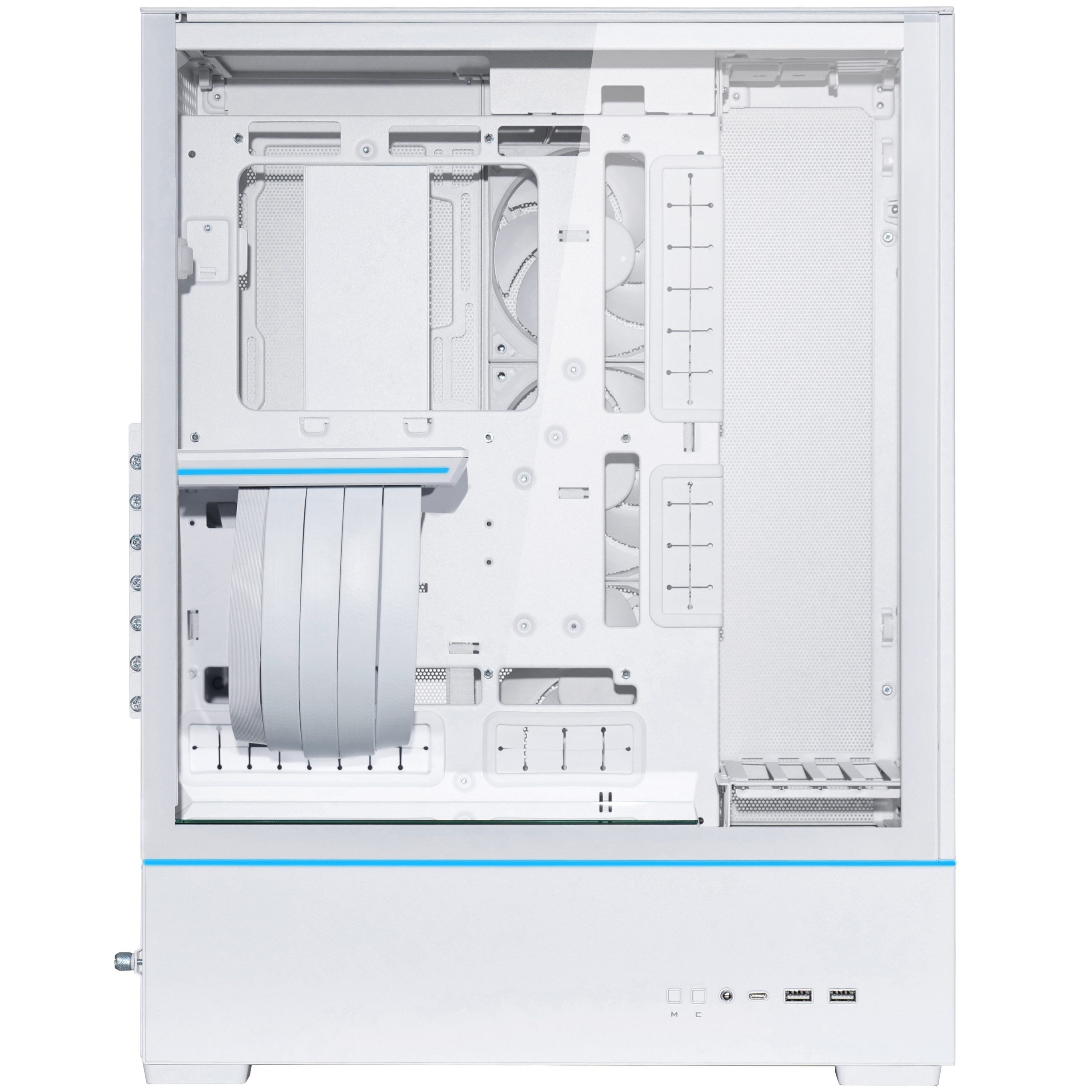

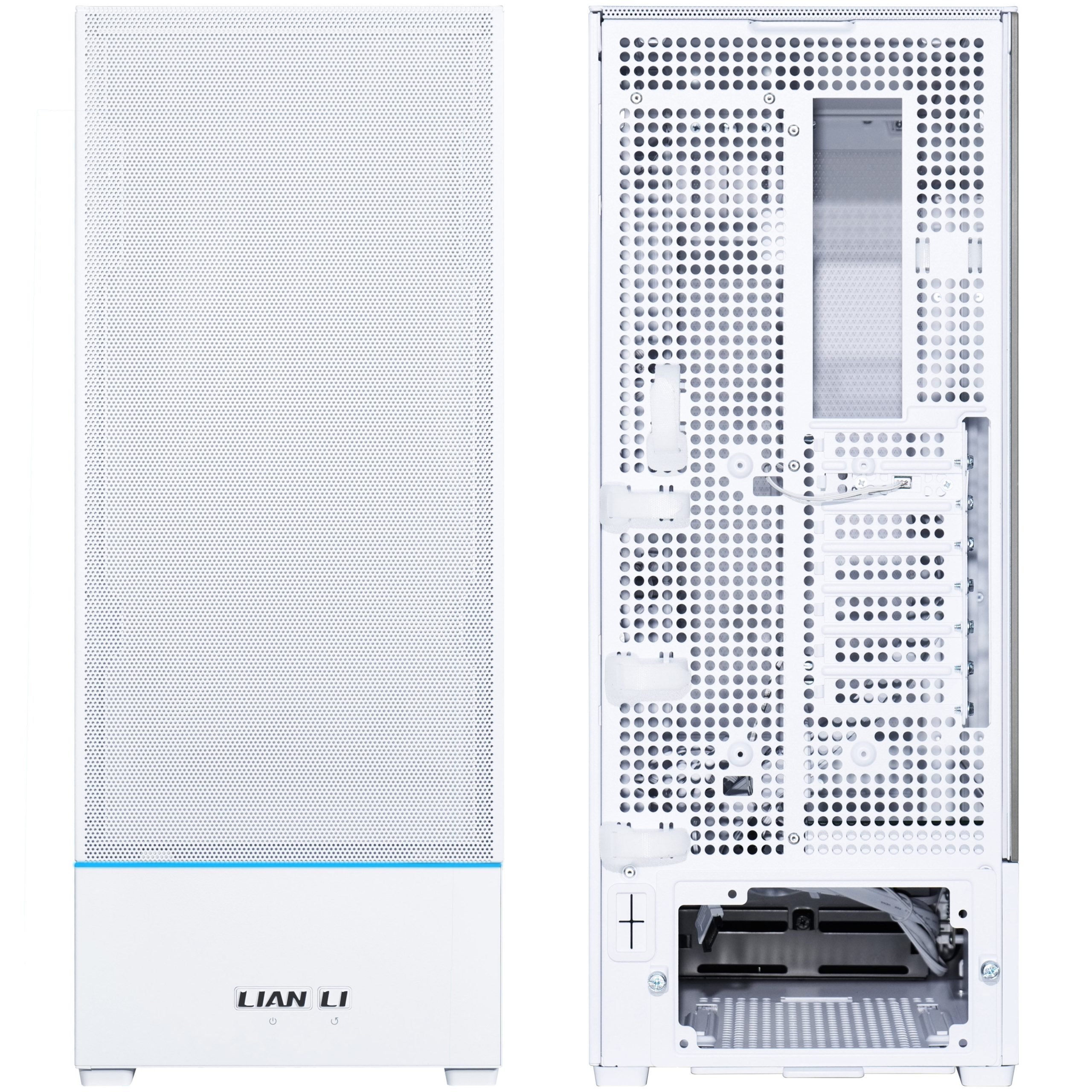

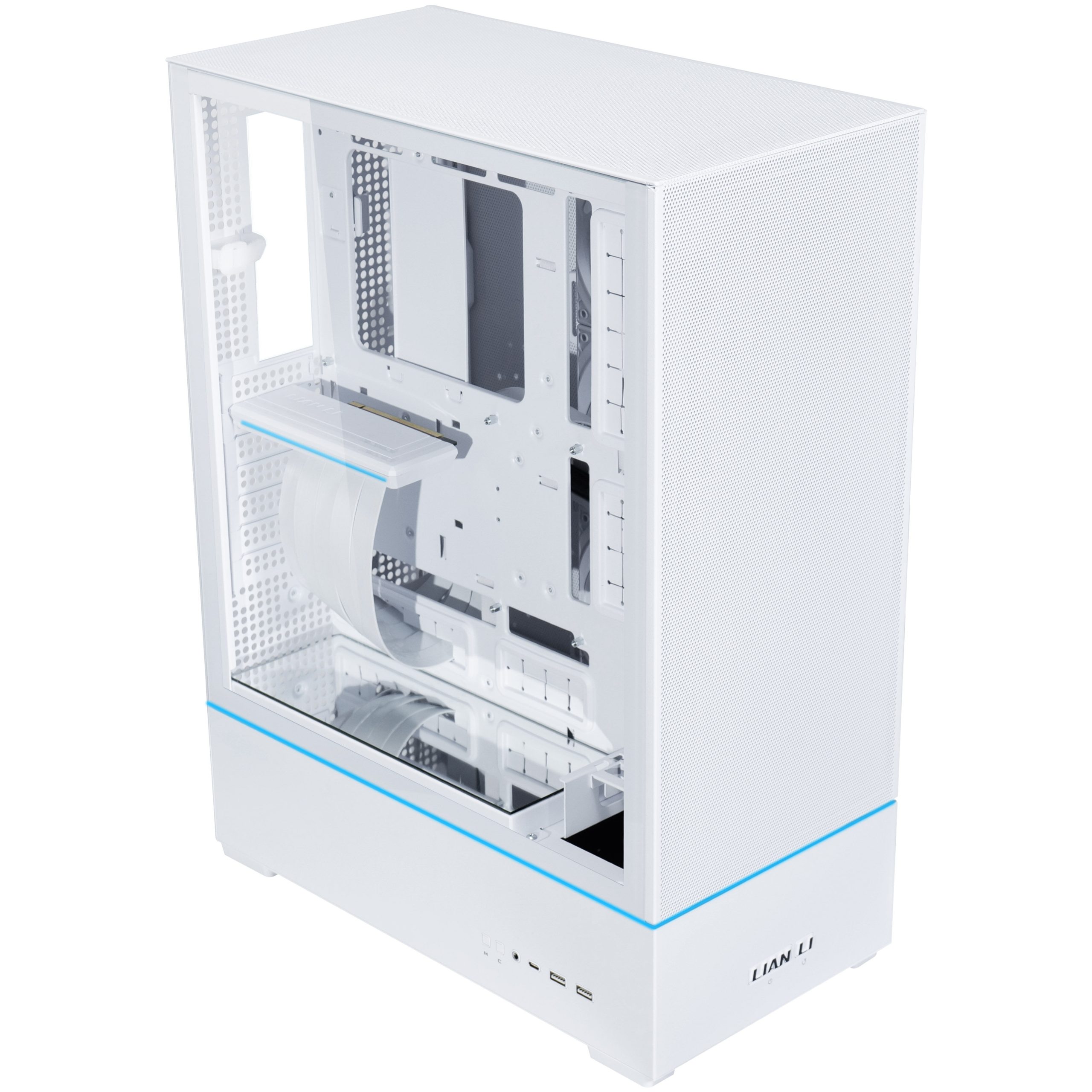

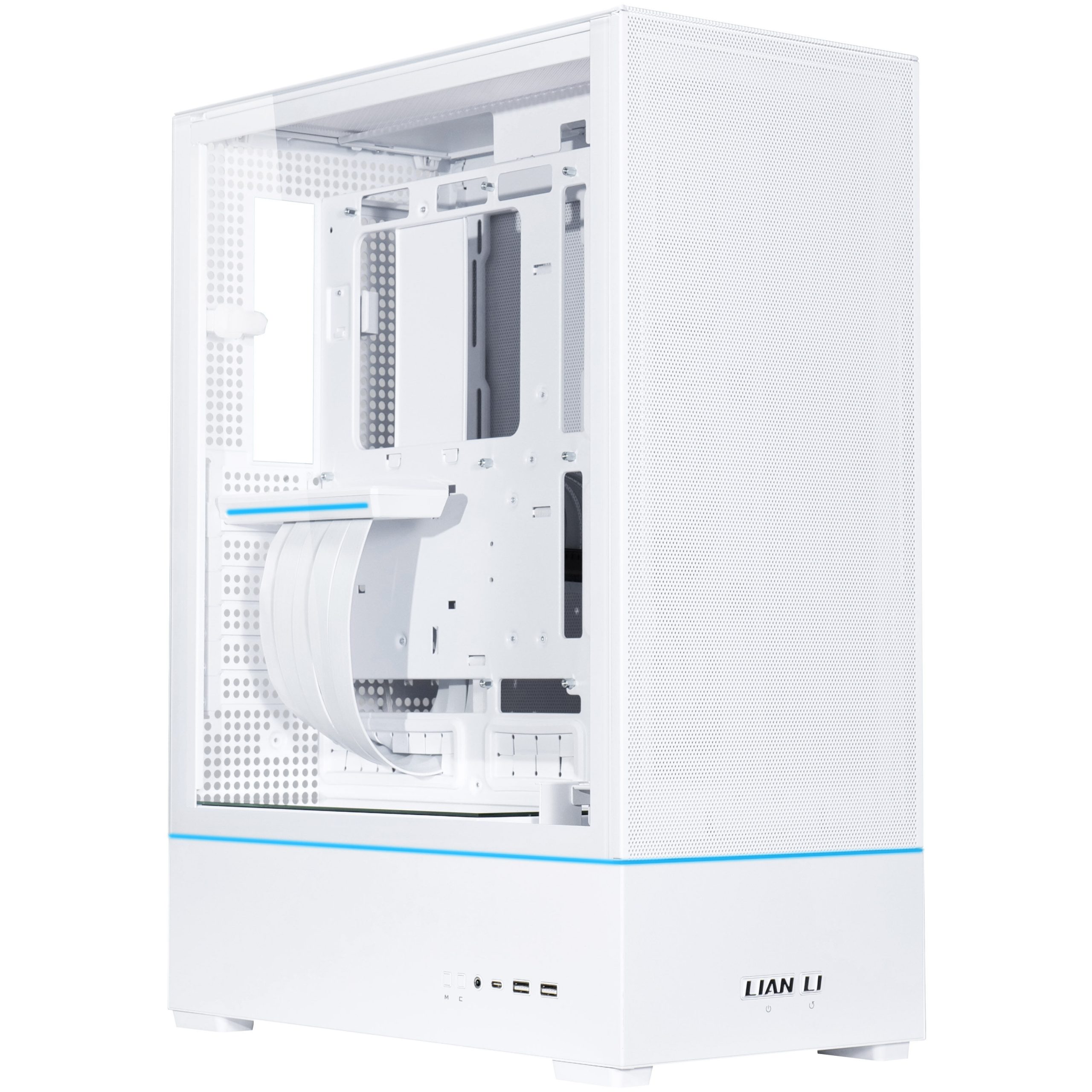

The Lian Li SUP-01 offers outstanding cooling performance with a small volume of 45 liters thanks to its unique three-chamber design. The PC case is designed to efficiently integrate essential components such as GPU, water cooling, PSU, motherboard, CPU and storage drives while ensuring excellent thermal performance.
Optimized cooling: three-chamber design and powerful fans

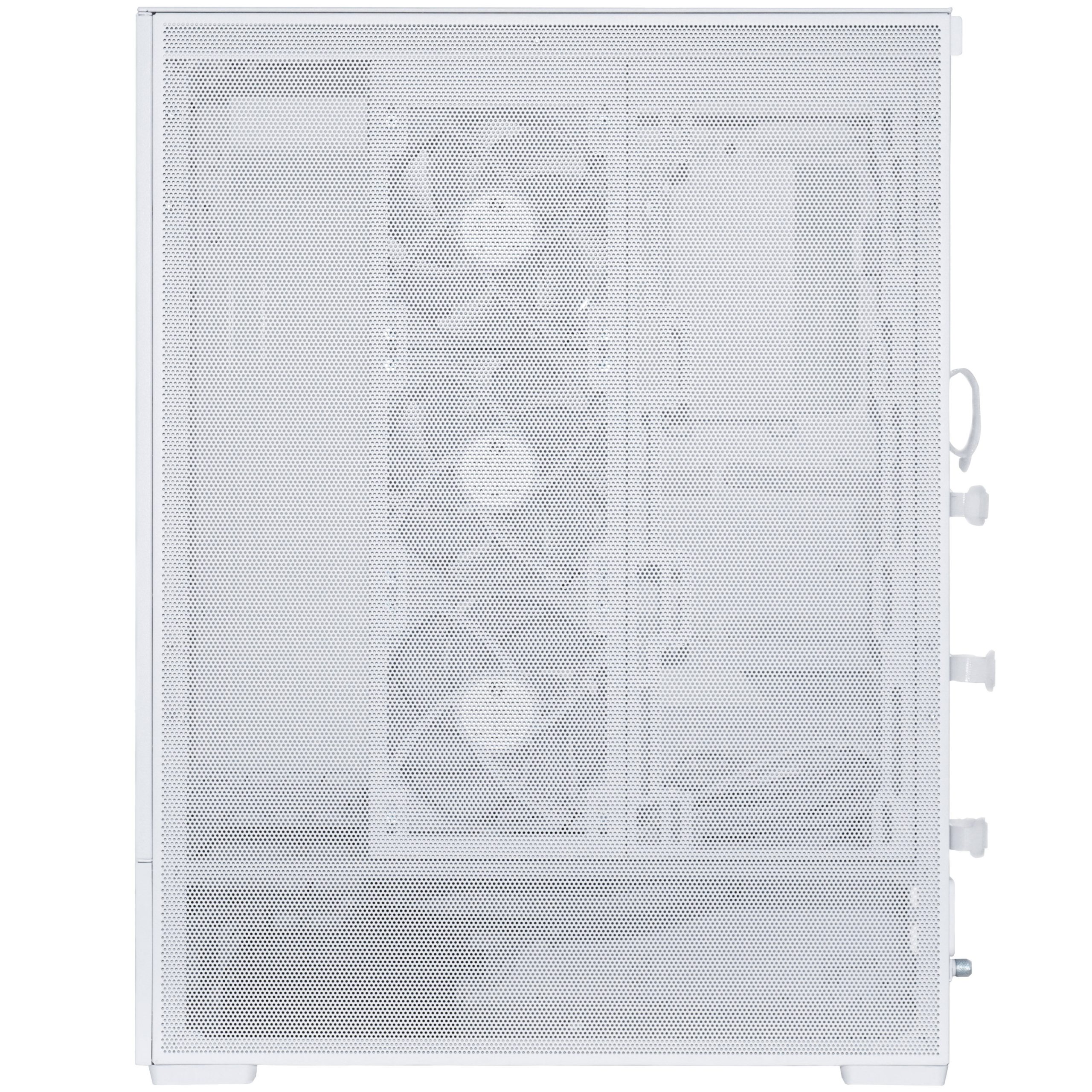

The SUP-01 has direct cooling of the GPU thanks to its placement at the front of the case. The optimal cooling of your CPU is improved by the option of mounting a radiator on the right side of the case. This sucks in cold air through the rear opening and dissipates the heat via the side panel. In addition, another fan mount with the option of mounting a 120 mm fan ensures the cooling of the VRM, DRAM and M.2 areas, with the heat escaping through the upper mesh panel.
The case comes with three pre-installed 120 mm fans that give you an efficient basis for cooling the core components. This means that the system is immediately ready for use after installing the main components and offers excellently low temperatures.
Flexibility and adaptability: The versatile possibilities of the SUP-01 case
The SUP-01 supports motherboards in ATX, Micro-ATX and ITX format as well as ATX power supplies with a maximum length of 220 mm. The case comes with a pre-installed PCIe 4.0 riser cable with aRGB stripes for an attractive look and allows for both horizontal and vertical mounting of the GPU.
With space for up to four 2.5 SSDs or two 3.5 HDDs, the SUP-01 offers flexible storage options. The I/O panel on the left side of the case includes two USB 3.0 ports, a USB Type-C port, an audio jack and color control buttons for the RGB lighting.
Note: The Lian Li SUP-01 offers a wide range of configuration options. To make the most of the limited space, careful planning is required, especially when choosing components and positioning them.
Technical Details
| Dimensions (L × W × H) | 403.45 × 212 × 534 mm (with feet) |
|---|---|
| Material | Steel, Tempered Glass |
| Volume | 44.8 litres |
| Colour | White |
| Form Factor | ATX, Micro-ATX, ITX |
| PCIe Riser | Pre-installed PCIe 4.0 riser with aRGB strips |
| Supported GPU Length | 315–400 mm (286–315 mm with rotated bracket) |
| Max. CPU Cooler Height | 88.2 mm |
| Power Supply | ATX (max. 220 mm) |
| Pre-installed Fans | 3 × 120 mm |
| Fan Mounts | Side 1: 3 × 120 mm (pre-installed) Side 2: 3 × 120 mm / 2 × 140 mm Rear exterior: 1 × 120 mm |
| Radiator Mounts | 1 × 360 mm or 280 mm |
| Drive Bays | 2 × 2.5″ SSD or 2 × 3.5″ HDD (drive cage) 2 × 2.5″ SSD (behind MB tray) |
| Expansion Slots | 7 (low-profile cards) 4 (standard cards with riser) |
| I/O Ports | Power button Reset button 2 × USB 3.0 Type-A 1 × USB 3.1 Type-C 1 × 3.5 mm audio jack (4-pole, TRRS) RGB colour control button RGB mode control button |

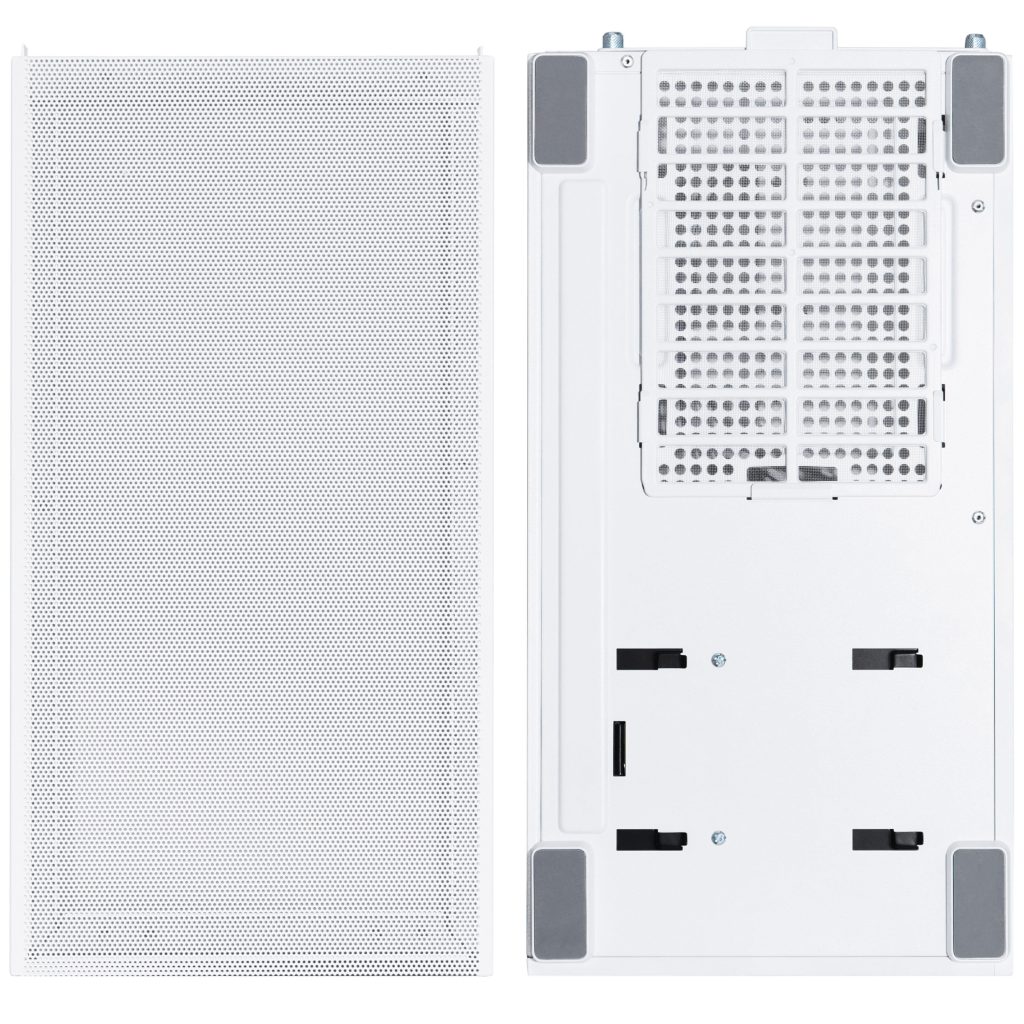

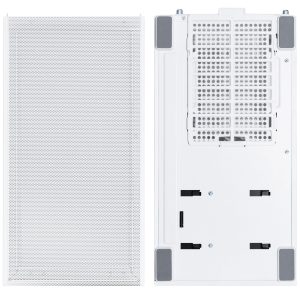

| Dust Filters | Bottom Front Right side Top |
| Specification | |
|---|---|
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 403.45 mm |
| Width | 212 mm |
| Height | 534 mm |
| Case | |
| Case Type | Mid Tower |
| Motherboard Support | |
| Compatible Motherboard Formats | ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 88.2 mm |
| Max. GPU Length | 400 mm |
| Max. PSU Length / Depth | 220 mm |
| Power Supply | |
| PSU Format | ATX |
| Cooling – Included Fans | |
| Included Fans | 3x 120 mm |
| Fan Mounts | |
| Side 1 | 3x 120 mm (pre-installed) |
| Side 2 | 3x 120 mm or 2x 140 mm |
| Rear Exterior | 1x 120 mm |
| Radiator Support | |
| Radiator Mounts | 1x 360 mm or 280 mm |
| Drive Bays | |
| Drive Cage | 2x 2.5″ SSD or 2x 3.5″ HDD |
| Behind MB Tray | 2x 2.5″ SSD |
| Expansion Slots | |
| Low-Profile Cards | 7 |
| Standard Cards (with riser) | 4 |
| I/O Ports | |
| Power Button | 1x |
| Reset Button | 1x |
| USB 3.0 Type-A | 2x |
| USB 3.1 Type-C | 1x |
| 3.5 mm Audio Jack | 1x (4-pole TRRS) |
| RGB Colour Control | 1x |
| RGB Mode Control | 1x |
| Lighting | |
| Lighting / RGB | Yes |
| Case Features | |
| I/O Position | Side |
| Side Panel | With window (tempered glass) |
| Filters Included | Yes – Bottom, Front, Right Side, Top |
| Material | |
| Frame & Panels | Steel |
| Window | Tempered Glass |
| Volume | |
| Total Volume | 44.8 litres |
£88.00£73.33 Inc VatEx Vat
