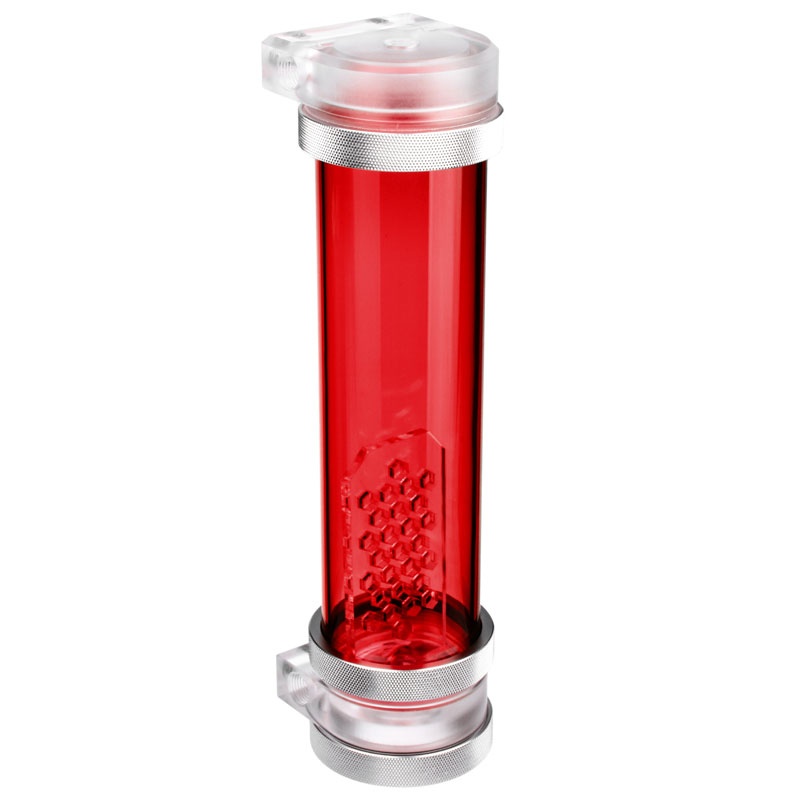

Primo Chill 240mm CTR Reservoir phase II for Laing D5 - red

Similar to the PrimoCHILL rigid fittings, the CTR use phase II, the same principle, to secure the sensitive acrylic tube and sealed. So little to no force is exerted on the Terms of acrylic and thus also prevents the possible formation of cracks.

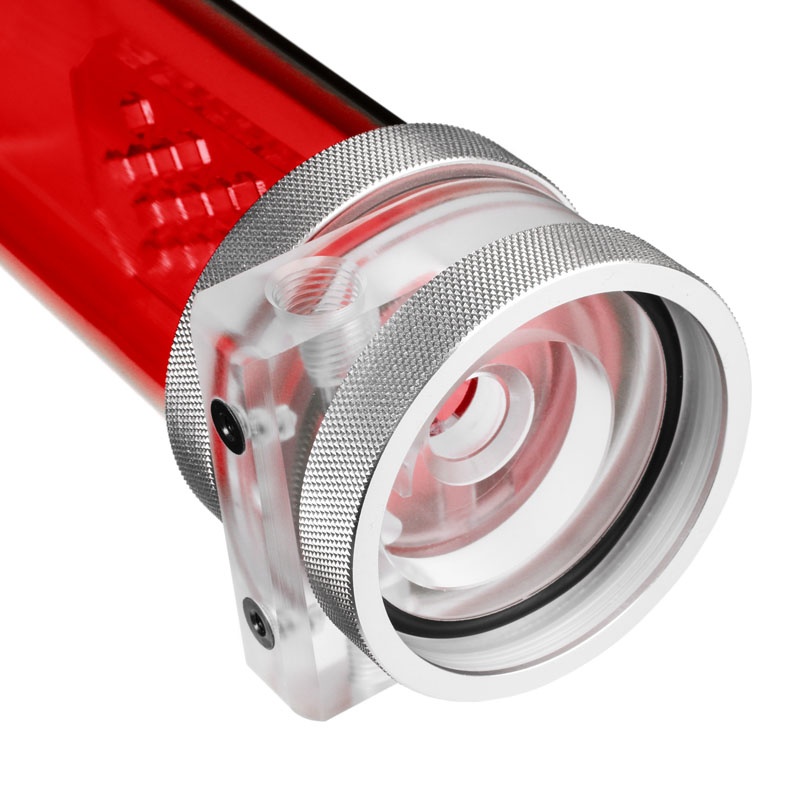

In this case, the phase in this variant, a G1 / 4 port on the lid and two G1 / 4 ports on the sides of the caps are available II. The former serves the influence of the coolant, while the latter the outflow serve selbigens.

This reservoir appears in bright red and has an inner diameter of 57 mm and an outer diameter of 63 mm. The CTR Phase II is a total of 285.75 mm long (without fittings). For the use of the Primo Chill Conditions CTR Phase II is a Laing D5 pump or a pump, which is based on the Laing D5, required. Primo Chill granted a full year warranty on this product.

Included is corresponding accessories such as sealing plugs for the ports, sealing rings and a simple mounting system is not required. Watercooling ports or acrylic tubes are not included and must be purchased separately.

Technical Details:

Material: acrylic glass (reservoir), Delrin (caps)
Color: Red
Connections: 3x G1 / 4 inch
Diameter (outside / inside): 63/57 mm
Length: 285.75 mm (with caps)
Compatibility: Laing D5 pump
Scope of delivery:
Primo Chill 240mm CTR Terms phase II for Laing D5 – red
sealing plug
Mounting System
seal rings
