Phanteks pump bracket for Enthoo housing

The Dutch of Phanteks began with great processor coolers, which inserts reinvigorating fan from the beginning. Logically, the next step consisted in offering single fan series. In the third step you took this fan back in the housings of Enthoo series. So what is expected to be the fourth step of the young, but already very renowned brand Phanteks? Exactly, housing accessories!

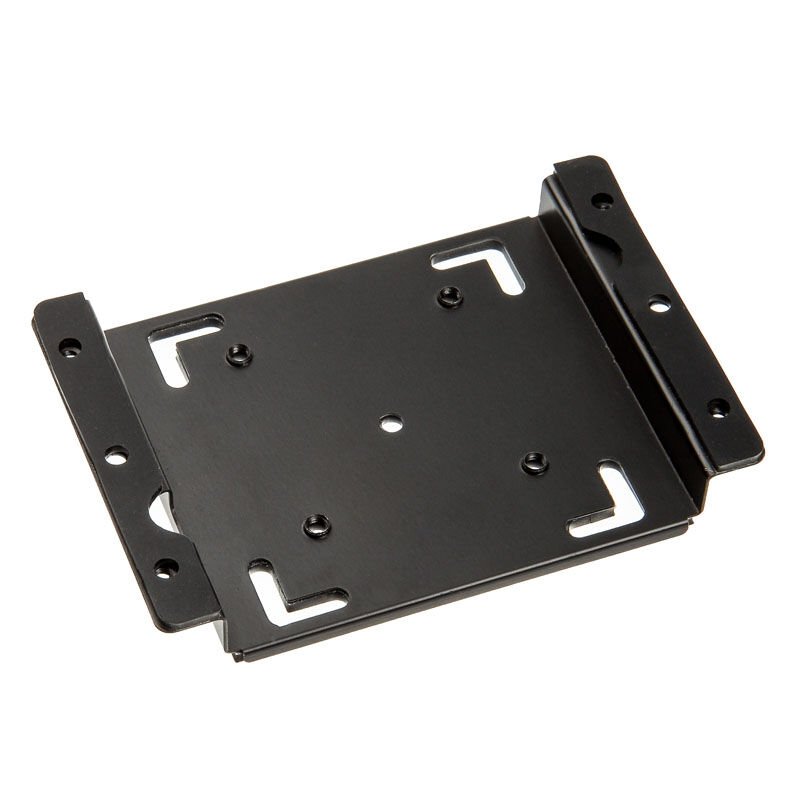

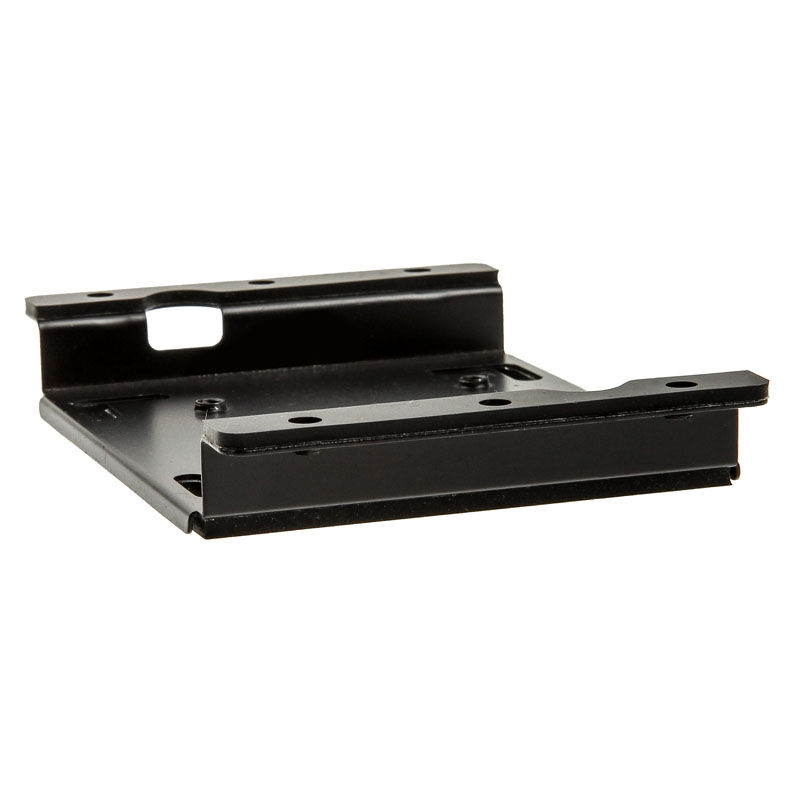

Part of the accessory offer is also offered here pump bracket for the housing of the series Enthoo Primo, Luxe, Pro and Evolv ITX from Phanteks. It is bolted to the base of the lower HDD cage and replaced this thus. For the employed, optional pump their vibrations gives not so strong in the case, the holder is provided on both sides on the contact surfaces with a rubber layer for decoupling.

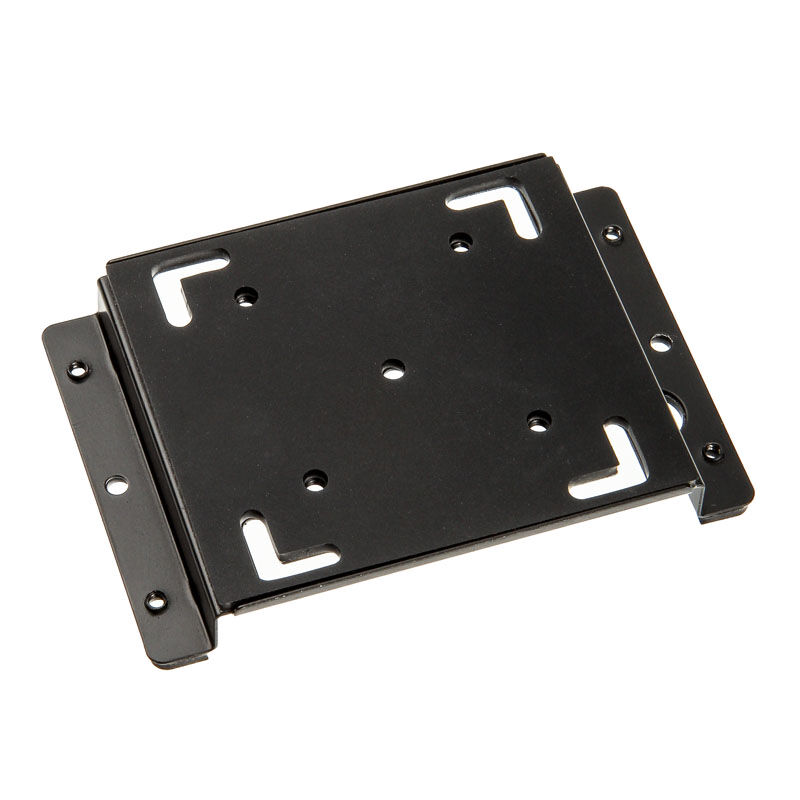

The four holes on the outer positions are compatible with screws with M4 thread. From hole center to hole center, the distance is 42 mm. The slightly larger hole in the middle has a diameter of 4.5 mm. The angular omissions at the corners in both directions 15 mm long and 4.5 mm wide.
