With the Phanteks Evolv X2 Matrix, you can build a showpiece gaming system with plenty of space for current high-end hardware. The case supports E-ATX motherboards, large graphics cards, and powerful cooling.
With the Phanteks Evolv X2 Matrix, you can build a showpiece gaming system with plenty of space for current high-end hardware. The case supports E-ATX motherboards, large graphics cards, and powerful cooling.
With the Phanteks Evolv X2 Matrix, you can build a showpiece gaming system with plenty of space for current high-end hardware. The case supports E-ATX motherboards, large graphics cards, and powerful cooling.
With the Phanteks Evolv X2 Matrix, you can build a showpiece gaming system with plenty of space for current high-end hardware. The case supports E-ATX motherboards, large graphics cards, and powerful cooling.
Motherboards with back connect such as ASUS BTF and MSI Project Zero ensure a tidy interior. Three glass panels provide an unobstructed view of your setup. Additionally, there is a pixel matrix with 900 LEDs on the case floor.
– Spacious mid-tower: Perfect for current hardware
– Compatible with back-connect boards: ASUS BTF & MSI Project Zero
– Vertical cooling: Space for up to seven 120 mm fans
– GPU compatibility: Graphics cards up to 380 mm in length
– Clean look: Three large glass panels to showcase your hardware
– Matrix with 900 LEDs: Displays & effects fully customizable
– Phanteks Evolv Series X2: Showcase case for powerful hardware
– Evolv X2 Matrix Hardware

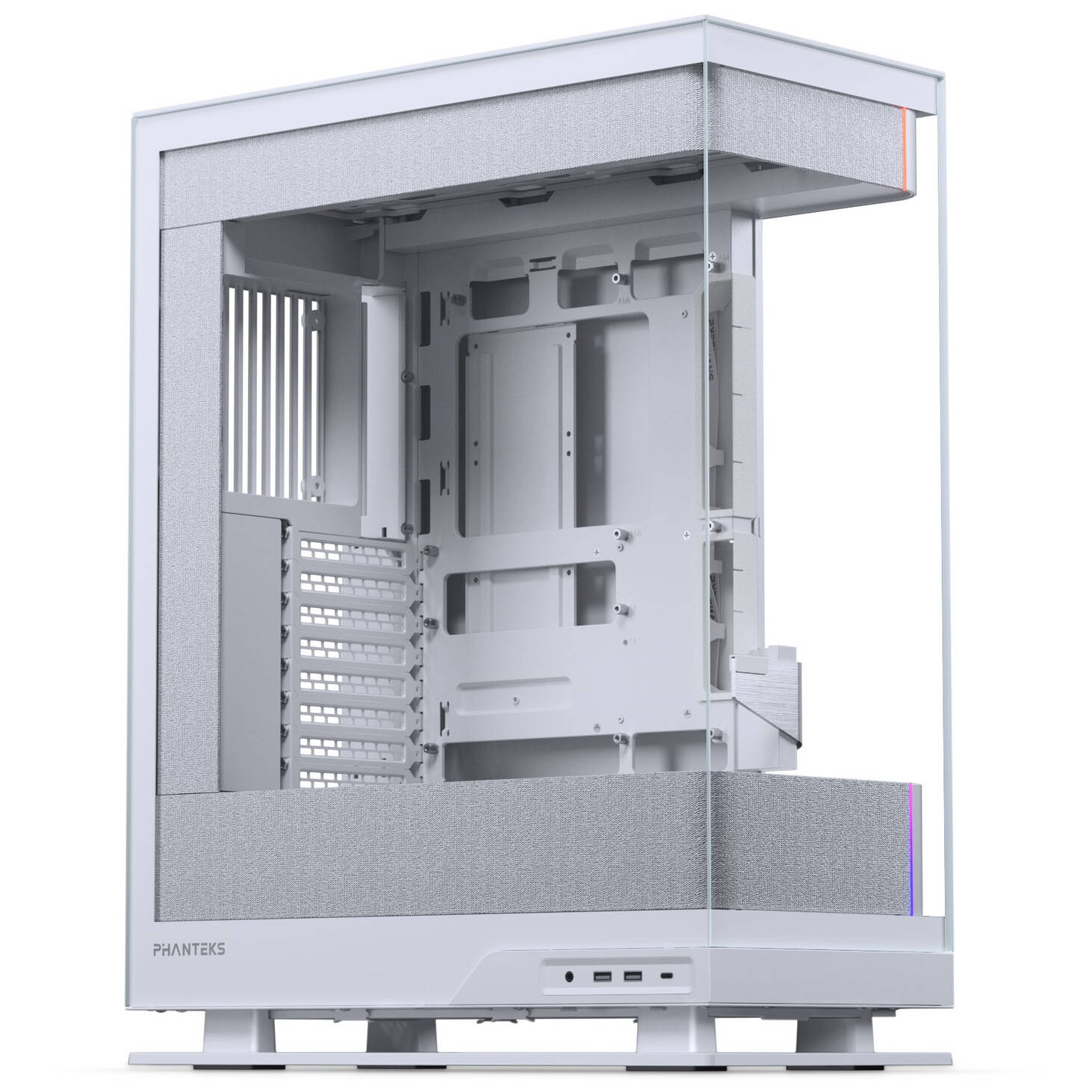

The interior offers space for Mini-ITX to E-ATX motherboards and also supports boards with rear connectors. This keeps the interior neat and organized. Eight PCIe slots and 380 mm of space for your GPU make installing large graphics cards easy.
A PC case that wants to be seen
Evolv X2 Matrix Glass Design

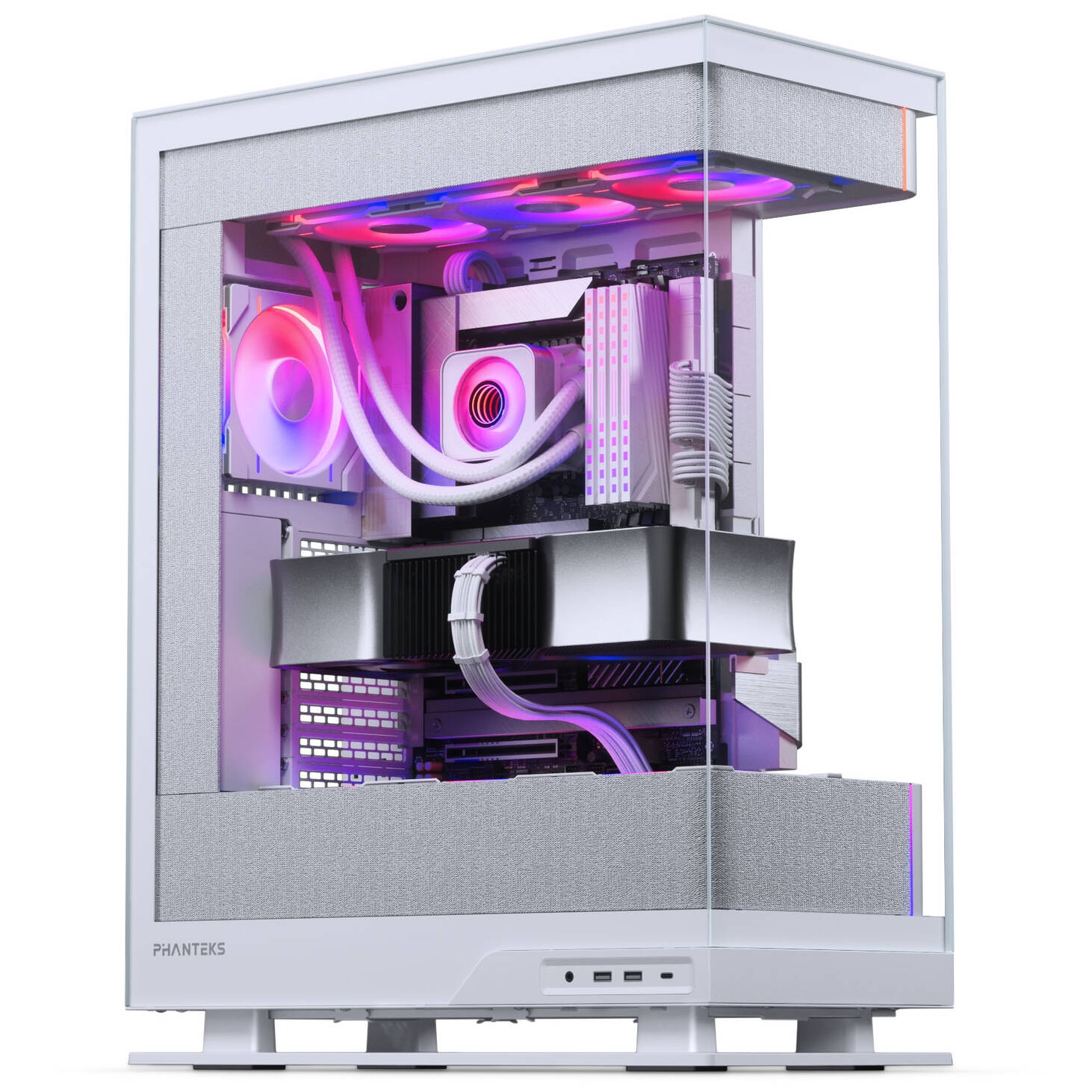

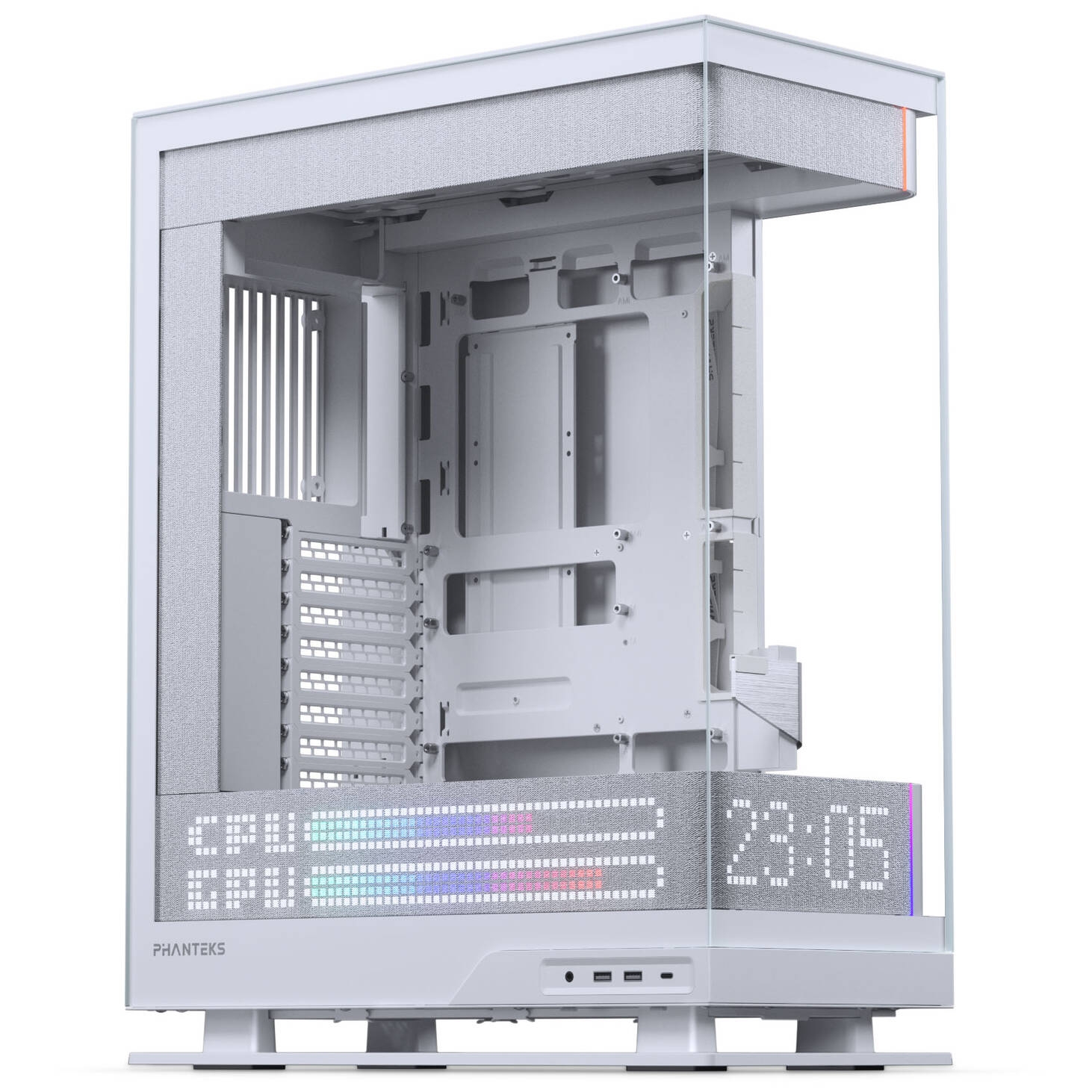

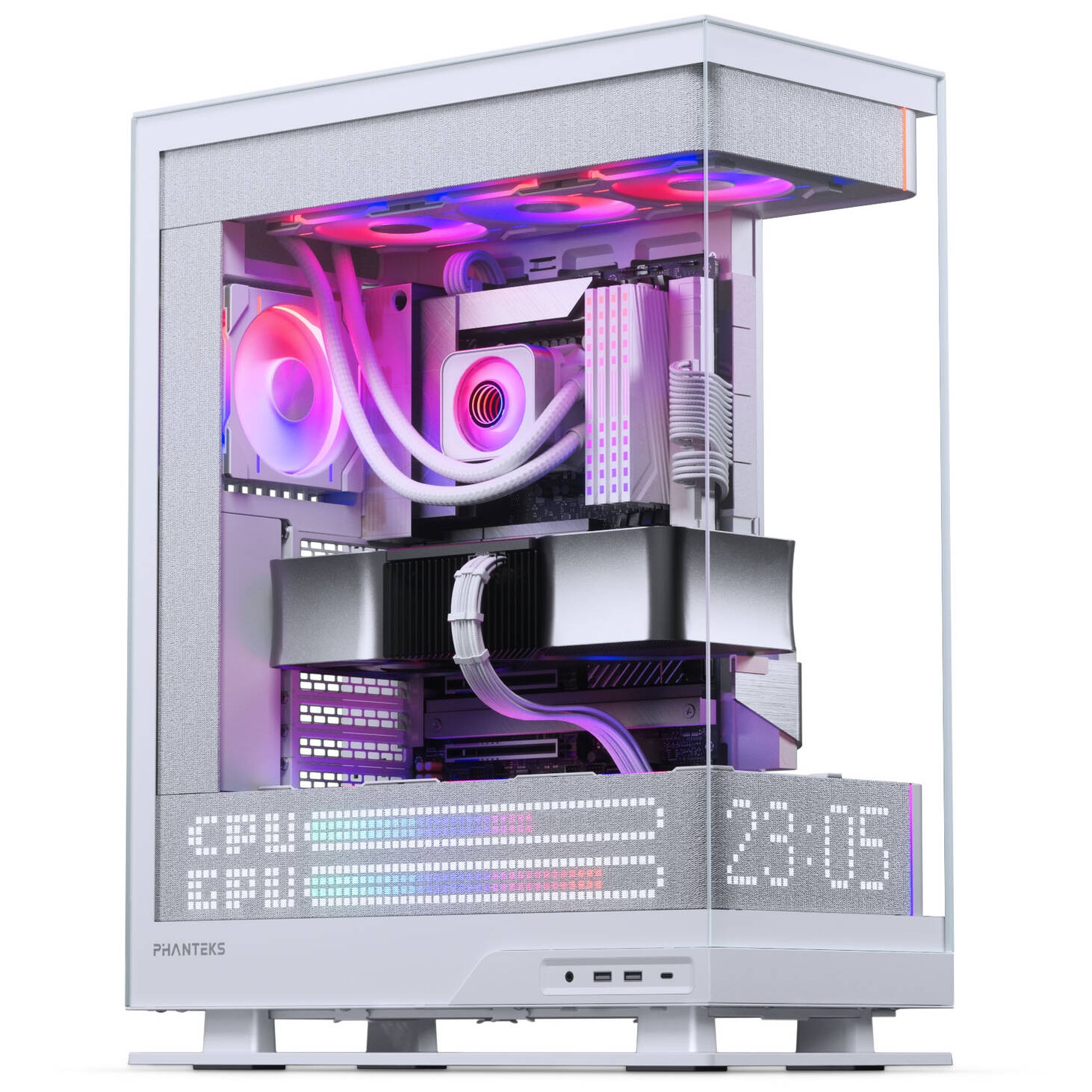

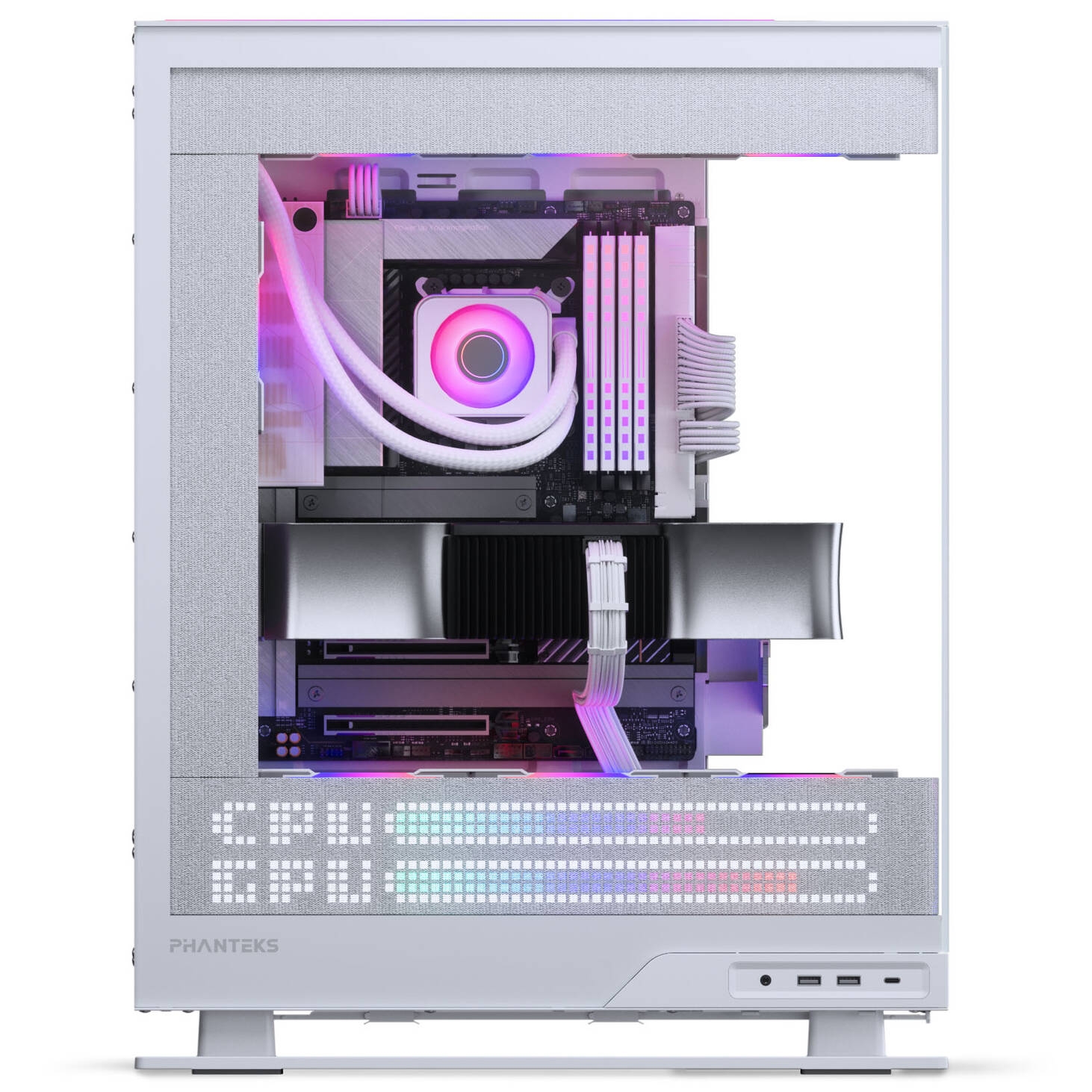

Three large glass exterior panels give you an unrestricted view of your components. Metal covers hide fans and accessories, making your hardware appear almost to float. The LED matrix display runs along the front and right side on the case floor, showing system information or animations.

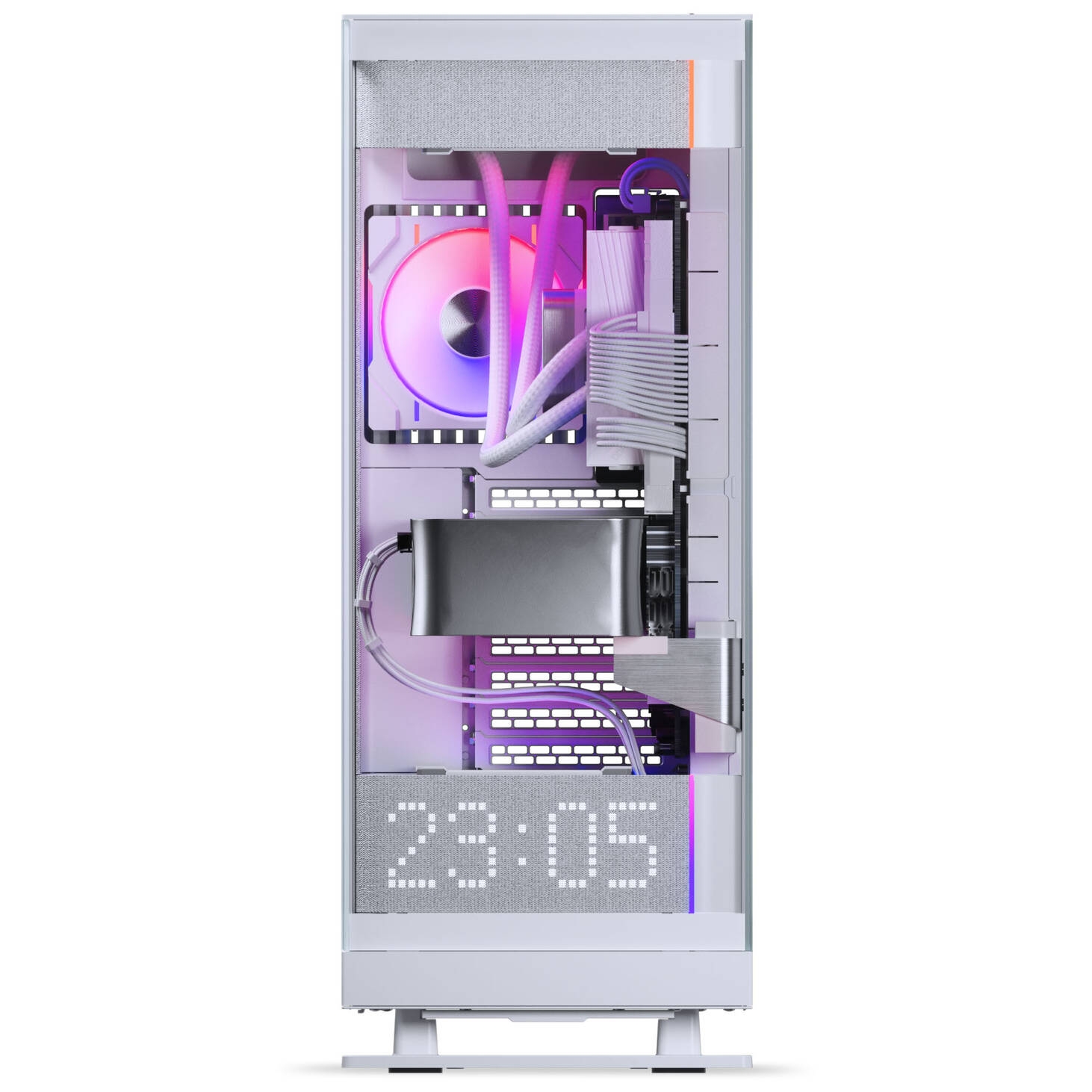

Whether temperature displays, time, or custom texts – you can easily customize the screen to your style, making it a real eye-catcher in your gaming setup.

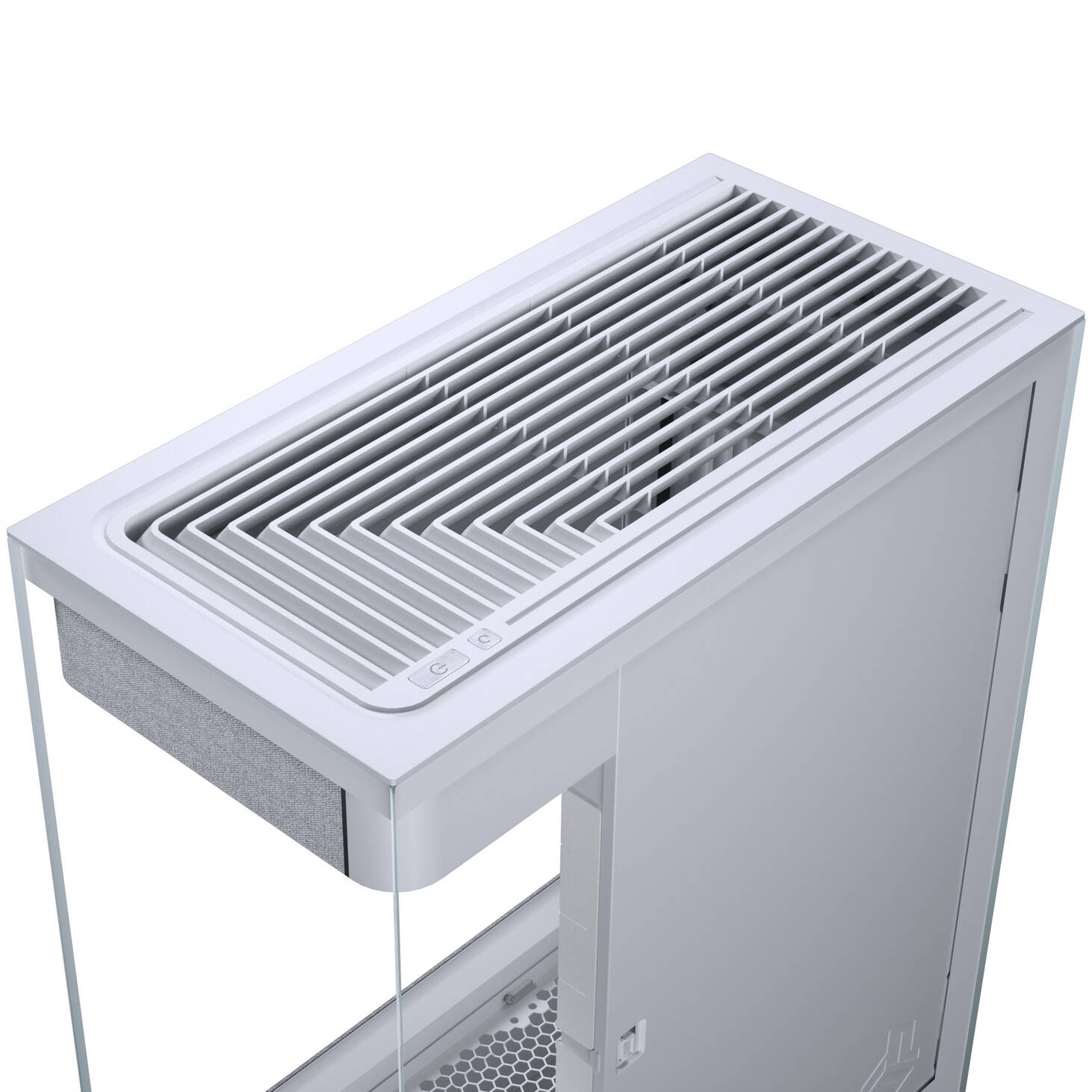

Powerful cooling through vertical airflow
The case uses a vertical cooling design: cool fresh air enters from below and escapes as warm exhaust air at the top. Up to seven 120 mm fans can be installed, all concealed within the panels for a clean look.
– Powerful & quiet cooling options
– Bottom: three 120 mm fans
– Top: three 120 mm fans / radiator up to 360 mm
– Rear: one 120mm fan
With a CPU cooler height of 170 mm, a large tower cooler is also possible. For AiO users, a 360 mm radiator fits perfectly in the top panel.
NEXLINQ: Easy control for fans & lighting
The Evolv X2 Matrix is part of the NEXLINQ ecosystem. Fans, coolers, and RGB elements are connected via a hub and conveniently controlled via software. You can use automatic or custom fan curves and adjust the lighting colors.

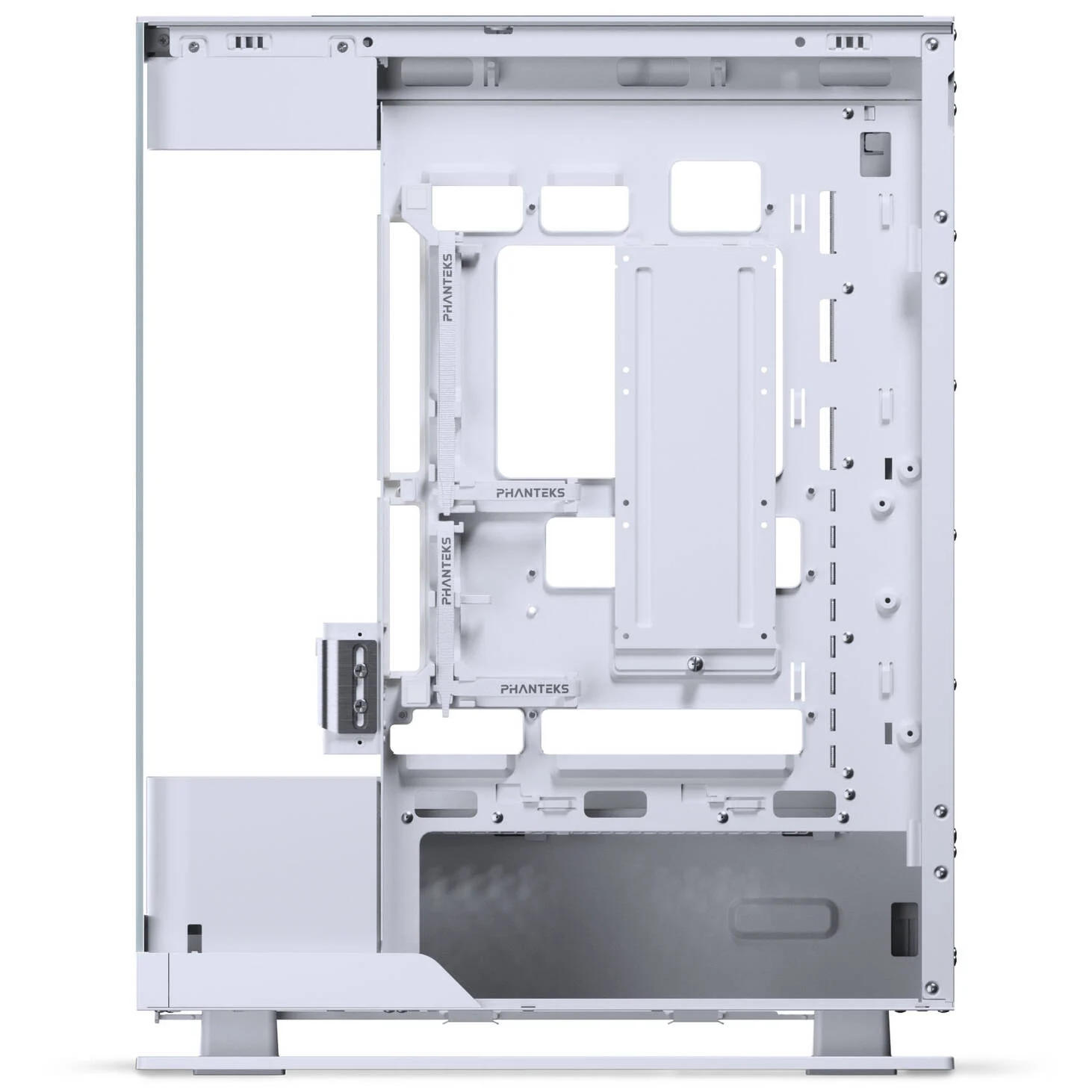

Mid-tower with support for back-connect motherboards

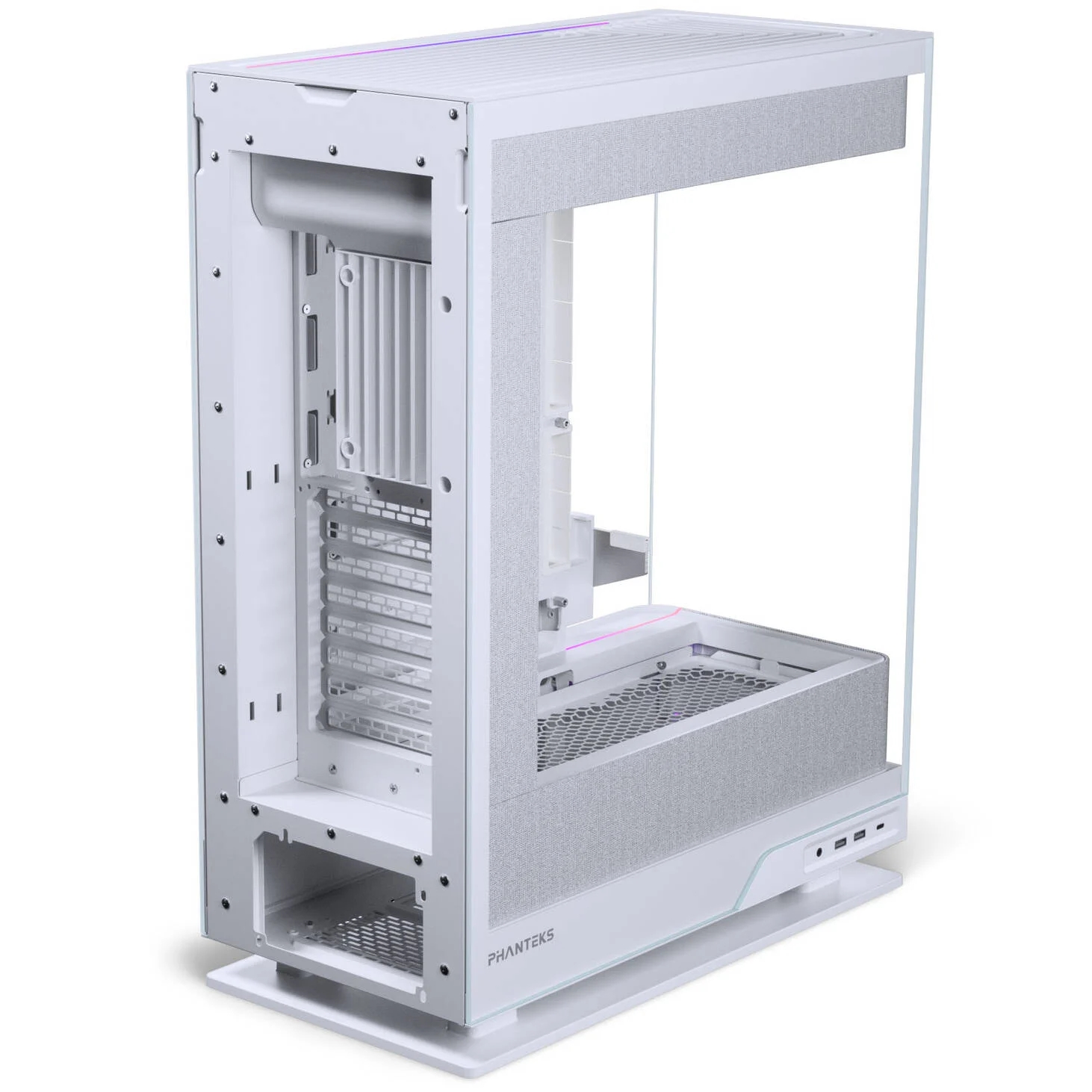

Furthermore, motherboards from Mini-ITX to E-ATX are supported – including models with back connect such as ASUS BTF, MSI Project Zero, and GIGABYTE Project STEALTH. This keeps the interior particularly tidy.
Modular I/O panel
Evolv X2 Matrix Front
The I/O panel is located at the bottom side. This allows the case to fit perfectly with your desk and gives you easy access to the ports.
| General | |
|---|---|
| Colour | White |
| Primary Colour | White |
| Dimensions & Weight | |
| Length / Depth | 454 mm |
| Width | 228 mm |
| Height | 588 mm |
| Weight | 14.6 kg |
| Case | |
| Case Type | Mid Tower |
| Materials | Steel, Tempered Glass |
| Motherboard Support | |
| Compatible Formats | ATX, E-ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | E-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 170 mm |
| Max. GPU Length | 380 mm |
| Max. GPU Width | 170 mm |
| Max. PSU Length / Depth | 250 mm |
| Display | |
| Display Included | Yes |
| Display Resolution | 900 Pixel |
| Display Panel Type | LED Panel |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Rear bottom |
| Fan Support | |
| Bottom | 3 × 120 mm |
| Rear | 1 × 120 mm |
| Top | 3 × 120 mm |
| Max. Number of Fans | 7 × 120 mm |
| Radiator Support | |
| Max. Radiator Compatibility | 1 × Triple (360 mm) |
| Top Radiator Support | 360 mm Radiator |

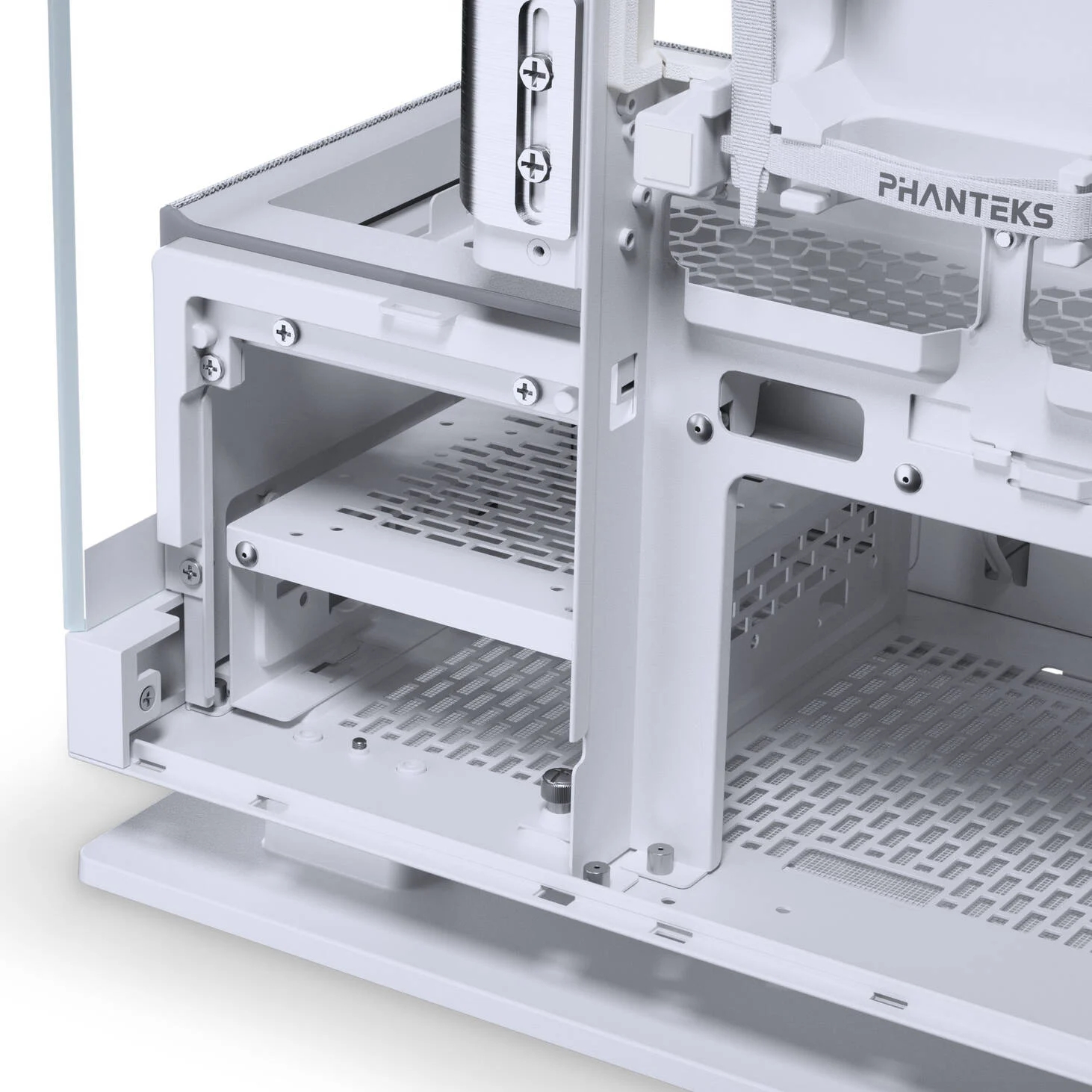

| Drive Bays | |
| Max. 2.5″ Drives | 5 |
| Max. 3.5″ Drives | 2 |
| Max. 5.25″ Drives | 0 |
| Hot Swap Bays | No |
| Front I/O | |
| USB Type-C | 1 × USB 3.2 |
| USB Type-A | 2 × USB 3.0 |
| Audio | 1 × 3.5 mm combo jack (TRRS) |
| Case Features | |
| I/O Position | Side |
| Side Panel | With window |
| Cable Management | Yes |
| Dust Filters | Yes (Bottom, Top) |
| Back Connect | Yes (ASUS BTF, MSI Project Zero) |
| Expansion | |
| Expansion Slots | 8 |
| Lighting | |
| RGB / Lighting | No |
| Product Series | |
| Series / Family | Evolv X2 |
| Included Contents | |
| Fans Included | No |
| Included Fans | None |
£153.72£128.10 Inc VatEx Vat
