– Versatile high-end fan in white with eye-catching ARGB lighting
– Powerful PWM for use in cases or on radiators
– 30 mm depth and aerodynamic fan blades for additional cooling
– Connect up to four fans with clips for easy daisy chaining
– Available in regular or reversed mode to hide spokes and stickers
– Includes screw covers for clean builds
The features of the Phanteks D30-140 fan in detail

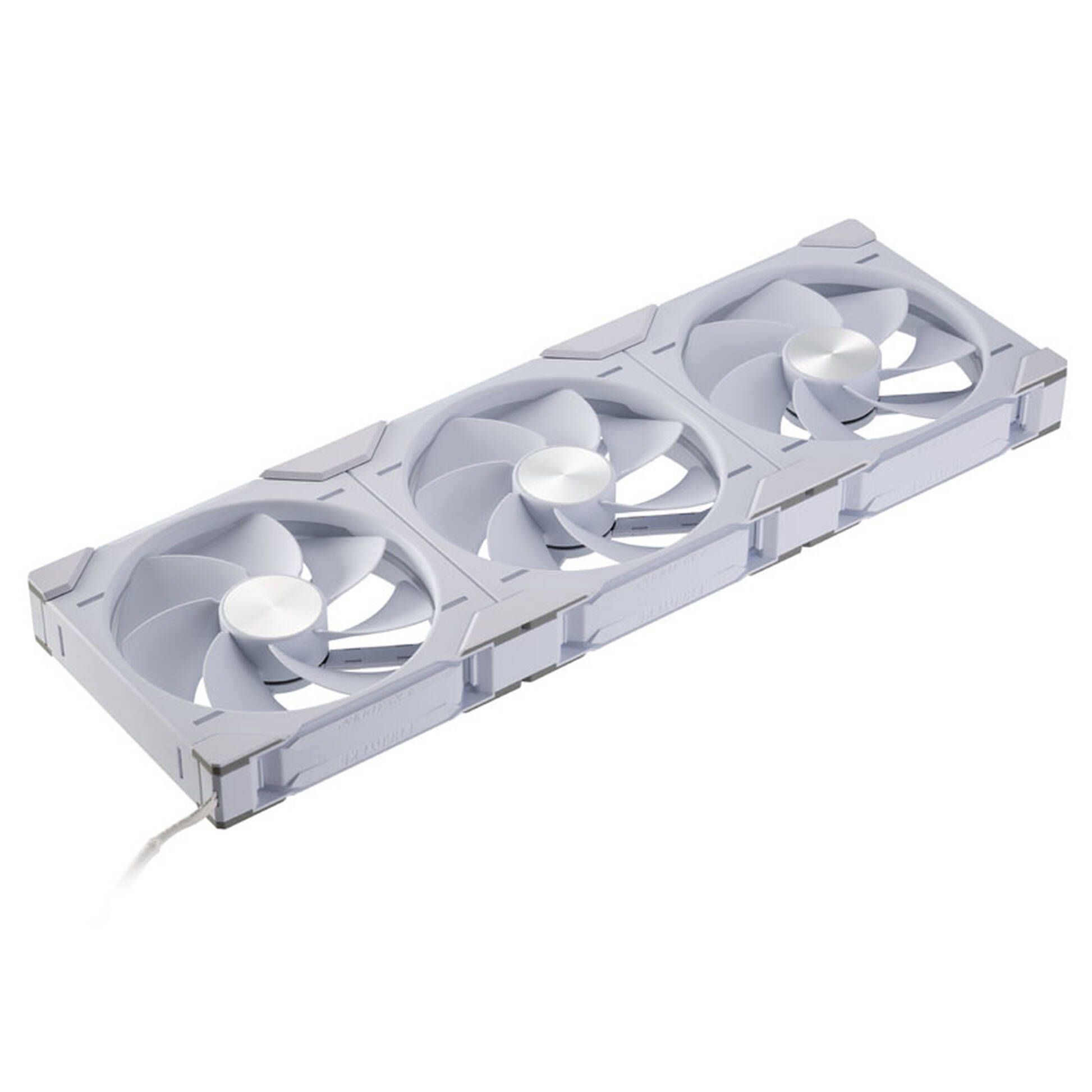

The Phanteks D30-140 PWM D-RGB fans are designed to deliver high airflow and static pressure. Thanks to their 30 mm depth, powerful hydrodynamic PWM motor and aerodynamic fan blades, they can be used to cool your case with restrictive mesh and dust filters or on radiators. In addition, they offer extensive daisy chaining capabilities without tangling cables. You can clip up to four of them together and connect them to your motherboard for PWM and ARGB signals with just one cable.

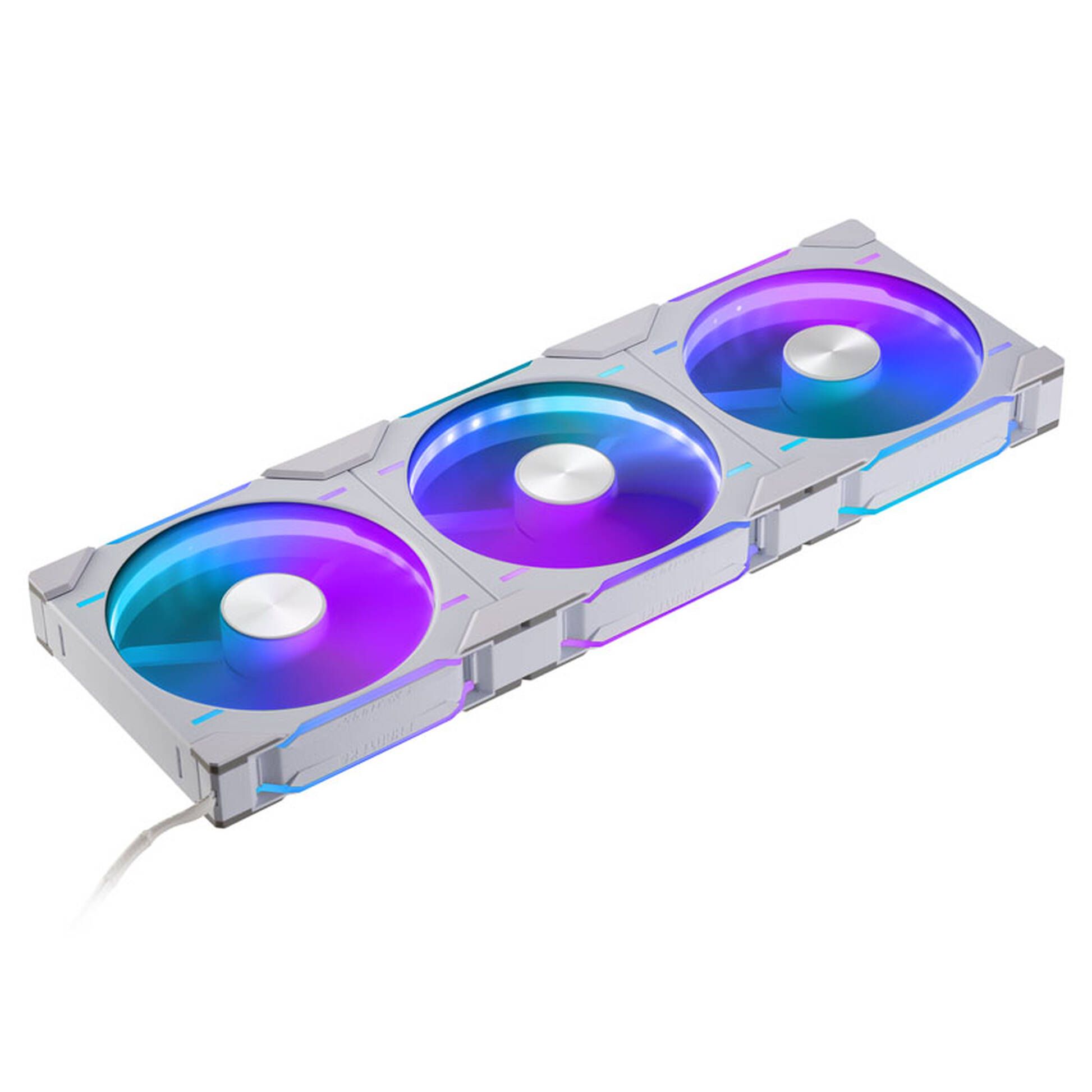

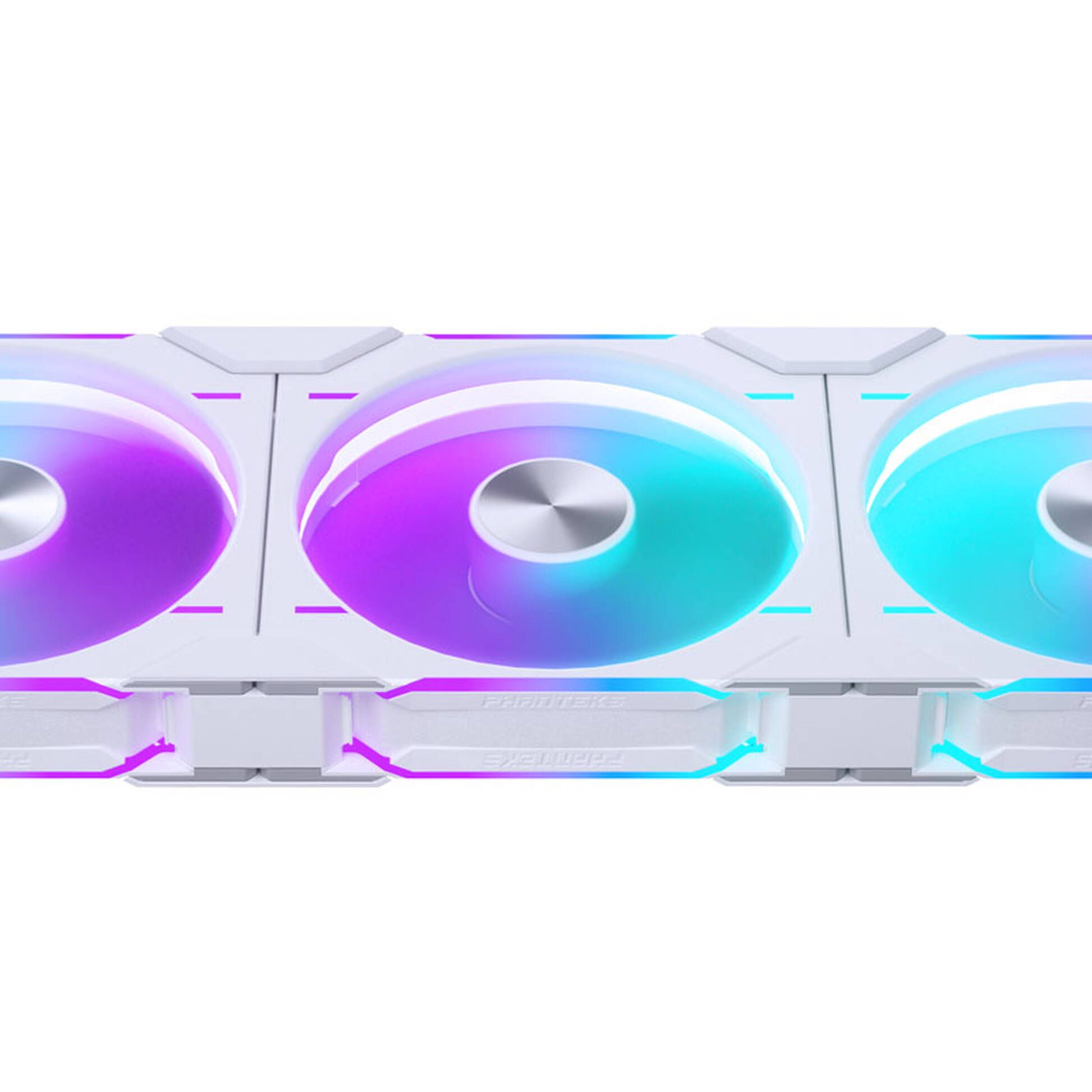

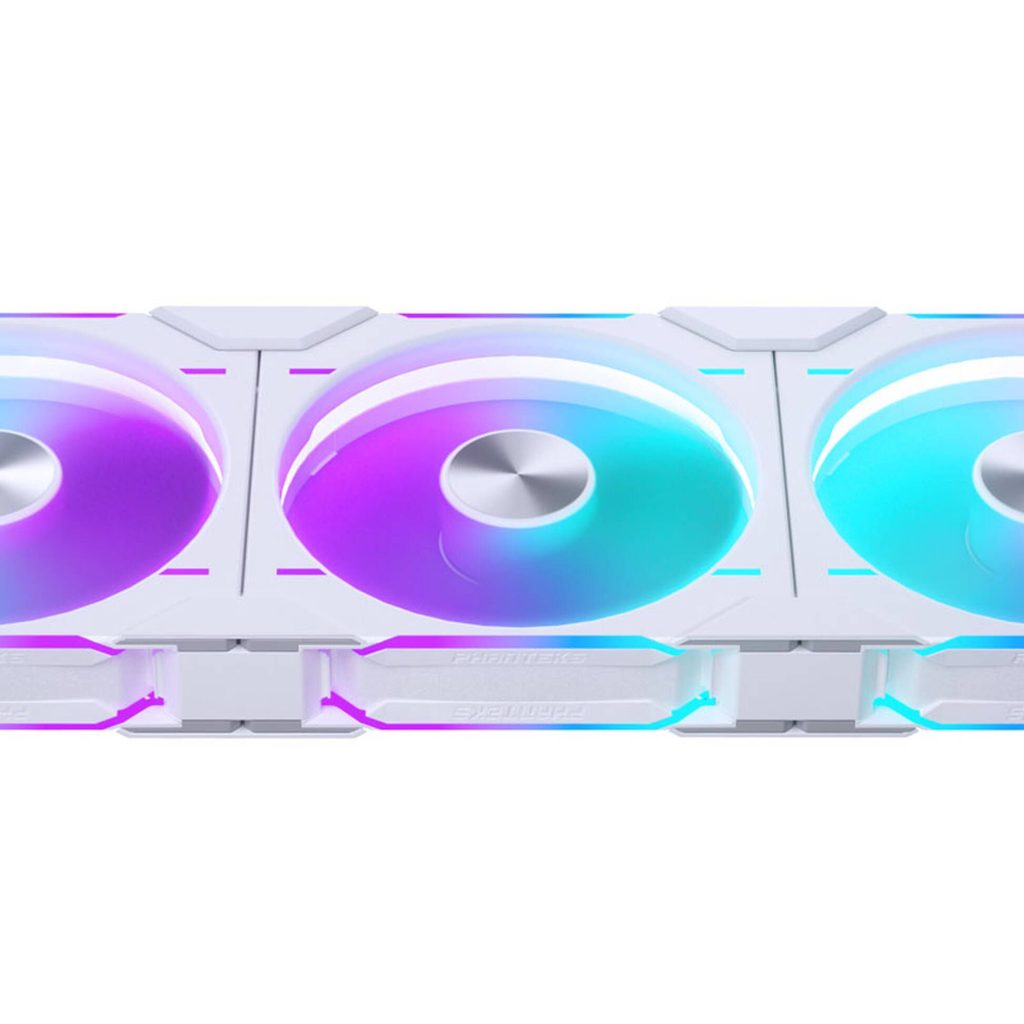

Available in regular and reversed airflow variants, you can choose the model you need to hide unsightly hub stickers and spokes. This means the integrated D-RGB lighting, enhanced by the reflective fan blades, is not obstructed and your build remains pristine. This version supports reversed airflow, directing air from the back to the front and into the case.

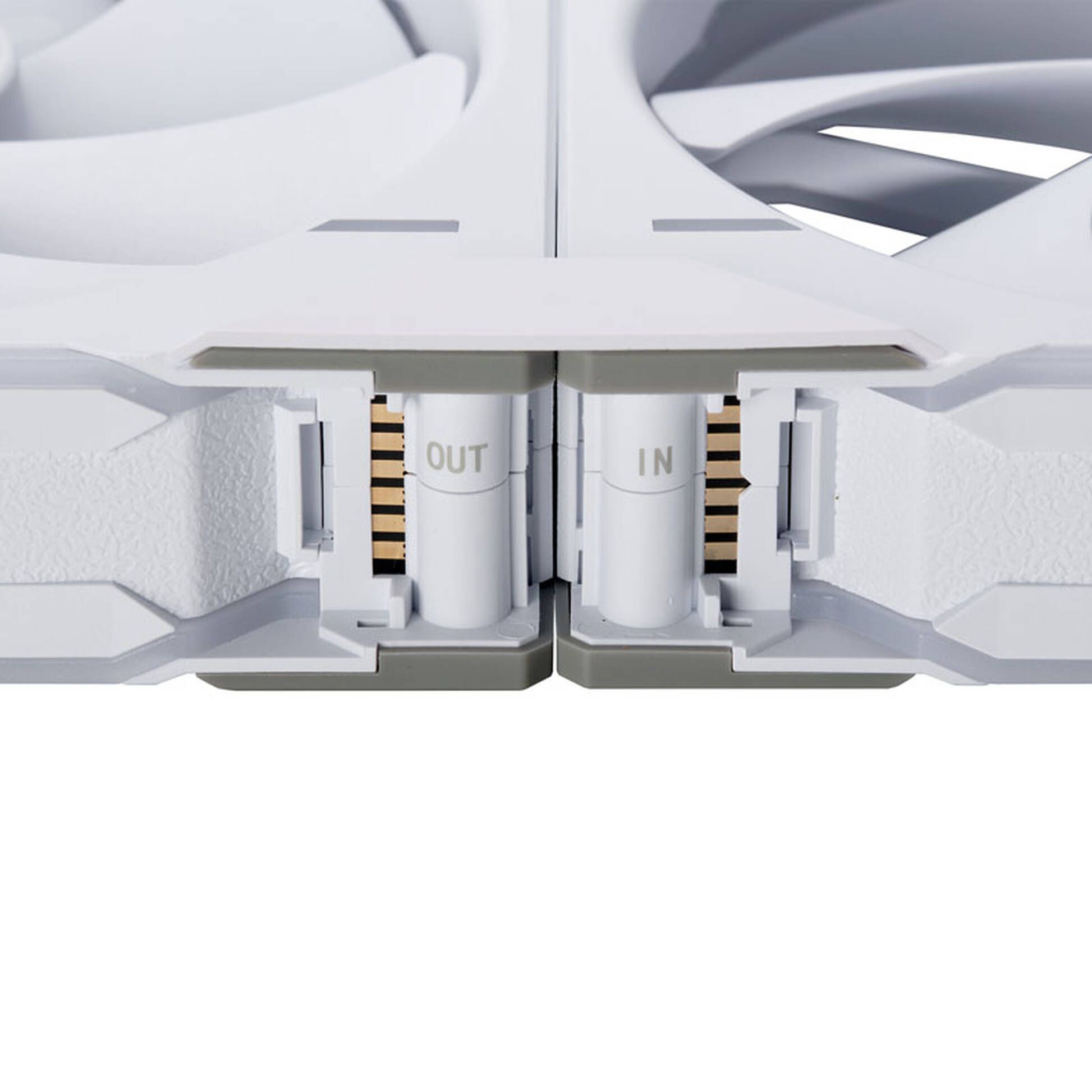

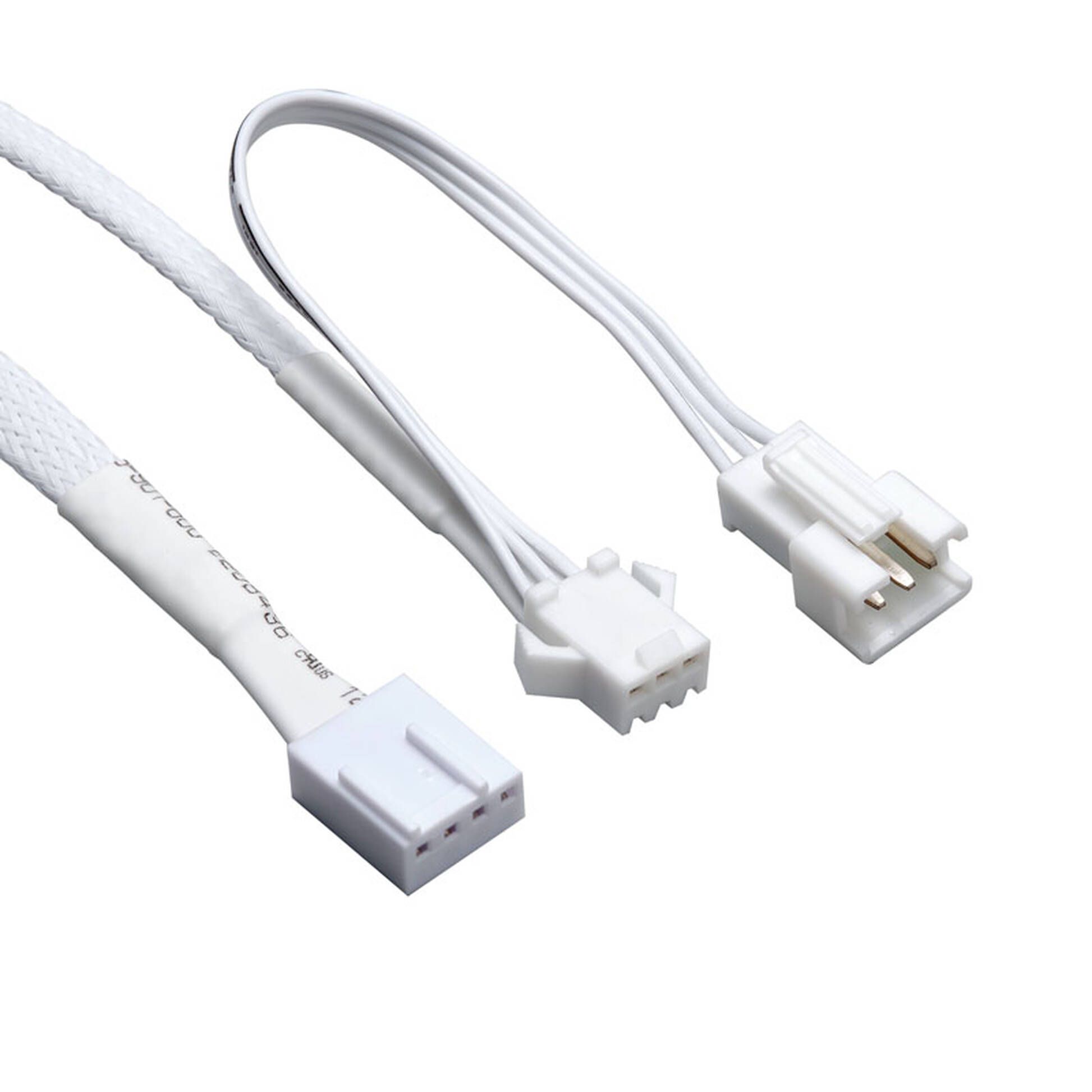

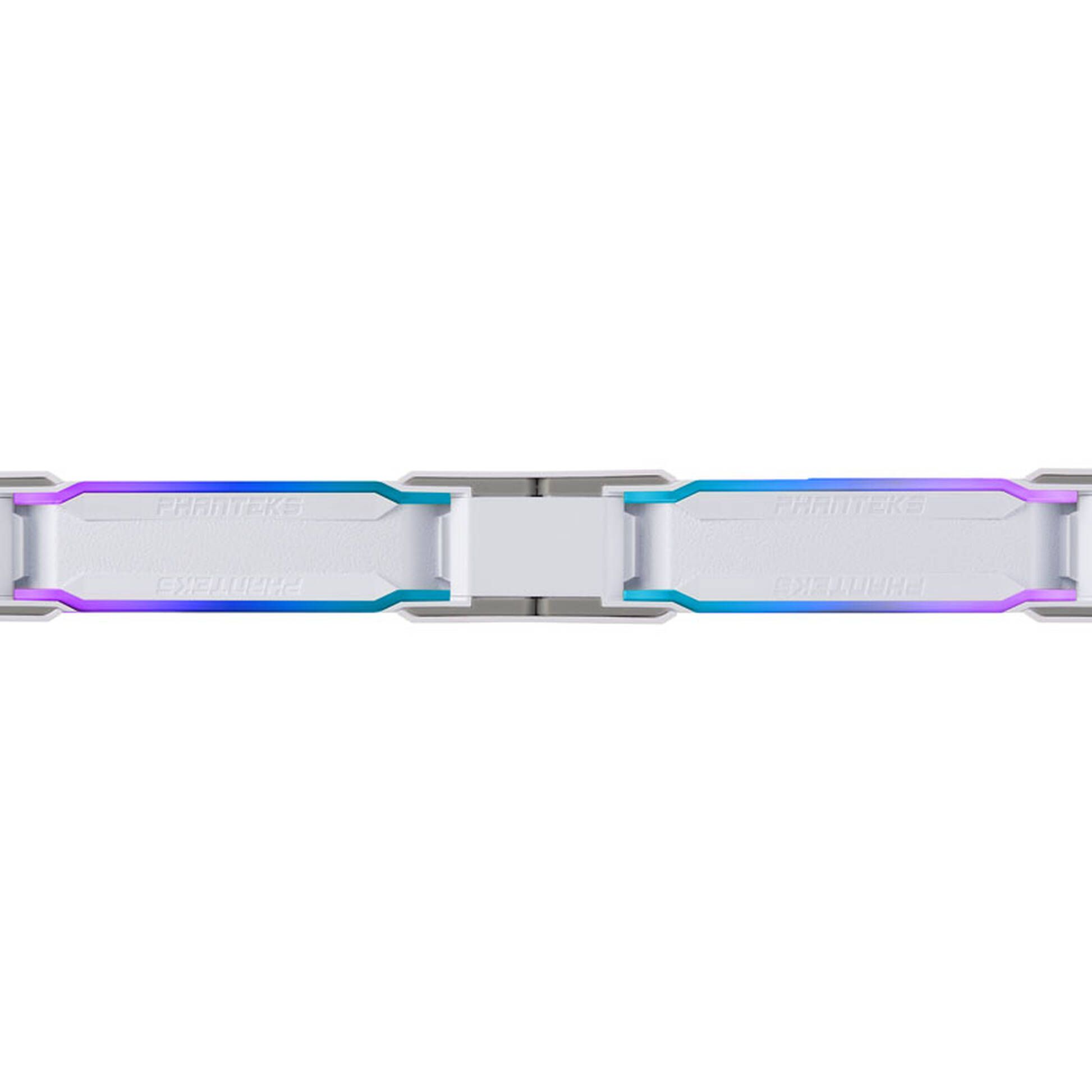

The fans can be connected together via two clips on the sides, one of which routes the power of the first fan through a total of four. This reduces cable clutter as only the first fan needs to be connected to your Phanteks controller via a 4-pin PWM and 3-pin D-RGB JST cable. A D-RGB to 3-pin ARGB adapter cable is included for direct connection to your motherboard.
| Technical Details | |
|---|---|

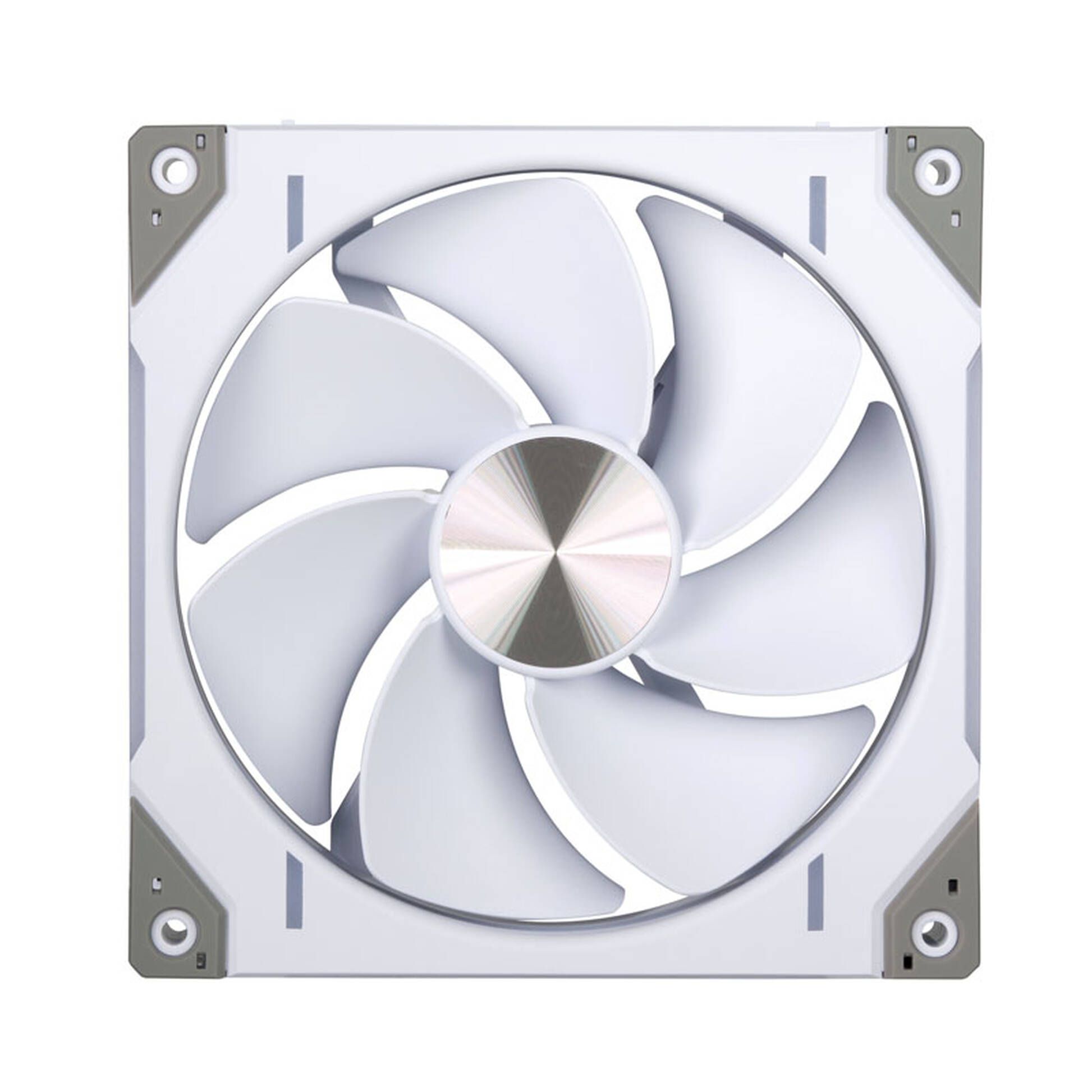

| Dimensions | 140 × 140 × 30 mm (L × W × D) |
| Weight | 266 g |
| Colour | White (Frame), White (Fan Blades) |
| Material | Plastic |
| Bearing Type | Hydrodynamic |
| Airflow Direction | Reversed (Back → Front) |
| Fan Performance | |
| Max Speed | 1,800 RPM |
| Max Airflow | 121.9 m³/h |
| Max Static Pressure | 3.08 mmH₂O |
| Max Noise Level | 32.1 dB(A) |
| Electrical Data | |
| Voltage | 12 V |
| Max Current | 0.15 A |
| Connections | |
| Main Connectors | 4-Pin PWM, 3-Pin JST D-RGB |
| Cable Length | 100 mm + 600 mm |
| Scope of Delivery | |

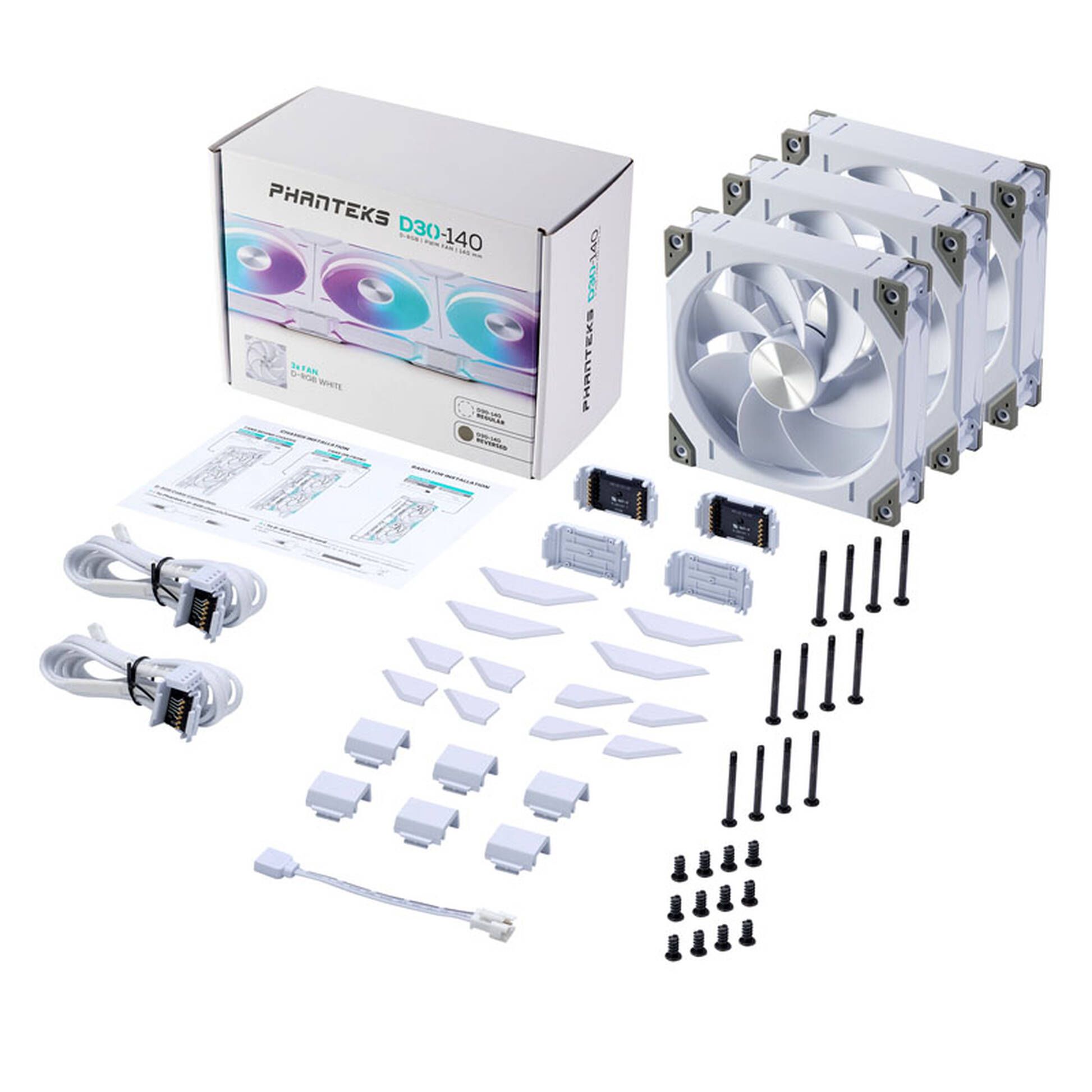

| Included Items | 3× D30-140 Fans 4-Pin & 3-Pin Extension Cable 2× Corner Connection Cable 2× Connection Bridge 6× Corner Clips 2× Connection Clips 4× Screw Covers (Bridge) 4× Screw Covers (Corners L) 4× Screw Covers (Corners R) 12× Fan Screws 12× Radiator Screws D-RGB Mainboard Adapter |
£80.92£67.43 Inc VatEx Vat
