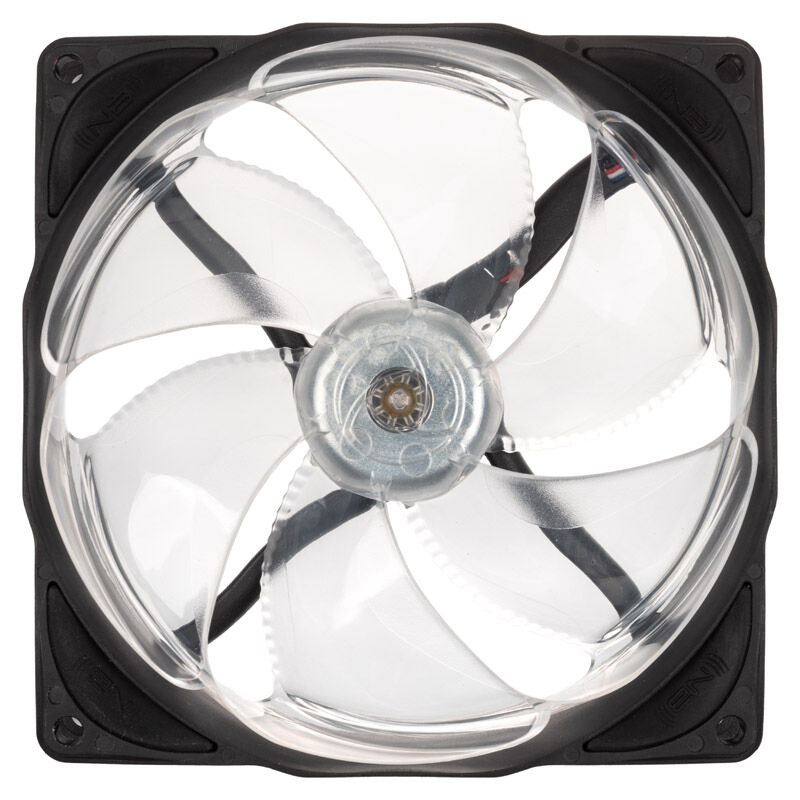

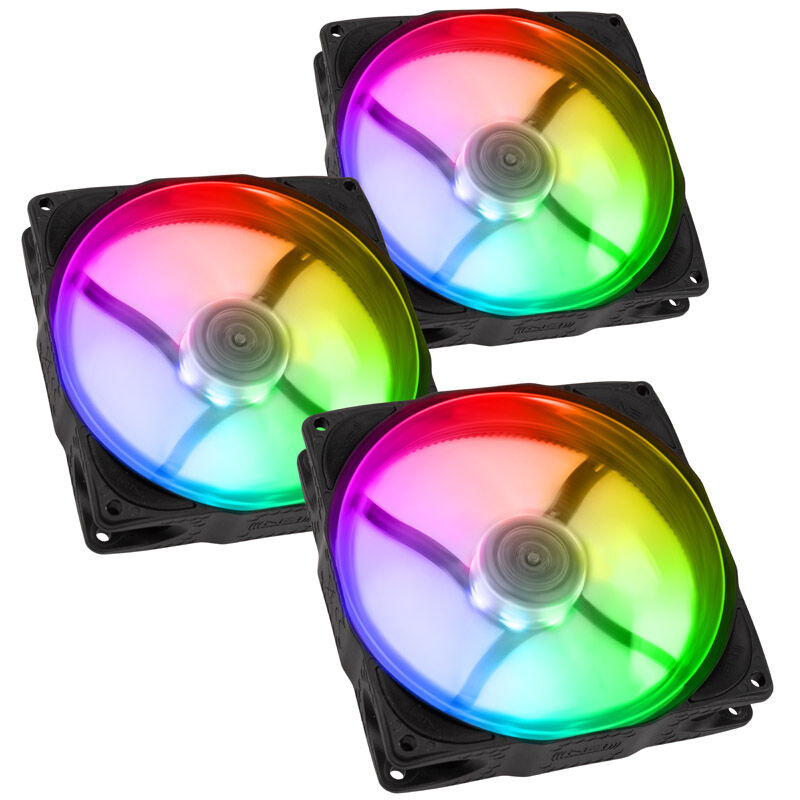

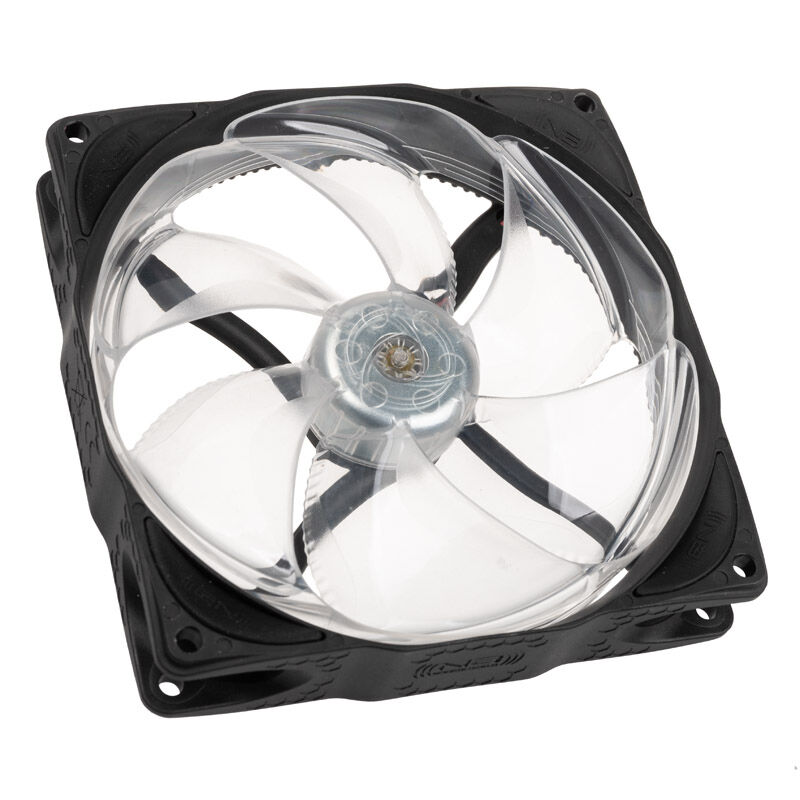

Noise blocker NB-eLoop X B12-PS ARGB, PWM - 120 mm, black - set of 3

Noiseblocker NB-eLoop X: Bionic Loop Fan with subtle RGB lighting
Noiseblocker NB-eLoop X Fan
The German company Blacknoise has been producing case fans since 1998 and is known for its Black Silent Fan and Ultra Silent Fan series. However, the company was able to particularly inspire fans of silent PCs with the introduction of the Noiseblocker eLoop fans in 2012. The NB-eLoop, with its bionic base, combines impressive silent properties with excellent technology. With the NB-eLoop X fan series, Noiseblocker now offers a special design fan for case modders, design lovers and RGB LED fans.

The new X models are designed in a subtle black or white and are therefore perfect for visually enhancing PCs and at the same time improving cooling performance – without negatively affecting the noise level. The new neutral color model allows a symbiosis with any accent color, meaning the fans can be combined with any housing and component selection. Even the integrated RGB lighting is understated: a total of seven digitally addressable RGB LEDs are built into the hub and illuminate the transparent rotor blades and the frame from there.

The features of the Noiseblocker NB-eLoop X Fan B12-PS ARGB in black at a glance
– Noiseblocker NB-eLoop X Fan
– Simple black to combine with any accent color
– Modern fans with unique bionic blade shape and transparent blades
– Digitally addressable RGB LEDs with 3-pin connection (5VDG) for high compatibility
– Extremely low noise emission of max. 21.2 db(A)
– Impressive airflow of max. 98.7 m³/h
– 0 to 1,500 rpm, connection via 4-pin PWM
– Very long life expectancy of up to 120,000 hours
– Guarantee: 2 years
– Noiseblocker NB-eLoop X Fan
– Bionic fans with unique blade shape

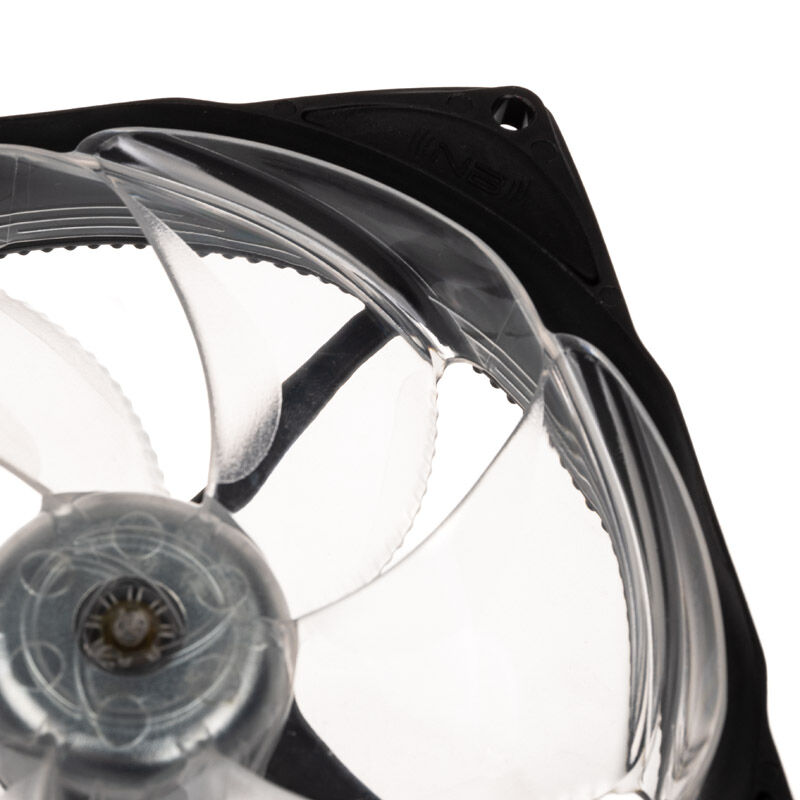

The most striking feature of Noiseblockers bionic fans is the unique blade shape, which makes the noise in the air flow itself quieter. At the same time, the fans concentrate the air flow. This enables a directed air flow with less scattering loss, which can offer corresponding advantages depending on the area of application and combined technology (directed air transport, airflow management, water cooling).

The technology reduces the noise emissions of the air, increases the air flow rate at the same speed on a defined area and can also save energy during operation. In addition to the bionic (i.e. the naturally occurring, modeled) fan shape and optimized electronics, the high-tech fans can also feature other innovative innovations. These include a further developed NanoSLI bearing (version 2) from Noiseblocker and a closed encapsulation to protect against dust.

Intensive research with funding from the Federal Ministry
The eLoop fans are based on the research results of the bionics expert Dr. Rudolf Bannasch, who developed the basic principles of the loop rotor with his research. The technology was brought to application and production maturity in the Noiseblocker development laboratory. The complex development was made possible by funding from the Federal Ministry of Economics and Technology. The aim of the project was to develop the quietest fans in the world.

Energy and noise efficient
The NB-eLoop X B12-PS ARGB works in a range between 0 and 1,500 rpm thanks to the PWM function and can generate a considerable static pressure of up to 1.802 mmH2O. However, it becomes absolutely impressive when you look at the airflow, i.e. the air flow rate. An enormous 98.7 m³/h at maximum are generated here despite the low speed range. At 12 volts and full speed, the fan is still no louder than a maximum of 21.2 dB(A) – thats a top value.

Noiseblocker NB-eLoop X Fan
Cable management, decoupling and lighting

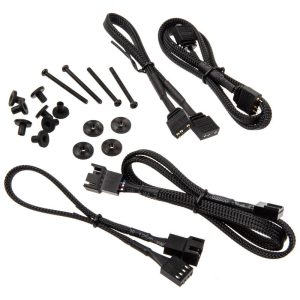

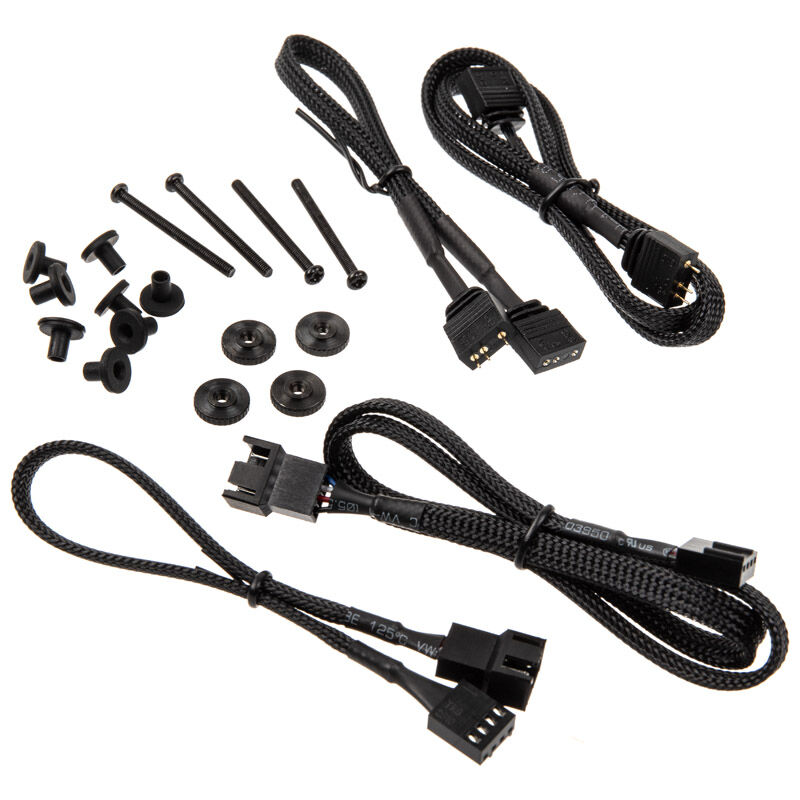

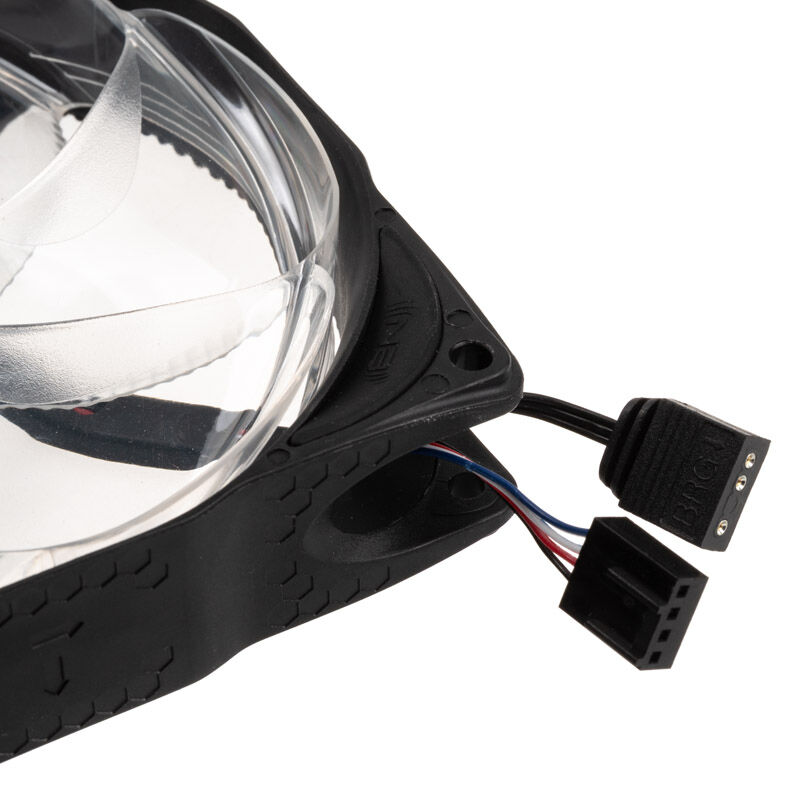

The NB-eLoop also has cable management: only a very short 4-pin cable is attached to the fan itself, the length of which can be varied using two adapter cables supplied. Thanks to the choice of polycarbonate material, in particular Makrolon, the chassis is also resonance-damped and comes with additional decouplers.

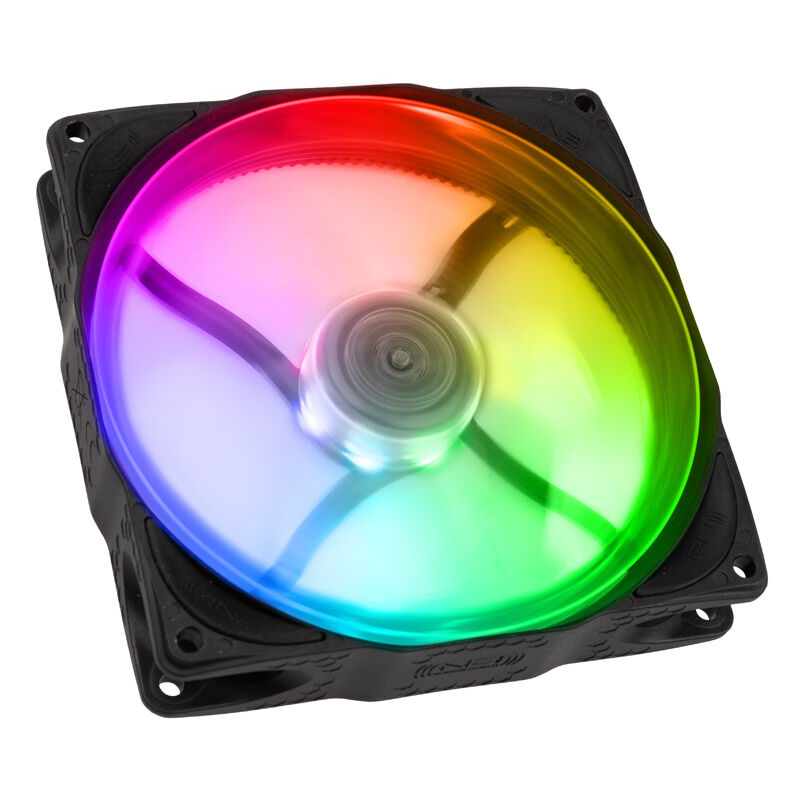

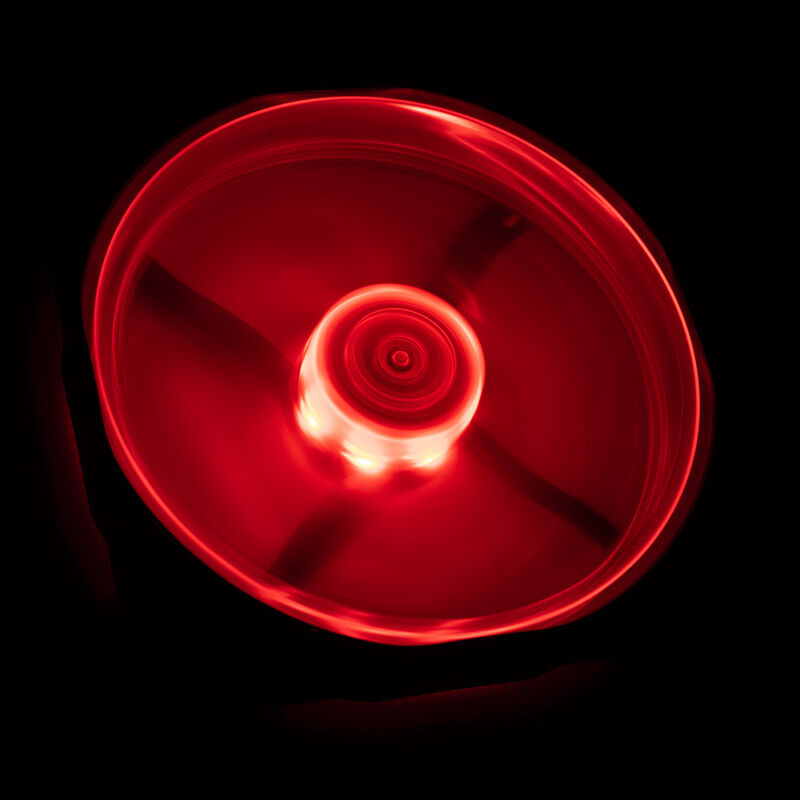

A total of seven digitally addressable RGB LEDs are installed in the hub, which discreetly illuminate the completely transparent fan blades. Thanks to the widely used 3-pin connector (5VDG), the fans can be easily connected directly to a correspondingly equipped mainboard or to a controller. The lighting can be controlled via ASUS Aura Sync, MSI Mystic Light or GIGABYTE RGB Fusion.
