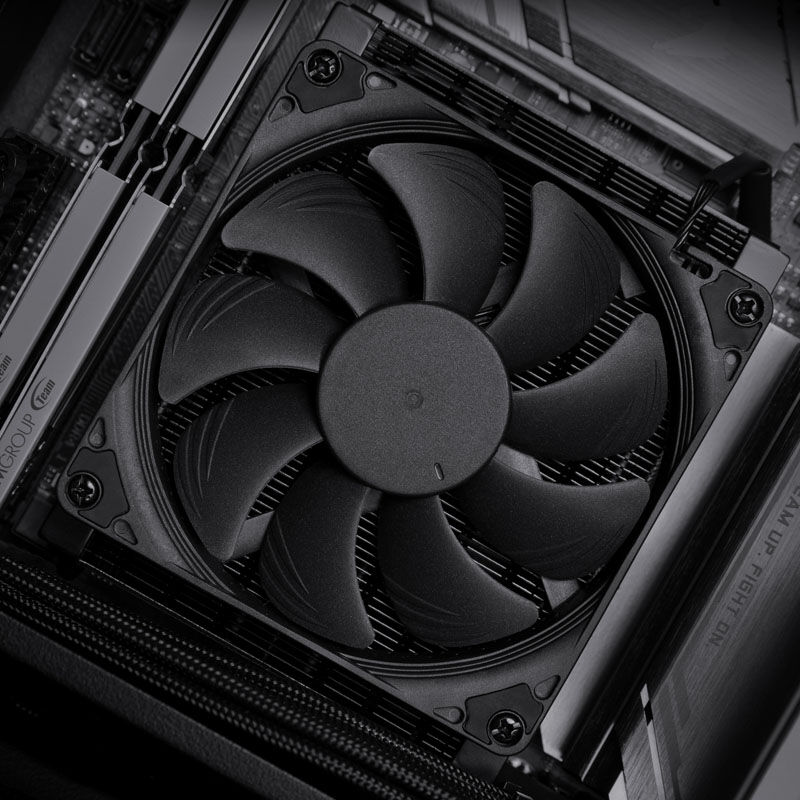

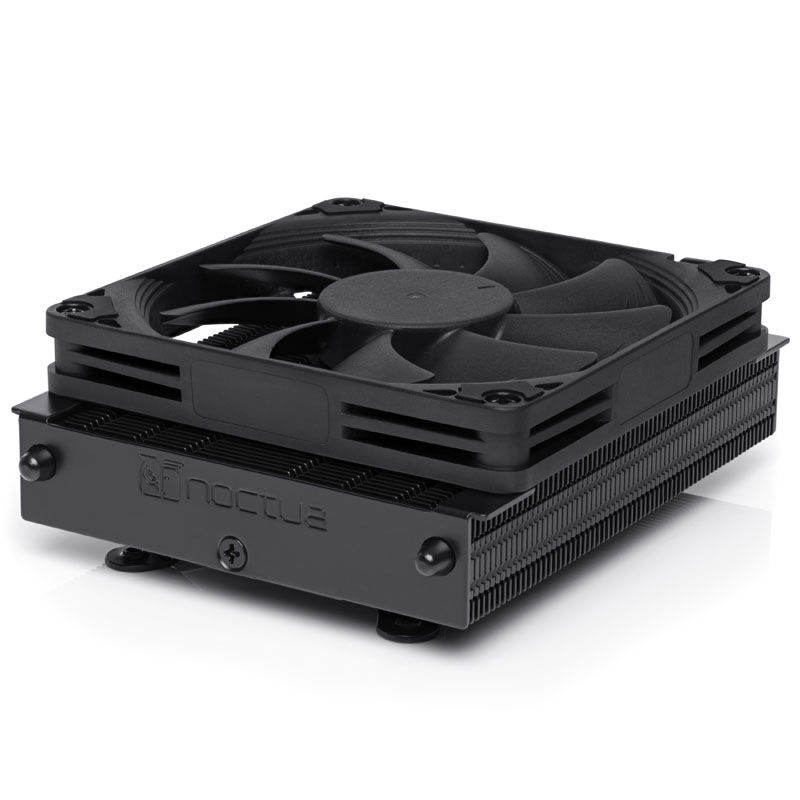

The NH-L9a-AM4 chromax.black is a quiet premium cooler for AMD AM4 based HTPCs and small form factor systems. With a super-flat height of only 37mm, the NH-L9a-AM4 chromax.black is ideal for particularly compact cases and thanks to its compact footprint, the cooler offers full compatibility with memory modules and VGA cards on mini-ITX mainboards.
The NH-L9a-AM4 chromax.black is a quiet premium cooler for AMD AM4 based HTPCs and small form factor systems. With a super-flat height of only 37mm, the NH-L9a-AM4 chromax.black is ideal for particularly compact cases and thanks to its compact footprint, the cooler offers full compatibility with memory modules and VGA cards on mini-ITX mainboards.
The NH-L9a-AM4 chromax.black is a quiet premium cooler for AMD AM4 based HTPCs and small form factor systems. With a super-flat height of only 37mm, the NH-L9a-AM4 chromax.black is ideal for particularly compact cases and thanks to its compact footprint, the cooler offers full compatibility with memory modules and VGA cards on mini-ITX mainboards.
The NH-L9a-AM4 chromax.black is a quiet premium cooler for AMD AM4 based HTPCs and small form factor systems. With a super-flat height of only 37mm, the NH-L9a-AM4 chromax.black is ideal for particularly compact cases and thanks to its compact footprint, the cooler offers full compatibility with memory modules and VGA cards on mini-ITX mainboards.
The features of the Noctua NH-L9a-AM4 chromax.black at a glance:
– Special edition of the NH-L9a-AM4 from Noctua
– Black coated heatsink and matching accessories
– Extremely flat design
– Two copper heat pipes
– Includes 92mm NF-A9x14 HS-PWM fan
– 57.5 m³/h conveying volume at 23.6 dB(A)
– Customizable with optional accessories
The features of the Noctua NH-L9a-AM4 chromax.black in detail

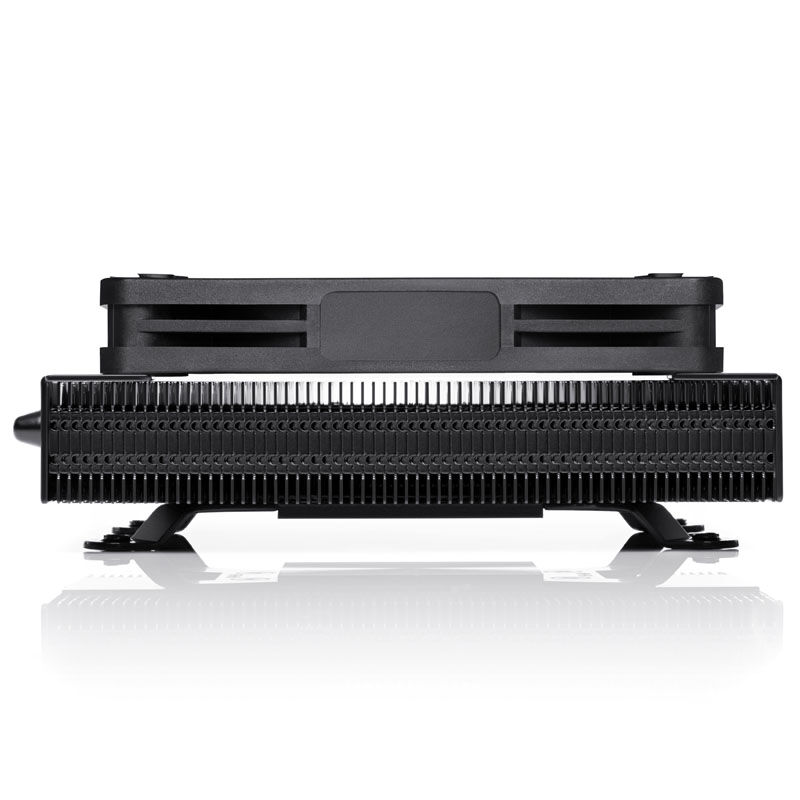

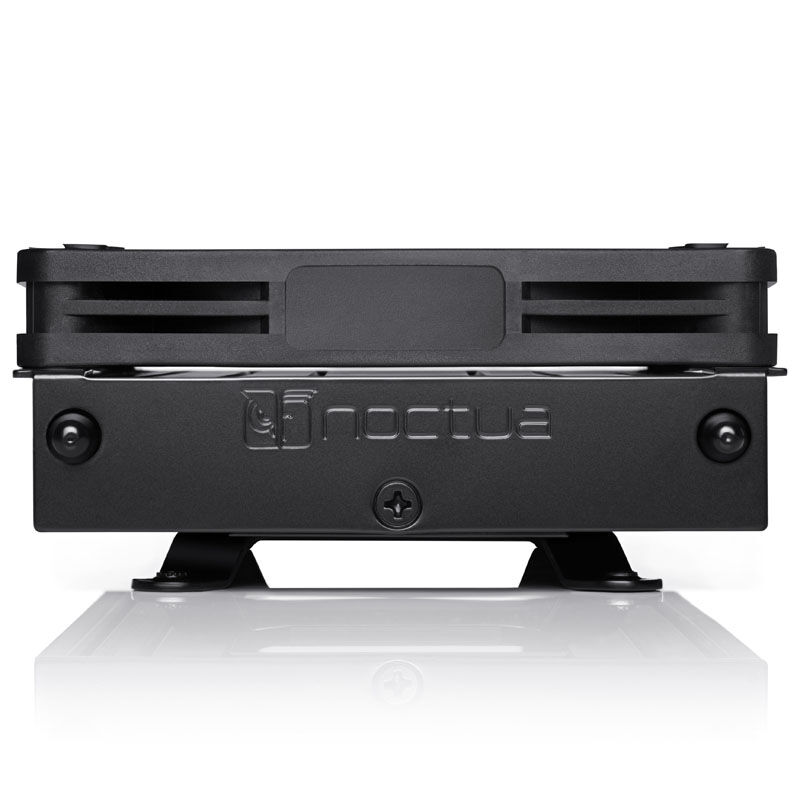

Thanks to the extremely low heatsink (23 mm) and the 14 mm slim fan, the overall height of the NH-L9a-AM4 chromax.black is only 37 mm. This makes the cooler ideal for compact HTPCs and small form factor cases that only offer very little space for CPU coolers. The NH-L9a-AM4 chromax.black features a compact footprint that fits snugly in the AM4 sockets keep-out zone. So there are no problems with other parts or components.
The highly optimized NF-A9x14 HS-PWM premium fan supports PWM for fully automatic speed control and uses innovative aerodynamic construction measures and Noctuas AAO frame system. With a volume of just 23.6 dB(A).With a speed of up to 2,500 rpm and a decent 57.5 m³/h airflow , the fan shows impressive values despite its small size of only 92 x 92 x 14 millimeters. With the Low-Noise Adapter (LNA), the speed of the NF-A9x14 HS-PWM fan can be reduced to 1,800 rpm. If you need more power reserves, you can replace the pre-installed fan with a 92 model with a height of 25 millimeters.
Chic stealth design with options

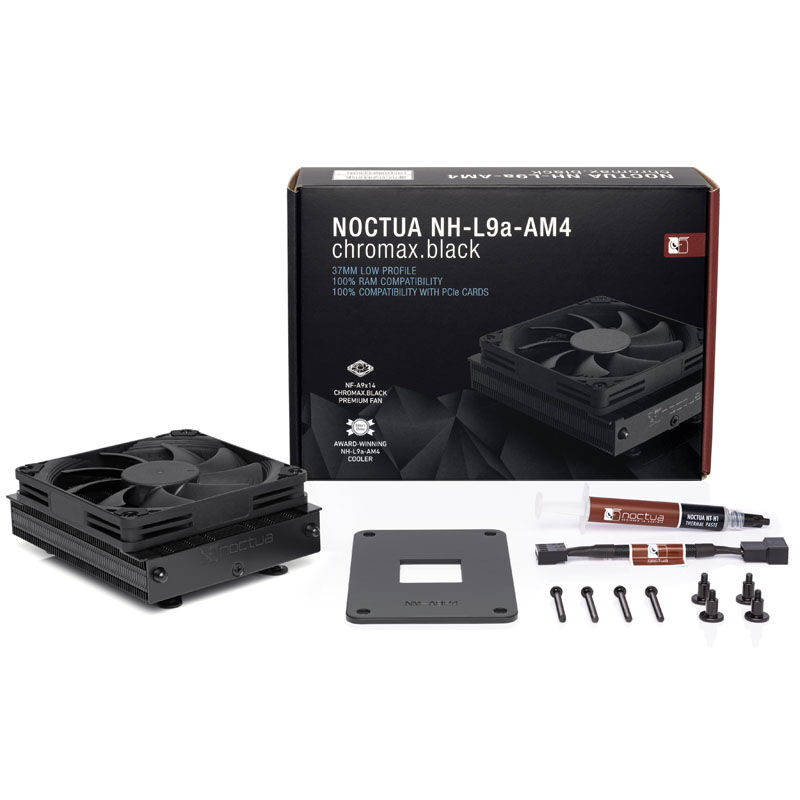

The special edition of the NH-L9a-AM4 , the chromax.black edition , is completely black . This means that not only the cooler with its fins has been coated black. The color of the fan, the associated anti-vibration pads, the fan clips and the mounting material have also been adapted.
As a special highlight, the color of the NH-L9a-AM4 chromax.black can be adjusted with accessories . With optional radiator covers and anti-vibration pads, many color combinations can be realized and popular color schemes such as black/white or black/red and many more can be achieved.
The all-round high-quality package is rounded off by the proven SecuFirm2 mounting system, Noctuas renowned NT-H1 thermal compound and a 6-year manufacturers guarantee. Its excellent cooling performance, excellent running smoothness and excellent compatibility make the NH-L9a-AM4 chromax.black a premium solution for the highest demands.
| HEATSINK SPECIFICATIONS | |
| Dimensions | 95 × 37 × 95 mm (W × H × D) |
| Material | Copper (Base & Heatpipes), Aluminium (Fins) |
| Weight | Approx. 380 g |
| Heatpipes | 2 |
| FAN SPECIFICATIONS | |
| Fan Dimensions | 92 × 92 × 14 mm (L × W × H) |
| Connection | 4-Pin PWM |
| Standard Performance | 2,500 RPM / 57.5 m³/h / 23.6 dB(A) |
| L.N.A. Performance | 1,800 RPM / 40.8 m³/h / 14.8 dB(A) |
| Power Consumption | 2.52 W |
| Operating Voltage | 12 V |
| MTBF | >150,000 Hours |
| COMPATIBILITY | |
| Socket Support | AMD AM4 |
| WARRANTY | |
| Manufacturer Guarantee | 6 Years |
