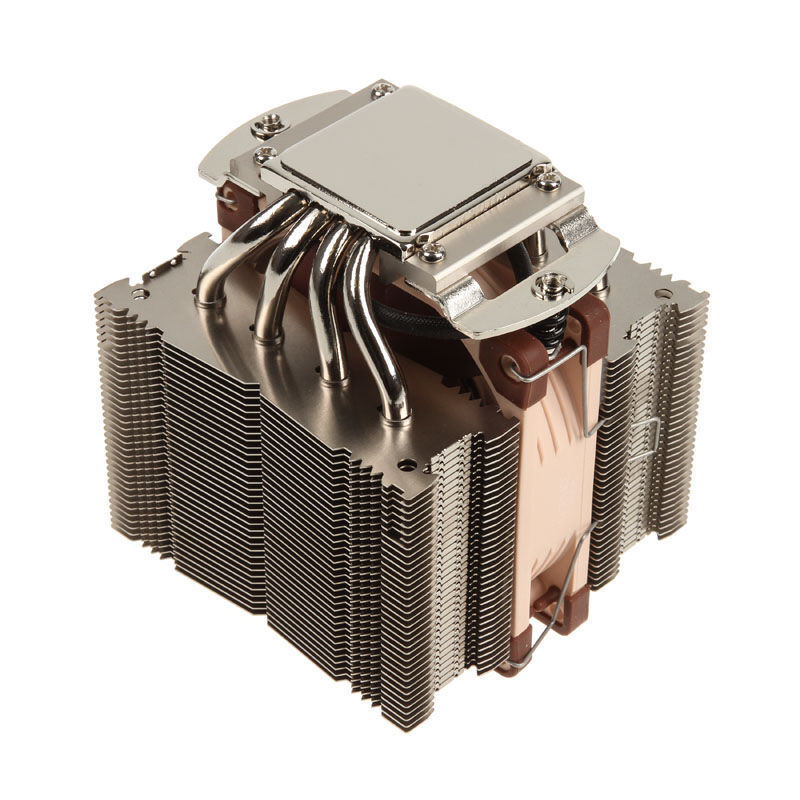

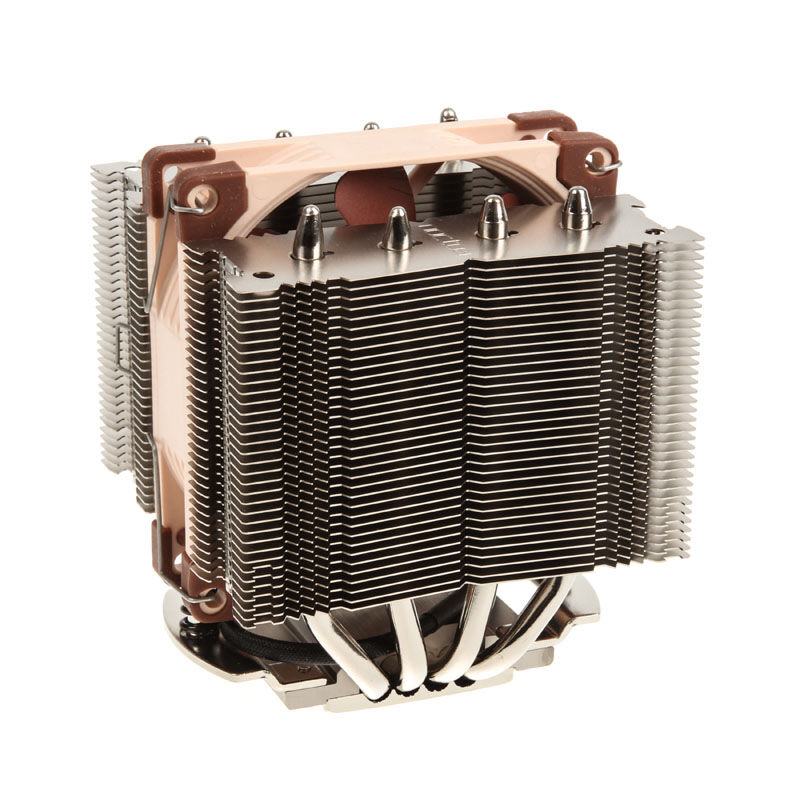

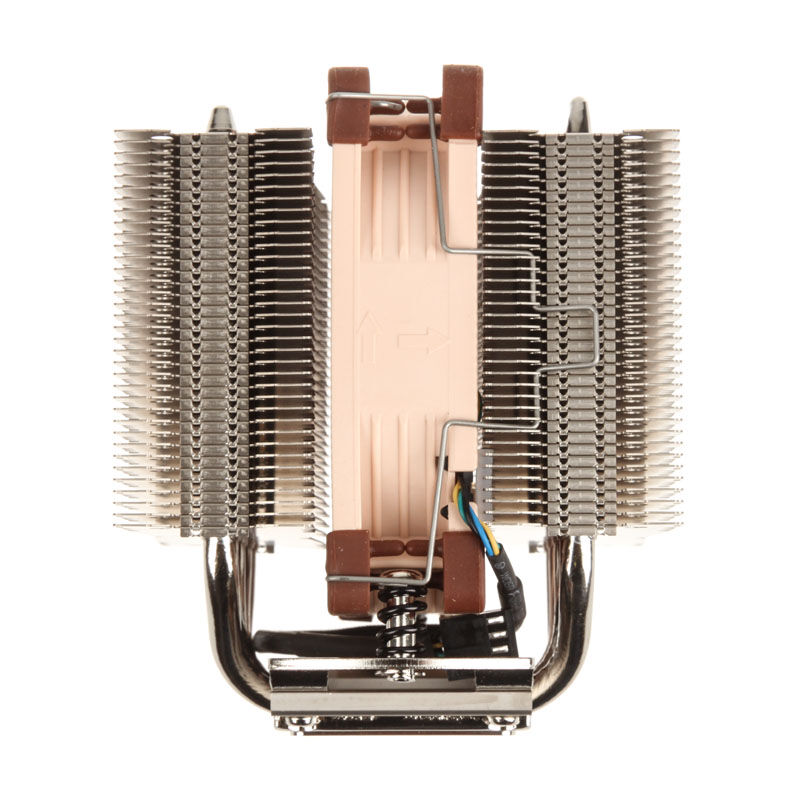

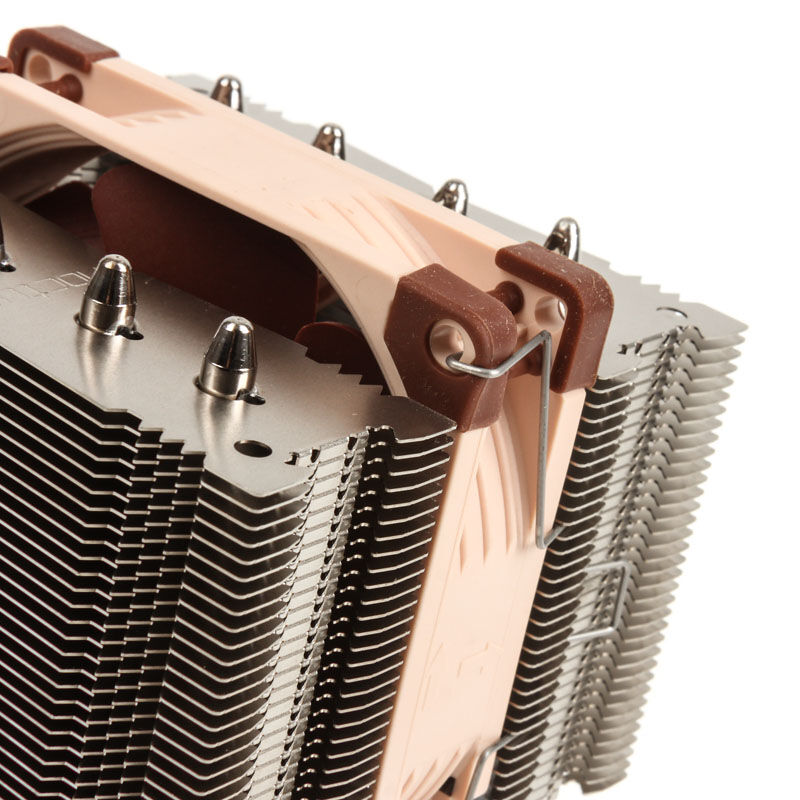

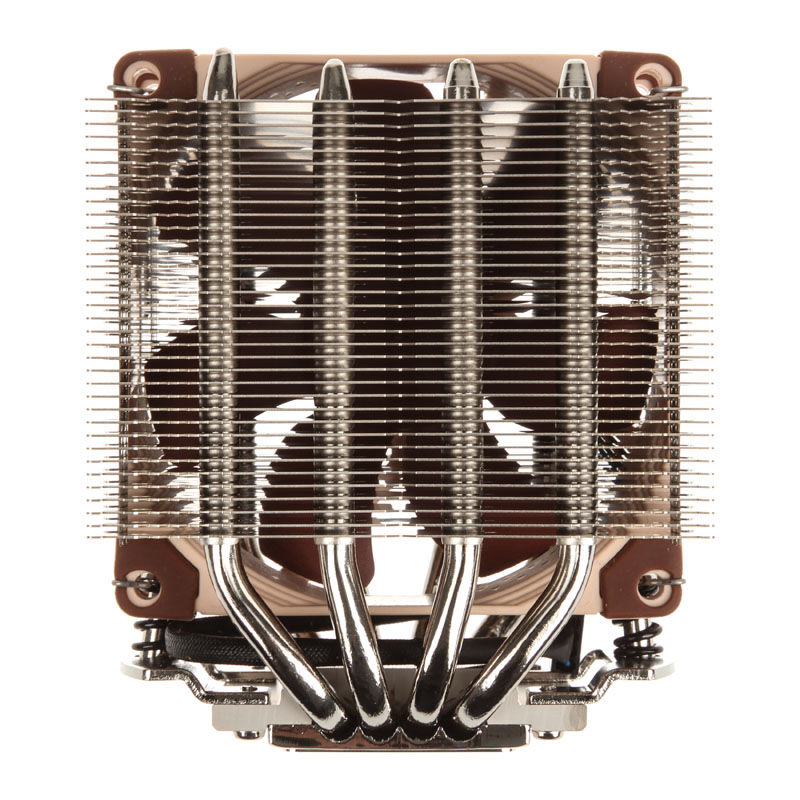

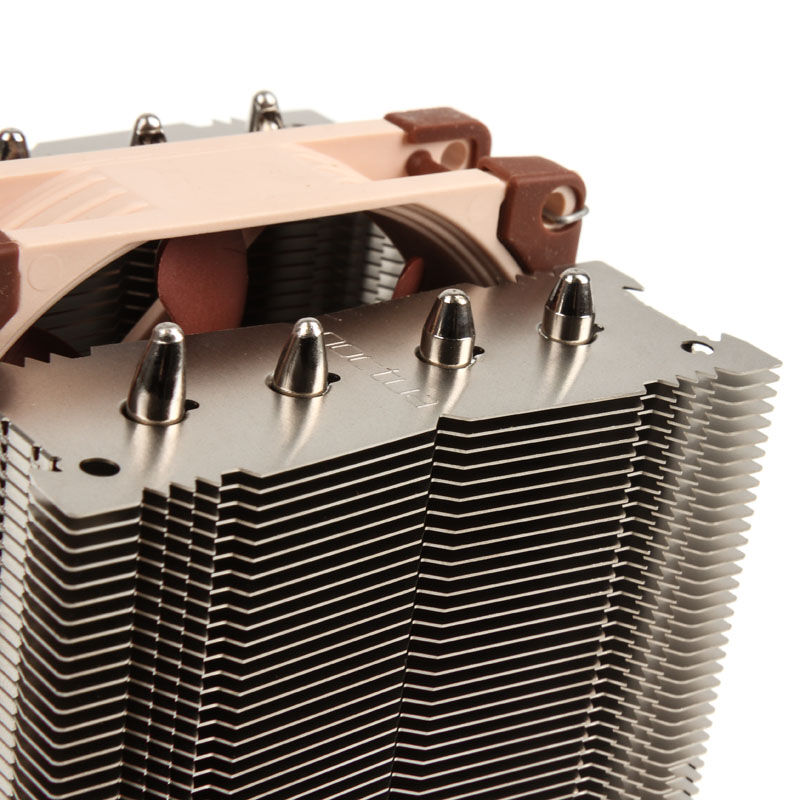

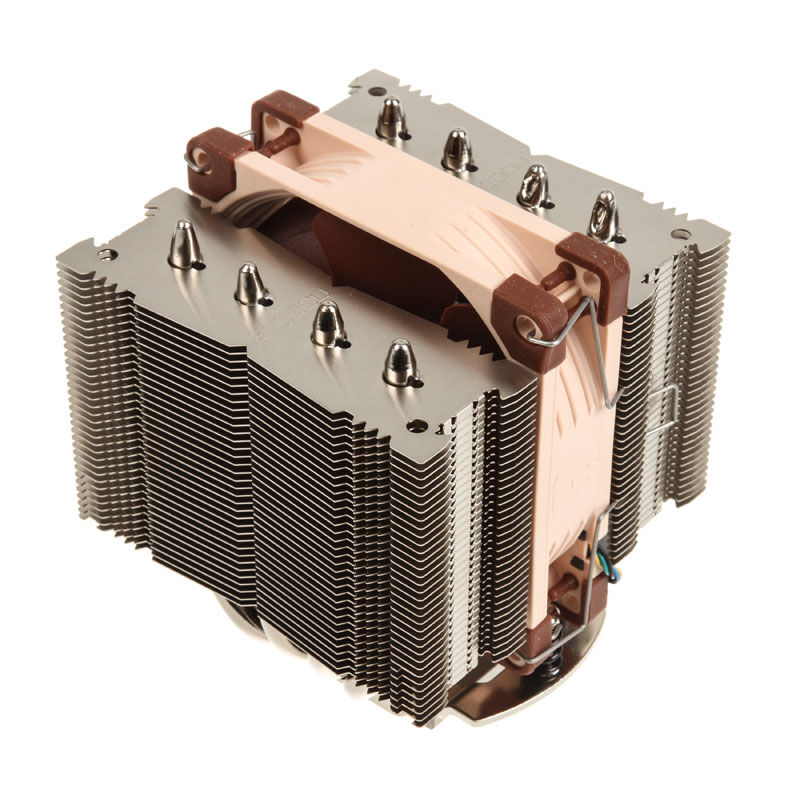

The Noctua NH-D9L is a premium engine in twin tower design that provides excellent quiet cooling performance with an overall height of only 110 mm. The relatively low height (15 mm less than classic 9-cm-cooler such as the Noctua NH-U9S) guarantees not only fully compatible, but the NH-D9L also an ideal solution for compact HTPCs and small-form-factor Cases in which the air flow is parallel to the motherboard.
Thanks to its footprint of just 95 x 95 mm extends the NH D9L on all Intel and most AMD-based Mini-ITX motherboards do not have the memory banks or PCIe slots. For outstanding quietness of the supplied premium fan NF-A9, whose speed can be controlled fully automatically via PWM provides. With a second, optional NF-A9, the cooling capacity can be increased even further in double fan operation.

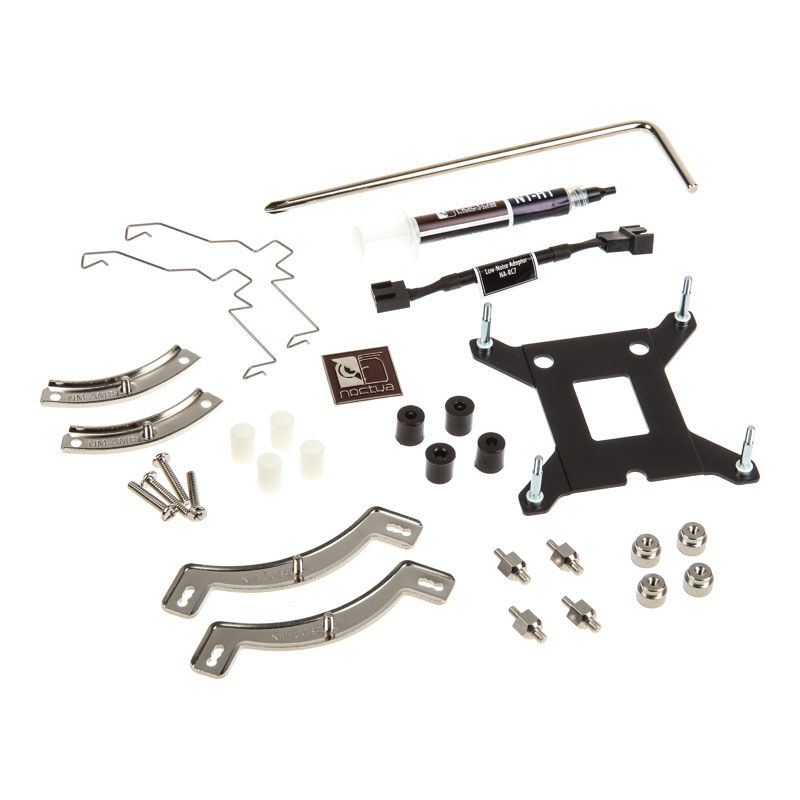

The all-round quality package with the proven SecuFirm2 -Multi-socket mounting system Noctuas renowned thermal grease NT-H1 and the full 6 years manufacturers warranty make the Noctua NH-D9L an excellent choice for confined spaces.
| Heatsink Specifications | |
|---|---|
| Dimensions (Without Fan) | 95 x 110 x 68 mm (W x H x D) |
| Dimensions (With Fan) | 95 x 110 x 95 mm (W x H x D) |
| Weight (Without / With Fan) | Approx. 428 g / Approx. 531 g |

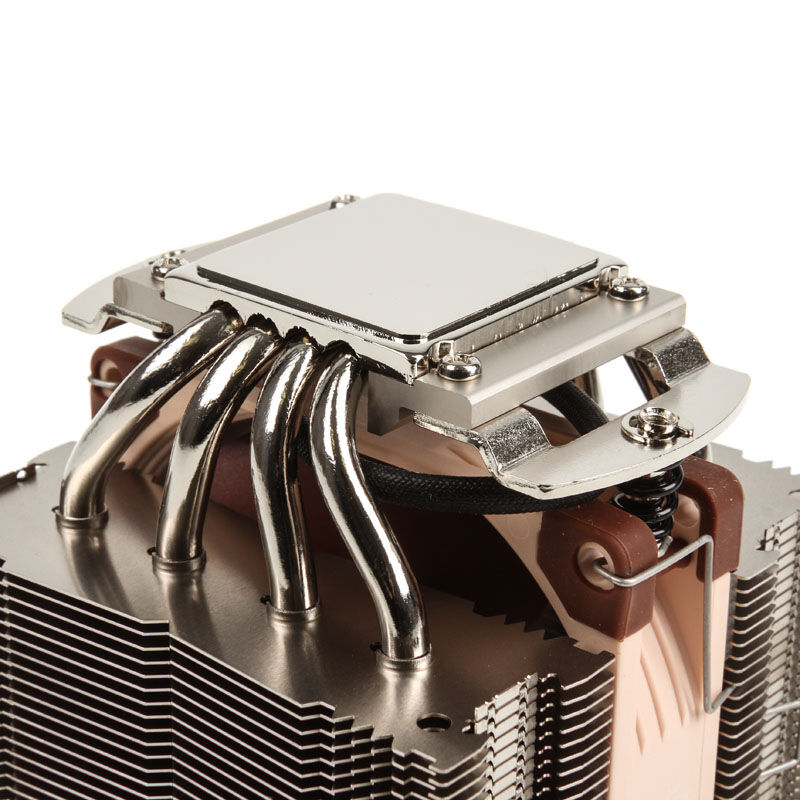

| Material | Nickel-Plated Copper (Base & Heatpipes), Aluminum Fins |
| Heatpipes | 4x Ø 6 mm |
| MTBF | > 150,000 hours |
| Warranty | 6 years |
| Fan Specifications | |
| Fan Model | 1x 92 mm NF-A9 PWM |
| Speed (Standard) | 2000 RPM |
| Noise Level (Standard) | 22.8 dB(A) |
| Airflow (Standard) | 78.9 m³/h |
| Speed (With L.N.A.) | 1550 RPM |
| Noise Level (With L.N.A.) | 16.3 dB(A) |
| Airflow (With L.N.A.) | 62.6 m³/h |
| Power Consumption | 1.2 W |
| Operating Voltage | 12 V |
| Socket Compatibility | |
| Intel: LGA 1150, 1155, 1156, 2011, 2011-V3 AMD: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (Original AMD motherboard backplate required) | |
