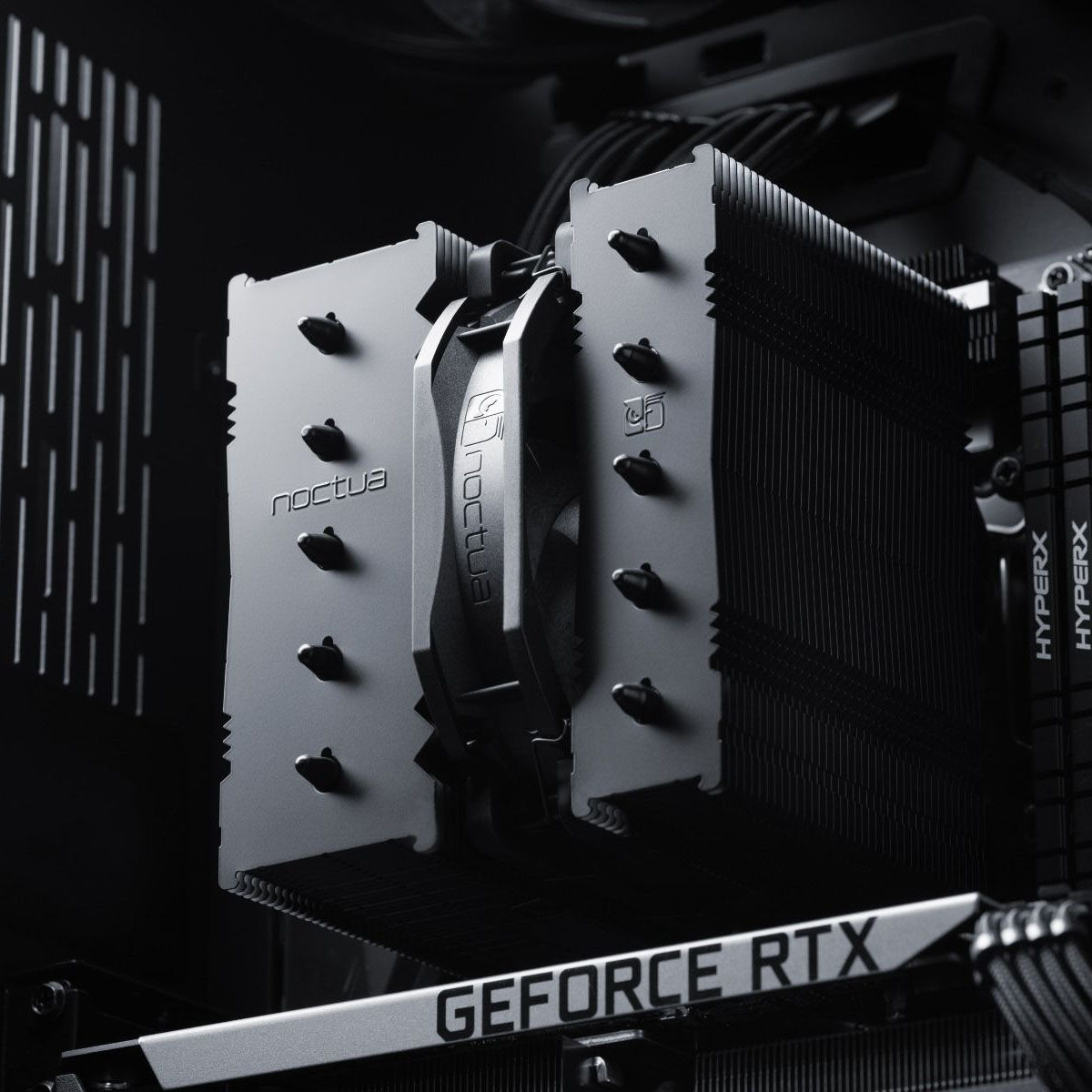

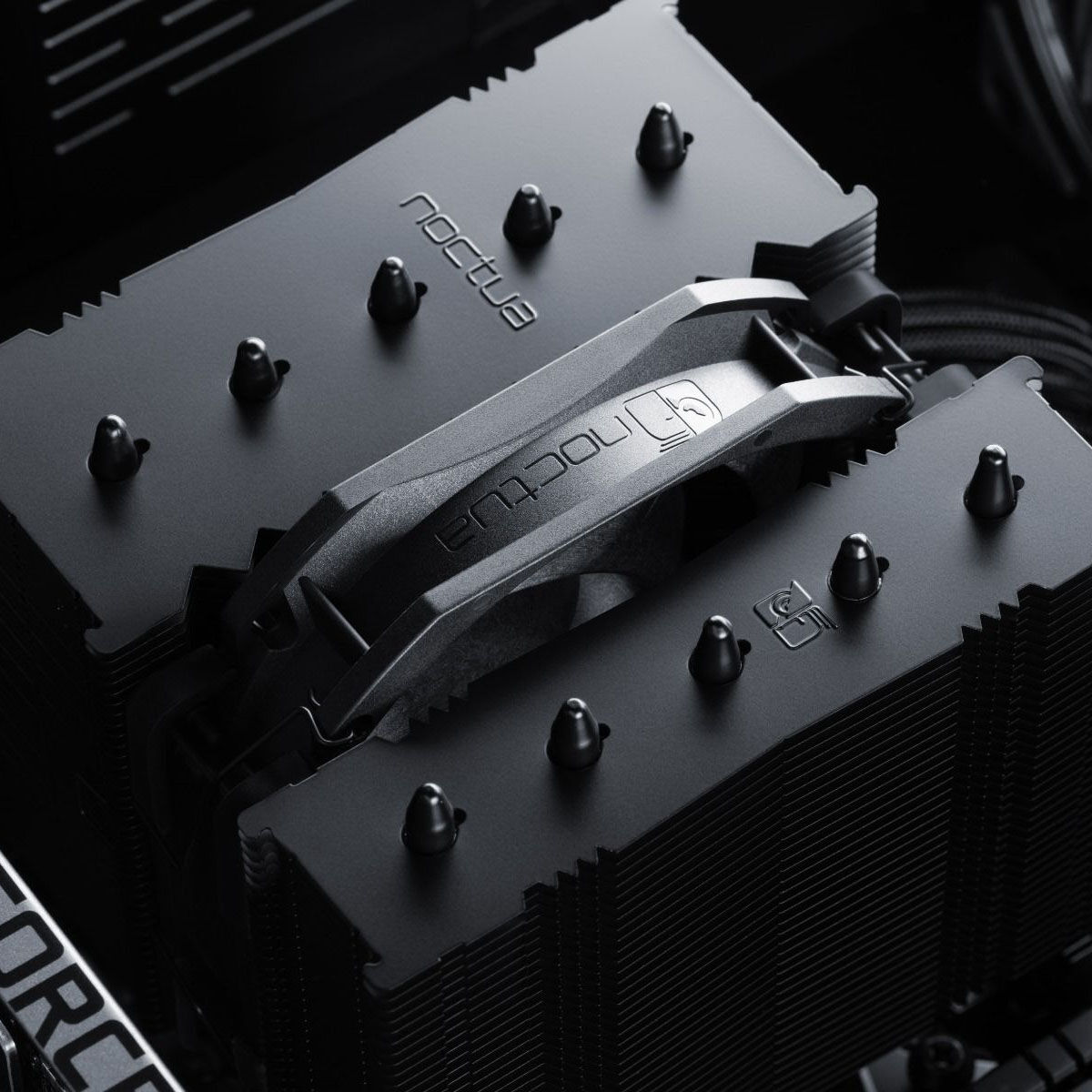

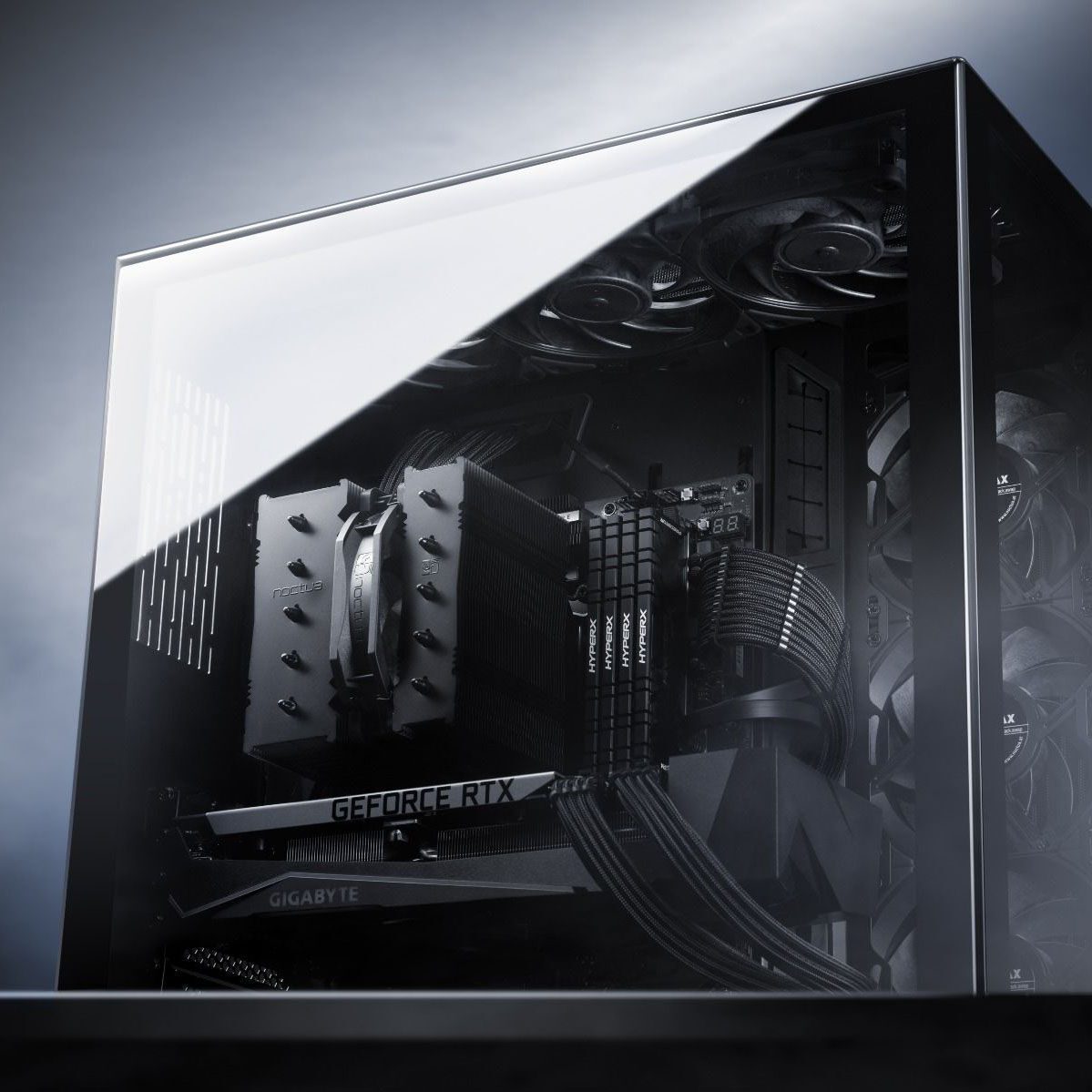

Due to its low height, the NH-D12L CPU cooler offers an exceptional combination of excellent silent cooling performance and case compatibility.
High performance design
The NH-D12L cooler is just 145mm high (13mm lower than the traditional 120mm Noctua models) and can be installed in many 4U systems and narrower tower cases that were previously only available with solutions with 92mm fans.

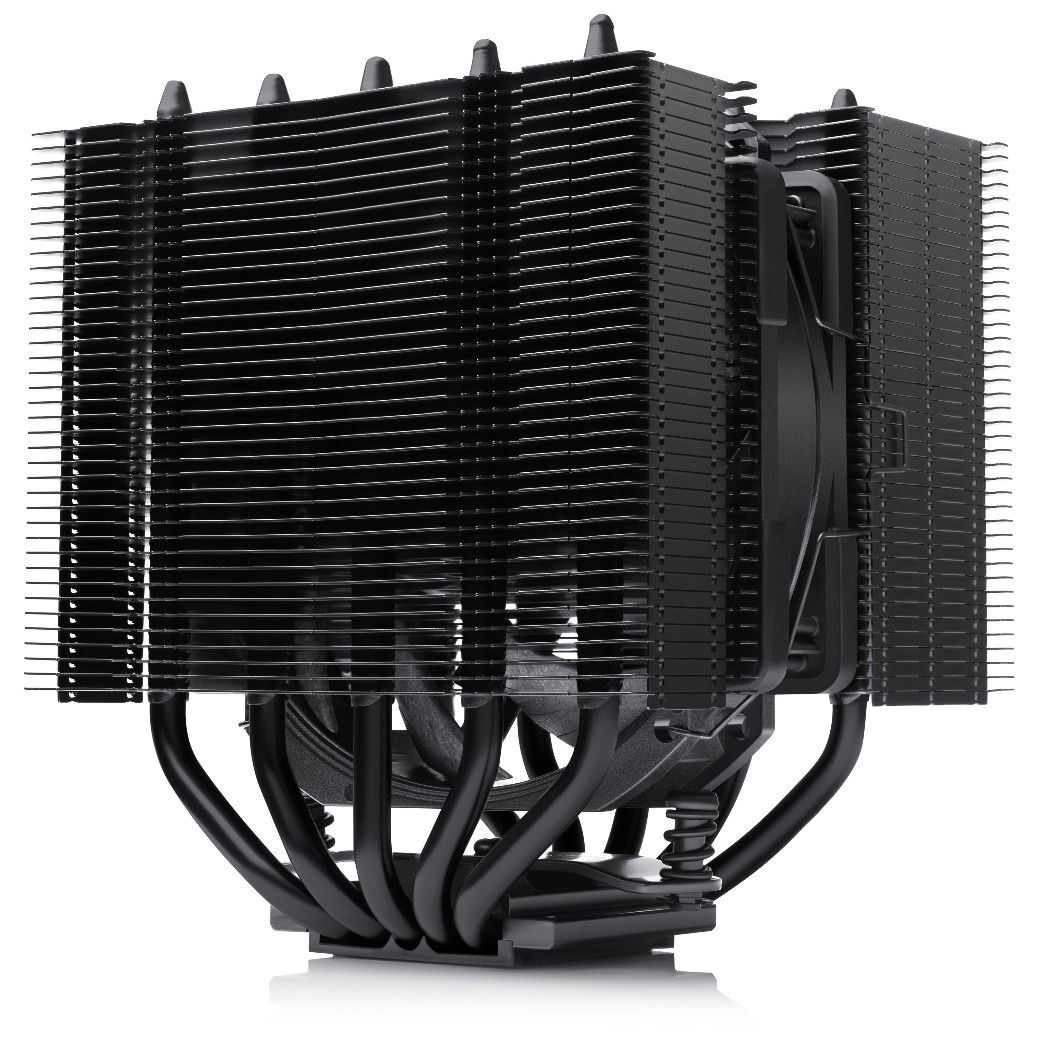

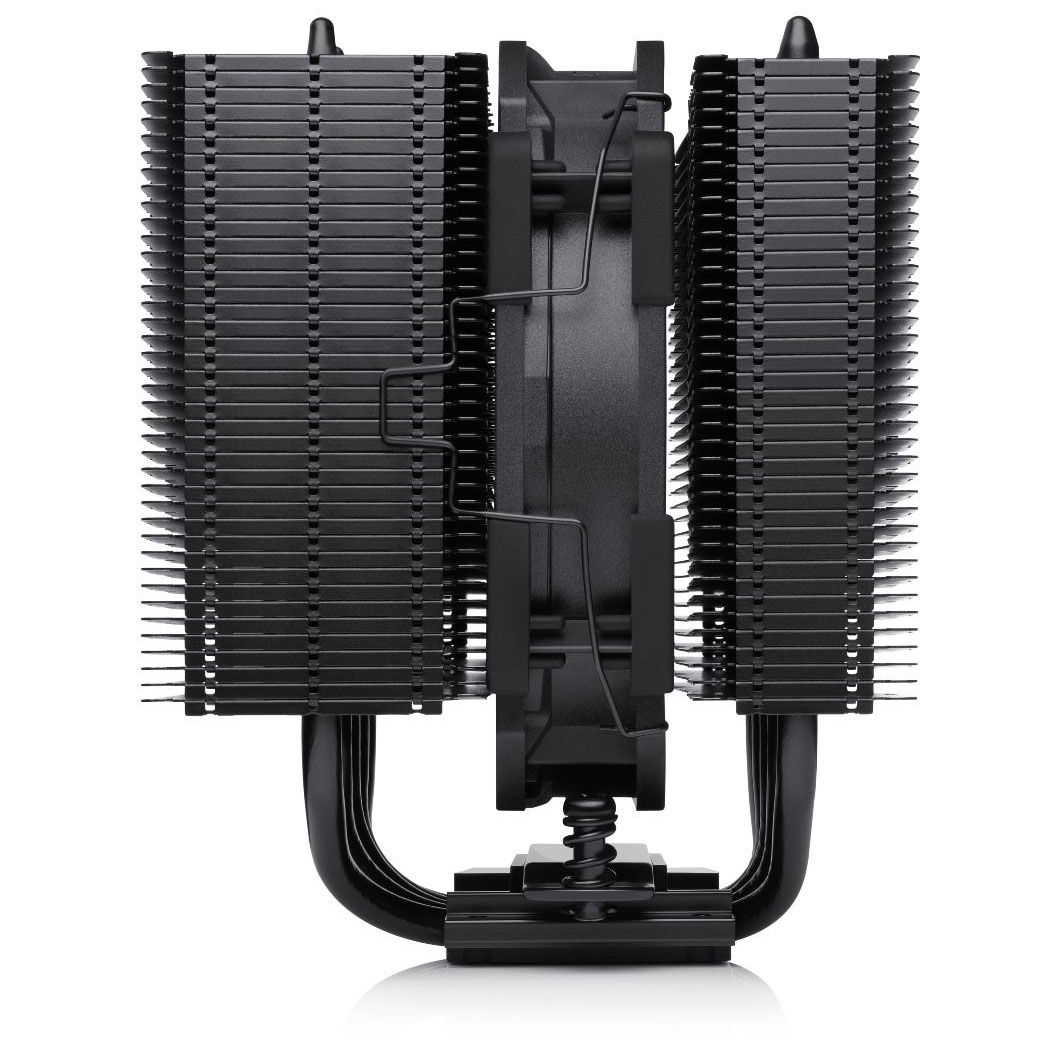

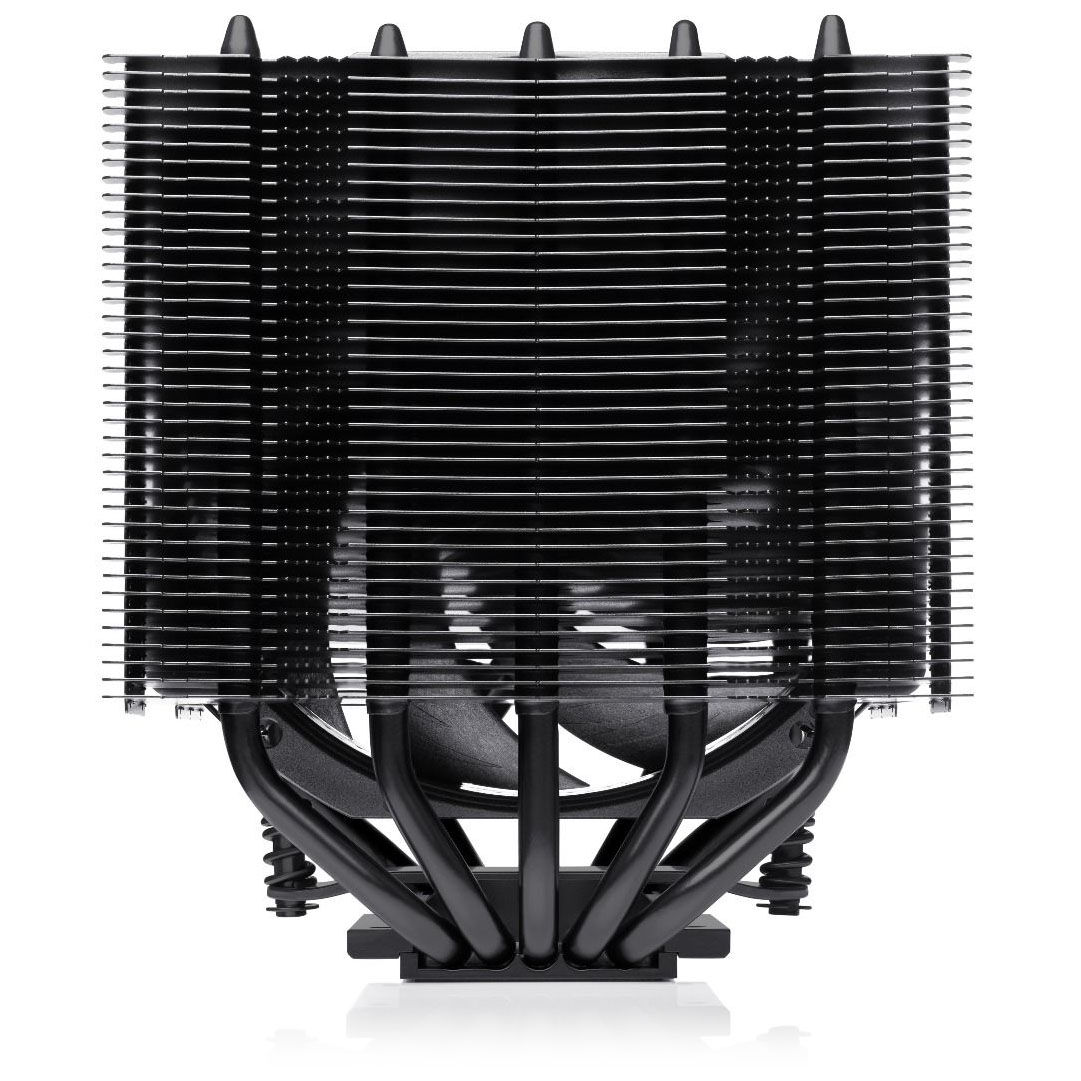

At the same time, the dual tower design with five heat pipes and the 120mm NF-A12x25r fan offers performance that is surpassed by many full-height 120mm models.
Perfect choice for limited space requirements
Due to the single fan configuration and asymmetrical design, the NH-D12L does not protrude over the memory slots of AMD AM4/AM5 and Intel LGA1700/1200, making it 100% compatible with RAM, saving space for your rig.
This entire system is rounded off with easy installation thanks to the proven SecuFirm2 mounting system from Noctua.
| Cooler Specifications | |
|---|---|
| Dimensions (W x H x D) | 125 x 145 x 113 mm |
| Weight | 0.89 kg |
| Material | Copper (base & heat pipes), aluminium (cooling fins), soldered & nickel-plated |
| Maximum TDP | 148 W |
| Fan Specifications | |
| Fan Model | Noctua NF-A12x25r PWM |
| Bearing Type | SSO2 |
| Maximum Fan Speed | 2000 RPM (±10%) |
| Minimum Fan Speed (20% PWM) | 450 RPM (±20%) |
| Maximum Airflow | 102.1 m³/h |
| Maximum Noise Level | 22.6 dB(A) |
| Operating Voltage | 12 V |
| MTTF | > 150,000 hours |
| Socket Compatibility | |
| Intel | LGA 1851, 1700, 1200, 1156, 1155, 1151, 1150 |
| AMD | AM5, AM4 |

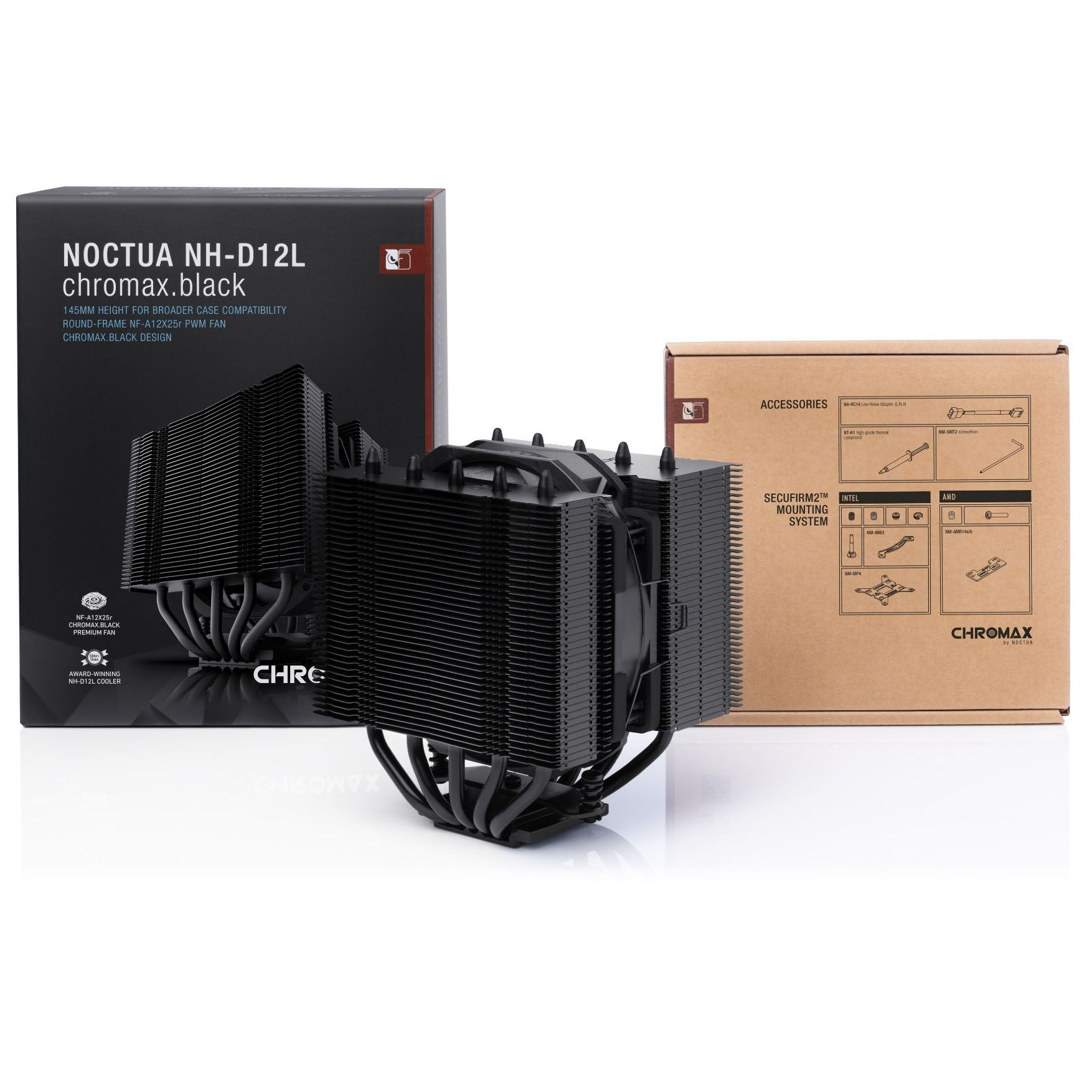

| Scope of Delivery | |
| 1x NF-A12x25r PWM premium fan 1x NA-RC14 Low-Noise Adapter (L.N.A.) 1x NT-H1 high-end thermal paste Fan brackets for dual fan operation 1x SecuFirm2™ mounting kit 1x Noctua metal case badge | |
£119.04£99.20 Inc VatEx Vat
