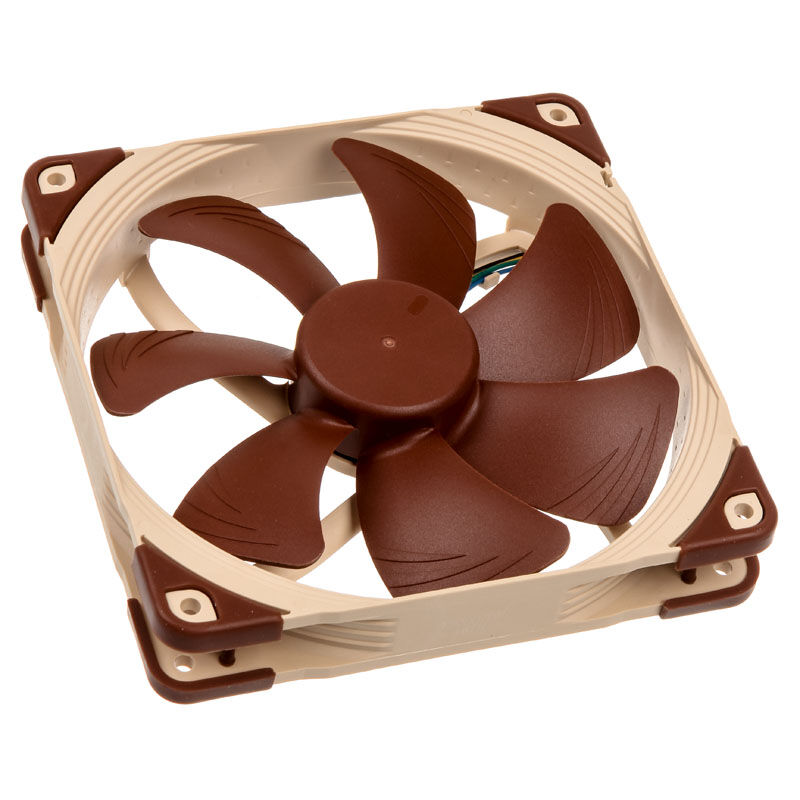

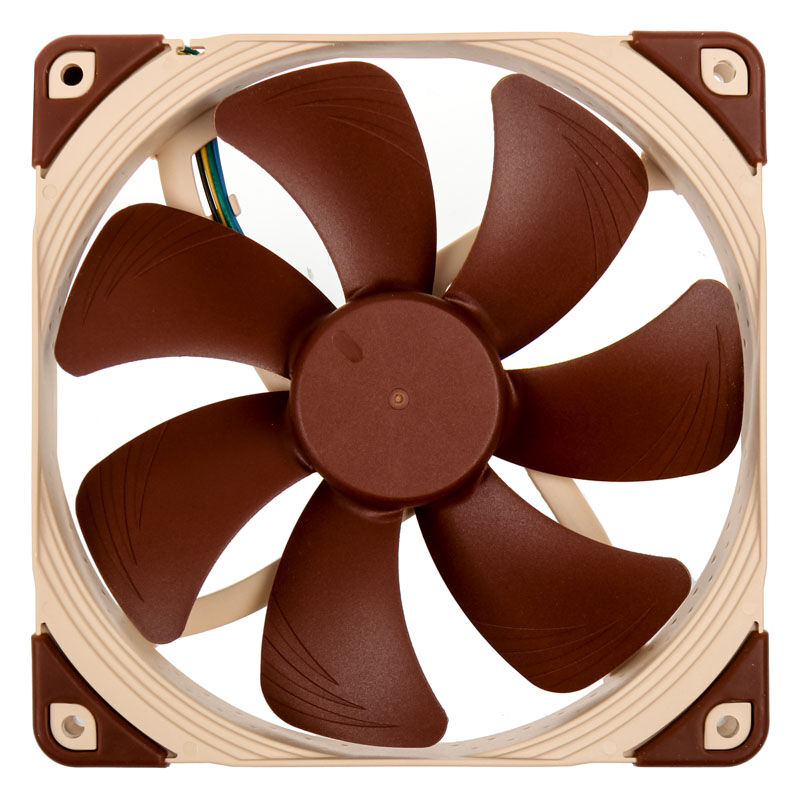

The NF-A14 5V PWM is a quiet 140 mm premium fan with square AAO (Advanced Acoustic Optimization) frame. Due to the 5V specification, it is not suitable for operation on motherboard headers.
The NF-A14 5V PWM is a quiet 140 mm premium fan with square AAO (Advanced Acoustic Optimization) frame. Due to the 5V specification, it is not suitable for operation on motherboard headers.
The NF-A14 5V PWM is a quiet 140 mm premium fan with square AAO (Advanced Acoustic Optimization) frame. Due to the 5V specification, it is not suitable for operation on motherboard headers.
Thanks to a 4-pin PWM connection, the fan speed can be regulated between 300 and 1,500 rpm. With advanced aerodynamic design features such as Flow Acceleration Channels, the NF-A14 achieves even greater silent cooling performance than the award-winning NF-P14.
The features of the Noctua NF-A14 5V PWM fan at a glance:
– SSO2 bearings for high performance, quiet operation and long life
– Pressure optimized rotor blades with excellent static pressure & delivery capacity
– 5V version incl. USB and OmniJoin adapter cable for maximum compatibility
– Flow Acceleration Channels for a smoother running sound
– 1,500 revolutions per minute at 140.2 m³ / h & 24.6 dB (A)
– PWM control between 300 and 1,500 RPM
– Convincing quality with 6 years manufacturers warranty
The Noctua NF-A14 5V PWM in detail
The PWM version is equipped with Noctuas specially designed NE-FD3 IC for fully automatic cruise control. Its performance-oriented maximum speed and comprehensive speed control options make the NF-A14 5V PWM a top-of-the-line solution for users who want the perfect balance between excellent cooling performance and super quiet running.
The 5V fan can be powered by the USB adapter on USB power supplies and power banks for smartphones. With the OmniJoin adapter set and the integrated reverse polarity protection, it is also possible to safely install the fan in many devices with proprietary fan connections. The impeller of the NF-A14 5V PWM is equipped on the suction side with so-called flow acceleration channels. Acceleration of the airflow in the critical outer regions of the fan blades reduces suction vortex shedding, resulting in higher efficiency and lower turbulence-related noise emissions.

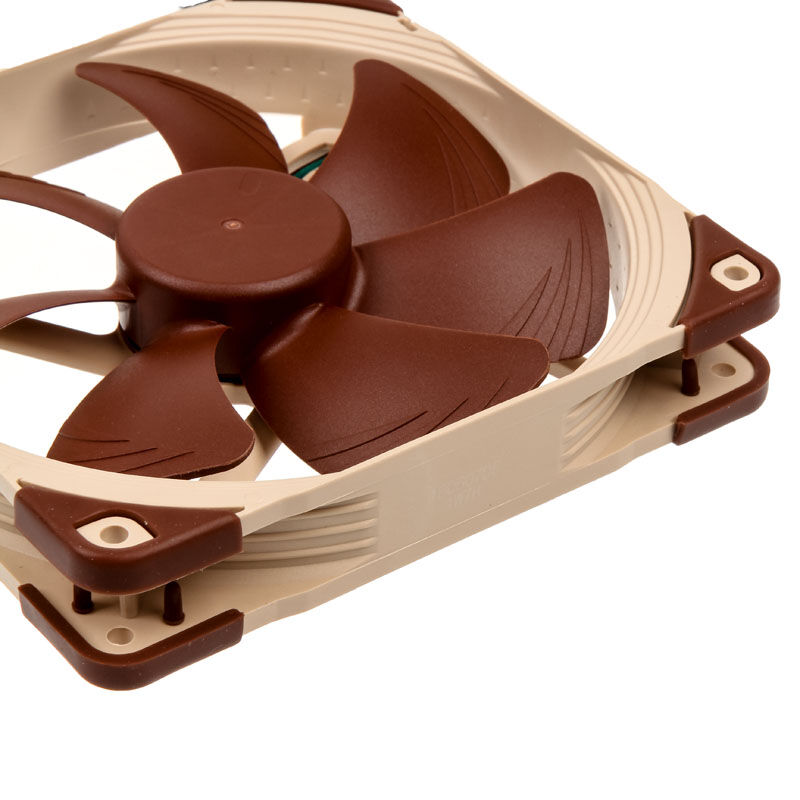

Noctuas Advance Acoustic Optimization (AAO) frames incorporate built-in vibration bumpers, as well as a stepped inlet area (Stepped Inlet Design) and an interior microstructure (Inner Surface Microstructures) for even better performance / noise efficiency. Made of extra-soft silicone anti-vibration pads reduce the transmission of minimal vibration and are compatible with all standard screws and commercially available mounting systems or fan brackets used in CPU coolers.
To ensure the highest possible manufacturing precision, minimum tolerances and excellent long-term stability, the NF-A14 5V PWM uses a CNC milled brass bearing shell. The NF-A14 is equipped with the further optimized second generation of Noctuas proven SSO storage system. With SSO2, the back magnet sits closer to the fan axis for even better stabilization, resulting in further improved precision and durability.
Noctuas fans are known for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A14 has an MTBF specification of over 150,000 hours and comes with a full 6-year manufacturers warranty.
The fan is not suitable for operation on motherboard headers due to the 5V specification.

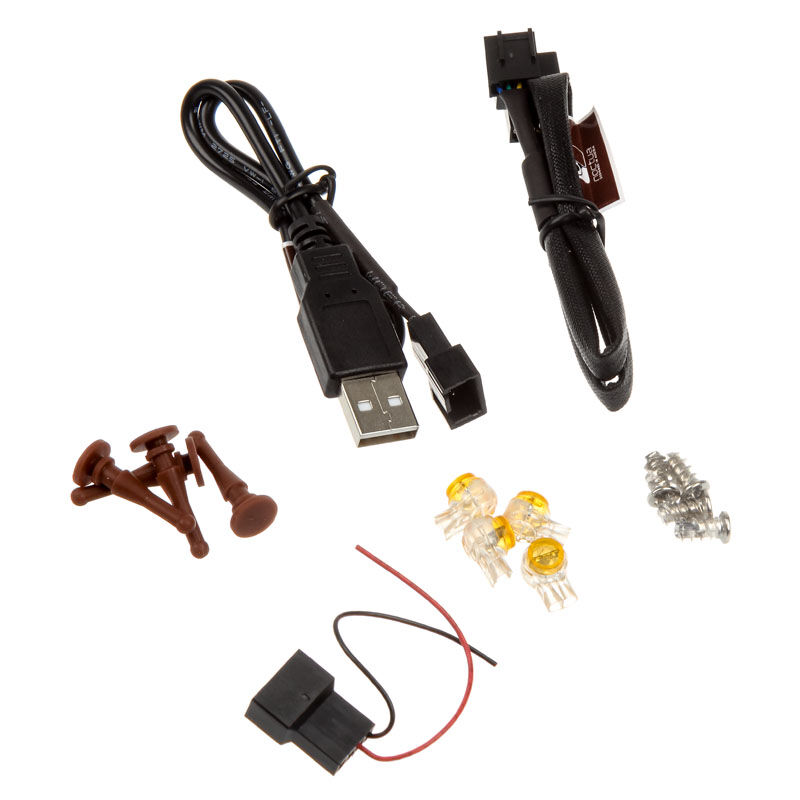

Equipment:
– USB power adapter cable
– OmniJoin Adapter Set
– 30 cm cable extension
– 4x fan screws
– 4x vibration inhibitor
| GENERAL SPECIFICATIONS | |
| Dimensions | 140 × 140 × 25 mm (W × H × D) |
| Material | Plastic |

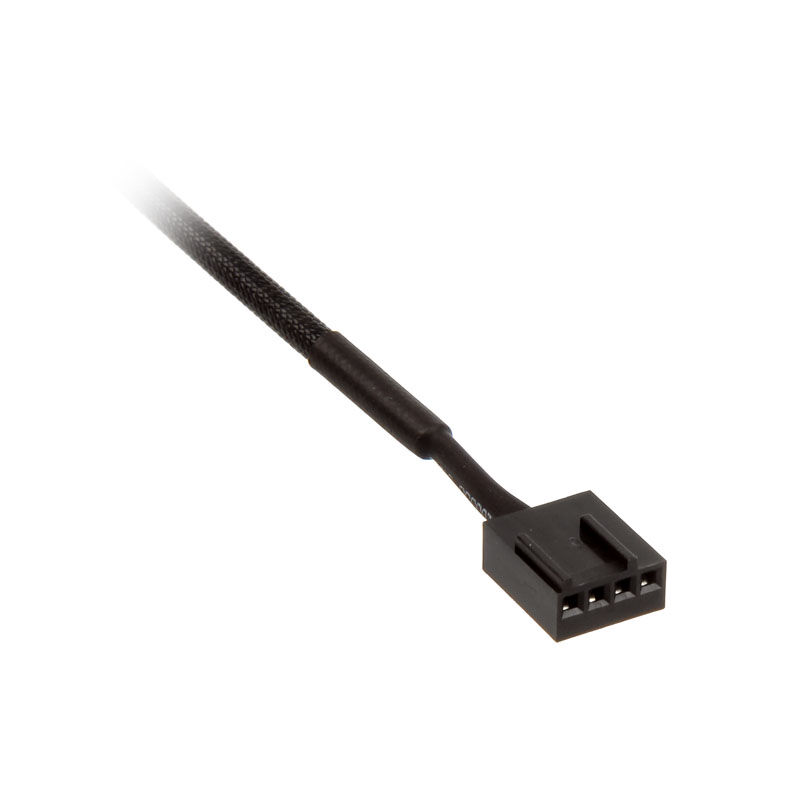

| Connector | 4-Pin PWM |
| Operating Voltage | 5 V |
| Power Consumption | 1.3 W |
| Max Current | 0.26 A |
| Life Expectancy | 150,000 Hours |
| PERFORMANCE | |
| Speed | 300 – 1,500 RPM |
| Max Airflow | 140.2 m³/h |
| Max Static Pressure | 2.08 mm H₂O |
| Max Noise Level | 24.6 dB(A) |
| WARRANTY | |
| Manufacturer Warranty | 6 Years |
£31.00£25.83 Inc VatEx Vat
