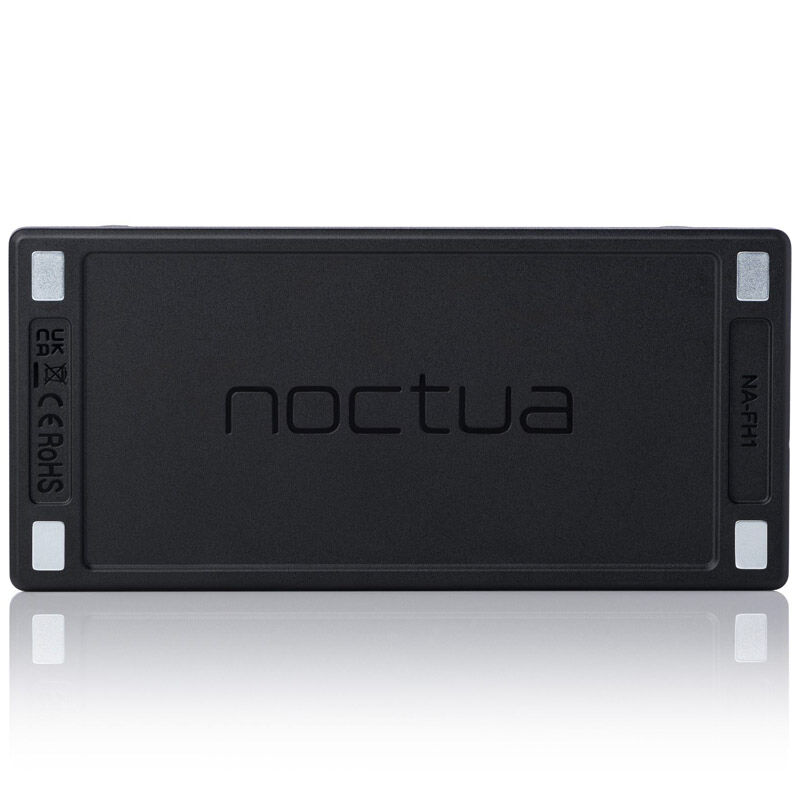

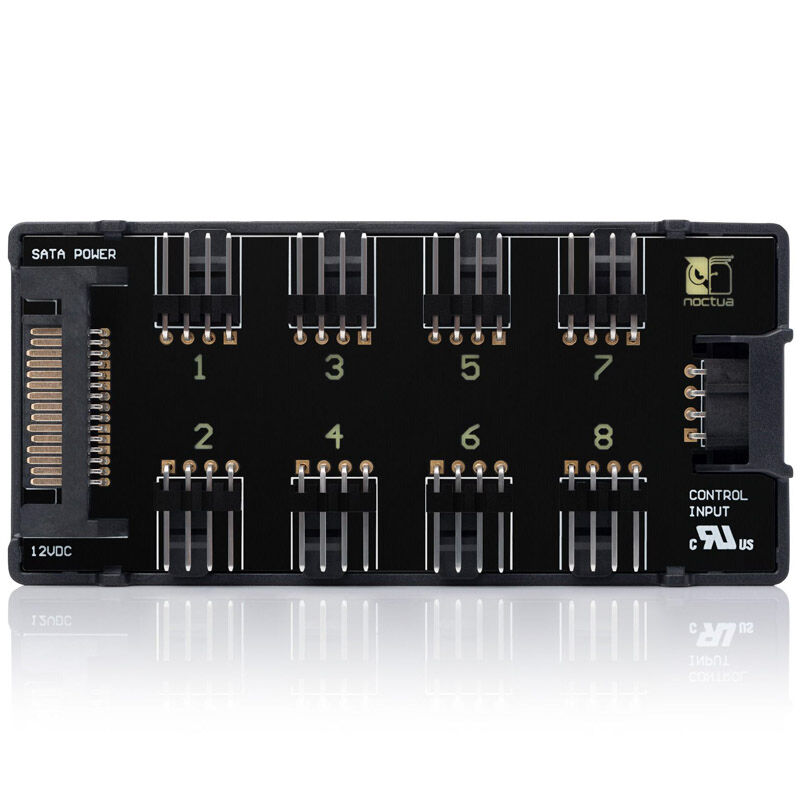

With the Noctua NA-FH1 8x Fan Hub, fans can be easily synchronized and controlled with each other.
With the Noctua NA-FH1 8x Fan Hub, fans can be easily synchronized and controlled with each other.
With the Noctua NA-FH1 8x Fan Hub, fans can be easily synchronized and controlled with each other.
In total, the NA-FH1 can control 8x 8 fans, thus providing plenty of expansion options.
All you need to control it is a PWM connection on the mainboard or a controller. The NA-FH1 can be powered via either the S-ATA input (for 12V fans, up to 54W) or the 4-pin PWM input (for 5V and 12V fans, up to 24W). You can use the two ports at the same time, with power being supplied automatically via S-ATA and RPM and PWM signals being exchanged via the 4-pin interface.
| Technical Specifications | |
|---|---|
| Color | Black |
| Maximum Number of Fans | 8 |
| Connections | |
| PWM Outputs | 8 × 4-Pin PWM |
| PWM Input | 1 × 4-Pin PWM |
| Power Input | 1 × SATA |
| Scope of Delivery | |

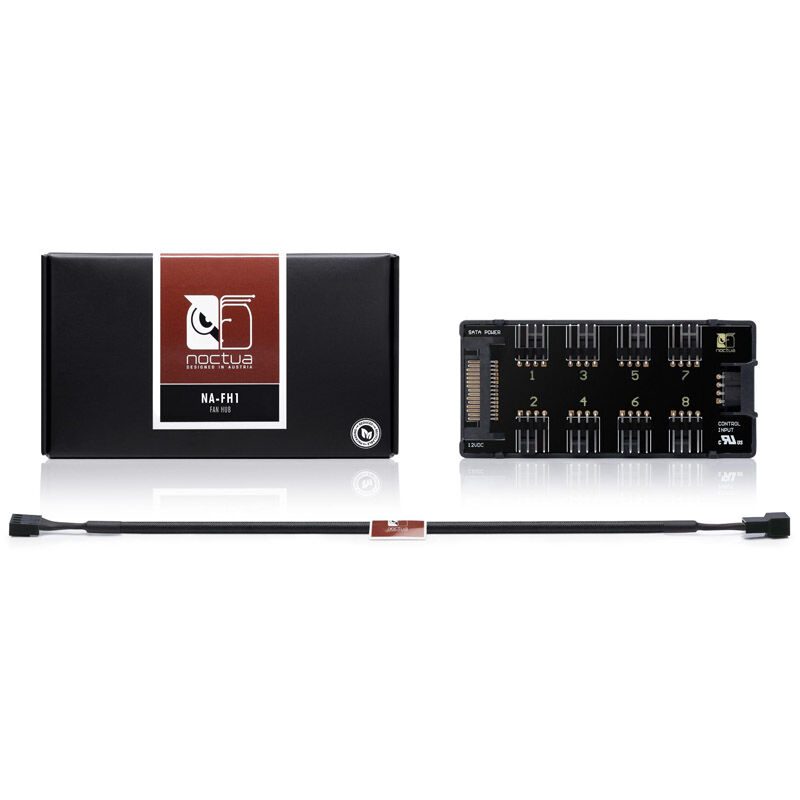

| Included Items | 1 × Noctua NA-FH1 8-Port Fan Hub 1 × Accessories set |
