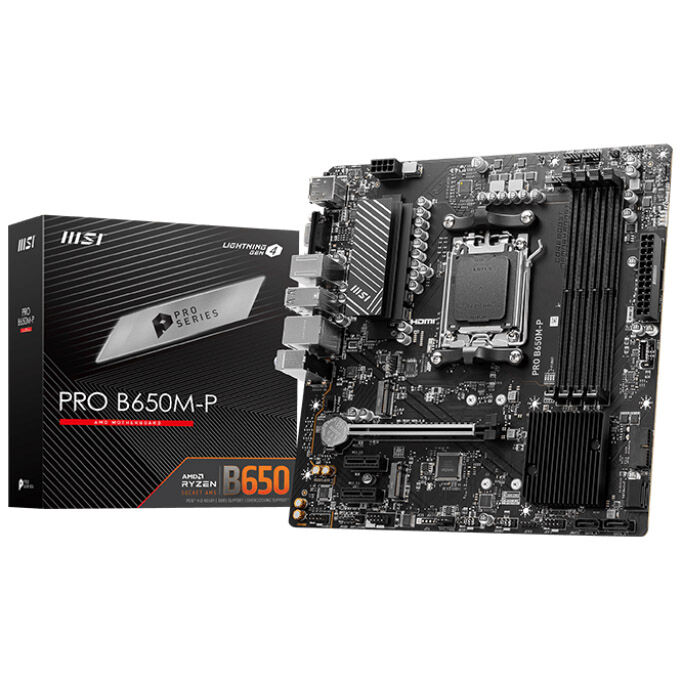

MSI Pro B650M-P, Socket AM5, AMD B650M, Micro-ATX - DDR5

– 1x PCIe 4.0 x16 (x16), 2x PCIe 3.0 x1
– Supports up to 192 GB DDR5 RAM up to 7,200 MHz (OC)
– 2x M.2 PCIe 4.0 / 4x SATA 6G
– 2x USB-A 3.1, 2x USB-A 3.0, and 2x USB-A 2.0 on the I/O panel
– A total of 6x 4-pin PWM fans possible

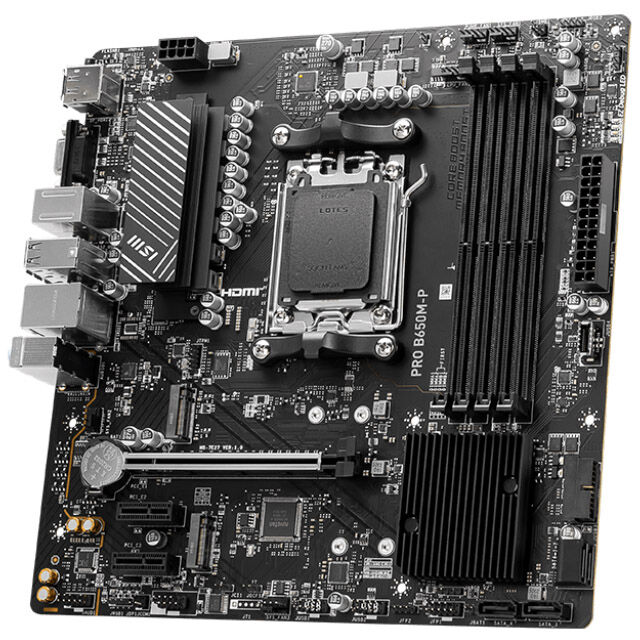

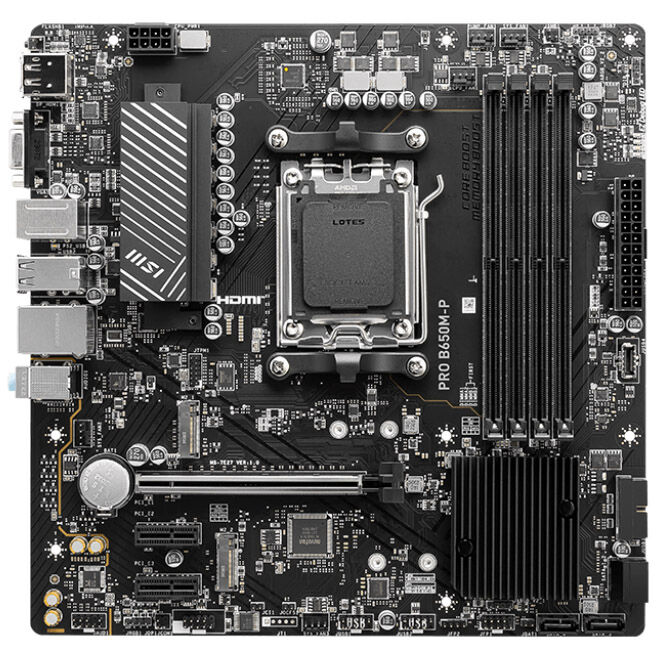

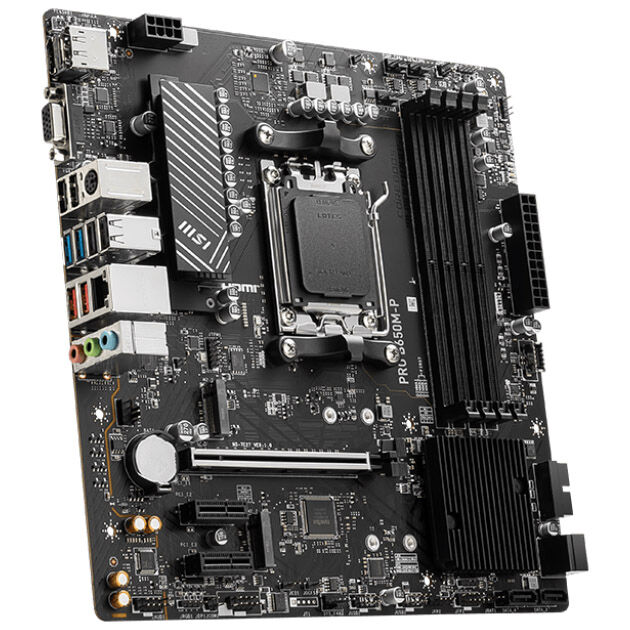

MSI Pro B650M-P: Micro-ATX motherboard with AMD AM5
The MSI Pro B650M-P is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for enthusiasts and gamers. Since the Ryzen 7000 series processors require a new socket due to PCIe 5.0 support and the expanded power delivery, the 600 series motherboards use Socket AM5 (LGA 1718). And, as usual, DDR5 RAM can also be maximized at higher clock speeds.

Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates may also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– AMD B650
– Socket:
— AM5 (LGA 1718)
– RAM:
– 4x DDR5 (4800 MHz, validated up to 7200 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 2x PCIe 3.0 x1 (chipset)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4; 2280-22110, CPU)
– 1x M.2 (PCIe 4.0 x4; 2260-2280, chipset)
– 1x USB 3.1 (1 header, USB 3.2 Gen 2, max. 10) Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 2x front panel headers
– 1x chassis intrusion
– 1x front audio
– 1x tuning controller connector
– 1x TPM header
– Fan connections:
– 1x CPU fan header (4-pin)
– 3x fan header (4-pin)
– 1x pump header
– RGB header:
– 2x Addressable V2 RGB LED connector (3-pin, 5 V)
– 2x RGB LED connector (4-pin, 12 V)

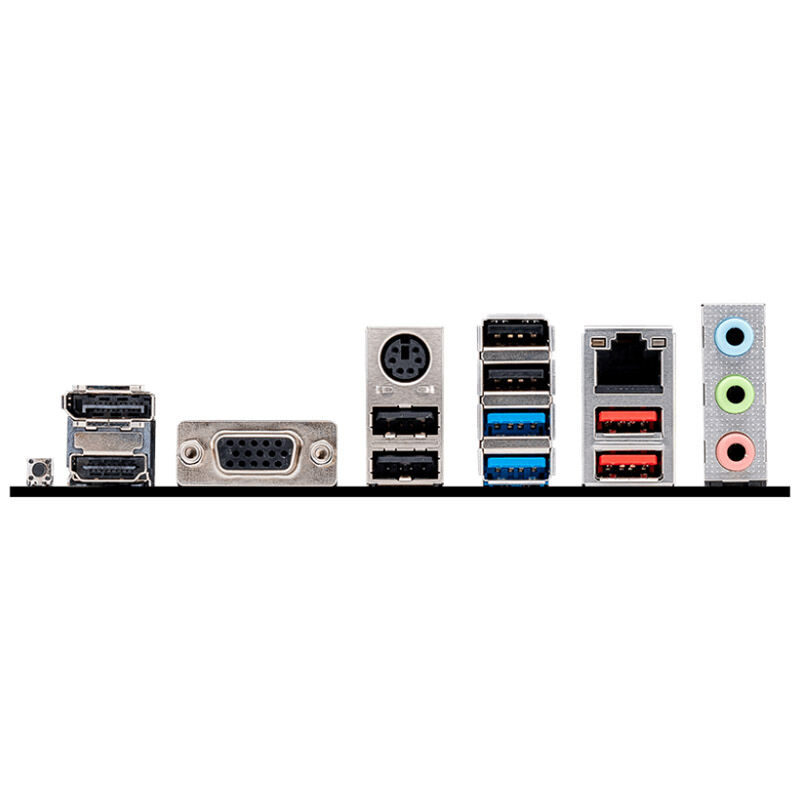

– External connections:
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 2, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, USB 2.0, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x VGA
– 1x 2.5 Gigabit LAN (Realtek RTL8125BG)
– 3x 3.5 mm jack (Realtek ALC897)
– 1x Flash BIOS button
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
