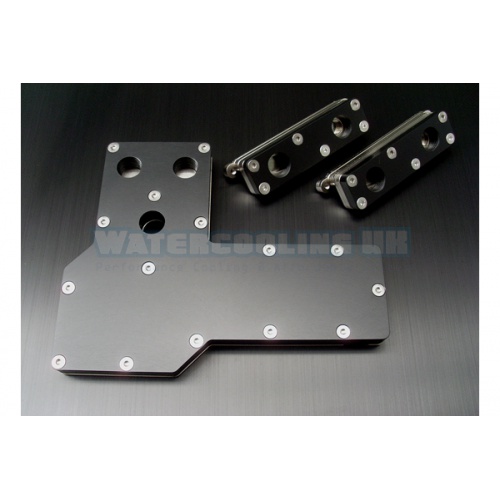

MIPS EVGA SR-X Set Nickel POM Limited Edition

With this cooling set, we offer a completely customized cooling solution for your EVGA SR-X motherboard.

For this mainboard northbridge and the PCI-E Gen3 switch from a very large passive heat sink covered with EVGA here is the obvious appearance in the foreground, because the original cooler has only the two aforementioned chip contact. The huge area of ​​the original cooler is just for better heat distribution for passive cooling of the board. With our compact dual-chip coolers, the two chipsets are cooled optimally and with our MOSFET coolers, the voltage converter of the two CPUs also reliably cooled. If you want the CPUs also cool with water, the lack of any Mosfetkühlern passive airflow from the CPU cooler.

With our new coolers can cool the Northbridge, PCI-E Gen3 switch and the mosfets of CPUs simultaneously and thereby enjoy the following benefits:

– No more connections in the field of graphics cards, ie they can use all the expansion slots full.

– You only need 6 pieces 1/4 ports of their choice, even very large ports are no longer a problem. Thanks to the great distance between the connecting thread of the cooler for high-flow ports is suitable.

– Together with the MOSFET coolers so you can really heat all critical components of your motherboard cool and reliable all in one unified design.

NOTE: The removal of the stock chipset cooler may void your warranty, you work accordingly careful when mounting this product. For incidental or consequential damages is not liable!

Installation note: The main radiator is bolted to the screws and Kustoffunterlegscheiben from behind the motherboard, all the screws evenly and only tighten this by hand. For the two chipsets please use a non-conductive thermal compound, eg Phobya HeGrease (No.: 31 078). For the MOSFET, please use the original thermal pad! The mosfet cooler for the CPUs are also bolted to the screws and washers from the back to the motherboard, and even the screws and tighten only finger tight.

Specifications Dual Chip cooler:
Base plate dimensions: 144 x 112 mm
Total size without connections: 144 x 112 x 13 mm (L x W x H without connections)
Weight: ~ 380g
Bottom: 4 mm pure copper
Upper panels: 9mm black POM
Connection thread: G1 / 4

Technical data Mosfet Cooler:
Base floor plate: 83 x 20 mm
Total size without connections: 83 x 20 x 21 mm (L x W x H without connections)
Weight: ~ 99 gr
Bottom: 5 mm pure copper
Sandwich plates: 2 x 5 mm pure copper
Upper panel: POM black 6 mm
Connection thread: G1 / 4

Delivery:
1 x MIPS EVGA SR-X Limited Edition Set Nickel POM
Mounting hardware
