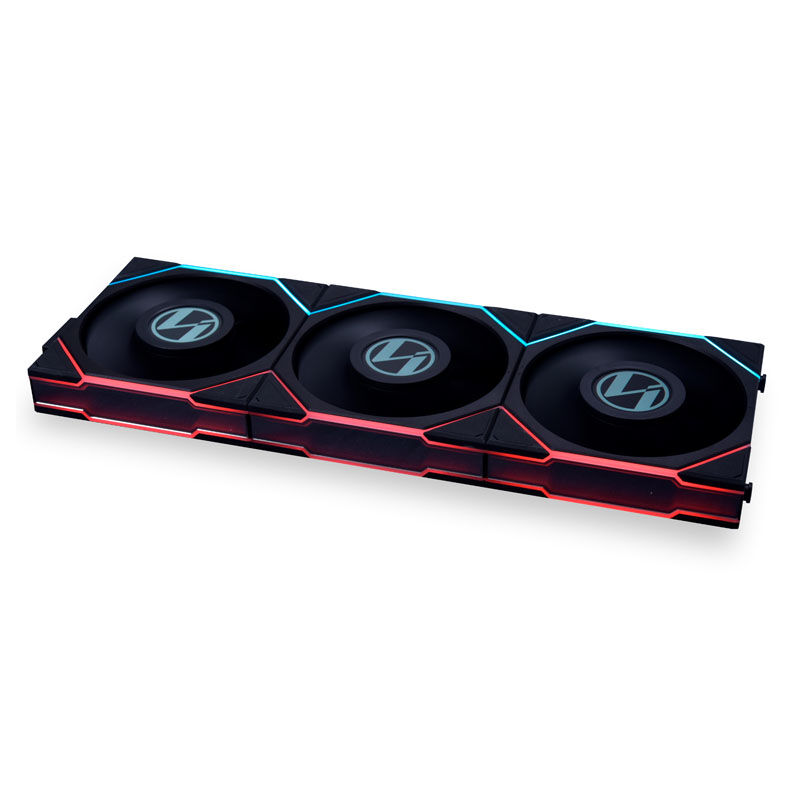

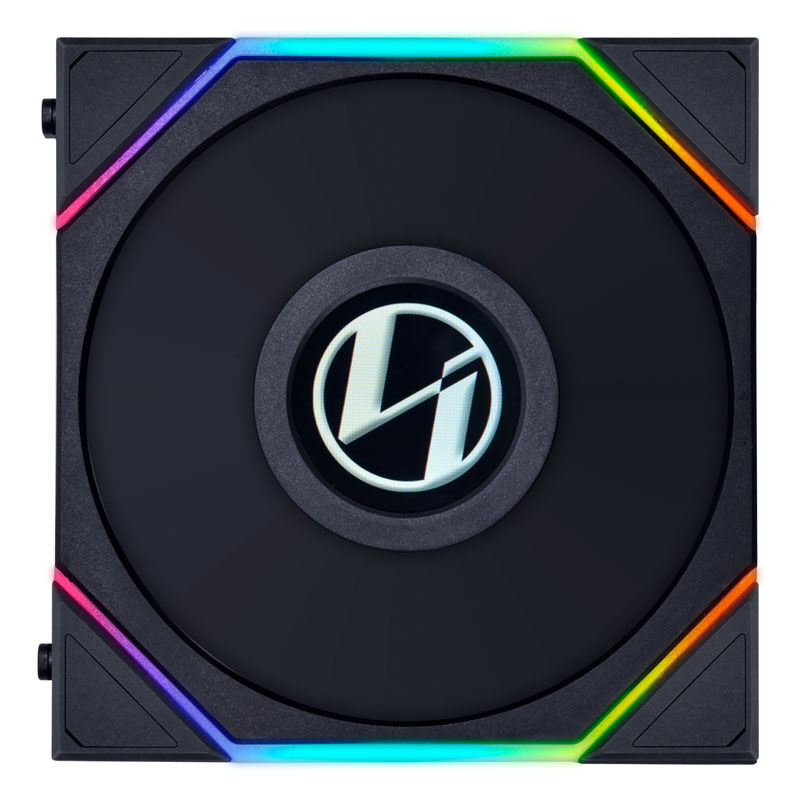

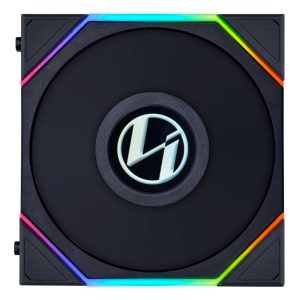

Lian Li UNI FAN TL LCD Series fans, pack of 3 incl. controller - 120mm, black - B-Grade

Practical plug-in system and improved daisy chaining for less cable clutter
32 digitally addressable RGB LEDs
Speed and lighting can be controlled via Lian Li L-Connect 3 software
Max. 1,900 rpm speed at 27 dB(A)
105.3 m³/h max. delivery volume and max. 2.9 mmH2O static pressure
Rubber pads to decouple annoying vibrations
Lian Li 12TL fan controller included

Lian Li UNI FAN TL LCD Series: PWM fans to complement your setup
The Lian Li UNI FAN TL LCD Series are fans that fit perfectly into your setup. The PWM fan uses the same connector system that frees gaming PCs from unnecessary cable clutter. Lian Li also impresses in terms of cooling performance and sets new standards with breathtaking RGB lighting.

PERSONALIZE YOUR FANS WITH LCD

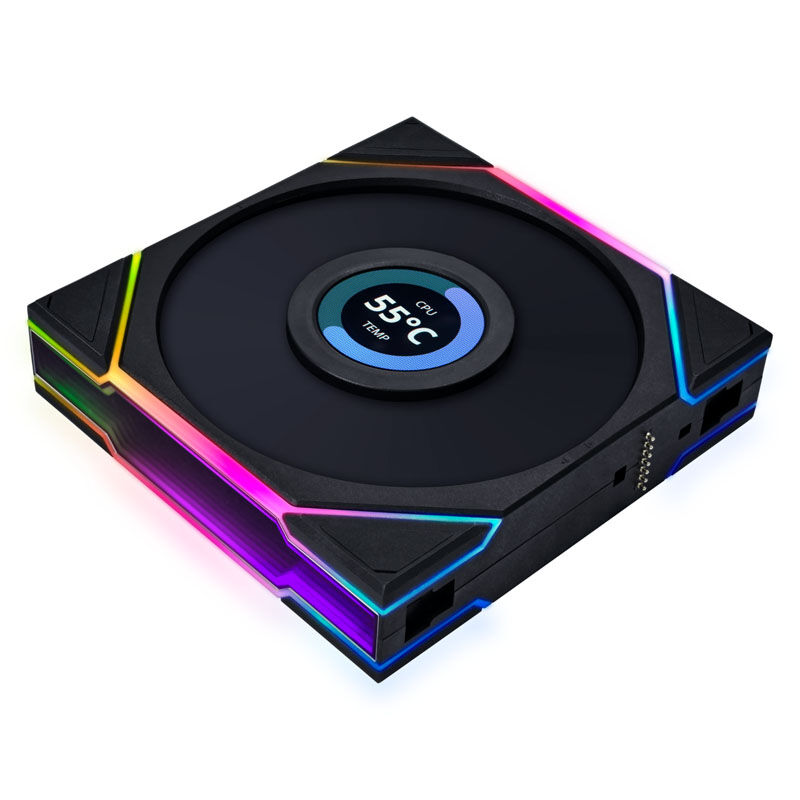

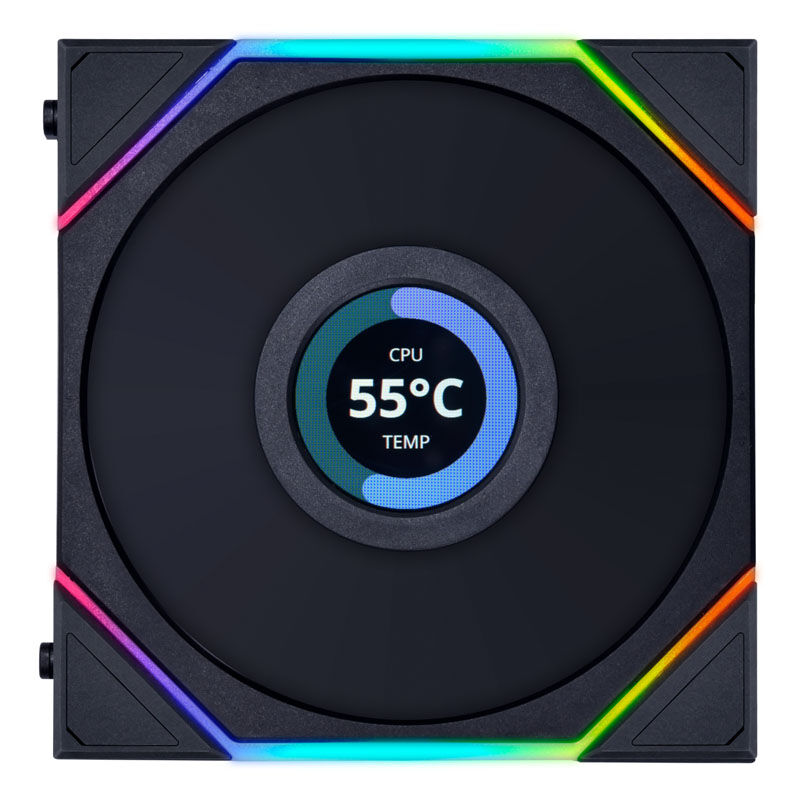

A 1.6-inch display with a resolution of 400 x 400 pixels is attached to the hub of the Lian Li UNI FAN TL LCD Series, which can be configured almost freely. For example, fan speed, temperature or CPU and GPU utilization can be displayed there. Or you can upload your own pictures, GIFs or small videos using the L-Connect 3 software to give the fans your own personal touch. Lian Li points out that the more sensors are used, the more the CPU is required and therefore no more than three sensors should be used.

Plug-in system for seamless fan clusters
The assembly of the Lian Li UNI FAN TL LCD Series follows the clever concept of the other fans from Lian Li: The fans are equipped with contact points and are connected to each other using a practical plug-in system. Several fans can be combined into a cluster and conveniently connected to the controller with just one cable. Thanks to this improved daisy chain system, you save time, nerves and prevent unnecessary cable clutter. The pin contacts pass on power as well as PWM and ARGB signals.

REVISED CONNECTOR SYSTEM OF THE LIAN LI UNI FAN TL LCD SERIES
The plug-in system introduced with the UNI FAN SL and AL series has been further improved in the Lian Li UNI FAN TL LCD series. On the one hand, the plug-in system was designed so that the connecting plug can be removed. This prevents possible collisions with connections on the radiator and at the same time ensures a tidy look.

In addition, the connection for the cable module has been removed; instead, the cable can now be connected directly to the fan. The connection is embedded flat in the frame, so you have more space for using radiators.

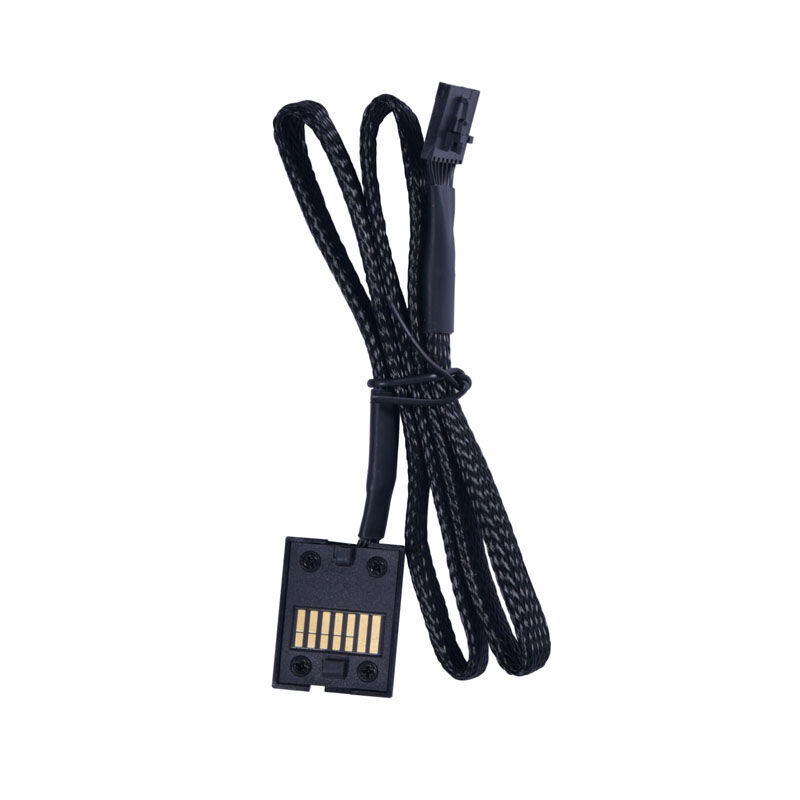

The usually separate cables for power and ARGB signals have been combined into a 7-pin cable. You can connect these cables directly to the controller. Up to four fans in a cluster can be powered with one cable. With the appropriate extension cable, you can connect up to 6 fans with LCD to the two ports of the controller and control them via L-Connect 3 software.

Note: The Lian Li UNI FAN TL LCD Series connectors are not compatible with the SL and AL series!
Lian Li UNI FAN TL LCD Series: Impressive performance values
The fans work relatively quietly under full load with a maximum of 27 dB(A). The small distance between the fan blades and the frame and the resulting reduced friction resistance allows higher speeds with the same energy consumption and, as a result, a significantly increased air flow and excellent performance values. Cool temperatures are also favored by the increased height of 28 millimeters.

The start/stop mode for your Lian Li UNI FAN TL Series can also be activated using the L-Connect 3 software. If your components are below a temperature you specify (maximum 50 degrees), the fans will stop. In addition, L-Connect 3 offers the option of creating an optimized fan curve for speed and temperature.

Technical details:
– Dimensions: 124 x 120 x 28 mm (W x H x D)
– Material: Plastic
– Color: Black
– Bearing: Hydrodynamic plain bearing
– Speed: 0 – 1,900 rpm
– Volume: max. 27 dB(A)
– Delivery volume: max. 105.3 m³/h
– Static pressure: max. 2.9 mmH2O
– Voltage: 12V
– Starting voltage: 5V
– Power consumption: 6.72W
– Lighting:
– Type: digital addressable RGB
– Quantity: 32 LEDs
– Display:
– Type: IPS
– Size: 1.6 inches
– Resolution: 400 x 400 pixels
– Brightness: 500 cd/m²
– Colors: 24-bit SRGB
– Connection: 7-pin combined PWM and ARGB
– Controllers:
– Type: Lian Li 12TL
– Connections:
– 2x 7-pin, for up to 10 TL or 3 TL LCD fans each
– Note: The connection cables of the two versions of the fans are different and are not compatible with each other!
– 1x PCIe 6+2 (power supply, for connecting to the power supply)
– 1x 9-pin USB (controller, for connecting to the mainboard)
– 1x 3-pin ARGB (5VDG, for connection/sync to the mainboard)
– 1x 4-pin PWM (for connection/sync to the mainboard)
– Compatibility: Lian Li TL and TL LCD Series fans only
