The Lian Li O11 Dynamic Mini, developed with Roman der8auer Hartung, is not only a smaller, but also an extremely versatile variant of the popular O11 Dynamic.
Thanks to the exchangeable rear panel, the size of the mainboard tray, the number of expansion slots and the radiator options change. The power supply, drives and cables are housed in the second chamber. The Lian Li O11 Dynamic Mini Snow Edition is completely white. Silver knurled screws and light grey rubberized cable guides complete the design.
The Lian Li O11 Dynamic Mini, developed with Roman der8auer Hartung, is not only a smaller, but also an extremely versatile variant of the popular O11 Dynamic.
Thanks to the exchangeable rear panel, the size of the mainboard tray, the number of expansion slots and the radiator options change. The power supply, drives and cables are housed in the second chamber. The Lian Li O11 Dynamic Mini Snow...
The Lian Li O11 Dynamic Mini, developed with Roman der8auer Hartung, is not only a smaller, but also an extremely versatile variant of the popular O11 Dynamic.
Thanks to the exchangeable rear panel, the size of the mainboard tray, the number of expansion slots and the radiator options change. The power supply, drives and cables are housed in the second chamber. The Lian Li O11 Dynamic Mini Snow...
Thanks to the exchangeable rear panel, the size of the mainboard tray, the number of expansion slots and the radiator options change. The power supply, drives and cables are housed in the second chamber. The Lian Li O11 Dynamic Mini Snow Edition is completely white. Silver knurled screws and light grey rubberized cable guides complete the design.
The features of the Lian Li O11 Dynamic Mini Midi-Tower at a glance:
– Extremely versatile housing with a modular rear panel
– Space for mainboards in ATX, Micro-ATX or Mini-ITX form factor
– Front and side panels made of tempered glass
– Lid and right side made of aluminum
– I / O panel with one USB-C and two USB 3.0 ports
– Graphics cards up to 395 in length
– Three installation slots for large radiators
– Up to nine 120 mm fans possible
– Suitable for SFX and SFX-L power supplies
– Including three different pump brackets
O11 Dynamic Mini Snow Edition: Modular housing with a stylish design

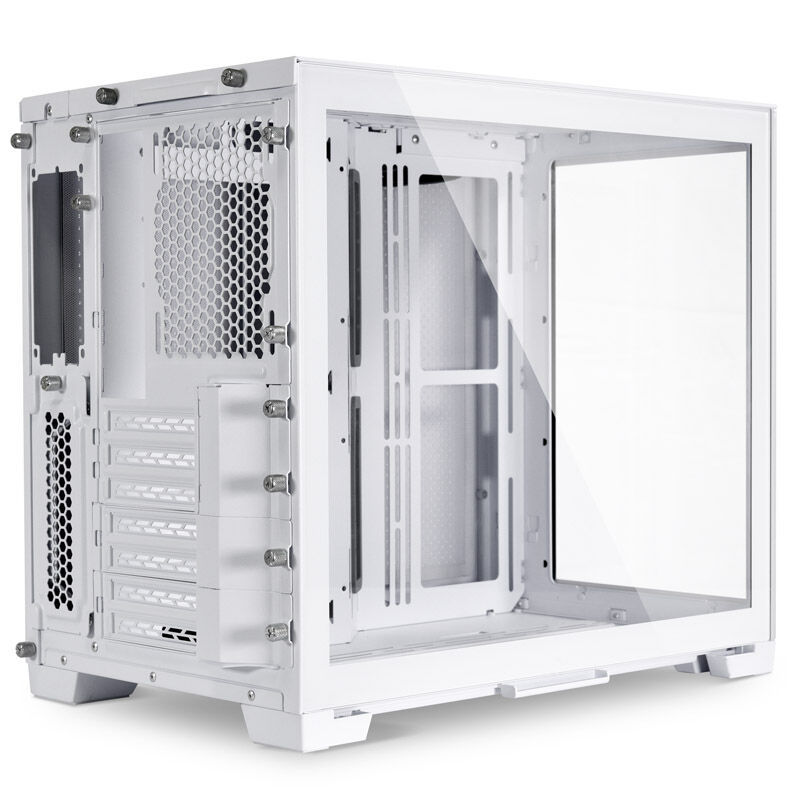

The Lian Li O11 Dynamic Mini Snow Edition is extremely versatile thanks to its modular back wall. The scope of delivery of the housing contains various modules with which the rear can be changed. This has a great influence on the choice of components. The smaller the mainboard, the more space there is for other components.
7 slots
The rear panel with seven expansion slots is suitable for installing ATX mainboards. Only fans can be mounted on the top. Radiators fit right next to the mainboard and on the bottom of the case.
– Mainboards: ATX, Micro-ATX, Mini-ITX
– Expansion slots: 7
– Lid: only fan (up to 25 mm)
– Side: 280mm radiator up to 65mm or 240mm radiator up to 85mm
– Floor (ATX): max. 360 mm radiator or 120 mm fan
– Floor (Micro-ATX / Mini-ITX): max. 360/280 mm radiator or 140 mm fan
5 slots
The rear panel with five expansion slots is suitable for the installation of Micro-ATX mainboards. These are now located further down so that a radiator can also be attached to the lid.
– Motherboards: Micro ATX, Mini ITX
– Expansion slots: 5
– Lid: max. 360 or 280 mm radiator (up to 65 mm)
– Side: 280mm radiator up to 65mm or 240mm radiator up to 85mm
– Floor (Micro-ATX): max. 360 radiator or 120 mm fan
– Floor (Mini-ITX): max. 360 or 280 mm radiator or 140 mm fan
3 slots
The rear panel with three expansion slots offers free options for the graphics card and is suitable for the installation of mini-ITX mainboards. Above and below there is plenty of space for radiators.
– Motherboards: Mini-ITX
– Expansion slots: 3
– Lid: max. 360 or 280 mm radiator (up to 100 mm)
– Side: 280mm radiator up to 65mm or 240mm radiator up to 85mm
– Floor: max. 360/280 mm radiator or 140 mm fan (up to 75 mm)

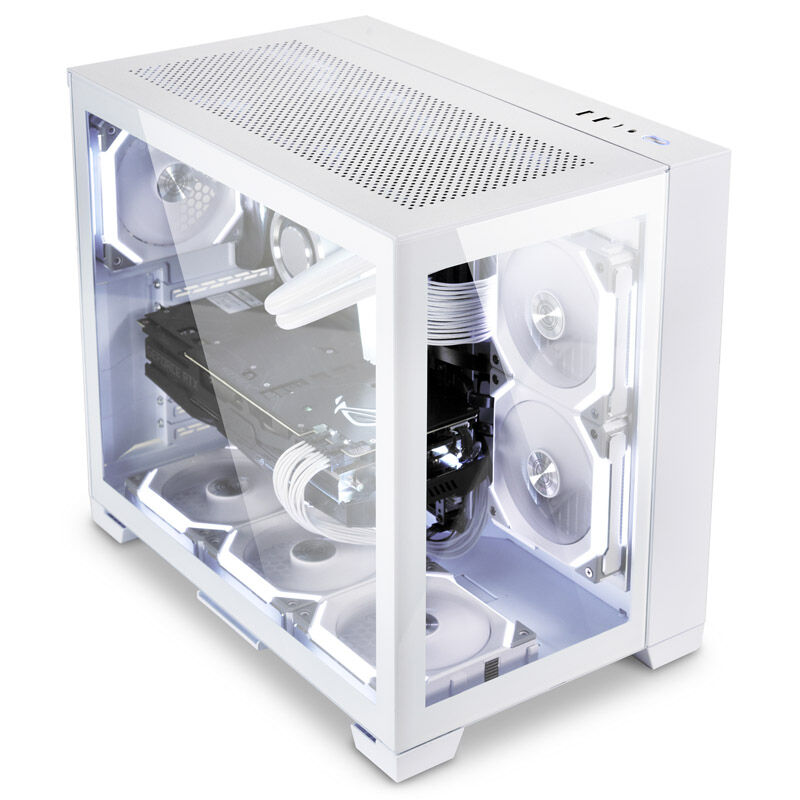

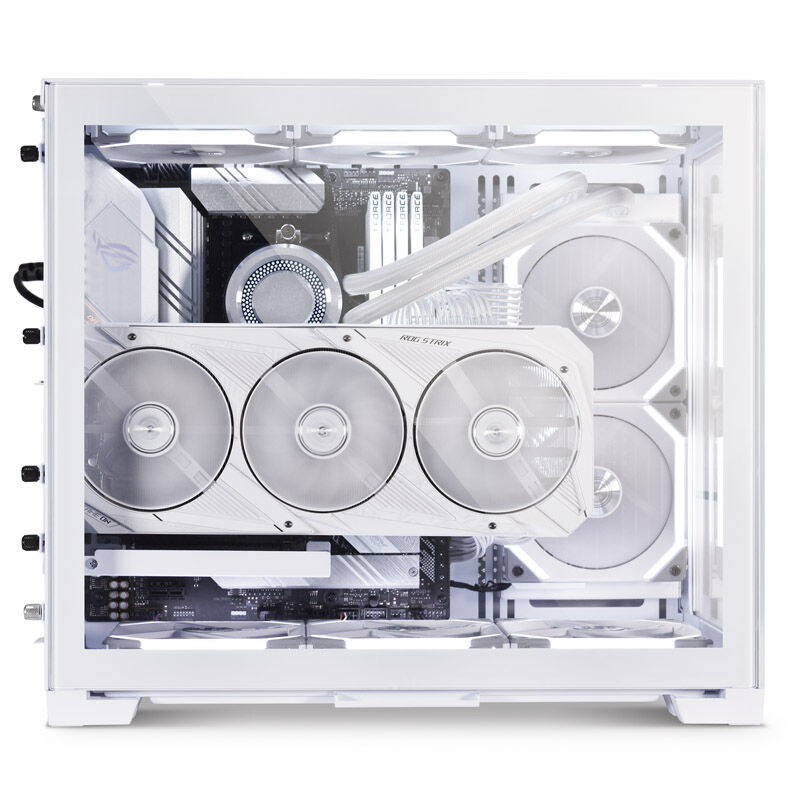

Space for a powerful gaming system
There is space for a 120 mm fan on the rear wall. The bottom, lid and side air inlets are equipped with magnetic dust filters so that the housing stays clean. The Lian Li O11 Dynamic Mini Snow Edition is suitable in every variant for CPU coolers up to 170 mm high so that there are practically no limits to the selection of a powerful processor cooler. With a full 395 mm, extremely large graphics cards can also be installed.
Hard drives and SSDs

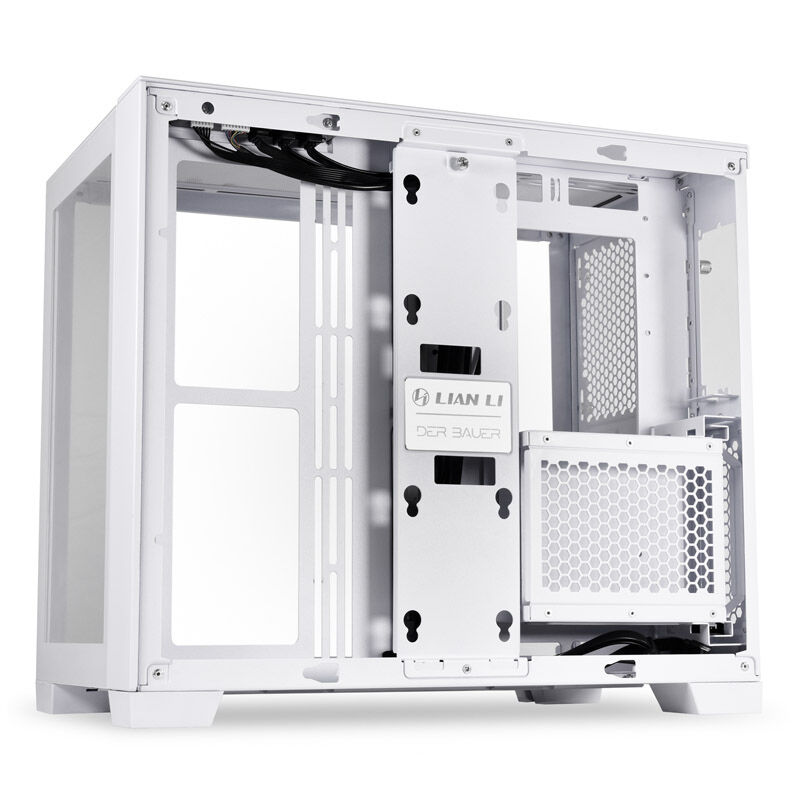

The power supply unit and the drives are housed in the right chamber of the O11 Dynamic Mini Snow Edition. Power supplies in the SFX and SFX-L format are supported. In addition, the case offers space for a total of four 2.5- and 3.5-inch drives
Design, material and connections

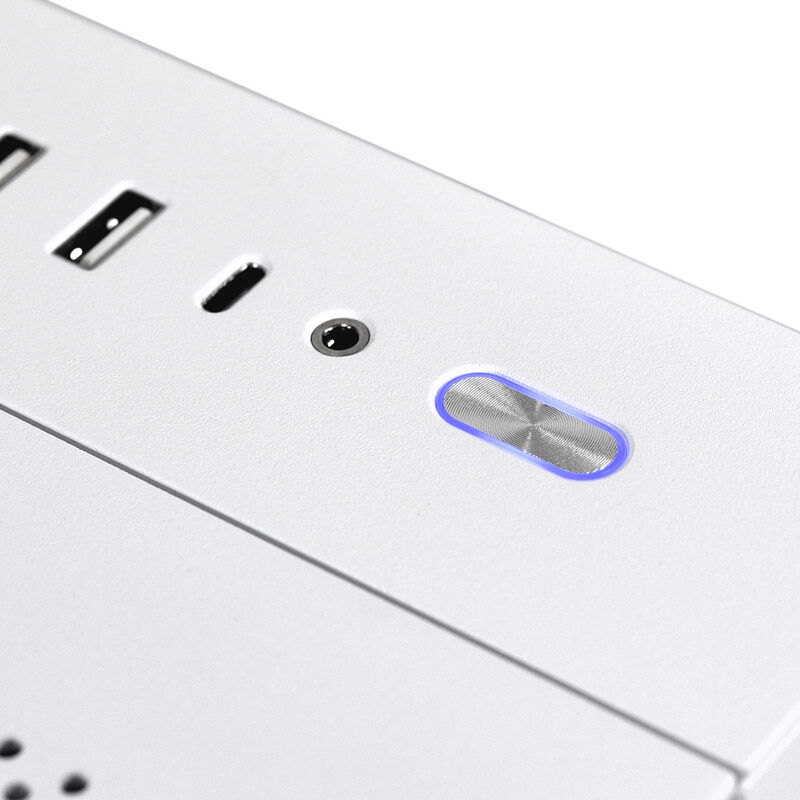

The Lian Li O11 Dynamic Mini Snow Edition offers the distinctive, stylish design that makes the O11 series so popular. It consists of a stable steel frame. Lid and right side part are made of aluminum with a white powder coating. The left side part and the front are made of 4 mm thick, tinted tempered glass and allow a view of the built-in hardware. A white decorative strip made of powder-coated aluminum decorates the right side of the housing front. Connections and controls are easily accessible on the top of the Lian Li O11 Dynamic Mini Snow Edition:
– 2x USB 3.0 type A
– 1x USB 3.1 Type C
– 1x combined 3.5 mm jack (4-pin, TRRS)
– Power button with integrated HDD LED
Technical Details
| Dimensions | Length / Depth: 269.5 mm Width: 380 mm Height: 420 mm |
|---|---|
| Materials | Steel (interior), Aluminium, Tempered Glass |
| Weight | 8.5 kg |
| Colour | White, Silver, Light Grey |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Fan Support | Top: 3x 120 / 2x 140 mm Side: 2x 120 / 2x 140 mm Bottom: 3x 120 / 2x 140 mm Rear: 1x 120 mm |
| Radiator Support | Top: Max. 360 / 280 mm Side: Max. 240 / 280 mm Bottom: Max. 360 / 280 mm |
| Dust Filters | Bottom, Top, Side |
| Drive Bays | 2x 3.5/2.5″ (internal) 2x 2.5″ (internal) |
| Power Supply | 1x SFX/SFX-L (optional) |
| Expansion Slots | 7 / 5 / 3 (depending on the rear panel) |
| I/O Panel | 1x USB 3.1 Type-C (internal connector) 2x USB 3.0 Type-A (internal connector) 1x 3.5 mm combo audio jack (4-pole, TRRS) Power button |
| Maximum VGA Length | 395 mm |
| Maximum CPU Cooler Height | 170 mm |
Specifications
| Colour | Primary Colour: White Secondary Colour: Silver |
|---|---|
| Dimensions | Length / Depth: 420 mm Width: 269.5 mm Height: 380 mm |
| Weight | 8.5 kg |
| Case Type | Mid Tower |
| Motherboard Support | Compatible Formats: ATX, Micro-ATX, Mini-ITX Max Format: ATX |
| Internal Dimensions | Max CPU Cooler Height: 170 mm Max GPU Length: 395 mm Max PSU Length / Depth: 165 mm |
| Power Supply | PSU included: No PSU Format: SFX, SFX-L Position: Rear side / top |
| Fan Support | 120 mm fans: 9 140 mm fans: 6 |
| Radiator Support | Max. Radiator Compatibility: 2x Triple (360 mm) |
| Drive Bays | 2.5 inch internal: 2 1x 3.5 / 1x 2.5 Inch Internal Bays (combined): 2 Hot swap bays: No |
| External Ports | USB 3.1 Type C: 1 USB 3.0 Type A: 2 Audio: 1x output/input comb. (3.5 mm jack, 4-pin, TRRS) |
| Case Features | I/O position: Top Side panel: With window Front door: No Cable management: Yes Filters included: Yes Noise dampening: No Mainboard slide/tray: No Remote included: No Transport system: No |
| Expansion Slots | 7 |
| Materials | Aluminium, Steel, Tempered Glass |
| Lighting / RGB | No |
| Product Series | O11 |
| Included Fans | None |
£97.00£80.83 Inc VatEx Vat
