Lian Li O11 Air Mini, Midi-Tower, Tempered Glass - black

Its adjustable rear wall makes it possible to customize the interior to make room for different configurations. The power supply, the drives and the cables are housed in a second chamber, so that the interior always looks tidy. Combining aluminum and tempered glass, the Lian Li O11 Air Mini looks exceptionally elegant.

The features of the Lian Li O11 Air Mini Midi-Tower at a glance:
– Versatile housing with modular rear panel
– Suitable for motherboards with E-ATX, ATX, Micro-ATX or Mini-ITX form factor
– Tinted tempered glass sidewall for showcasing your hardware
– Lid, front and right side panel made of aluminum
– I / O panel with one USB-C and two USB 3.0 ports
– Suitable for high-end graphics cards up to 362 mm in length
– Up to ten 120 mm fans possible for maximum cooling
– Suitable for large ATX power supplies to power power-hungry hardware
– Three PWM fans included
– O11 Air Mini: Modular PC case with excellent airflow

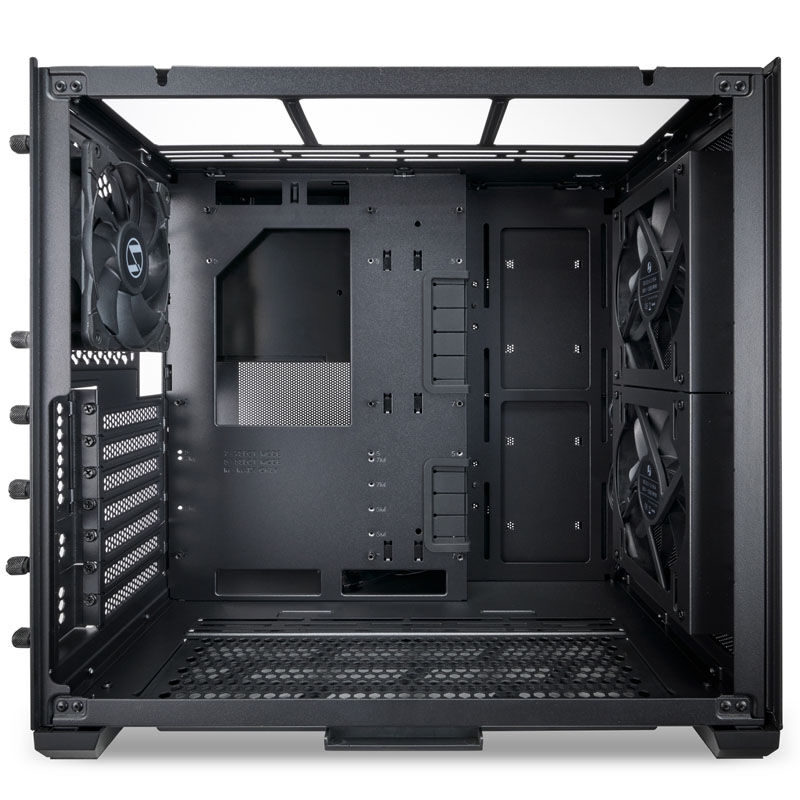

The Lian Li O11 Air Mini is extremely versatile thanks to its modular rear panel. Different brackets are included in the scope of delivery, with which the rear wall can be adjusted. This has a major influence on the selection of components: the smaller the motherboard, the more space is available for other components.

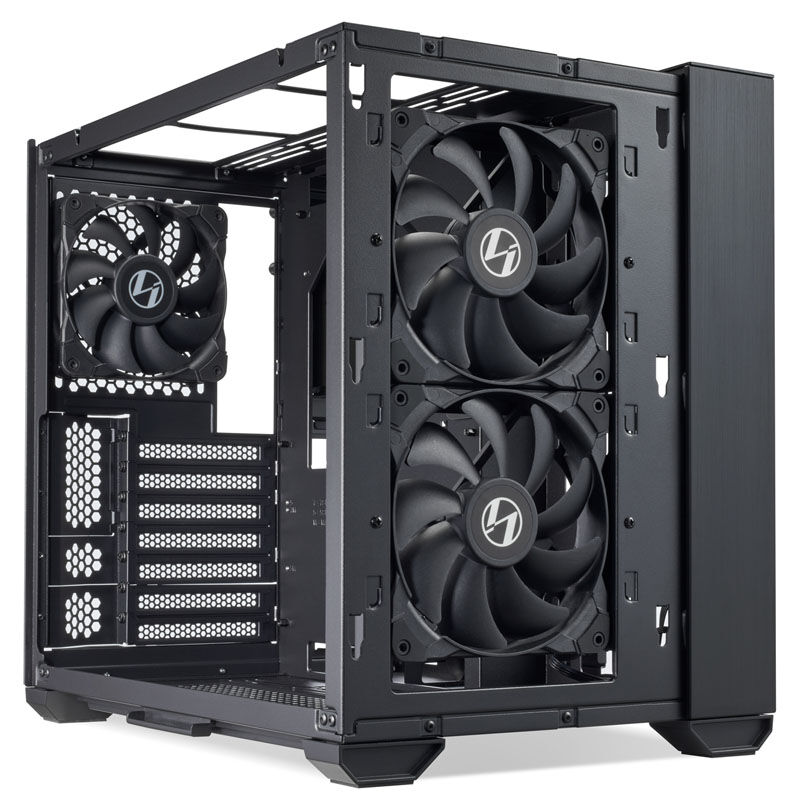

Configuration with 7 expansion slots
If the rear panel is configured with seven expansion slots, an ATX motherboard can be installed. No radiator can be attached to the top, instead fans can be mounted. However, you can mount a radiator right next to the motherboard, one at the front and one at the bottom of the case. If there is no radiator on the side, an ATX motherboard with a width of up to 280 mm can be installed.

Mainboard: E-ATX (without radiator on side), ATX, Micro-ATX, Mini-ITX
Expansion slots: 7
Lid: Three 120 or two 140 mm fans (up to 25 mm thick)
Side: 240 mm radiator up to a thickness of 59 mm
Front: max. 240/280 mm radiator or two 120/140 mm fans
Bottom (ATX): max. 240 mm radiator or two 140 mm fans
Bottom (Micro-ATX / Mini-ITX): max. 240 or 280 mm radiator or two 120/140 mm fans

Configuration with 5 expansion slots
If the rear panel is configured with five expansion slots, motherboards can be installed up to the Micro-ATX form factor. The motherboard is mounted in a lower position so that a radiator can be attached to the top.

Motherboards: Micro-ATX, Mini-ITX
Expansion slots: 5
Lid: max. 240/280 mm radiator (up to 65 mm thick)
Side: 240 mm radiator (up to 59 mm thick)
Front: max. 240/280 mm radiator or two 120/140 mm fans
Bottom (Micro-ATX): max. 240 mm radiator or two 120/140 mm fans
Floor (Mini-ITX): max. 240/280 mm radiator or two 120/140 mm fans

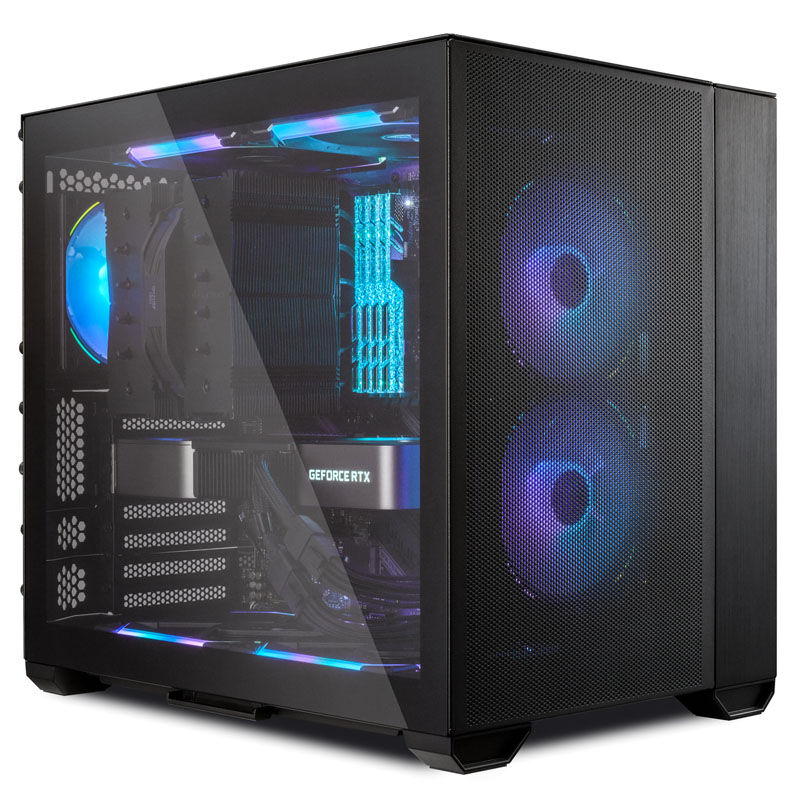

Space for a powerful gaming system

An additional 120 mm fan can be mounted on the rear panel in all possible configurations. The finest ventilation openings on the front, top and side ensure excellent air exchange. The Lian Li O11 Air Mini accommodates CPU coolers up to a height of 170 mm, so there are virtually no limits when choosing a powerful processor cooler. Even particularly large graphics cards with a length of up to 362 mm can be accommodated in this case.

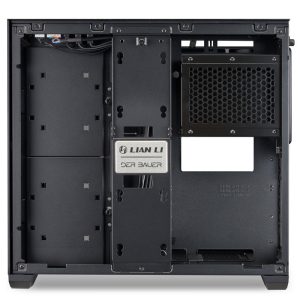

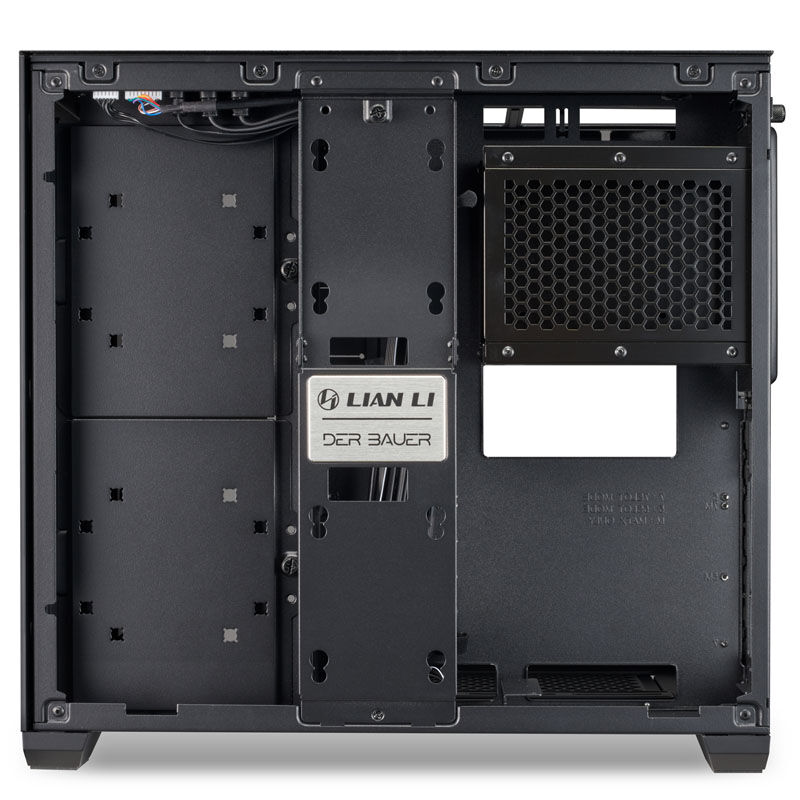

Hard drives and SSDs

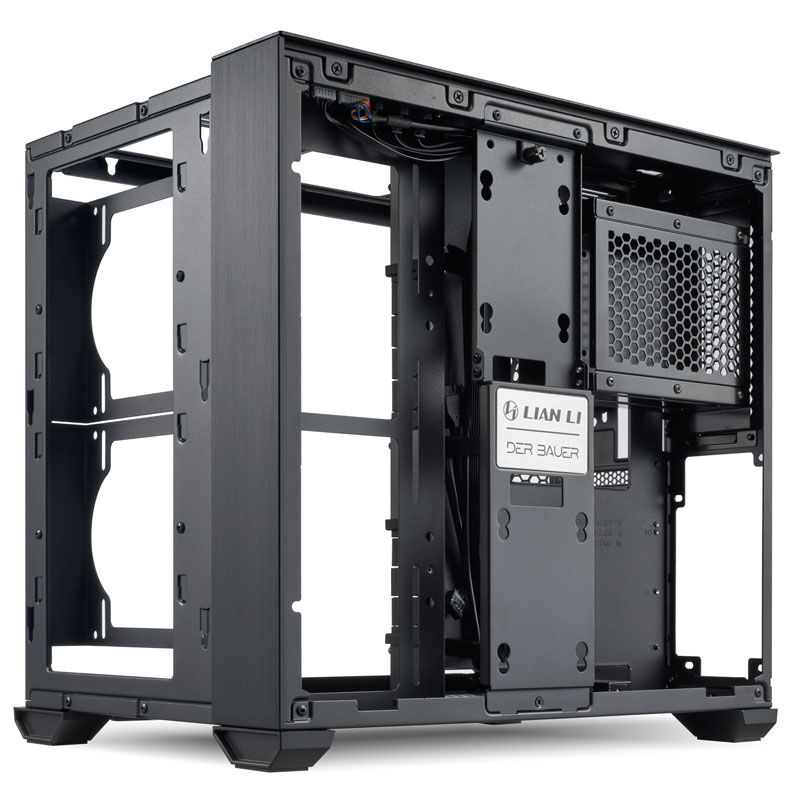

The power supply and drives are housed in the right chamber of the O11 Air Mini. The chassis supports ATX power supplies up to a height of 200 mm and offers mounting bays for a total of six drives:

4x 3.5 / 2.5 and 2x 2.5

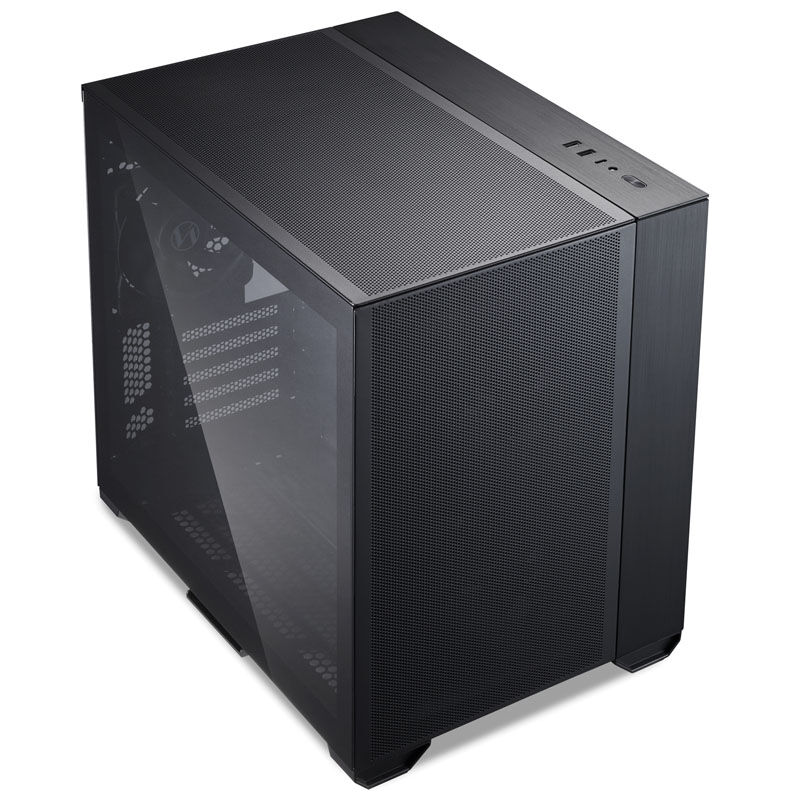

Design, material and connections

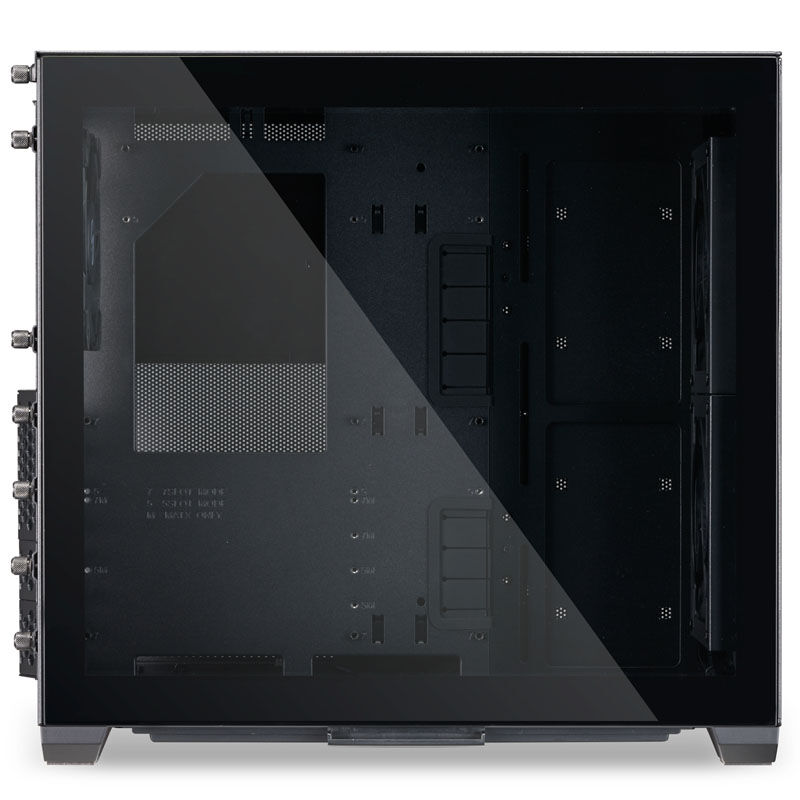

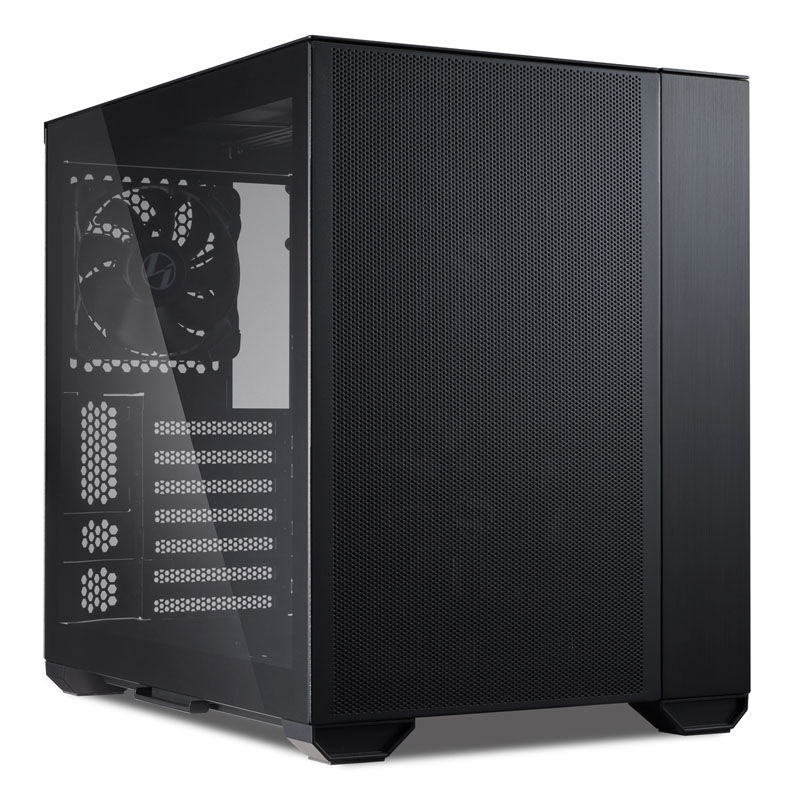

The Lian Li O11 Air Mini offers a functional yet striking and stylish design. The housing is based on a sturdy steel frame. The top, front and right sidewall are made of black anodized brushed aluminum. The left side panel is made of 4 mm thick, tinted tempered glass, so you can put your hardware in the limelight. Connections and controls of the Lian Li O11 Air Mini are integrated into the lid and thus easily accessible.

2x USB 3.0 Type A
1x USB 3.1 Type C
1x 3.5 mm jack socket (4-pin)
Power button
