Lian Li EDGE Platinum V2 Power Supply with EDGE Hub ADV - white, 1,350W

The Lian Li EDGE Platinum V2 1,350W provides up to 1,350 watts for your PC. The fully modular L-design makes it easier for you to access the power connectors. This version includes the EDGE Hub ADV in the package. In addition to extra USB and PWM ports, it monitors compatible 12V-2×6 power cables of your graphics card.

–  1,350 watts output power: For systems with particularly high power demands
– Platinum ratings: 80 PLUS, CYBERNETICS and PPLP.INFO
– Fully modular L-design: Easier access to individual cable connections
– EDGE Hub ADV included: USB, PWM and 12V-2×6 monitoring in one hub
– Complete modular cable set: Including additional short cables

Lian Li EDGE Platinum V2 1,350W for systems with high power requirements
Lian Li EDGE Platinum V2 1,350W power supply in white
With an output power of 1,350 watts, this power supply is aimed at PCs with correspondingly high power needs. For efficiency, Lian Li achieves platinum ratings from 80 PLUS, CYBERNETICS and PPLP.INFO. Inside, the manufacturer uses Japanese capacitors.

Fully modular L design for clear cable management

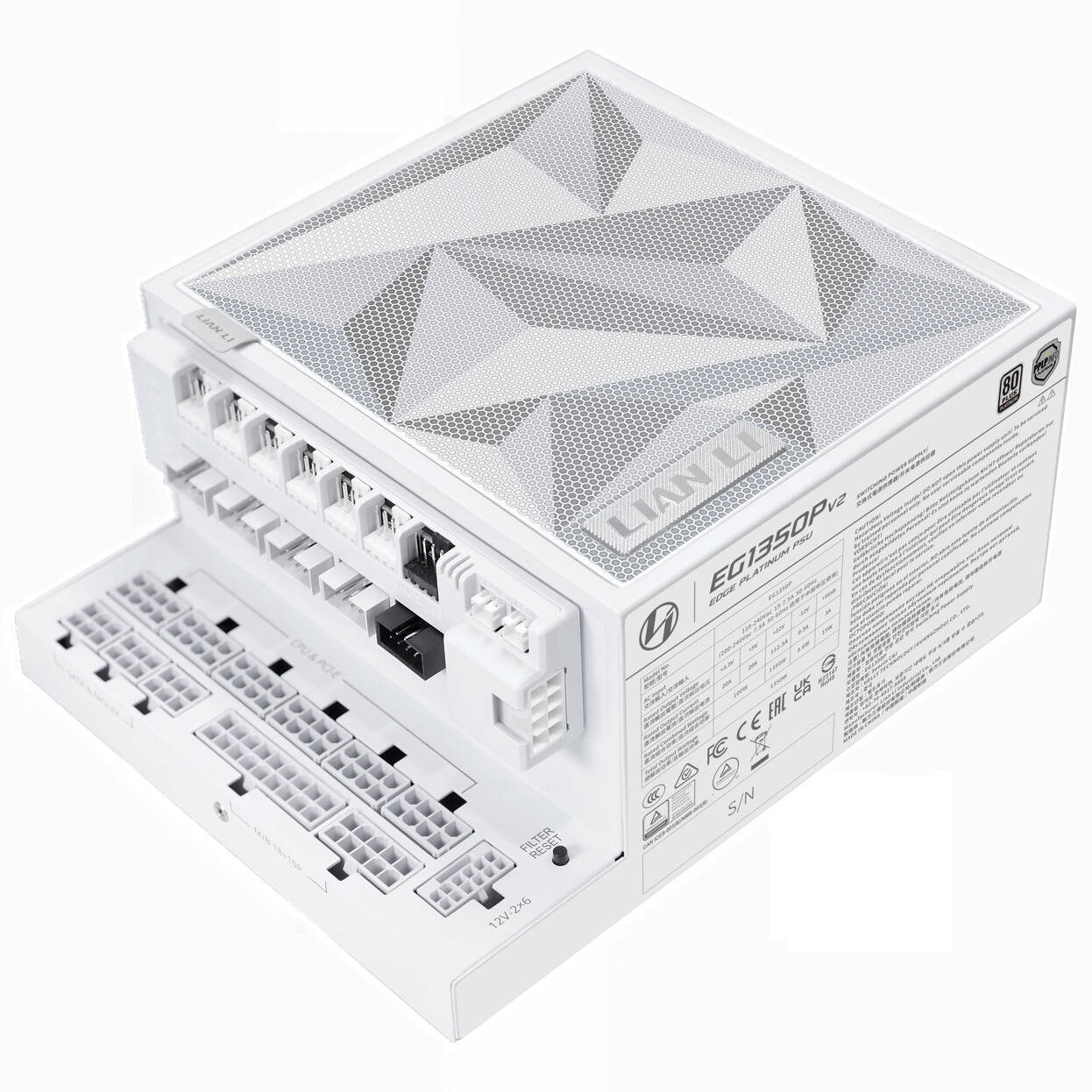

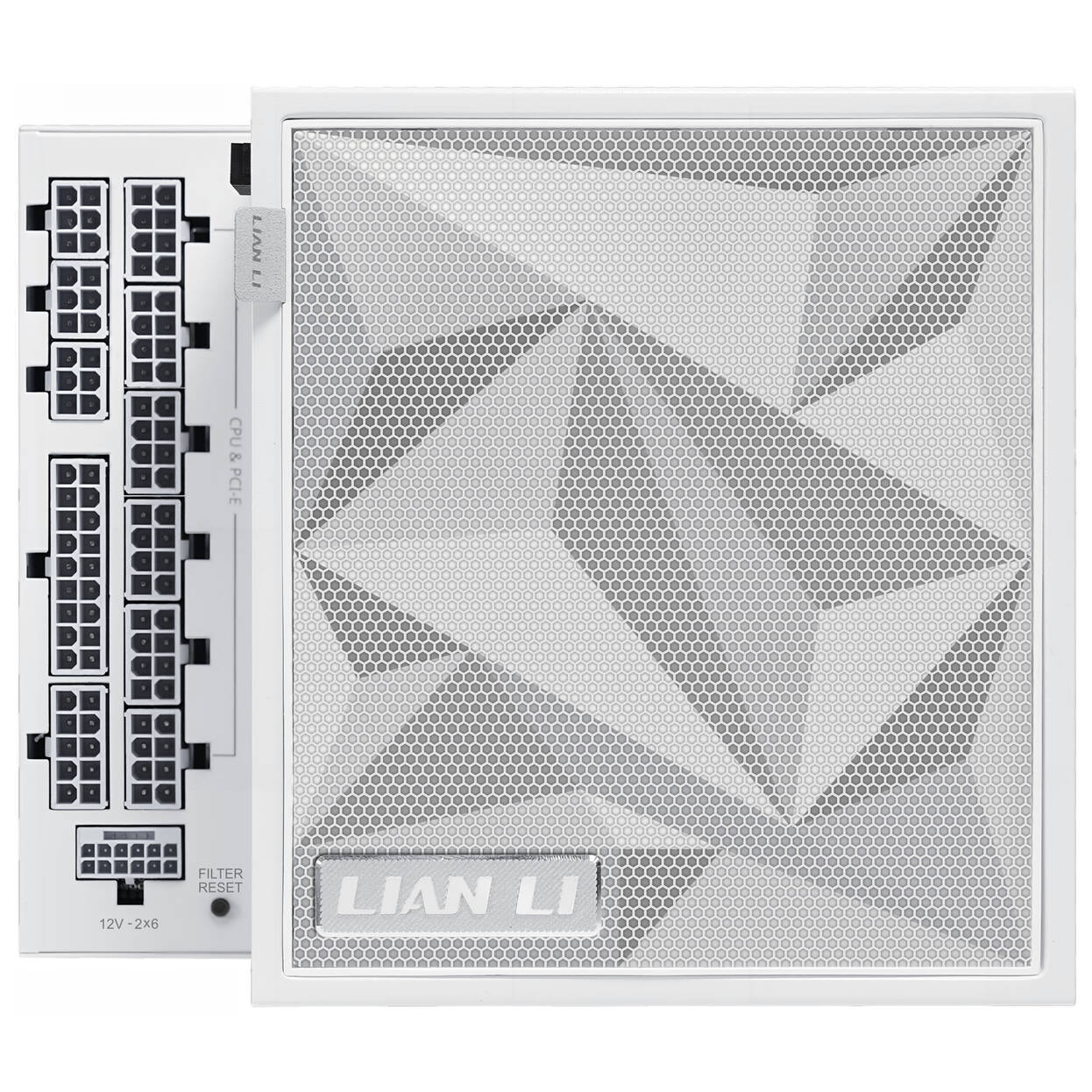

The power connectors are located in a separate section of the L-shaped PSU housing and face upwards. This makes it easier to access the plugs during installation and later adjustments. Thanks to the fully modular design, you can simply leave out any cables you don’t need. This version also includes short cables as part of the cable set.

Monitor 12V-2×6 connection with the EDGE Hub ADV
The EDGE Hub ADV features two sensor ports for compatible Advanced 12V-2×6 power cables. L-Connect 3 processes these measurements together with the case temperature. If the software detects a problem, it displays a warning. If no action is taken, L-Connect 3 can shut down the PC and send an email notification.

EDGE Hub ADV for USB devices and PWM fans
Lian Li EDGE Hub ADV with Platinum V2 power supply
In addition to GPU power monitoring, the EDGE Hub ADV expands your PC’s internal connections. Via the USB interface, it supports up to eight USB devices. Six 4-pin PWM ports are available for fans, each delivering up to 2 A.

The hub receives its power directly from the designated connector on the power supply. If you install it elsewhere in the case, use an 8-pin PCIe cable for this. In L-Connect 3, you can also monitor USB port usage and rename individual ports for easier identification.

Removable dust filter with reminder LED
A 120mm fan cools the power supply. The mesh filter in front of it can be removed for cleaning. After 360 hours of fan operation, the indicator LED changes from green to red. At a load of 300 watts, no active cooling is required, and the fan remains off.
