With the Lian Li EDGE Hub V2, you can expand the connections in your PC. The included hub centrally powers multiple internal USB devices and fans. This means you don't have to connect each device individually to your motherboard and can keep the cabling tidy.
With the Lian Li EDGE Hub V2, you can expand the connections in your PC. The included hub centrally powers multiple internal USB devices and fans. This means you don't have to connect each device individually to your motherboard and can keep the cabling tidy.
With the Lian Li EDGE Hub V2, you can expand the connections in your PC. The included hub centrally powers multiple internal USB devices and fans. This means you don't have to connect each device individually to your motherboard and can keep the cabling tidy.
With the Lian Li EDGE Hub V2, you can expand the connections in your PC. The included hub centrally powers multiple internal USB devices and fans. This means you don’t have to connect each device individually to your motherboard and can keep the cabling tidy.
– More internal USB ports: Four USB ports support up to eight devices in total
– Six connections for PWM fans: Each port supplies up to 2 A
– Easy installation: Strong magnets simplify positioning inside the case
– Flexible power supply: Powered directly via a compatible Lian Li power supply or through an 8-pin PCIe connector
– Monitoring via software: USB usage can be checked with L-Connect 3
– More connections for your hardware

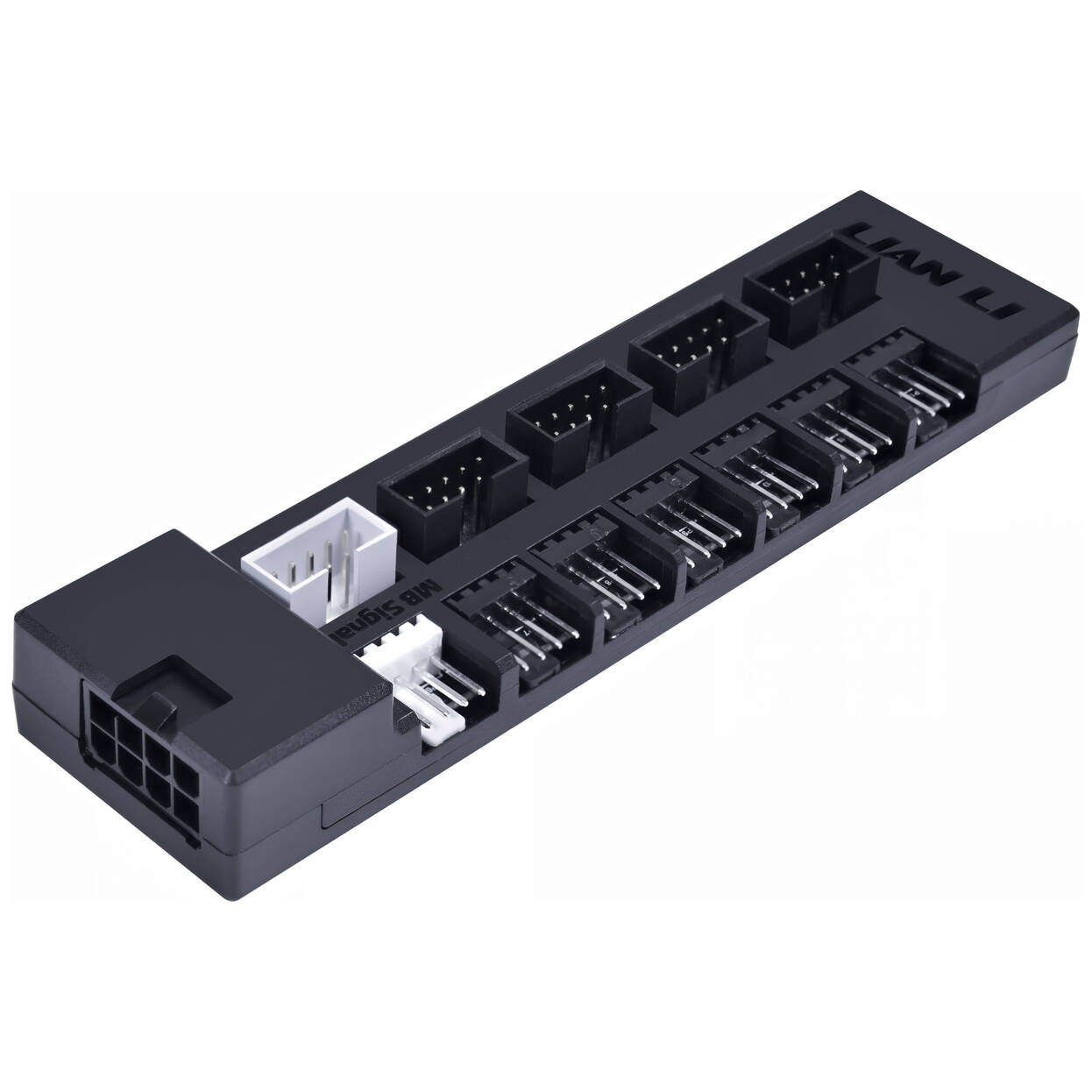

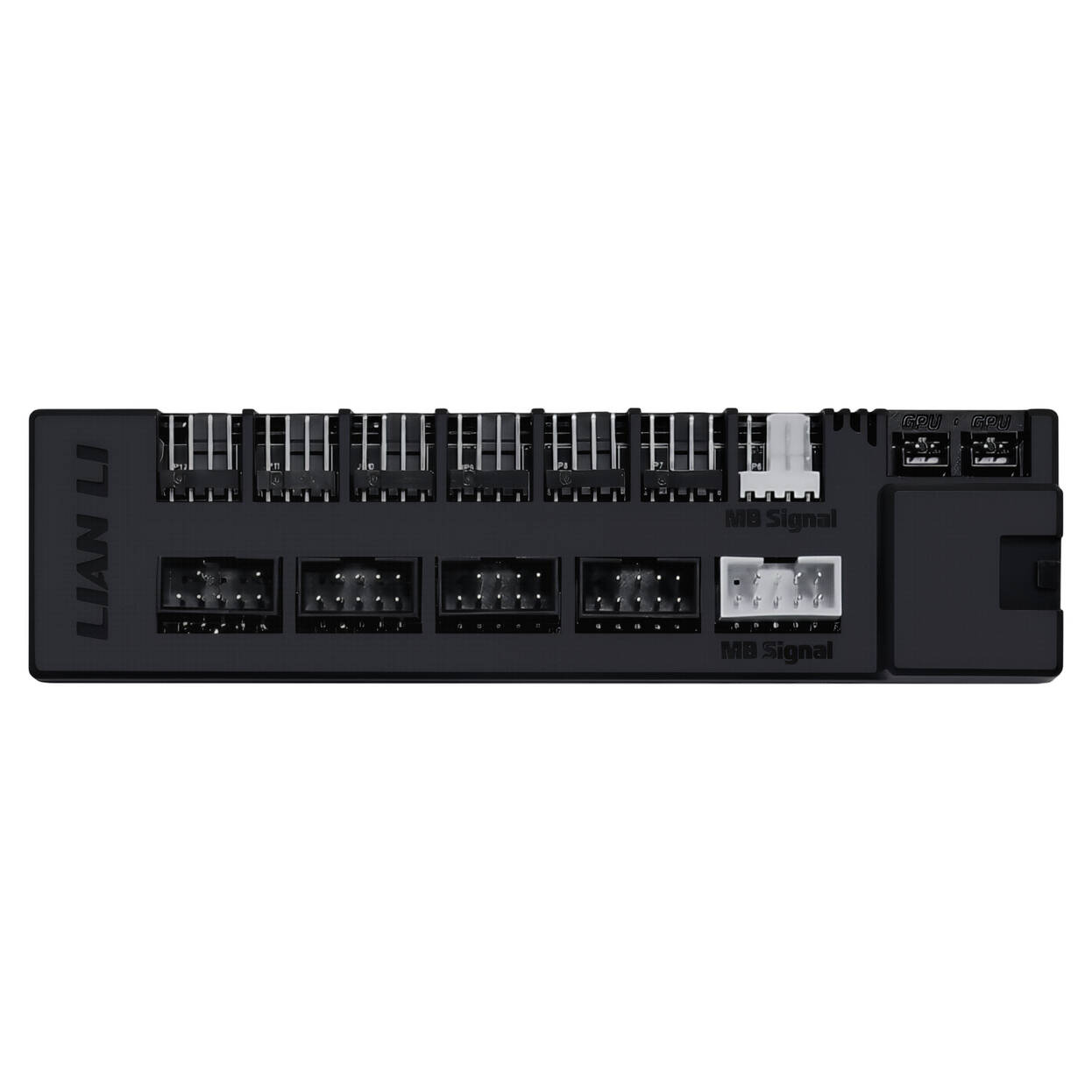

Lian Li EDGE Hub V2 with USB and PWM connections
You can connect additional internal USB devices and PWM fans centrally to the EDGE Hub V2. Four USB ports support up to eight devices simultaneously. In addition, there are six 4-pin PWM connectors for your fans.
Connect and control fans centrally
Each of the six PWM ports is designed for up to 2 A. Through motherboard synchronization, you can then control the connected fans using your preferred software.
Easily mounted inside the case
Thanks to the integrated magnets, you can flexibly position the hub inside your PC case. Together with the EDGE or RS power supply, it can be powered directly via the designated connector. Alternatively, you can use a free 8-pin PCIe connector.
Keep an eye on USB connections with L-Connect 3
With Lian Li L-Connect 3, you can monitor overall USB usage and the usage of individual ports. The ports can be renamed for easier identification. The software alerts you in case of high usage. This way, you can quickly see when you should better distribute your USB devices across multiple ports.
Edge Hub V2
– Dual-chip architecture distributes USB devices across two paths for more balanced device usage.
– Connects through the motherboard’s USB 3.0 header using USB 2.0 signals to reduce hub layers.
– Four USB ports support up to eight downstream signals through 1-to-2 signal splitting.
– Six 4-pin PWM fan ports support up to 2A each for centralized fan connectivity.
– L-Connect 3 provides per-port transfer monitoring, overall hub utilization, high-load alerts, and custom port names.
– Supports direct power from EDGE / RS Series PSUs or independent power via a PCIe 8-pin cable.
– Magnetic mounting enables flexible placement inside the case.
AVAILABLE IN TOW COLORS
Available in Black and White, Edge Hub V2 blends effortlessly onto different build styles, from clean minimal setups to fully themed systems.
EDGE HUB V2
INNOVATIVE EXTERNAL USB & FAN HUB
EDGE HUB V2 streamlines fan and USB management with dual-hub architecture, six PWM fan ports, and eight USB connections, Flexible installation and seamless L-Connect 3 monitoring bring refined control to any build.
EDGE HUB VS. EDGE HUB V2:
KEY DIFFERENCES
EDGE Hub V2 upgrades both hardware architecture and software management, introducing dual-hub signal distribution, higher USB device hierarchy, expanded installation flexibility, and USB monitoring through L-Connect
DUAL CHIP HUB ARCHITECTURE
EDGE Hub V2 replaces the previous version’s single hub chip with two parallel 1-to-4 hub chips, distributing connected USB devices across two paths for more balanced device management and improved system flexibility. Ideal for LCD products and other USB devices, it delivers more stable connectivity for complex setups.
RELIABLE USB HIERARCHY
EDGE Hub V2 connects directly to the motherboard’s USB 3.0 header while utilizing its USB 2.0 signal path, positioning the hub higher in the USB device tree to reduce hub layers and provide more reliable connectivity for multiple USB-controlled devices.
MAXIMIZED USB EXPANSION
Four physical USB ports can each carry two USB signals through a 1-to-2 splitter cable, offering flexible signal routing and configuration for different internal USB setups.
FLEXIBLE POWER OPTIONS
Connect EDGE Hub V2 directly to an EDGE or RS Series PSU, or power it independently via a PCIe 8-pin cable for use with any PSU.
| Technical Data | |
|---|---|
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 35 mm |
| Width | 132 mm |
| Height | 17 mm |
| Cable Specifications | |
| Cable Type | Hub |
| Standards / Specifications | |
| Standard / Specification | USB 3.0 |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. |
| Connectivity | |
| Connector 1 (Internal) | Fan (4-Pin) SOCKET 6x, PCIe (8-Pin) SOCKET |
| Connector 2 (Internal) | USB 2.0 (Internal) PLUG 4x |
| Lighting | |
| Lighting / RGB | No |
| Product Series | |
| Product Series/Family | EDGE V2 |
