9-channel PWM splitter for fans and aquabus devices
9-channel PWM splitter for fans and aquabus devices
9-channel PWM splitter for fans and aquabus devices
– Forwarding a PWM signal to the controller
– Including connection cables and mounting material
– aqua computer SPLITTY9 ACTIVE: 9-way splitter for PWM fans

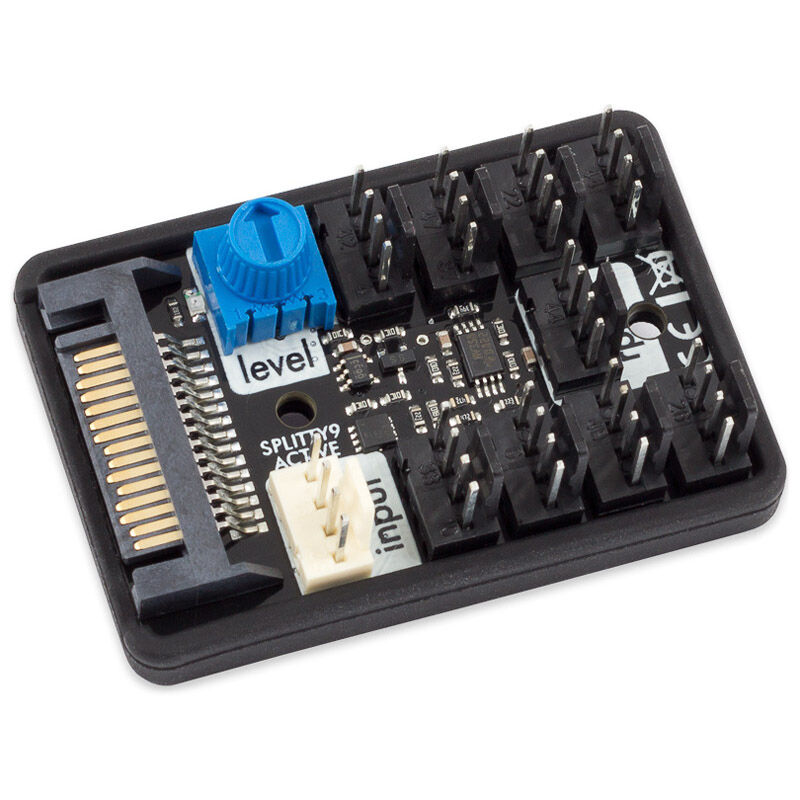

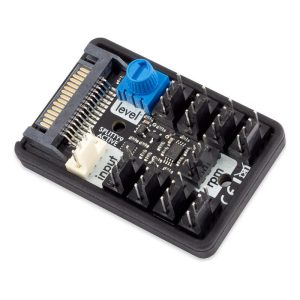

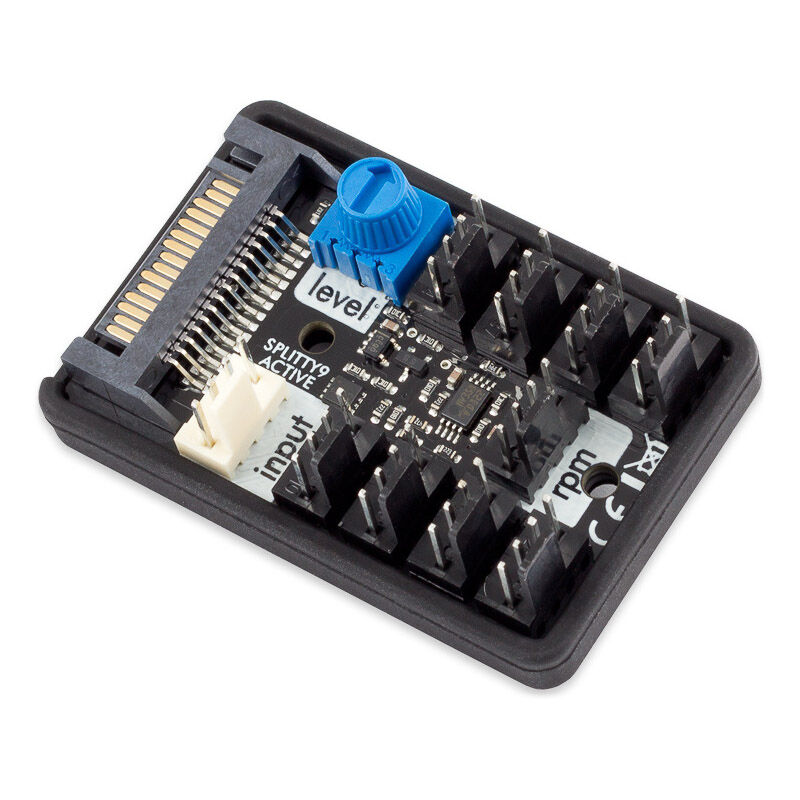

The aqua computer SPLITTY9 ACTIVE is a powerful active 9-way splitter for 4-pin PWM fans with a voltage feeding function and amplification of the PWM signal. This innovative splitter offers you decisive advantages over conventional passive splitters. Experience a new dimension in fan control and cooling performance with the SPLITTY9 ACTIVE. Optimize the performance of your PC system and ensure reliable cooling of your components.
Power supply via SATA connector
Unlike conventional passive splitters, SPLITTY9 ACTIVE does not supply the connected fans via the fan output, but rather draws the voltage directly via a SATA connector that is connected to your PC power supply. This intelligent solution provides your fans with an independent and powerful power supply. With a maximum of 4.5 A or 54 watts for up to 9 fans, even demanding systems can be operated effortlessly.
Amplification of the PWM signal
Traditional passive splitters can overload the PWM signal when multiple fans are connected, which can lead to inadequate regulation and control of the fan speed. SPLITTY9 ACTIVE solves this problem by amplifying the PWM signal. Even fans with non-standard PWM inputs can be controlled precisely and reliably, giving you full control over your PCs cooling performance.
Adjustable switching threshold
Another advantage of the SPLITTY9 ACTIVE is the ability to individually adjust the switch-on threshold of the connected fans. Thanks to a practical rotary knob, you can easily adjust the switching threshold. If the incoming PWM signal is detected below the specified threshold, the SPLITTY9 ACTIVE automatically switches off the power supply to the fans. A practical LED display on the splitter informs you at all times whether the fans are currently active or not.
Easy construction
The installation of the SPLITTY9 ACTIVE is extremely flexible. You can easily attach the splitter to your PC case using the included self-adhesive Velcro tape or alternatively use the two mounting holes to install it firmly and securely.
Specifications
| Dimensions | |
| Size (L × W × H) | 57 × 39 × 16 mm |
| General | |
| Color | Black |
| Maximum Current | 4.5 A |
| Connections | |
| Power Input | 1 × SATA power |
| PWM Input | 1 × 4-pin PWM |
| PWM Outputs | 9 × 4-pin PWM |
| Scope of Delivery | |

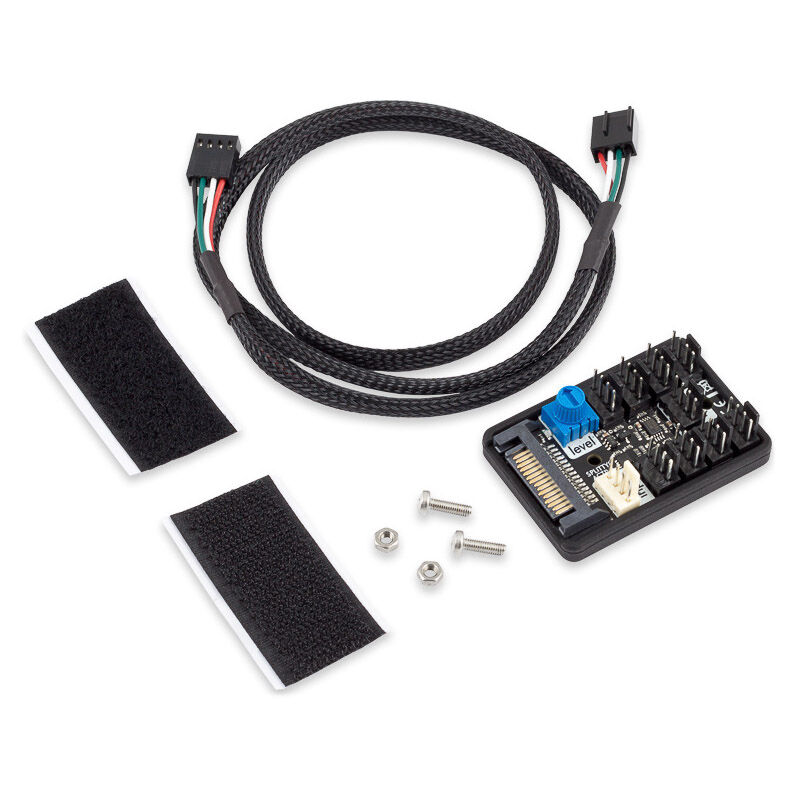

| Included Items | PWM splitter 4-pin connection cable (70 cm) 2 × self-adhesive Velcro tapes Mounting material (2 × screws, 2 × nuts) |
