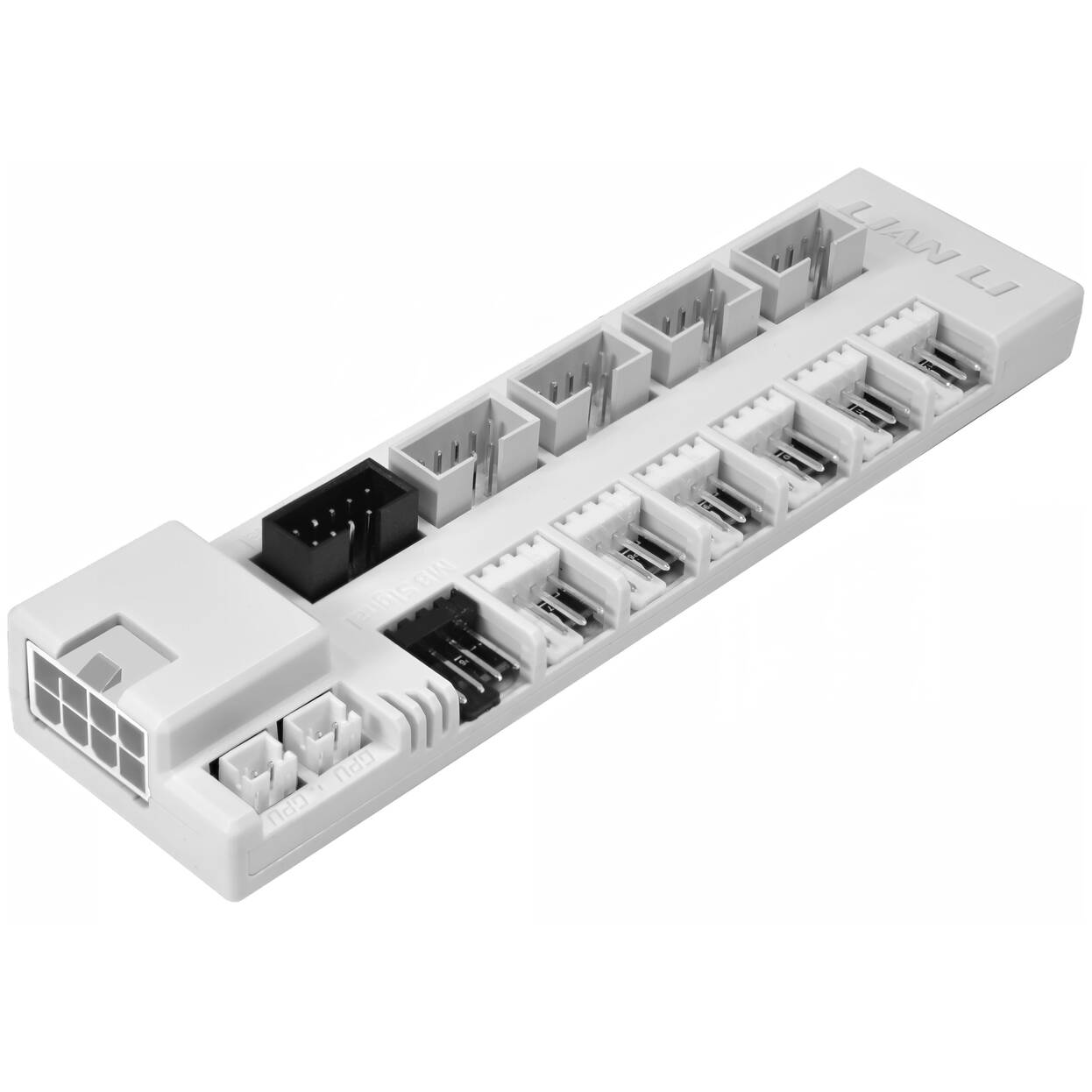

Lian Li EDGE Hub ADV - White

With the Lian Li EDGE Hub ADV, you can centralize internal USB devices and fans in one place. Four USB ports and six PWM connectors provide additional connection options. The ADV version also monitors compatible 12V-2×6 power cables of your graphics card.

–  More internal USB ports: Four USB ports support up to eight devices in total
– Six connections for PWM fans: Each connection supplies up to 2 A
– Flexible mounting: Integrated magnets make it easy to position inside the case
– Flexible power supply: Powered directly via a compatible Lian Li power supply or through an 8-pin PCIe connector
– Additional monitoring: Two sensor connectors for compatible Advanced 12V-2×6 cables
– USB devices and fans on one hub

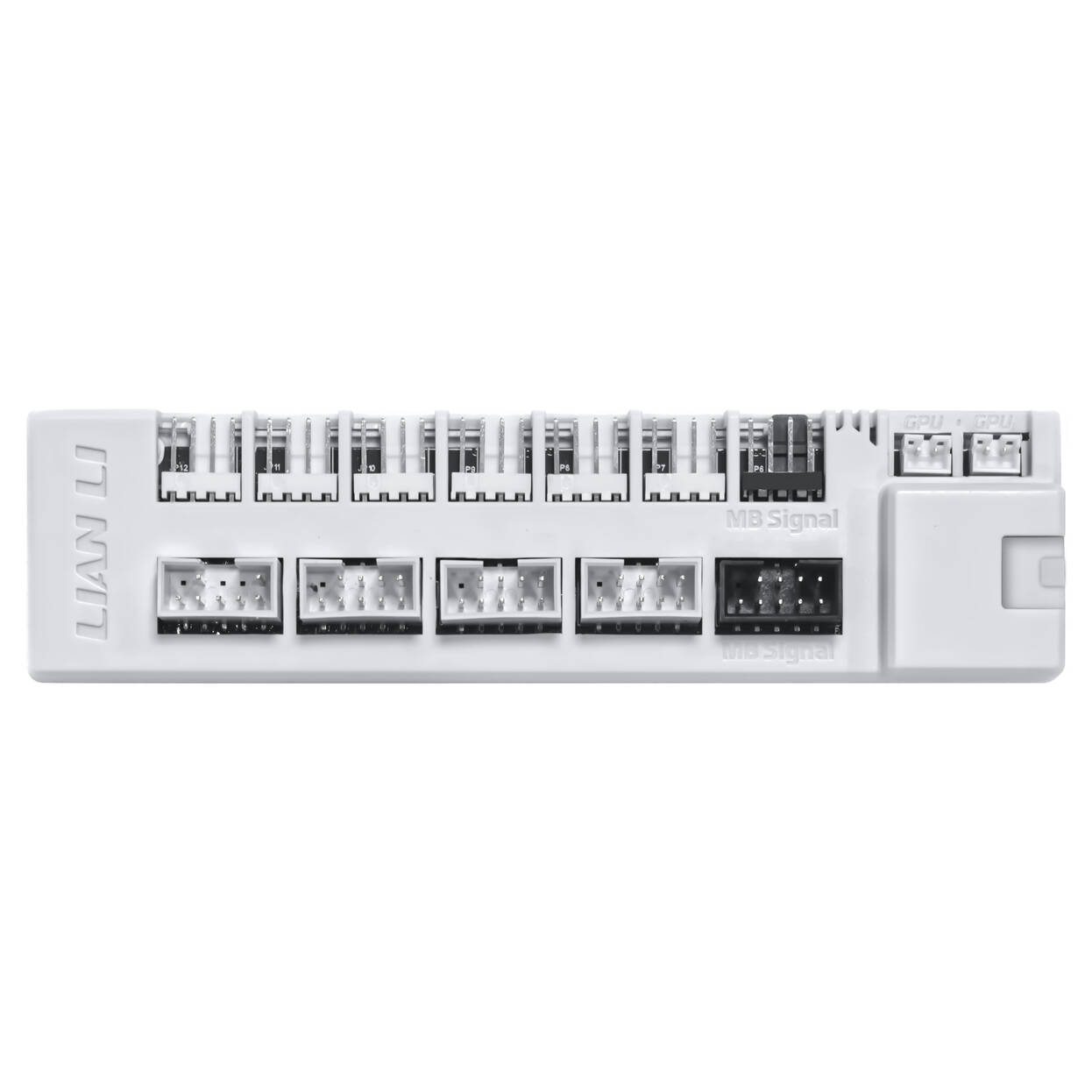

Lian Li EDGE Hub ADV with USB and PWM connectors
The EDGE Hub ADV provides you with four internal USB ports, on which a total of up to eight devices can be operated. Additionally, the hub has six 4-pin PWM connectors. Each is designed for up to 2 A.

Easy to attach and power
Integrated magnets help you to securely attach the hub inside your case. With compatible Lian Li EDGE or RS power supplies, power is supplied directly via the designated connector. If positioned elsewhere or using a different power supply, you can use a free 8-pin PCIe connector.

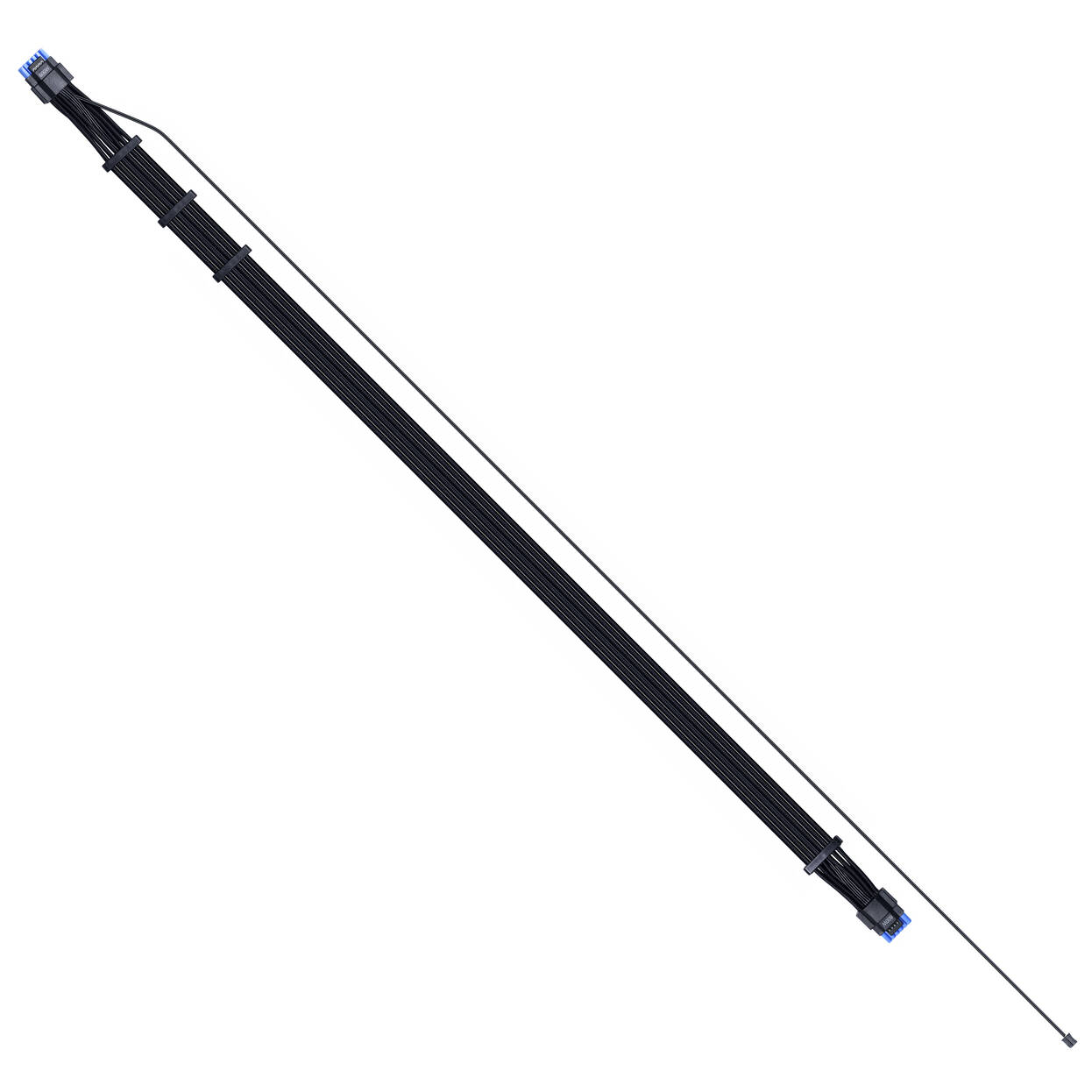

Monitor the 12V-2×6 connection of your graphics card
The EDGE Hub ADV features two sensor connectors for compatible Advanced 12V-2×6 power cables. L-Connect 3 evaluates the sensor data together with the temperature inside the case. If the software detects a problem, it will alert you. If there is no response, L-Connect 3 can shut down the PC to protect the hardware and send a notification by email.

Control connections with L-Connect 3
Within Lian Li L-Connect 3, you can view the overall USB usage as well as the load on individual ports. You can also rename the connections, making it easier to identify which device is connected to which port.

Edge Hub Adv
– Dual-chip architecture distributes USB devices across two paths for more balanced device usage.
– Connects through the motherboard’s USB 3.0 header using USB 2.0 signals to reduce hub layers.
– Four USB ports support seven downstream signals, with one channel reserved for GPU connector temperature monitoring.
– Six 4-pin PWM fan ports support up to 2A each for centralized fan connectivity.
– L-Connect 3 provides per-port transfer monitoring, overall hub utilization, high-load alerts, and custom port names.
– GPU connector temperature monitoring supports customizable alerts, automatic shutdown, and email notifications.
– Supports direct power from EDGE / RS Series PSUs or independent power via a PCIe 8-pin cable.
– Magnetic mounting enables flexible placement inside the case.

AVAILABLE IN TWO COLORS

Available in black and white, Edge Hub ADV blends effortlessly into different build styles, from clean minimal setups to fully themed systems.

EDGE HUB SERIES
INNOVATIVE EXTERNAL USB & FAN HUB

EDGE Hub ADV elevates fan and USB control with dual-chip architecture, an optimized USB hierarchy, and L-Connect 3 integration. GPU connector temperature monitoring, customizable alerts, and automatic protection bring added confidence to advanced builds.

DUAL CHIP HUB ARCHITECTURE

EDGE Hub ADV features a dual-chip architecture that distributes USB devices across separate paths, reducing bandwidth congestion and screen freezes in complex setups while delivering flexible expansion and reliable connectivity.

Reliable USB Hierarchy

EDGE Hub ADV connects directly to the motherboard’s USB 3.0 header through its USB 2.0 signal path, placing the hub higher in the device tree to reduce hub layers and ensure reliable connectivity across multiple USB devices.

FLEXIBLE POWER OPTIONS

Connect EDGE Hub ADV directly to an EDGE or RS Series PSU, or power it independently via a PCIe 8-pin cable for use with any PSU.

ENHANCED SOFTWARE INTEGRATION
WITH L-CONNECT 3

Elevate USB management through L-Connect 3 with real-time port activity, hub utilization, and device insights. EDGE Hub ADV adds proactive thermal protection with customizable alerts, automatic shutdown, and email notifications.

Advanced Temperature Management

EDGE Hub ADV monitors up to two 12V-2×6 GPU connectors and the hub’s PCB ambient sensor. L-Connect 3 displays real-time readings and temperature history for a complete thermal overview. This clearly distinguishes localized connector heat from overall system temperature.
