In times of tempered glass, it is no longer just the PCs cooling performance and volume development that need to be adapted to their own and changing requirements, but also the RGB lighting that matches the hardware. The Lamptron RW460 PCI RGB & Fan Controller not only offers extensive functionality, but also high compatibility.
Lamptron RW460 controller for water cooling - black
In times of tempered glass, it is no longer just the PCs cooling performance and volume development that need to be adapted to their own and changing requirements, but also the RGB lighting that matches the hardware. The Lamptron RW460 PCI RGB & Fan Controller not only offers extensive functionality, but also high compatibility.
In times of tempered glass, it is no longer just the PCs cooling performance and volume development that need to be adapted to their own and changing requirements, but also the RGB lighting that matches the hardware. The Lamptron RW460 PCI RGB & Fan Controller not only offers extensive functionality, but also high compatibility.
Earn 41 Points
We price match UK retailers. Try It Now!
- SKU: WAZU-918
- MPN: LAMP-RW460B
- EAN: 6900628401439
- Warranty: 12 Months
Details

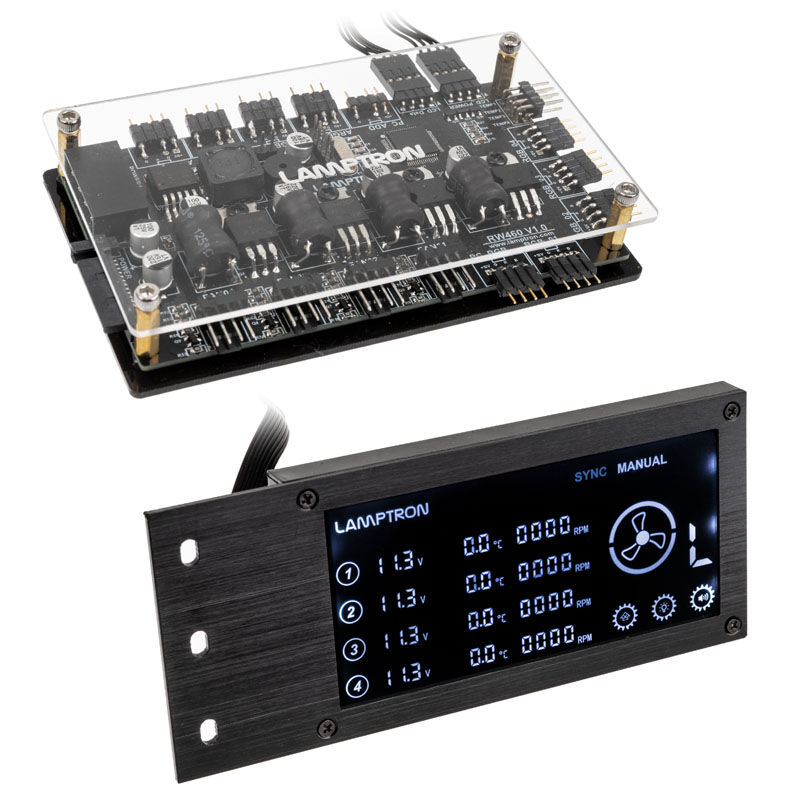

It runs up to four fans with or without PWM control and RGB products with or without digital RGB LEDs. The separate LC display can be attached to PCI slots, the numerous information can then be admired through a transparent side part made of hard or acrylic glass. It is controlled by an infrared remote control.
The features of the Lamptron RW460 PCI RGB & Fan Controller at a glance
– Control board for fans, pumps and RGB LED lighting
– Separate LC display with displays for temperature, voltage and speed
– Synchronization with mainboard or other RGB controller possible
-Four channels for fans with or without PWM with up to 60 watts per channel
– Four headers for up to 60 RGB LEDs (12VGRB)
– Four headers for up to 60 digitally addressable RGB LEDs (5VDG)
– Power supply via 4-pin Molex and SATA
– Including infrared remote control
– Maximum control of ventilation & lighting
The Lamptron RW460 PCI RGB & Fan Controller offers almost unlimited control over fans and RGB lighting. With up to 36 watts of power per channel, there is almost no limit. The fan controller supports fans with and without PWM. The power supply is via a 4-pin Molex connector. A total of up to four fans can be connected to the controller board.
In addition, four 4-pin RGB LED fans or strips (12VGRB) and four digitally addressable 3-pin RGB devices (5VDG) can be connected. The additional power supply required is via a SATA connection. In addition, four temperature sensors are included, which can also be connected to the circuit board.
Including LC display and infrared remote control
The control of the lighting and the speed of the fans takes place via the included infrared remote control. There, for example, the fans can either be set to quiet mode at 40 percent or to maximum mode. Or you can leave the fan control to the controller. In addition, the lighting modes are set via the remote control. The Lamptron RW460 can be connected to a mainboard or other RGB controller using the cable provided and thus enables the synchronization of RGB and ARGB lighting with external control units.

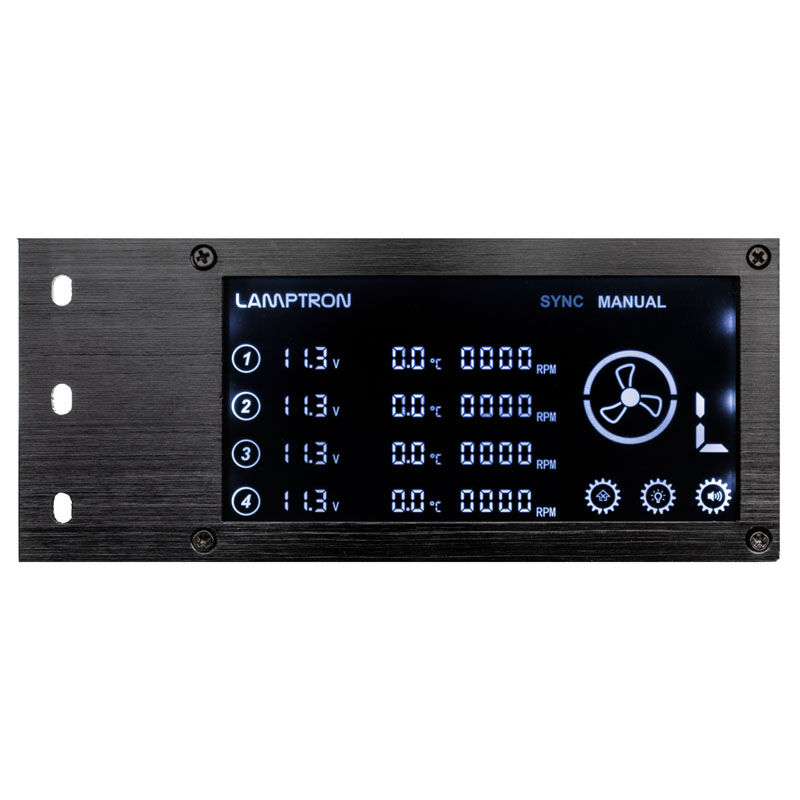

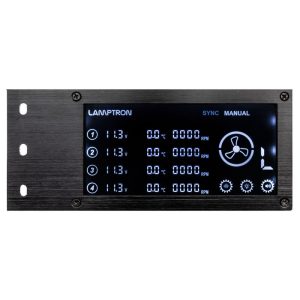

Lamptron has included a stylish LC display so that you know how fast the fans are rotating and at what voltage they are running and what temperatures are inside the case. It is attached to three free PCI slots and the output can be admired through a transparent side window. The controller board is connected to it with a cable and can be hidden somewhere in the housing.

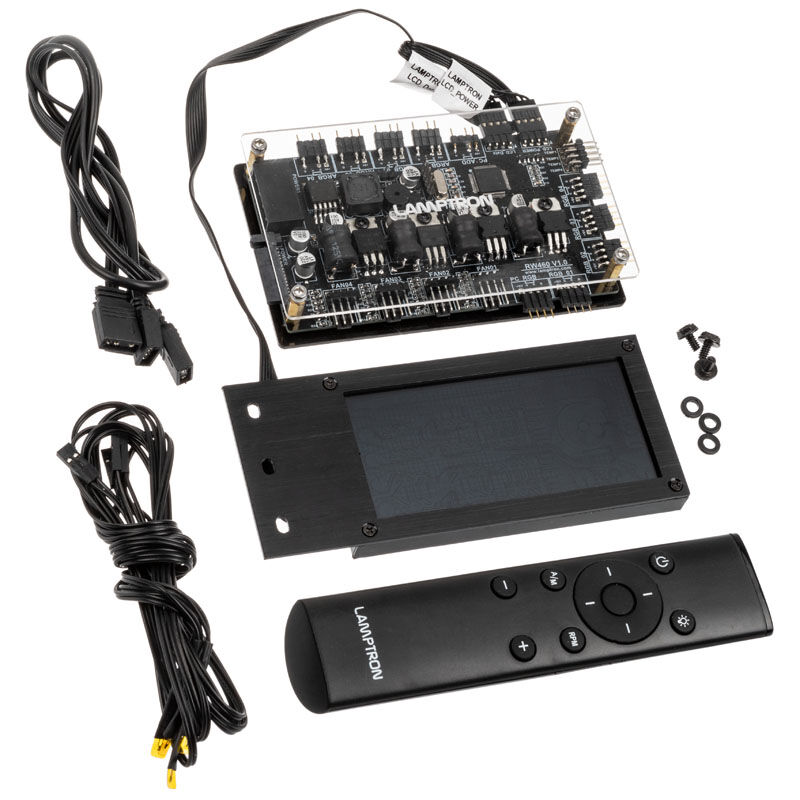

Scope of delivery:

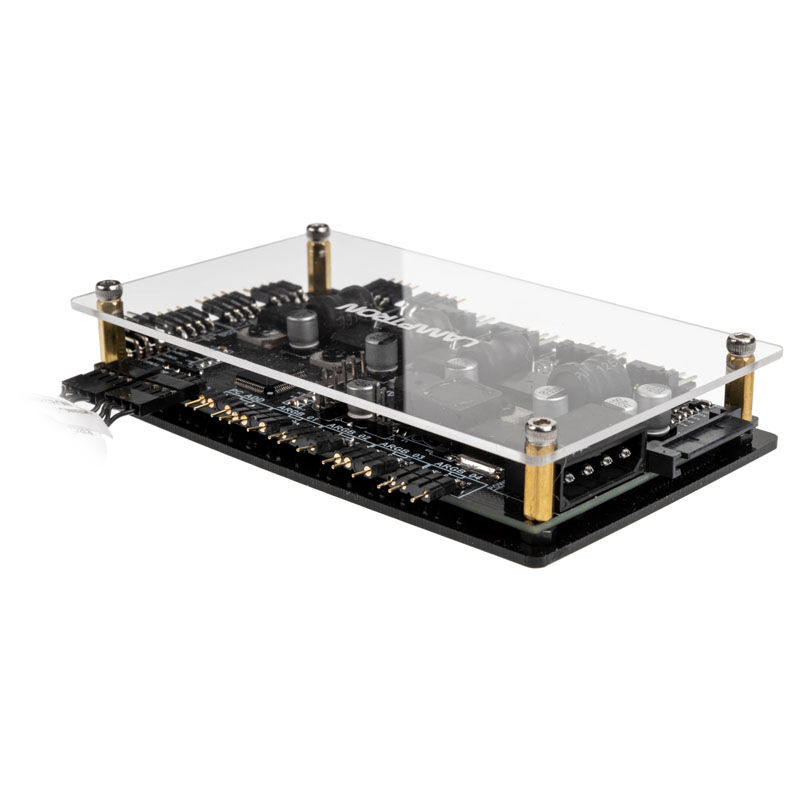

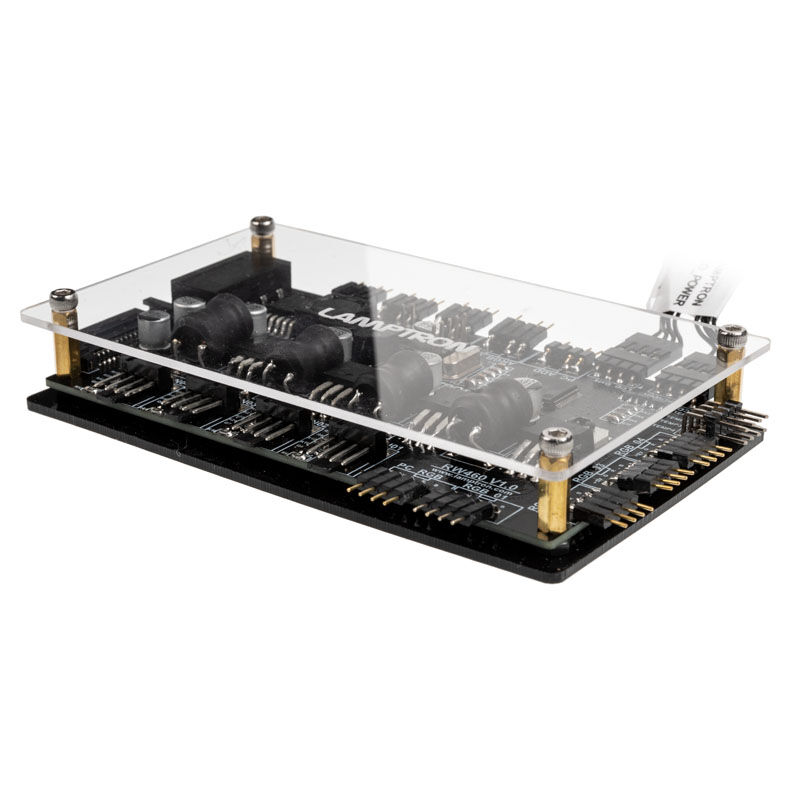

1x controller board with cover made of acrylic glass
1x LC display
2x connection cable controller / display
4x temperature sensors
1x infrared remote control
Mounting material for display
| General Specifications | |
|---|---|
| Main Colour | Black |
| Material | Aluminum |
| Board Dimensions (W x H x D) | 121.5 x 21 x 72.5 mm |
| Display Dimensions (W x H x D) | 140 x 12.5 x 60 mm |
| Screen Size | 95 x 45 mm |
| PCI Slot Compatibility | 3x PCI Slots (Display) |
| Voltage Range | 0 – 12 V (Stepless Adjustment) |
| Fan Channels | 4 (Max. 36W Total) |
| Power & Connections | |
| Power Input | 1x 4-pin Molex 1x SATA |
| Temperature Sensors | 4x 2-pin |
| RGB Inputs | 1x PC-RGB In 1x PC-ADD In |
| RGB LED Connections | |
| Digital RGB (ARGB) | 4x 3-pin (5VDG, up to 60 LEDs per Channel) |
| Analog RGB | 4x 4-pin (12V GRB, up to 60 LEDs per Channel) |
