To adjust the output volume and development of its own PCs and each changing needs, this controller enables direct access via six channels. The manufacturer Lamptron thus chose a classic layout with knobs.
To adjust the output volume and development of its own PCs and each changing needs, this controller enables direct access via six channels. The manufacturer Lamptron thus chose a classic layout with knobs.
To adjust the output volume and development of its own PCs and each changing needs, this controller enables direct access via six channels. The manufacturer Lamptron thus chose a classic layout with knobs.
No products found
These are housed in a massive, black aluminum bezel in 5.25-inch format and provided for corresponding slots. According to the manufacturer, each of the six channels are loaded with a maximum of 30 watts. The stepless adjustment via knob here offers a range from 0 to 12 volts.
Thanks to six freely positionable temperature sensors the heat output can always be kept in view in order to select the optimum speed. The sensors are mounted at the tips extra long cable. Since the 3-pin fan cables feature a generous dimensions, remote locations can be achieved in Big-tower chassis itself.
The control is thereby connected via 4-pin Molex to the power supply and power from this. In addition to the high functionality the FC5 fan controller of Lamptron also convinces with a cool look. Besides the high quality material choice here falls on especially the lighting. Thanks to multi-color LEDs may all sixteen colors are represented. Their selection is made via jumpers on the back.
Other jumpers allow the exchange between the temperature units degrees Celsius and Fahrenheit and the (De) activate the alarm function. These reports, if appropriate, critical temperatures.
Note: The rotary controls are somewhat so that an installation in enclosures with front door is usually not possible.
Technical details:
Dimensions: 148.5 x 42.5 x 63 mm (WxHxD)
Length of the knob: about 10 mm
Compatibility: 1x 5.25 bay
Material: Aluminum
Colour: Silver
Fan channels: 6 (max 30 W per channel.)
Voltage: Adjustable from 0 – 12V
Connections:
1x 4-pin Molex
6x 3-Pin (fan)
6x 2-pin (temperature sensors)

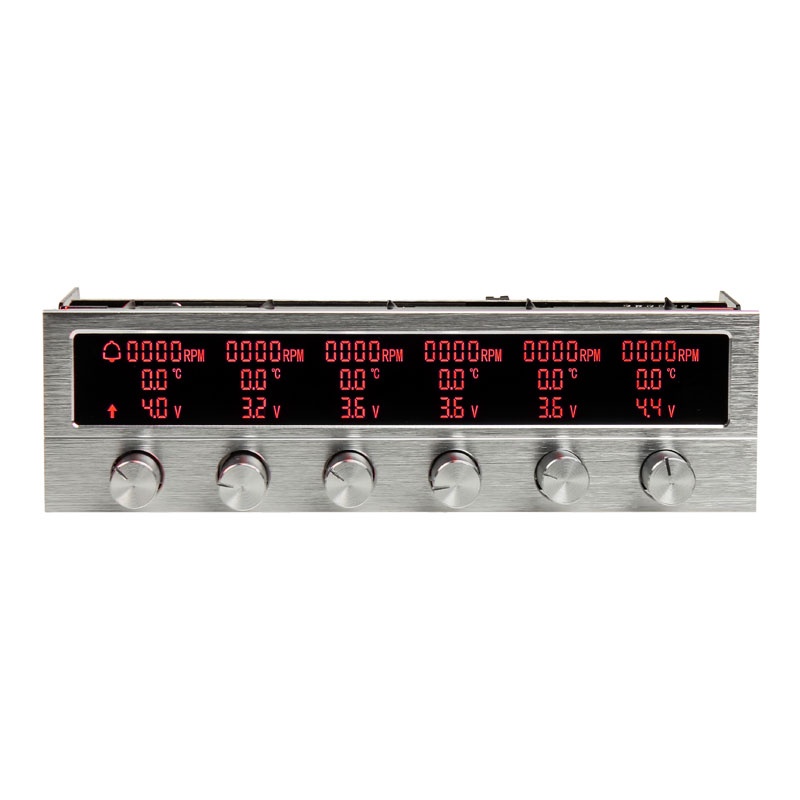

Lighting: 16x Color (white, purple, blue, light blue, green, yellow, red, etc.)
Supplied cable:
1x 4-pin Molex (20 cm)
6x 3-Pin fan (50 cm)
6x 2-pin temperature sensor (60 cm)
