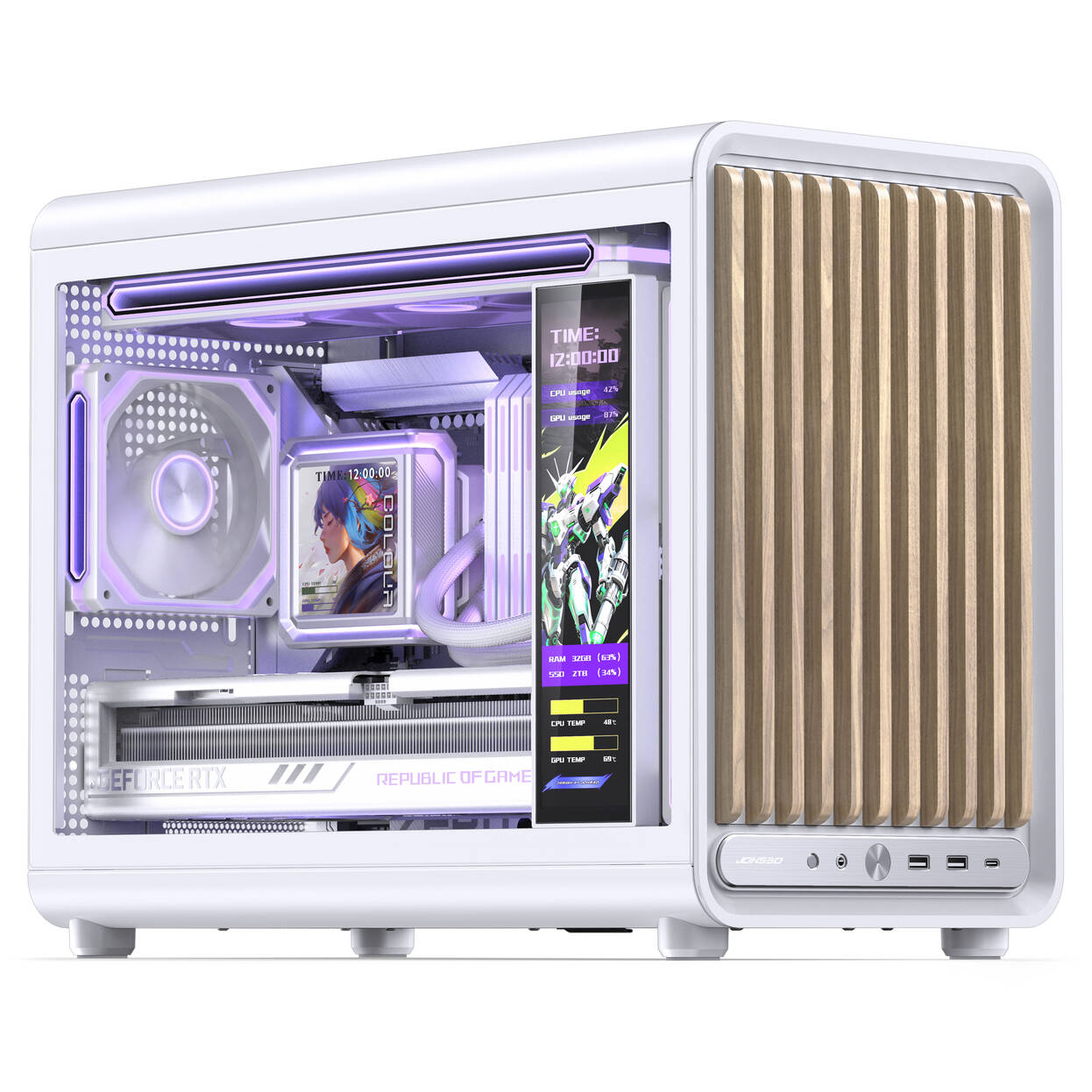

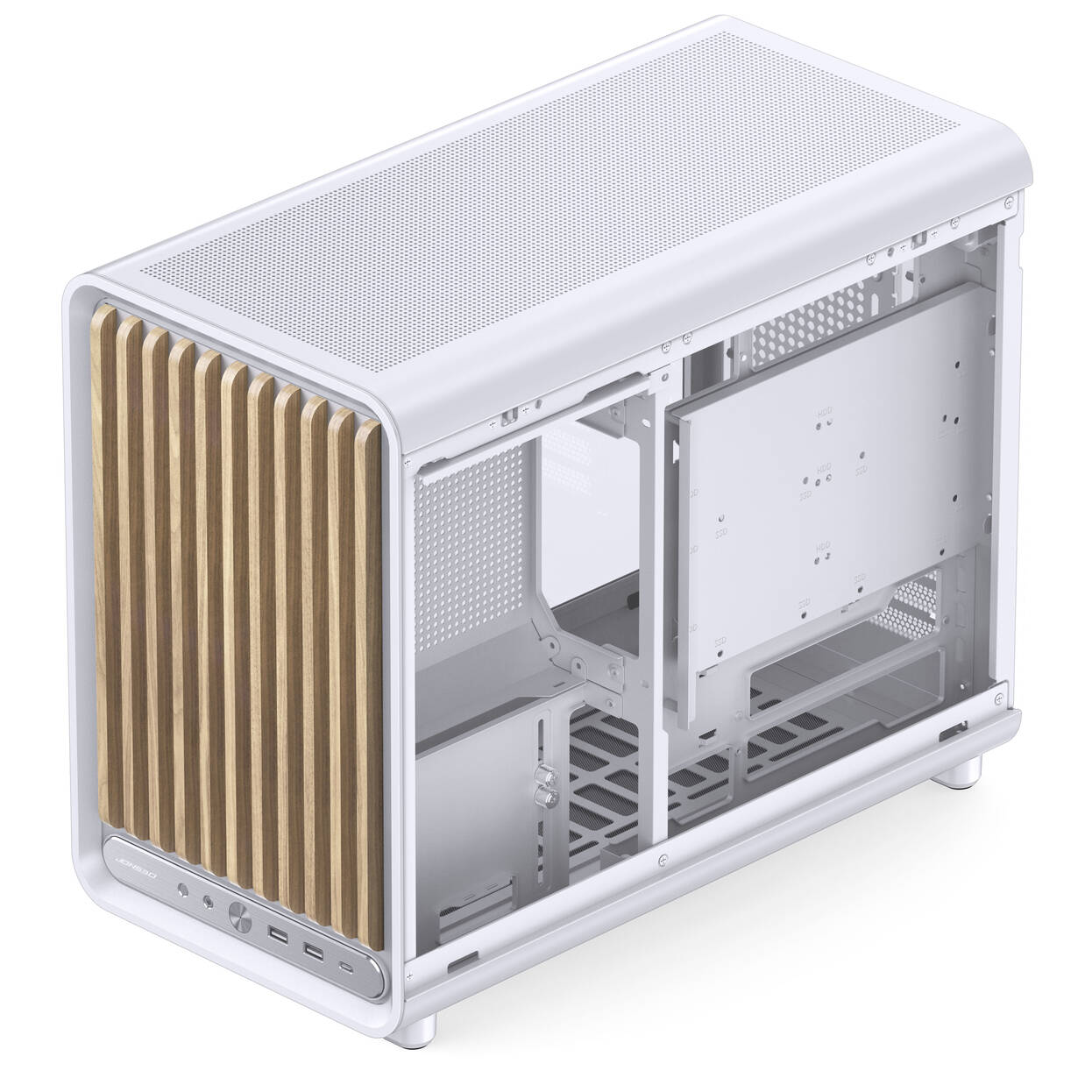

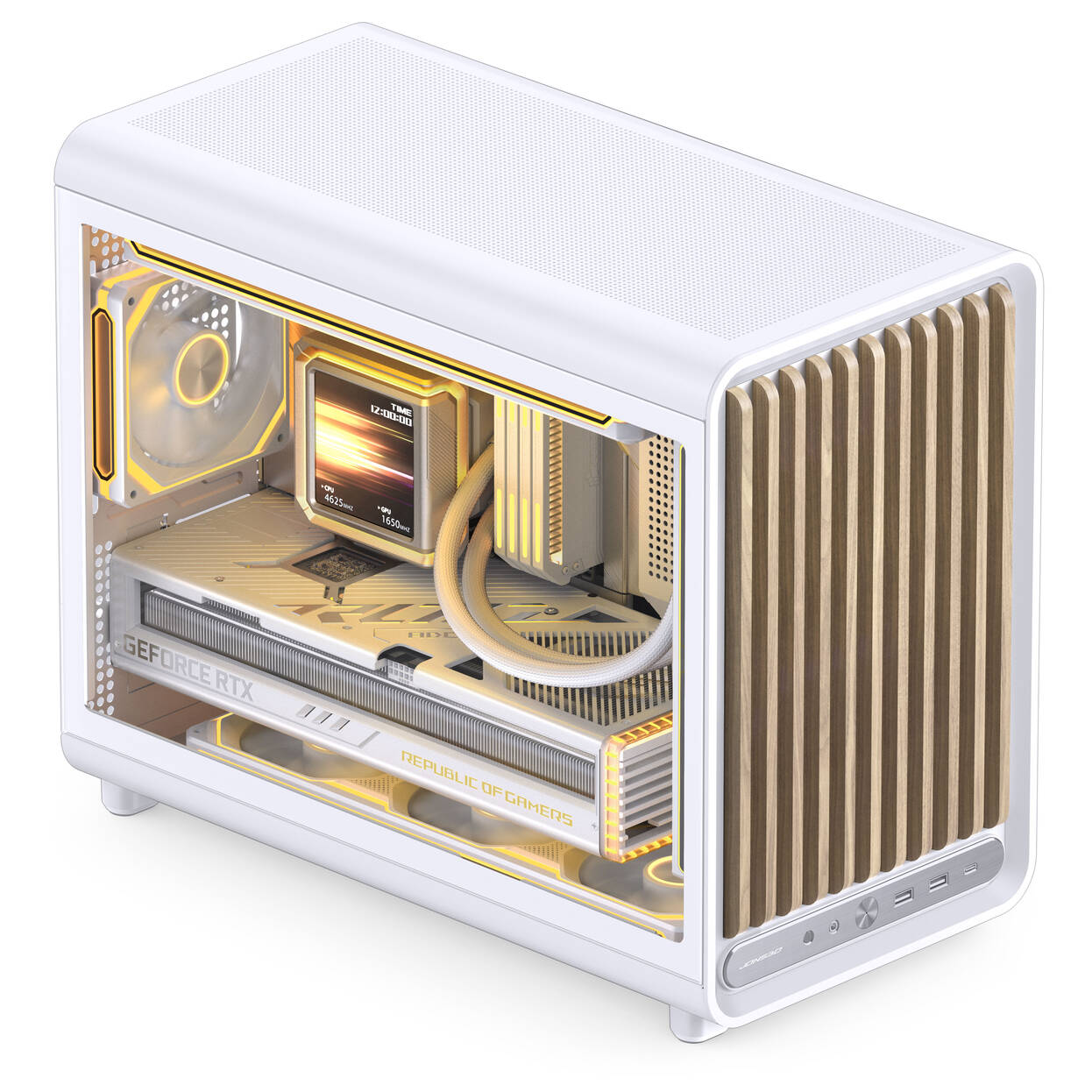

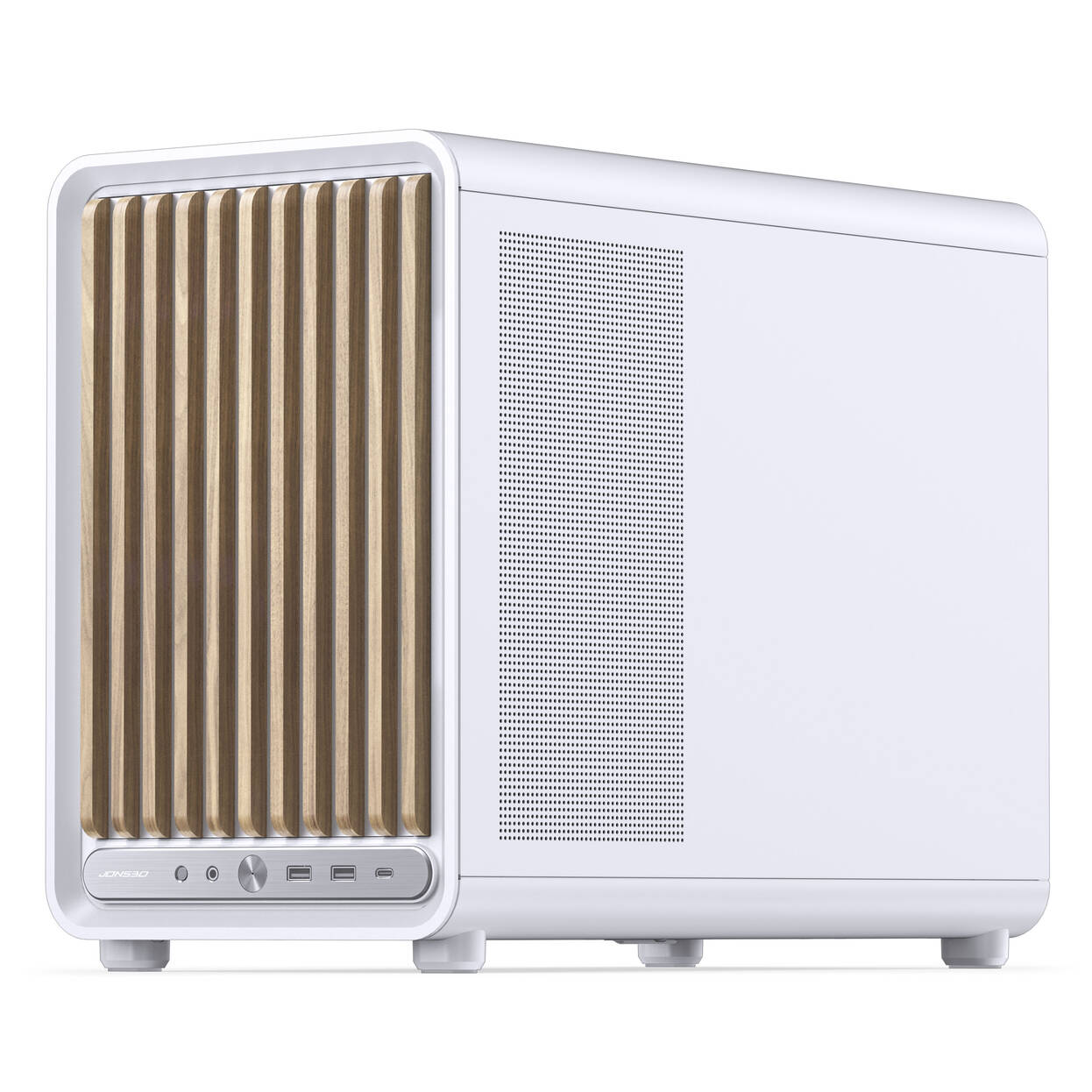

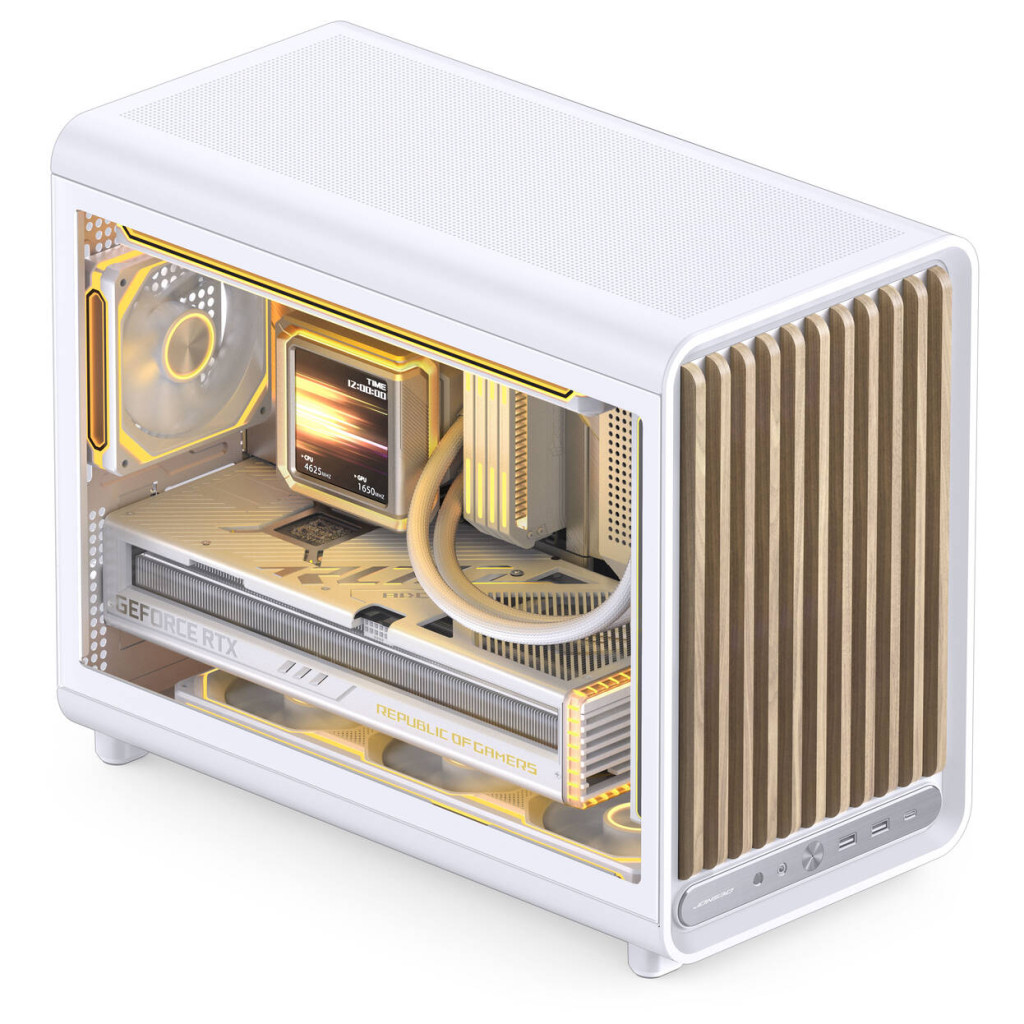

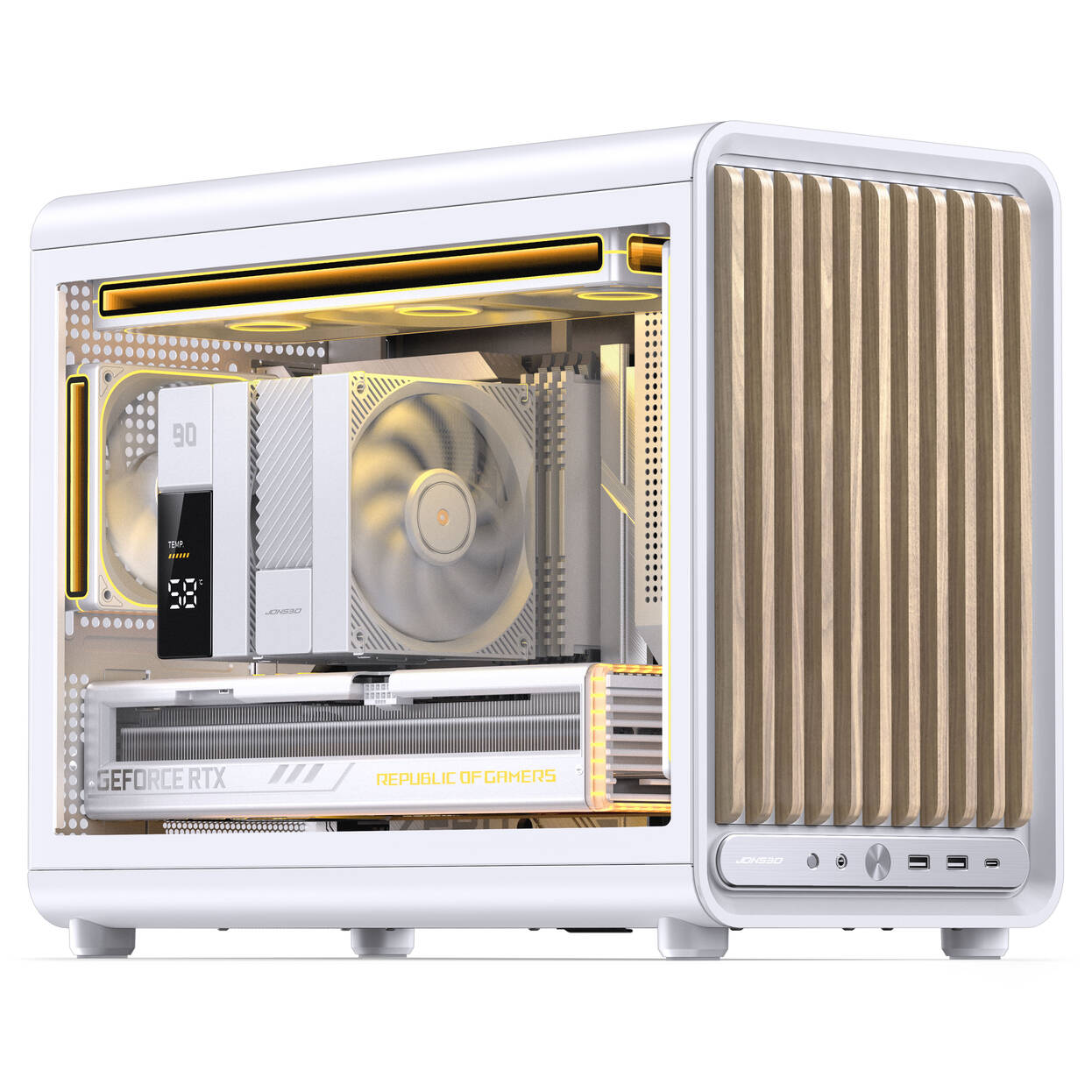

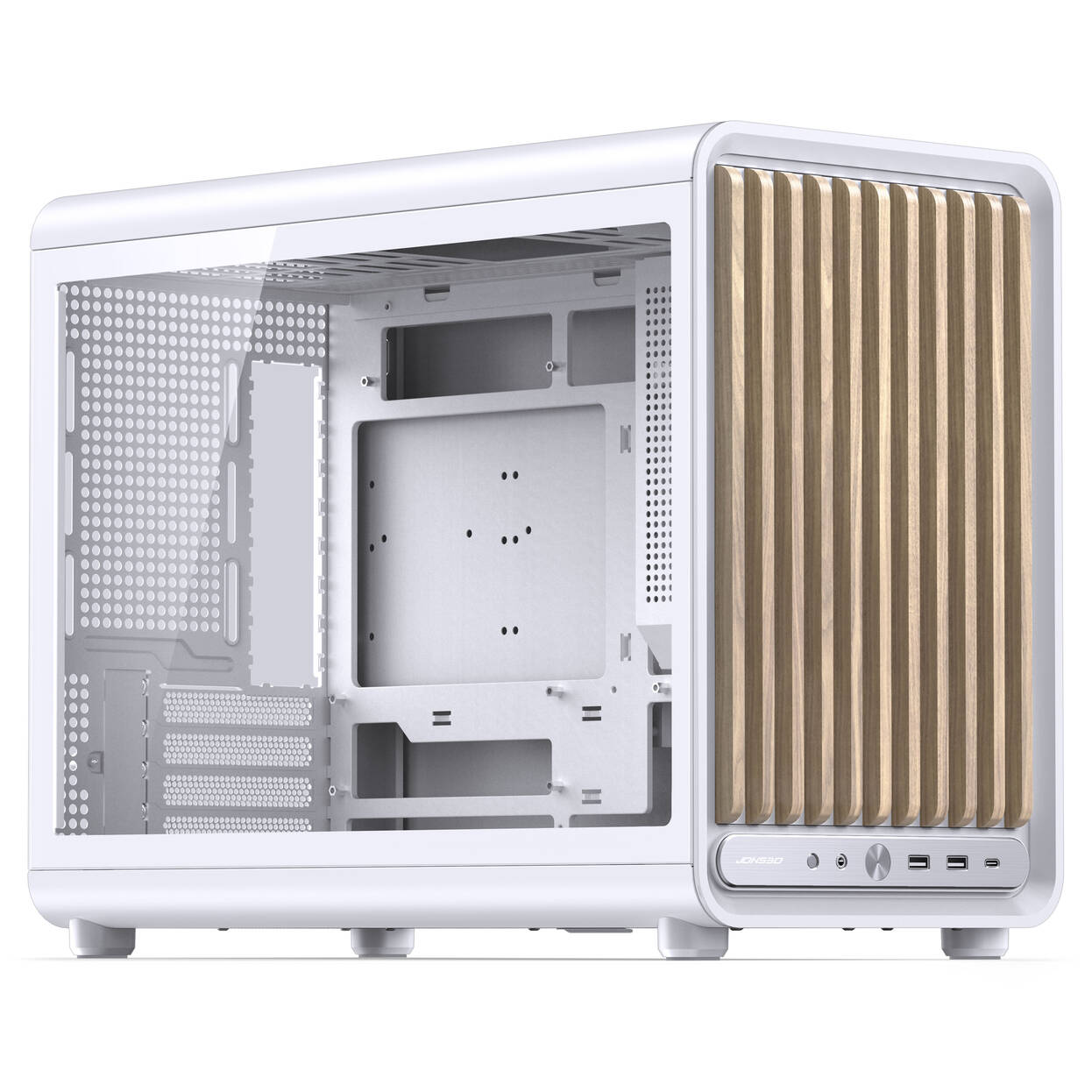

With the Jonsbo D33 Wood, you give your gaming setup a noble and unique look thanks to the wooden front.
With the Jonsbo D33 Wood, you give your gaming setup a noble and unique look thanks to the wooden front.
With the Jonsbo D33 Wood, you give your gaming setup a noble and unique look thanks to the wooden front.
With the Jonsbo D33 Wood, you give your gaming setup a noble and unique look thanks to the wooden front.

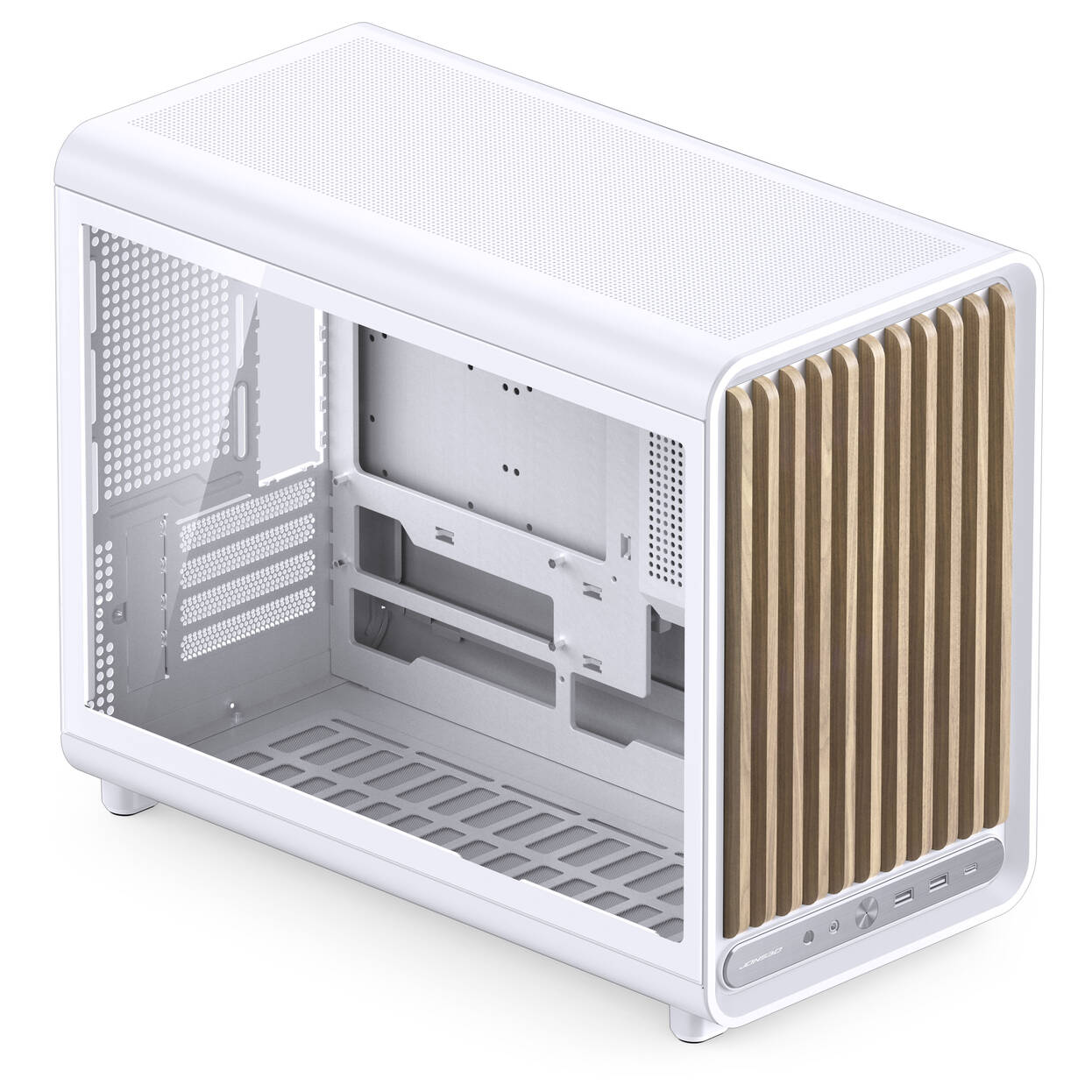

– White mATX tower with wooden front
– Numerous fan and radiator slots for effective cooling performance
– Motherboards up to mATX
– Space for graphics cards up to 435 mm and CPU coolers up to 172 mm in height
– Jonsbo D33 Wood: PC case with wood

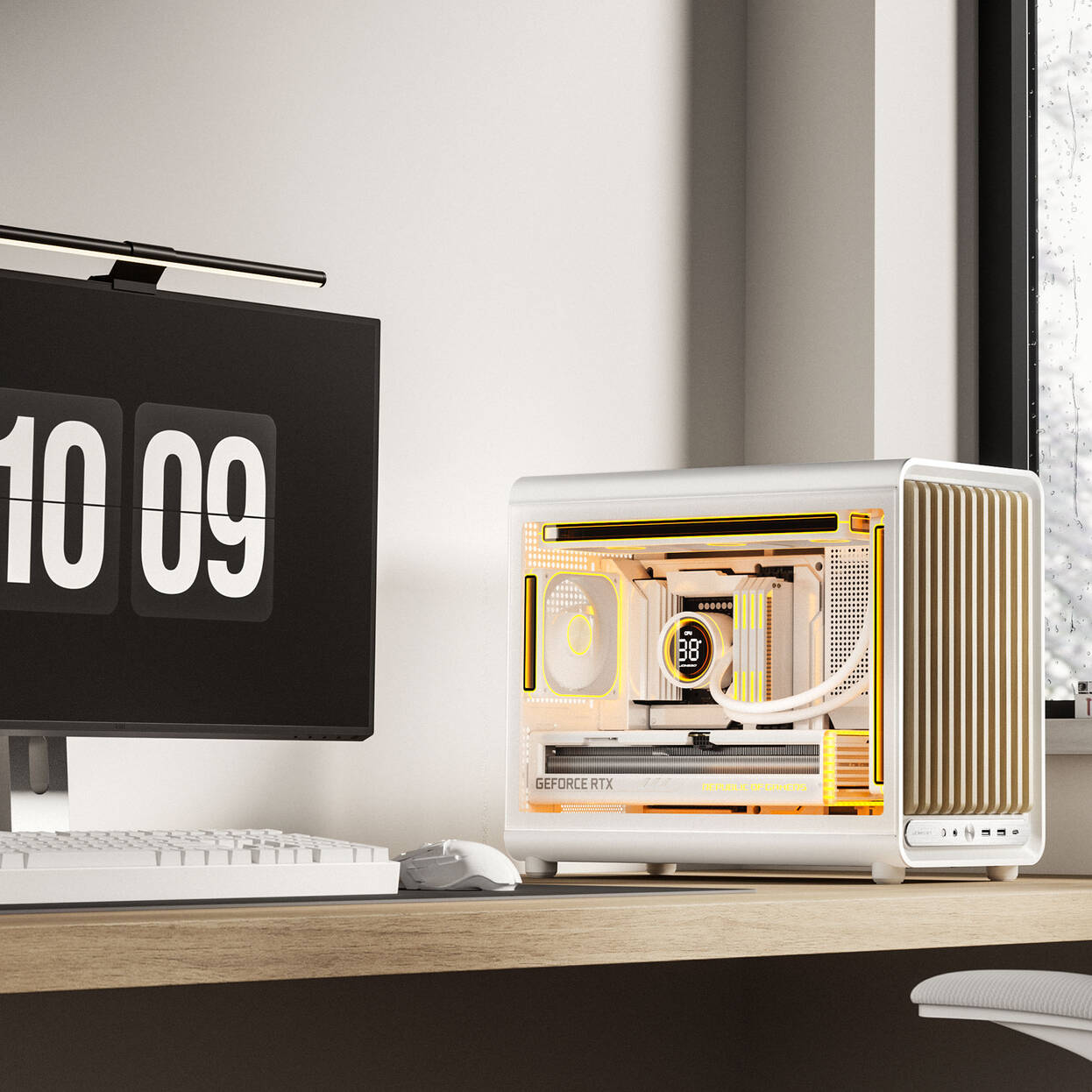

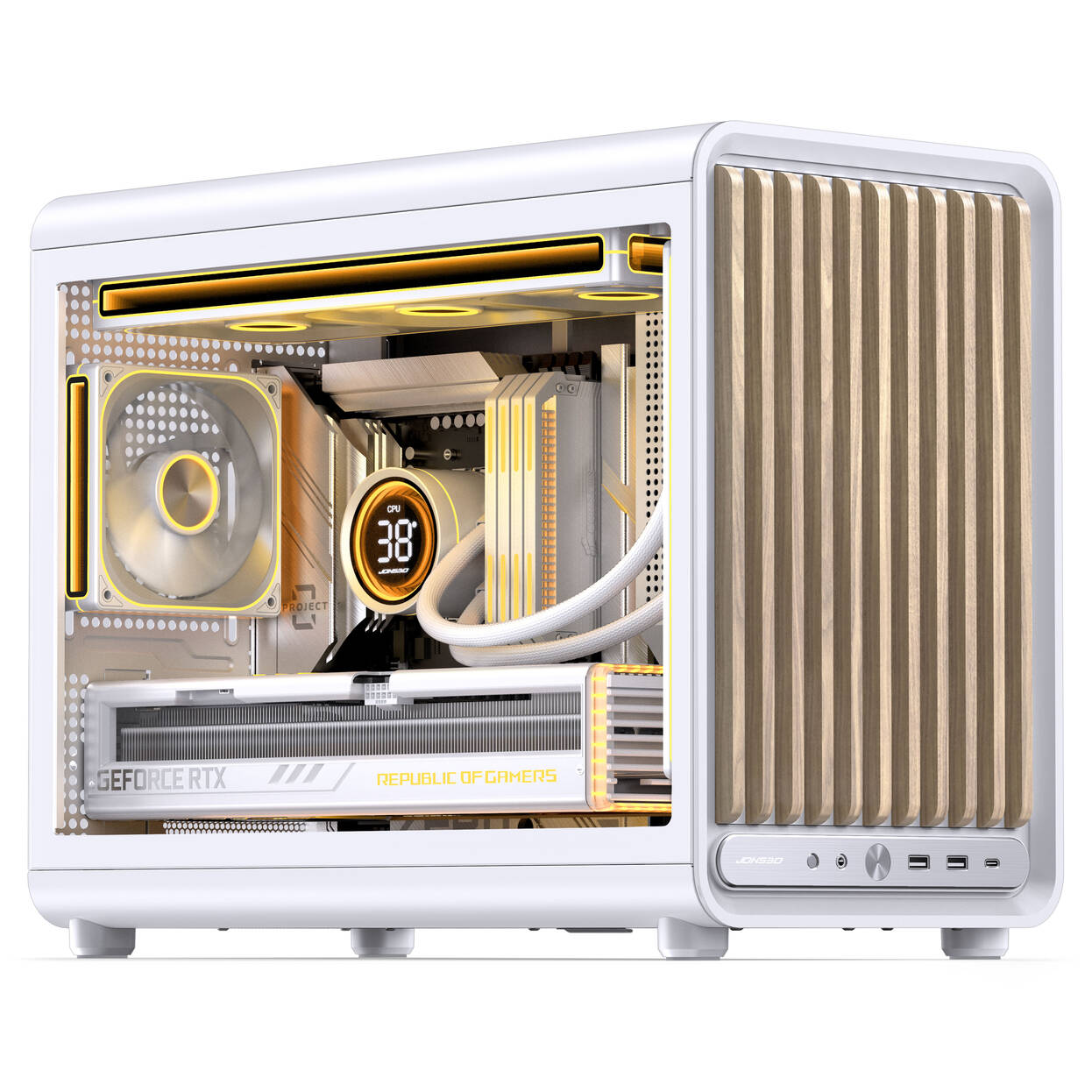

– The Jonsbo D33 Wood offers enough space for powerful gaming hardware despite its compact size. Ideal for living room setups.
Extensive cooling options with fans and radiators
To keep your hardware cool under any load, you can install up to nine fans simultaneously in the Jonsbo D33 Wood. The case provides space for three 120 mm fans at the top and bottom, two 120 or 140 mm fans at the front, and one 120 mm fan at the rear. Note that only two 140 mm fans are possible at the front if you install an SFX power supply.
An AiO water cooling system can also be easily installed if you prefer to cool your powerful hardware with water cooling. There is space for a 360mm water cooling radiator at the top.
Installing your hardware
The case offers enough space for powerful gaming hardware. It supports the installation of long graphics cards up to 435 mm. The CPU cooler should not exceed a height of 172 mm.
Specifications
| General | |
|---|---|
| Case Type | Mini Case |
| Colour | White |
| Materials | Tempered Glass, Wood |
| Weight | 6.7 kg |
| Dimensions | |
| Length | 455 mm |
| Width | 238.2 mm |
| Height | 368.4 mm |
| Motherboard Support | |
| Supported Form Factors | Micro-ATX, Mini-ITX |
| Maximum Motherboard Size | Micro-ATX |
| Component Clearance | |
| Max CPU Cooler Height | 172 mm |
| Max GPU Length | 435 mm |
| Max PSU Length | 160 mm |
| Power Supply | |
| PSU Included | No |
| Supported PSU Format | ATX |
| PSU Position | Front Mounted |
| Cooling Support | |
| Maximum Fan Capacity | Up to 9 Fans |
| Front Fan Support | 2 × 120 mm or 2 × 140 mm |
| Top Fan Support | 3 × 120 mm |
| Bottom Fan Support | 3 × 120 mm |
| Rear Fan Support | 1 × 120 mm |
| Radiator Support | |
| Maximum Radiator Size | 360 mm |
| Top Radiator Support | 240 mm / 360 mm |
| Storage Support | |
| 2.5″ Drive Bays | 2 |
| 3.5″ Drive Bays | 2 |
| Hot-Swap Support | No |
| Front I/O Ports | |
| USB Type-C | 1 × USB 3.2 Type-C |
| USB Type-A | 2 × USB 3.0 Type-A |
| Audio | 1 × 3.5 mm Combo Audio Jack |
| Case Features | |
| Side Panel | Windowed Panel |
| Cable Management | Yes |
| Dust Filters | Included (Bottom) |
| Back-Connect Support | Yes |
| Vertical GPU Mount | No |
| Noise Dampening | No |
| Expansion & Connectivity | |
| Expansion Slots | 4 |
| Card Reader | No |
| Fan Hub / Controller | No |
| Riser Cable Included | No |
| Additional Information | |
| Display Included | No |
| RGB Lighting | No |
| VESA Mountable | No |
| Internal Monitor Mount | No |
| Compatibility Note | Refer to the manufacturer’s website for the latest hardware compatibility information. |
£95.39£79.49 Inc VatEx Vat
