– Large case for motherboards up to E-ATX
– Completely modular case, expandable with additional modules
– Up to five fans possible
– Installation of a radiator up to 280 mm
– For GPUs up to 369 mm and CPU coolers up to 200 mm
– Space for four drives
– 1x USB-C and 2x USB-A on the side

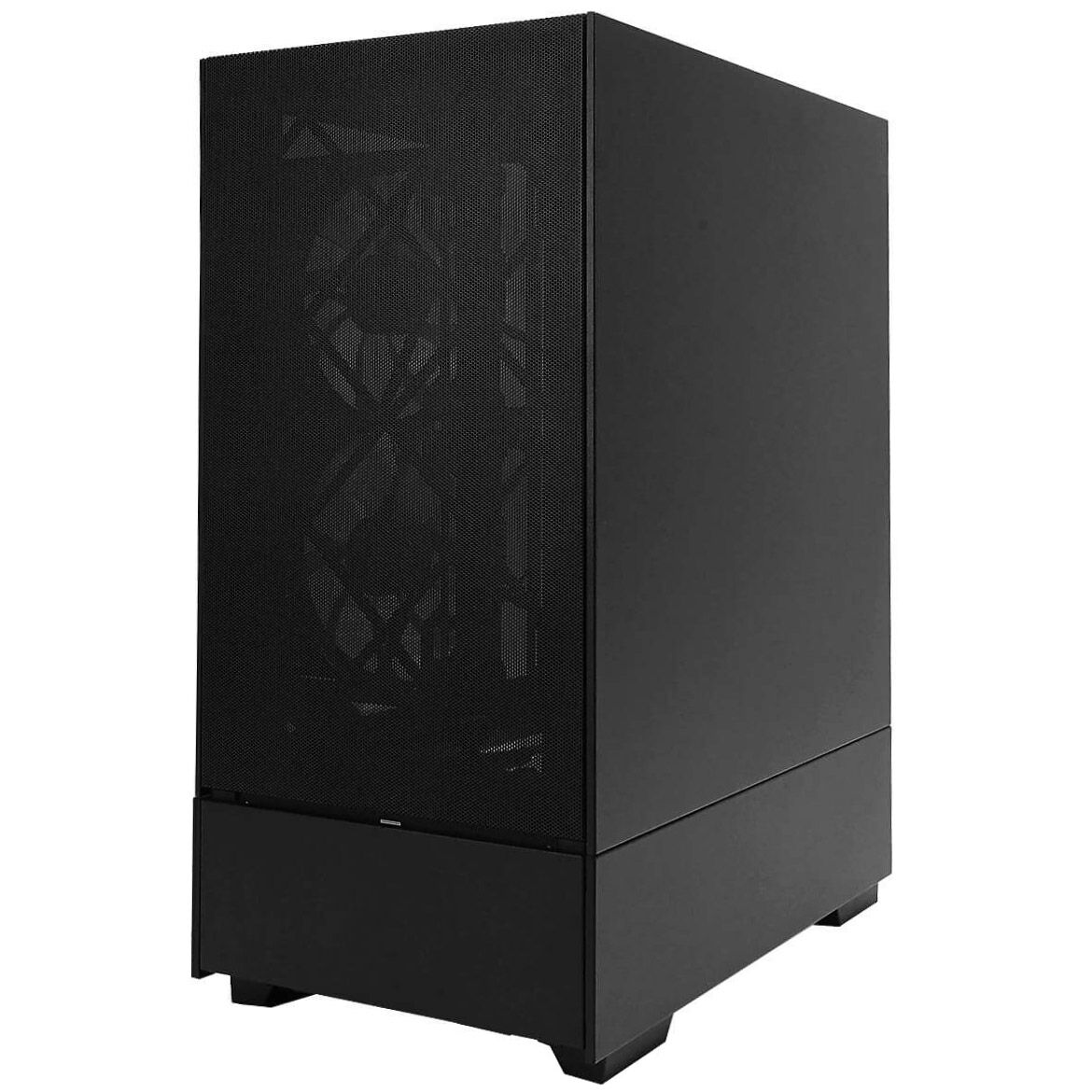

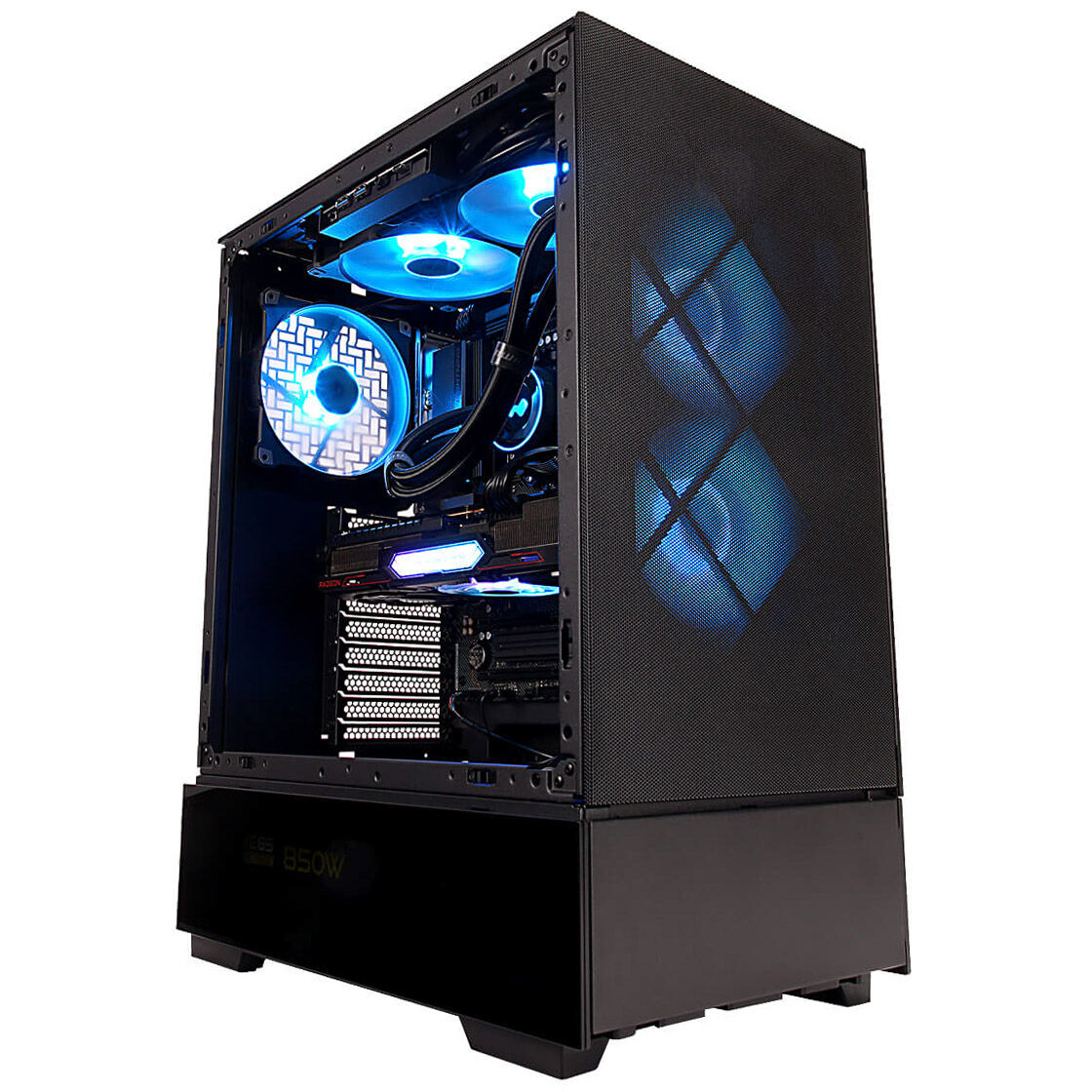

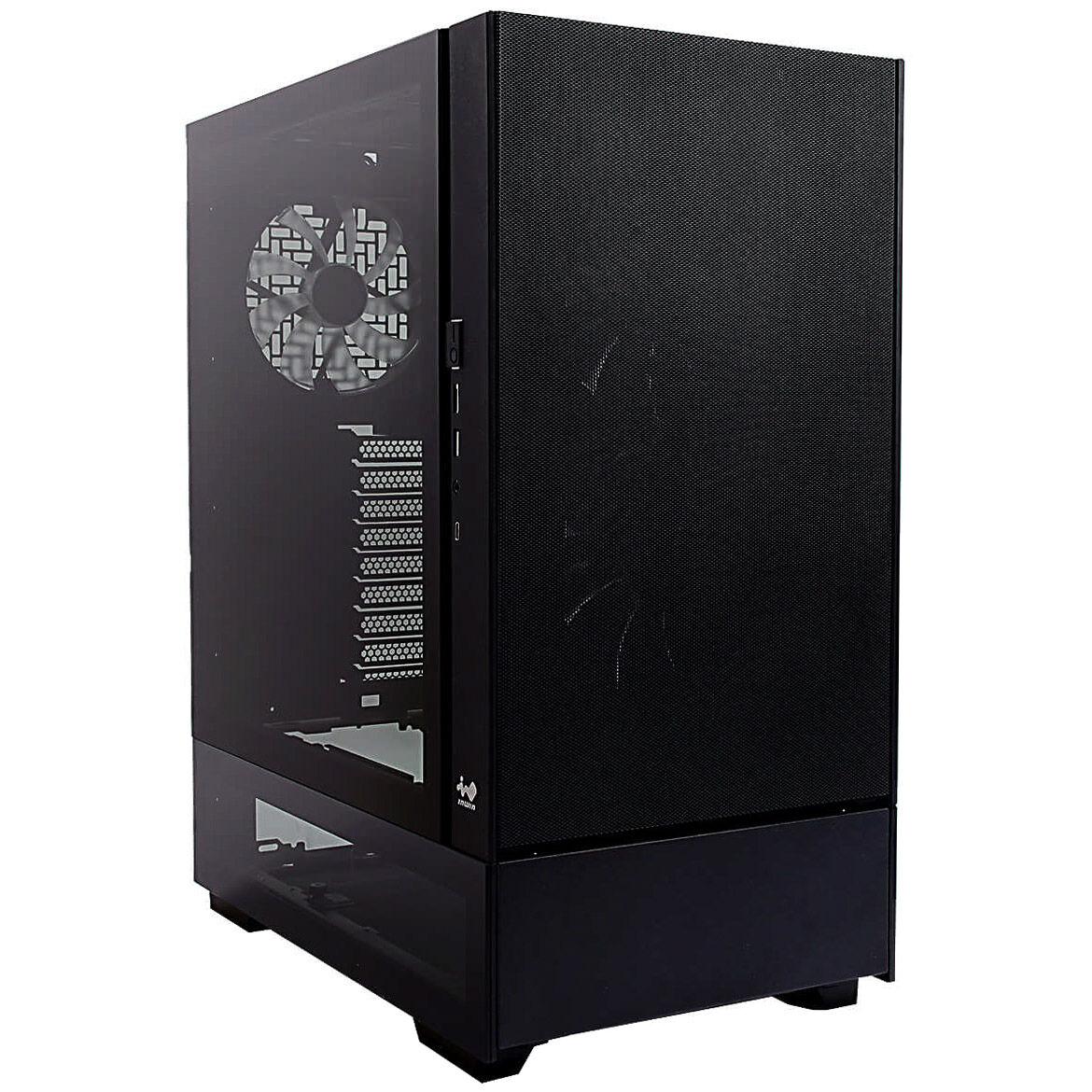

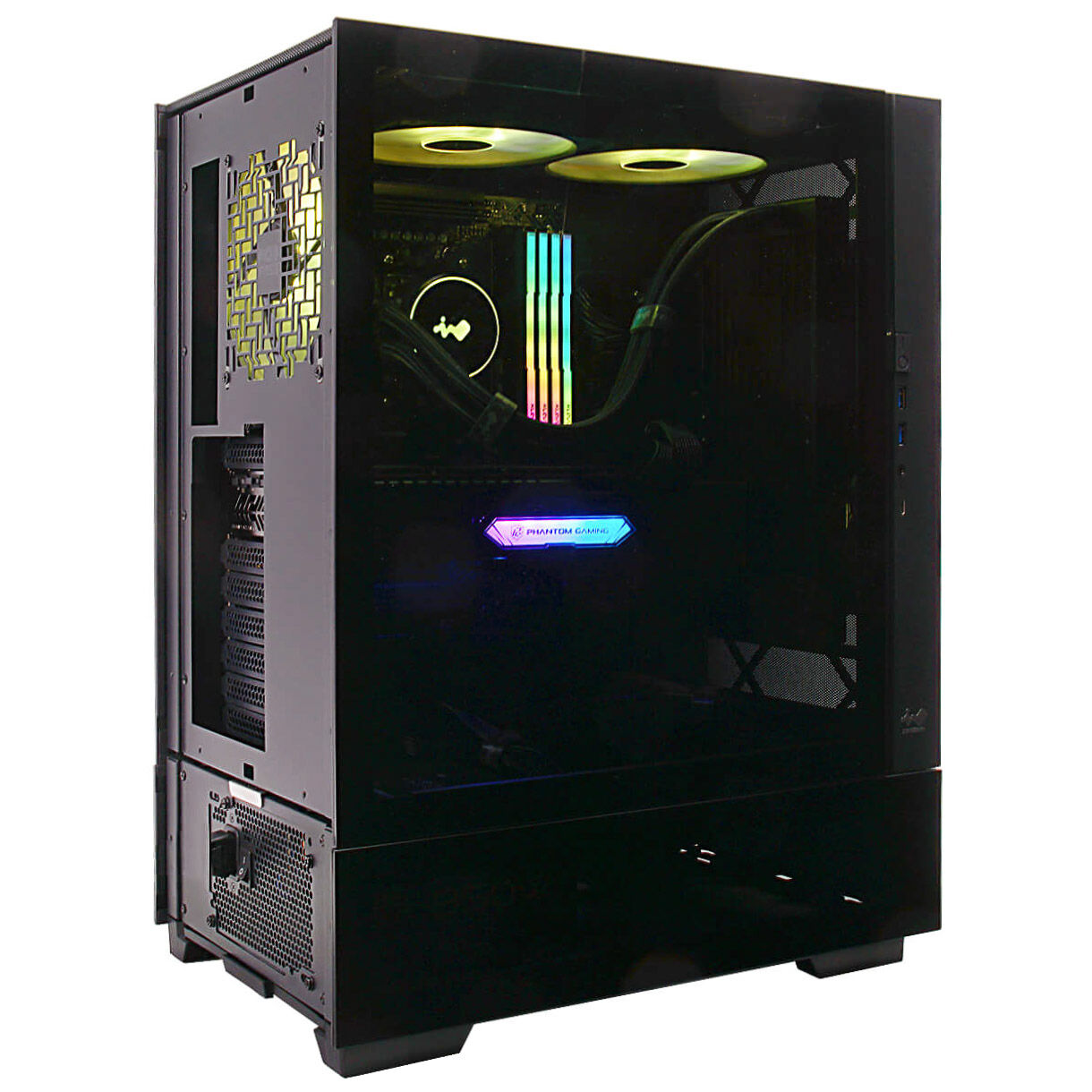

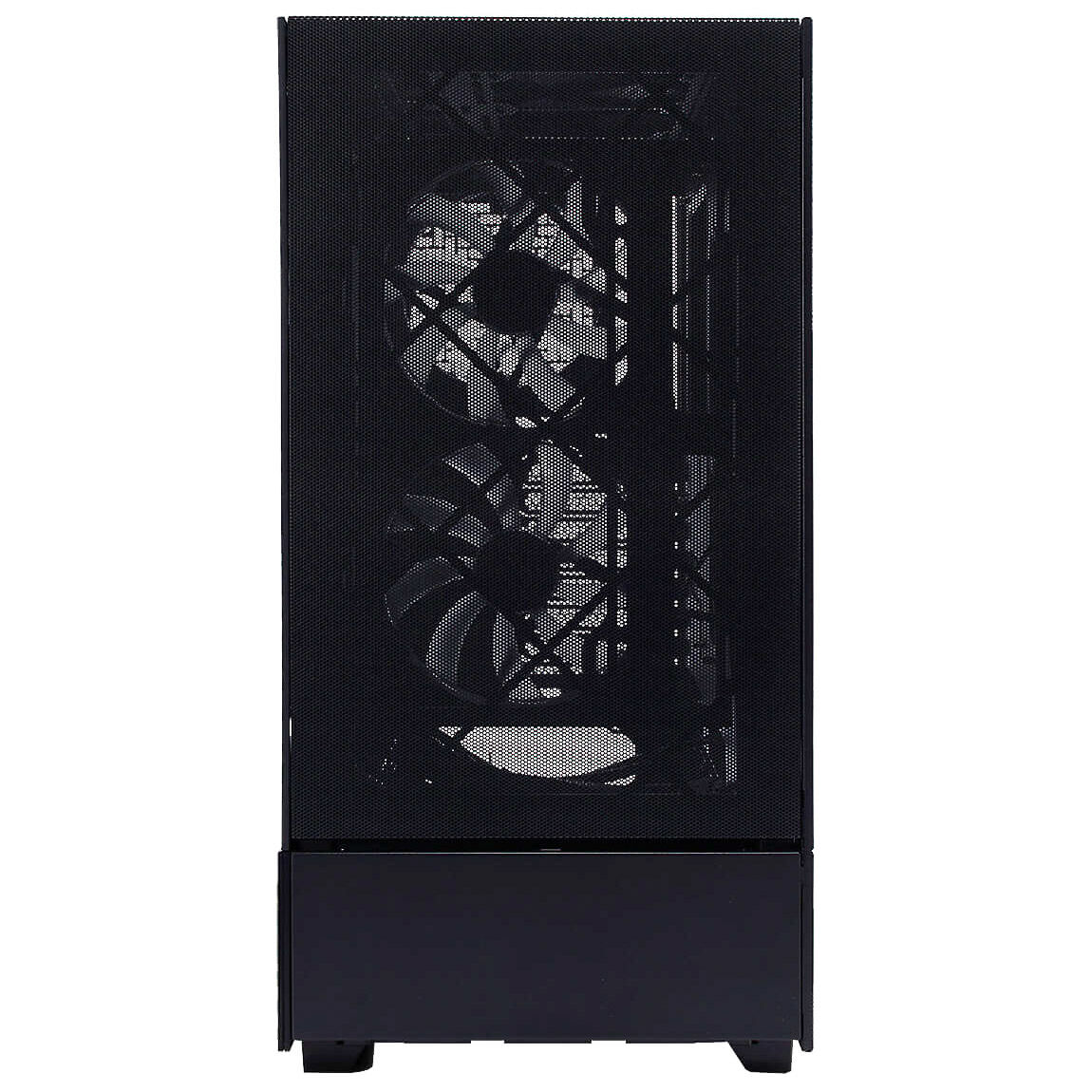

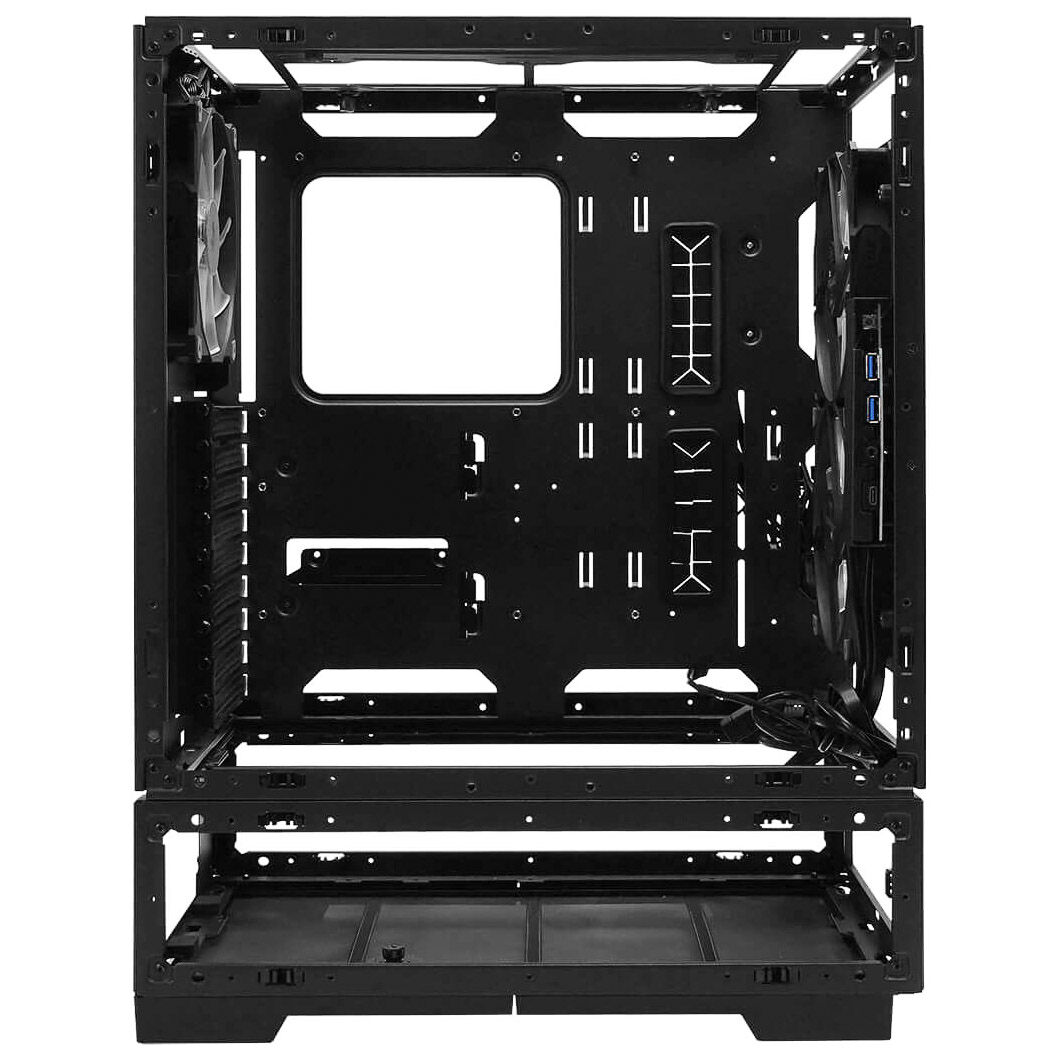

With the ModFree from InWin you have more options for installing your hardware: The Big Tower is the first case that is completely modular. This means that you can easily remove individual modules and attach additional modules to them. The Base Edition comes with two modules.
Hardware options
The case supports the installation of graphics cards up to a length of 369 mm, but when using the pre-installed fan it must not be longer than 345 mm. The CPU cooler can have a height of up to 200 mm. Up to four 2.5 / 3.5 inch drives are also possible. There are hardly any limits when it comes to choosing the mainboard, as the tower allows the installation of E-ATX mainboards. The power supply can be 390 mm long. Please note that it must not be longer than 240 mm with the drive tray mounted.
Effective cooling and connectivity
To ensure optimal cooling of your hardware, you have the option of installing up to five fans. If you prefer water cooling, it is also possible to install radiators up to 280 mm in size.
On the side of the case there is a fast USB-C port that achieves a transfer speed of up to 20 Gbit/s, two USB-A ports and an audio / mic port.
Technical details
– Color: Black
– Case type: Big-Tower
– Material: SECC, Tempered Glass, PC-ABS
– Dimensions: 261.8 x 531 x 411.5 mm (W x H x D)
– Weight: 9.2 kg
– Form factor: E-ATX (12 x 13 inches), ATX, Micro-ATX, Mini-ITX
– Total fans possible:
– 2x 120 / 140 mm (top)
– 2x 120 / 140 mm (front)
– 1x 120 / 140 mm (rear)
– Radiators possible:
– 1x 240 mm (top)
– 1x 240 / 280 mm (front)
– Drive bays:
– 2x 2.5 inches
– 1x 3.5 / 2x 2.5 inches (with HDD bracket)
– Expansion slots: 9x
– I/O panel:
– 1x USB-C (3.2, Gen2x2, 20 Gbit/s)
– 2x USB-A (3.2, Gen1, 5 Gbit/s)
– 1x Audio / Mic
– Maximum graphics card length: 369 mm (with pre-installed fan 345 mm)
– Maximum CPU cooler height: 200 mm
– PSU: ATX (max. 390 mm, with drive tray max. 240 mm)
£145.18£120.98 Inc VatEx Vat
