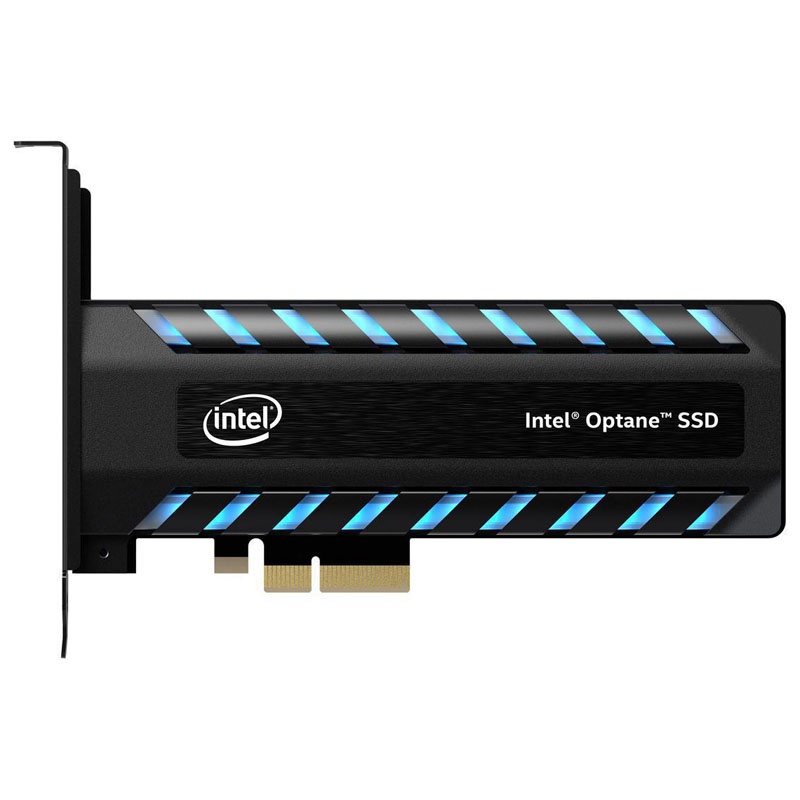

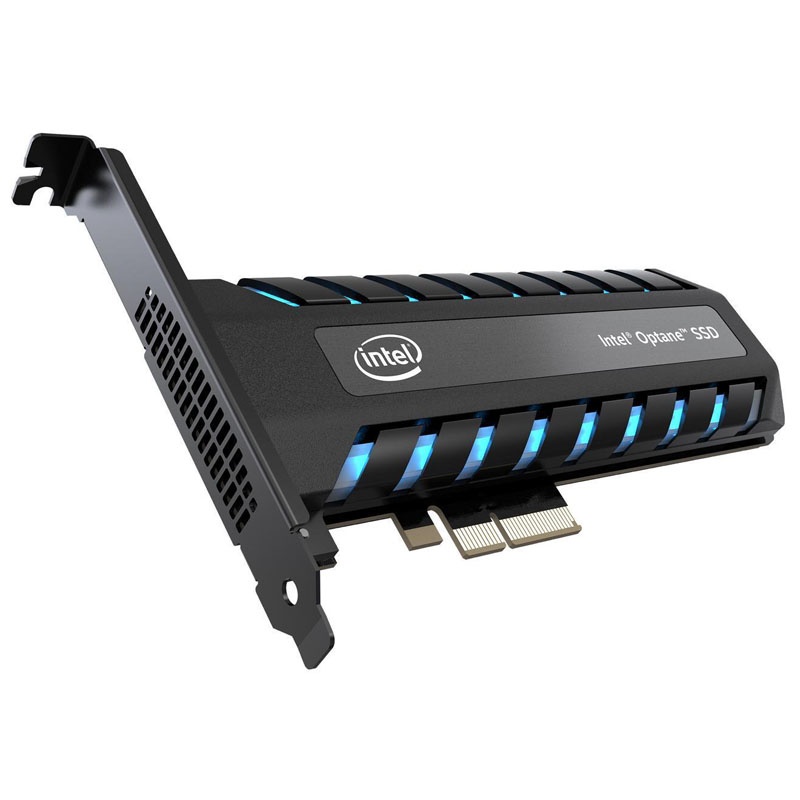

Intel Optane 905P Series AIC SSD, PCIe 3.0 x4 - 1.5TB

The new types of SSDs not only impress with their consistently high speeds, but also with very low latencies and extreme longevity. With less than 10 microseconds latency for reading and writing, the 3D XPoint memory cells are currently unbeatable. Even with a large cache and efficient parallelization, conventional NAND SSDs are detached. The performance remains constant at a high level.

The Intel Optane 905P Series AIC SSD at a Glance:
– Enthusiast SSD with 1.5 TB capacity
– PCIe card with PCIe 3.0 x4 interface
– 3D XPoint memory cells & Intel controllers
– 2,600 MB / s read & 2,200 MB / s write
– 575,000 IOPS Read & 550,000 IOPS Write
– Low latency under 10 microseconds
– Extremely durable: 27.37 PBW
– Front illuminated by blue LEDs
– 5-year manufacturers warranty

Turbo Boost for enthusiasts
The Intel Optane 905P Series AIC SSDs offer a whopping read speed of up to 2,600 MB / s and an equally high write speed of 2,200 MB / s. Random read and write speeds can also be seen with 575,000 IOPS and 550,000 IOPS, respectively.

This impressive performance is provided by the new 3D XPoint memory. This is extremely persistent and can thus impress with a life expectancy of enormous 27.37 Petabyte Written. He also offers a permanently high speed; unlike NAND memory, no speed losses are expected here.

Technical details:
– Dimensions: 168 x 68.9 x 17.2 x mm (L x W x H)
– Overall height: 0.5 slot
– Weight: approx. 230 g
– Capacity: 1,500 GB
– Form factor: HHHL (CEM3.0)
– Interface: PCIe NVMe 3.0 x4
– Memory cells: 3D XPoint
Power:
– Reading: max. 2,600 MB / s
– Write: max. 2,200 MB / s
– IOPS (4 KB Random Read): 575,000
– IOPS (4 KB Random Write): 550,000
– Latency (read): 10 μs
– Latency (write): 10 μs
– Power consumption (operation / idle): 12.8 W / 3.3 W
– Operating temperature: 0 degrees to 70 degrees
– Shock resistance: 50 G / 11 ms
– Average life expectancy: 1.6 million hours
– TBW: 27,370 TB (27.37 PB)
– Supported operating systems: Windows 7 or newer
– Supported UEFI: From UEFI 2.3.1 with NVMe support
– Manufacturers warranty: 5 years
