The performance segment of the Pascal graphics card series is packed with the GeForce GTX 1070. The Pascal GPU architecture combined with the 16-nm FinFET fabrication process results in an impressive performance increase compared to the Maxwell graphics cards. The GTX 1070 can be measured as a nomenclatory successor to the GeForce GTX 970 after the first benchmark results with the GeForce GTX Titan X!
The performance segment of the Pascal graphics card series is packed with the GeForce GTX 1070. The Pascal GPU architecture combined with the 16-nm FinFET fabrication process results in an impressive performance increase compared to the Maxwell graphics cards. The GTX 1070 can be measured as a nomenclatory successor to the GeForce GTX 970 after the first benchmark results with the GeForce GTX ...
The performance segment of the Pascal graphics card series is packed with the GeForce GTX 1070. The Pascal GPU architecture combined with the 16-nm FinFET fabrication process results in an impressive performance increase compared to the Maxwell graphics cards. The GTX 1070 can be measured as a nomenclatory successor to the GeForce GTX 970 after the first benchmark results with the GeForce GTX ...
The features of the Inno3D GeForce GTX 1070 Gaming OC at a glance
Stylish dual fan cooler design
Basistact of the GPU: 1.556 MHz
Boost clock of the GPU: 1,746 MHz
Fast memory clock: 4,000 MHz (effective 8,000 MHz)
Only one additional power connection: 1x 8-pin

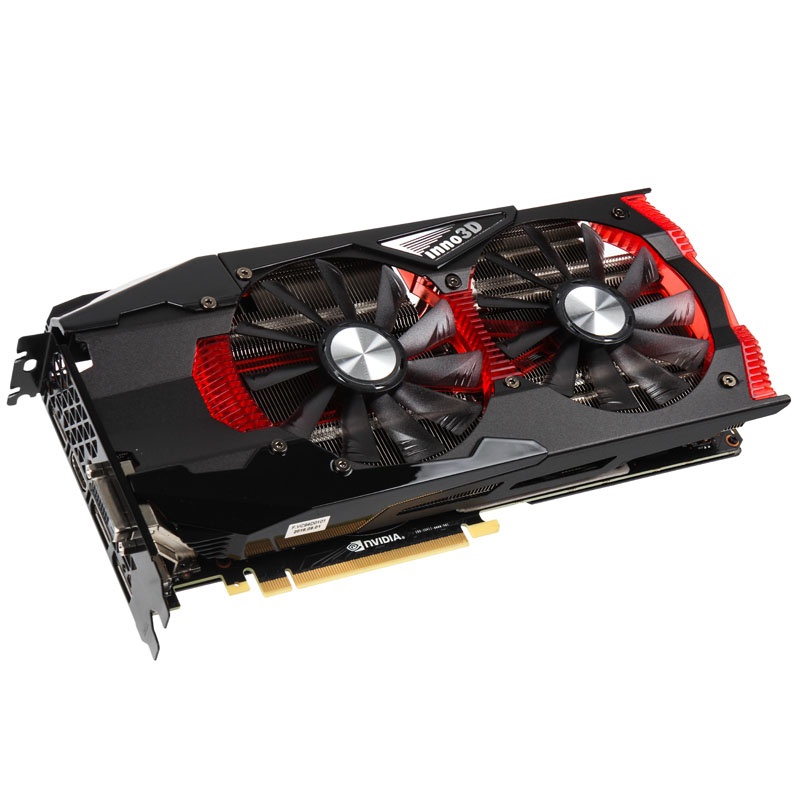

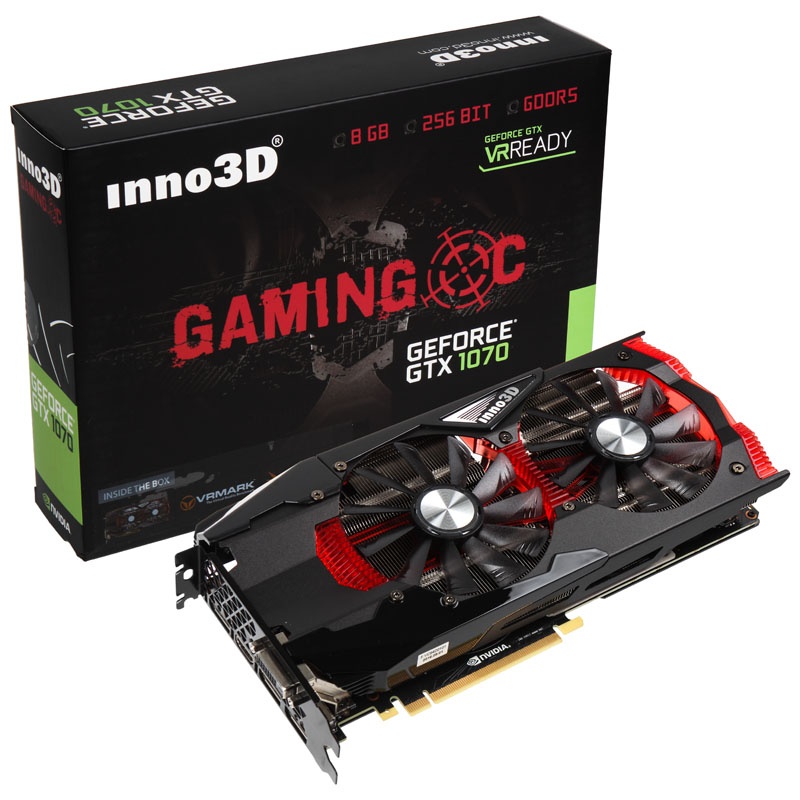

Inno3D GeForce GTX 1070 Gaming OC with dual fan cooler
The Inno3D GeForce GTX 1070 Gaming OC has a basestact of 1.556 MHz. With GPU-Boost 3.0 it can be increased to a boost clock of 1,746 MHz. The storage clock is at 4,000 MHz (effectively 8,000 MHz). A dual fan cooler design is used to cool the graphics card.
The Inno3D GTX 1070 is equipped with an in-house dual-fan radiator design to keep the temperature running smoothly. Several heatpipes guide the heat from the GPU into an aluminum cooling block, on which two large axial fans provide ventilation. The two slots high cooling solution is a very quiet alternative to the reference layout and works very efficiently.
GeForce GTX 1070: Gaming power for VR and 4K!
The 8 GB video memory of the GeForce GTX 1070 is connected to the GPU via a 256-bit memory interface. The GP104 graphics chip of the GTX 1070 has 1,920 CUDA cores and the computing power of the GTX 1070 is 6.5 TFLOPS. This makes the GeForce GTX 1070 slightly higher than the GeForce GTX Titan X, the flagship of the Maxwell GPU series!
The GTX-1070 graphics card family supports DirectX 12 and current gaming technologies, including NVIDIA GameWorks, Warp, Stereo-X, VR-Audio, PhysX and SMP (Simultaneous Multi-Projection). The latter is supported in version 4.0 and offers great advantages, especially for VR, curved displays and multi-display setups.
Particularly when gambling in the Virtual Reality (VR), gamers profit from the new technology. With SMP 4.0, a total of 16 viewports and two viewports can be rendered in one run. By using multiple viewports, the rendered image also comes with a smaller number of calculated pixels, which greatly improves VR performance.
The GeForce GTX 1070 is capable of transmitting 4K / ultra-HD resolutions at 60 Hertz over three DisplayPort-1.4 and an HDMI 2.0b connection, the latter having HDCP 2.2, which allows it to send and receive encrypted signals ( 4K Blu-Rays / 4K streams). Alternatively, the GTX 1070 has a DVI-D (dual-link) output.
In order to exploit the full potential of the card in the future, new drivers from NVIDIA or Inno3D should be downloaded and installed at regular intervals.
Graphics card exchange without waiting for Caseking!
During the warranty period of two years from the receipt of the goods, the customer complains that the graphics card complained about in the event of a defect of all the brands mentioned below is directly exchanged for new goods (if stored). A request of the defective goods to the manufacturer and associated longer waiting times are thus completely eliminated! If the graphic card to be replaced is no longer available or available, we will issue a credit note. Then an alternative graphics card from our range can be selected freely. Any extra costs incurred can be easily reimbursed and any remaining amounts will be refunded by us.
Brand: ASUS, Club 3D, EVGA, Gigabyte, Inno3D, Palit, PNY, Powercolor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free games to NVIDIA GeForce GTX gaming graphics cards:
For every game graphics card purchased at Caseking, we send out the corresponding coupon codes of the current game bundles by e-mail for 1-2 working days after receipt of goods. No voucher code will be sent for non-qualified products. All promotions are limited and only valid as long as stocks last or until the offer is finished. The legal process is excluded. The following are all currently active NVIDIA voucher campaigns:
Technical details:
Dimensions: 275 x 118 mm (W x D)
Height: 2-Slot
GPU: NVIDIA GeForce GTX 1070
Chip: GP104
Manufacturing: 16 nm
GPU Clock: 1.556 MHz
Boost Clock: 1.746 MHz
Shader units (CUDA cores): 1,920
Memory Size: 8,182 MB
Memory clock: 4,000 (8,000) MHz
Type: GDDR5
Memory connection: 256 Bit
Memory bandwidth: 256 GB / s
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x DisplayPort 1.4
1x HDMI 2.0b
1x DVI-D (Dual Link)
Power supply: 1x 8-pin PCIe
Recommended power supply: min. 500 watts
Features include: DirectX 12, OpenGL 4.5, VR Ready, SLI Ready, NVIDIA Ansel, G-Sync, Gamestream, GPU Boost 3.0, HDCP 2.2, NVIDIA Surround, 3D Vision, Tessellation, PhysX, CUDA, NVENC, Adaptive Vertical Sync, VXGI, Super Resolution, 4K Ultra HD Support, SMP, NVIDIA ShadowPlay
