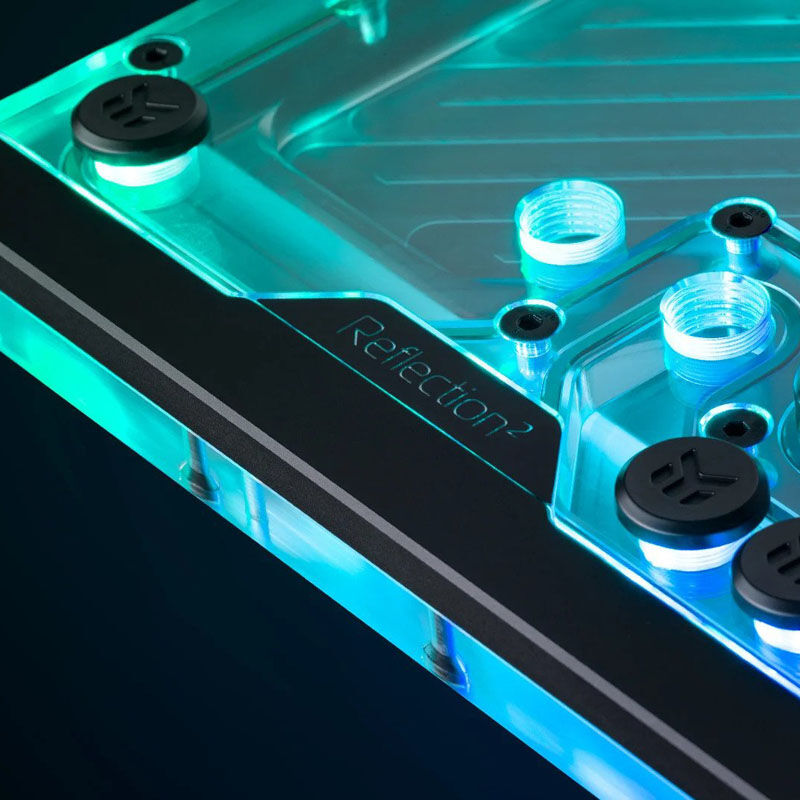

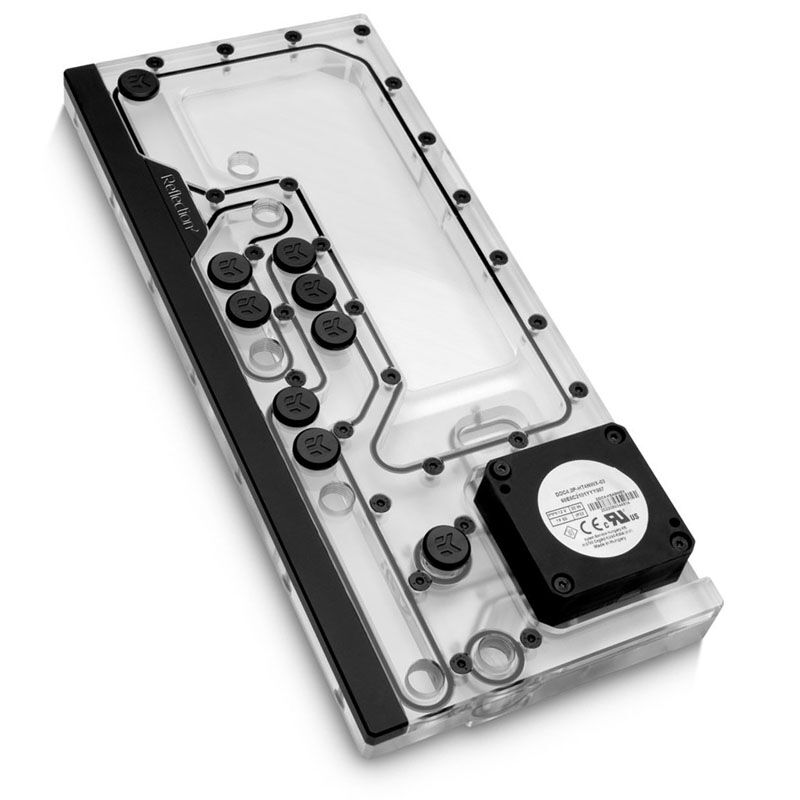

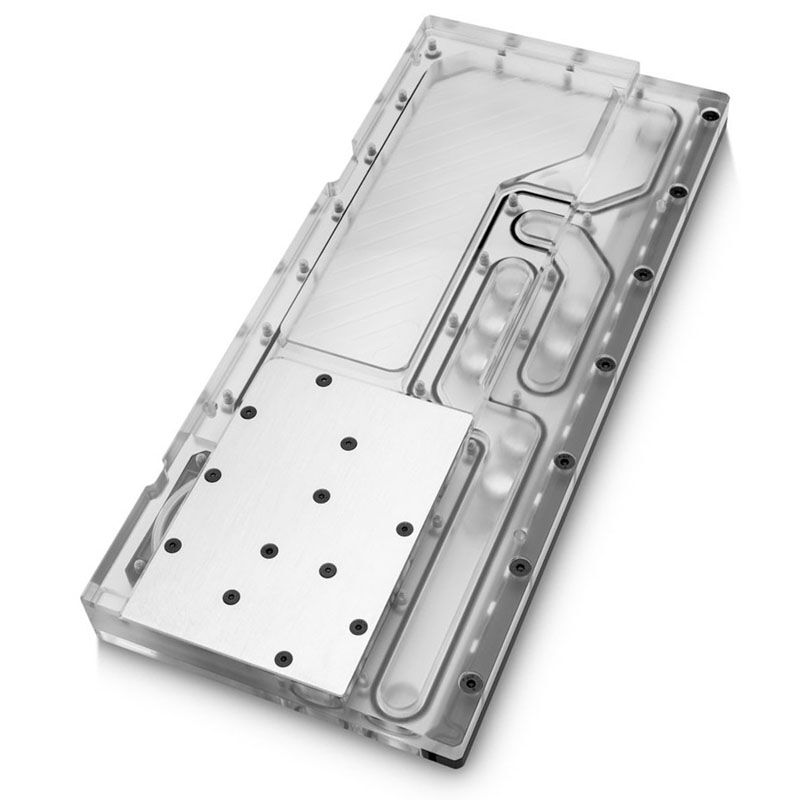

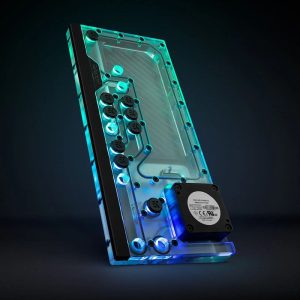

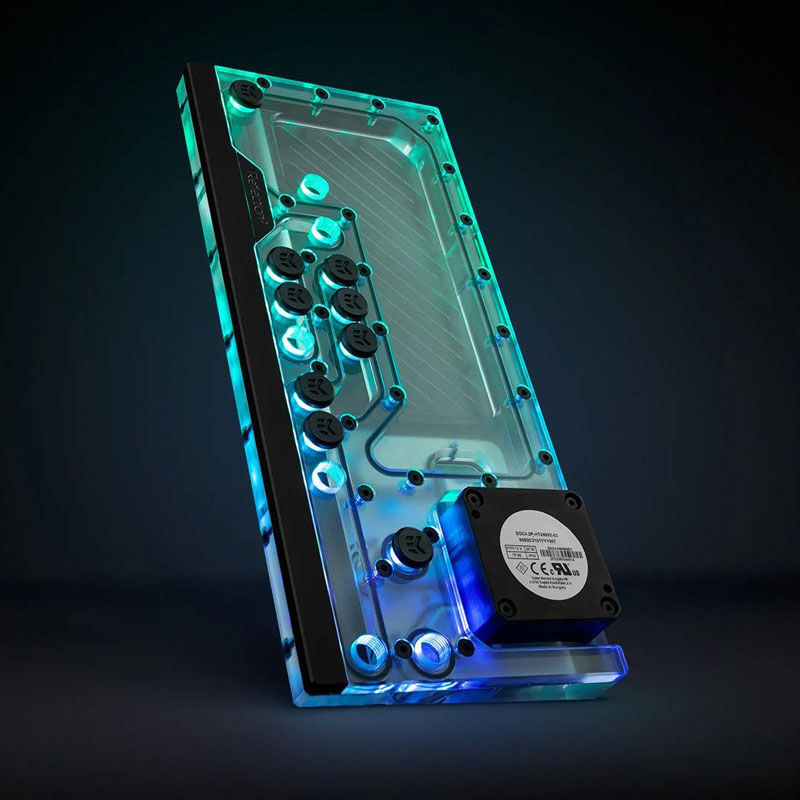

The EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB – Plexi is a fully integrated water-cooling reservoir, coolant routing, and pump solution made to fit the Fractal Design Torrent case.
The EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB – Plexi is a fully integrated water-cooling reservoir, coolant routing, and pump solution made to fit the Fractal Design Torrent case.
The EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB – Plexi is a fully integrated water-cooling reservoir, coolant routing, and pump solution made to fit the Fractal Design Torrent case.
This Reflection² distribution plate is EK-Matrix7 compatible.
Supported Fractal Design case:
The EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB offers multiple industry-standard G1/4 threaded inlets and outlets. The placement of these inlets and outlets is perfectly aligned to fit in line with the PC components and minimize the number of bends the user has to make to create the perfect hardline loop. The distro plate synergizes well with the EK-Loop Pre-Bent acrylic and metal tubes, further simplifying the loop-building process.
With the installed distro plate, the maximum radiator size is the following:
Please note that a multiport version of the EK-Quantum Surface P240 radiator is required to achieve a clean and aesthetically pleasing tube connection with the distribution plate. The Vertical GPU holder is incompatible if the bottom radiator position is populated with the EK-Quantum Surface P240M. A thinner radiator (e.g., EK-Quantum Surface S240) may be utilized to regain compatibility with the vertical GPU holder. However, this will lead to a more complicated and unsightly connection to the distribution plate, and the entire assembly will be limited to narrower GPU PCBs and water blocks.

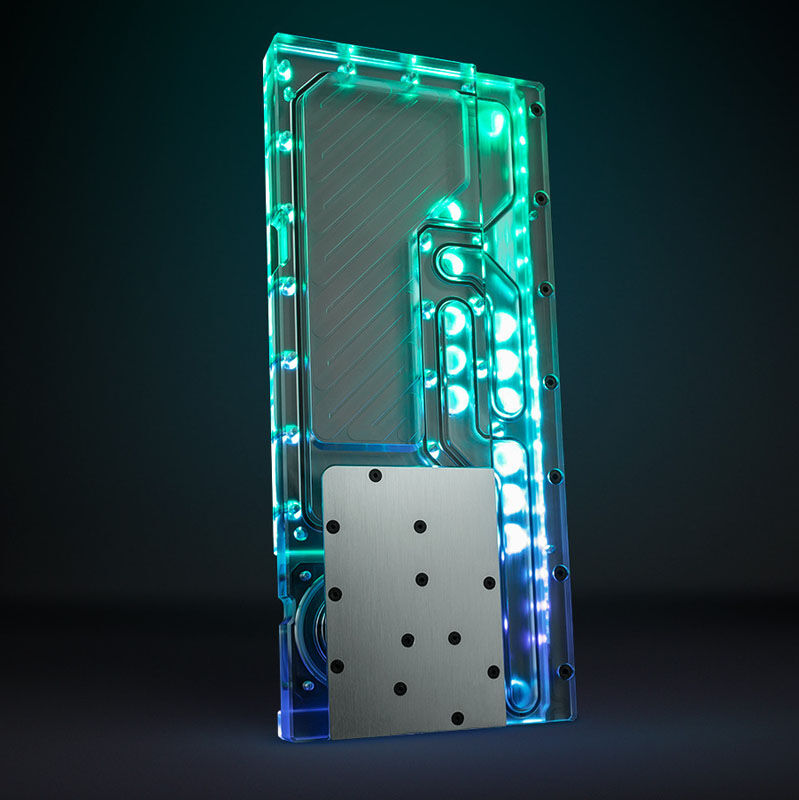

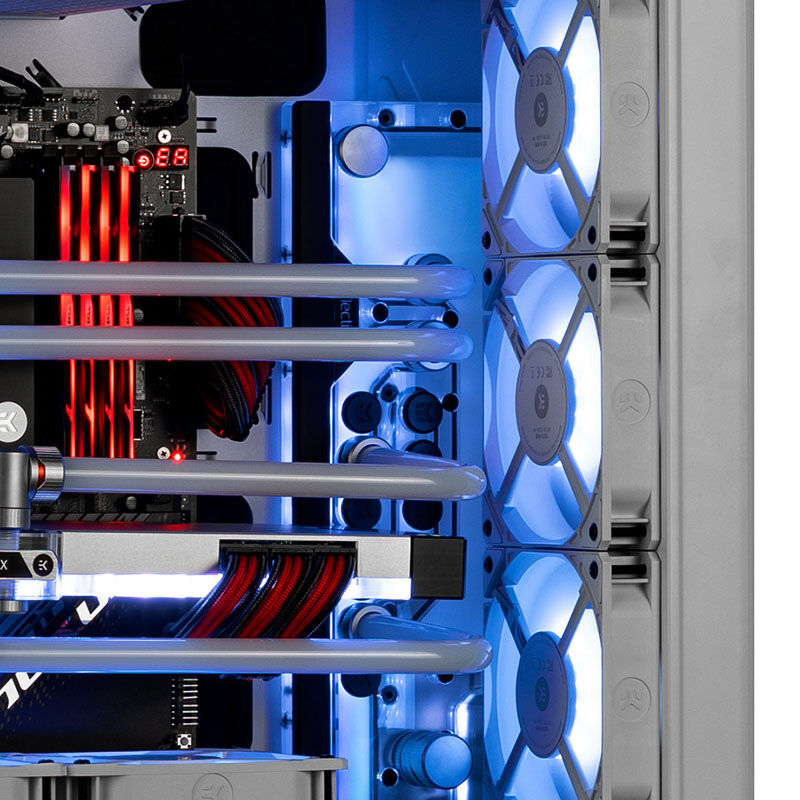

Engineered to be mounted next to the motherboard, the EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB can fit elegantly within the Fractal Design Torrent case. The built-in addressable D-RGB LED strip runs down the units entire length while the anodized black aluminum cover hides the unwanted LED hotspots. The installed addressable D-RGB LED strip connects to the motherboard 5V D-RGB (A-RGB) header via an industry-standard connector. It is compatible with all major motherboard vendor software for a coordinated lighting effect.
Specifications
| Reservoir Dimensions (W x D x H) | 146 x 41 x 333mm |
|---|---|
| Reservoir Volume | ~234ml |
| D-RGB LED Count | 18 |
| D-RGB Cable Length | 450mm |
| D-RGB Connector | 3-pin (+5V, Data, Blocked, Ground) |
| Motor Type | Electronically commuted ball bearing motor |
| Rated Voltage | 12V DC |
| Power Consumption | 20W |
| Maximum Head Pressure | Up to 5.2m |
| Maximum Flow Rate | Up to 1000L/h |
| Maximum Liquid Temperature | 60°C |
| Materials | Stainless steel, PPS-GF40, EPDM O-rings, Aluminum oxide, Hard coal |
| Power Connector | SATA power + 4-Pin PWM FAN connector (PWM / RPM readout) |
| PWM Duty Cycle | ~20–100% |
| Default Behavior | Runs at 100% duty cycle when no PWM feedback signal is present |

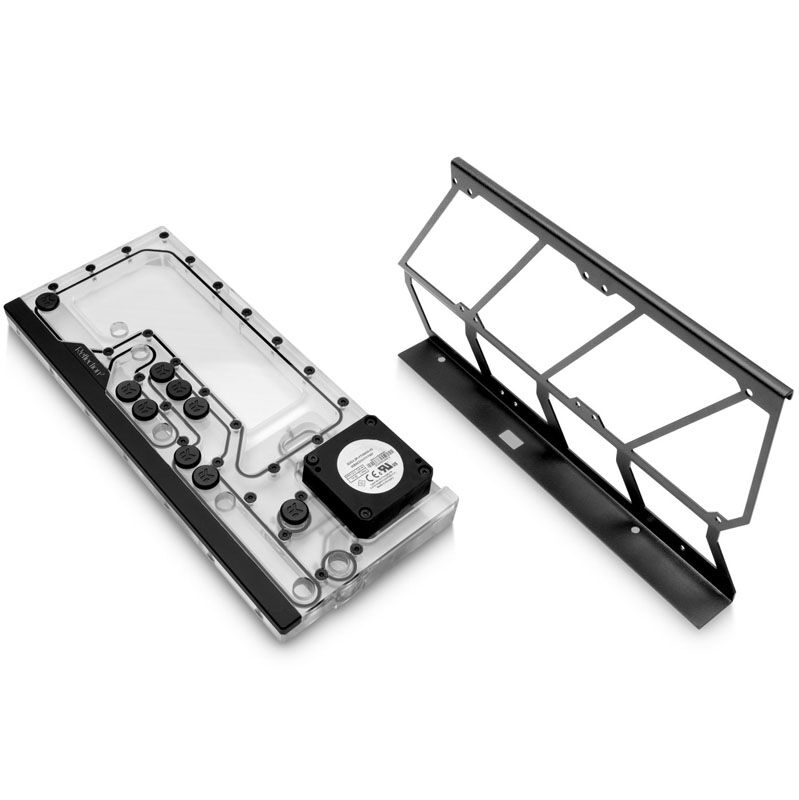

| Enclosed | EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB – Plexi Mounting mechanism and tools Metal radiator bracket 9x MS – Quantum Plug – Ni (preinstalled) 9x EK-Quantum Torque Plug Cover – Black (preinstalled) |
£400.74£333.95 Inc VatEx Vat
