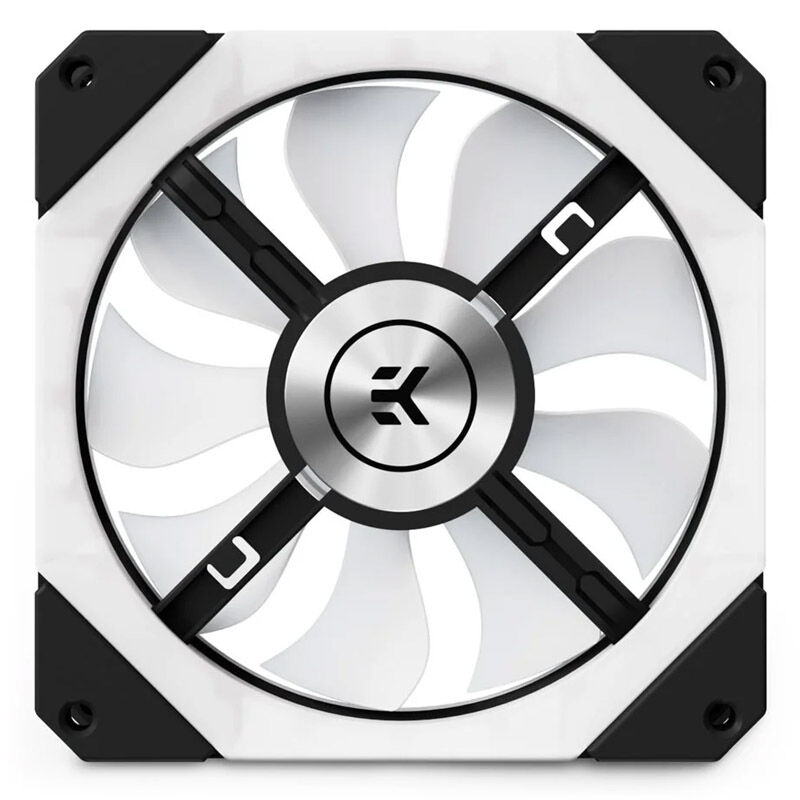

EK-Quantum Impulse 120 D-RGB is a silence-oriented 120mm computer cooling fan designed and built primarily with the lushest RGB LED illumination in mind. They are not a replacement for other EK fans that maintain a focus on high radiator performance but more of an aesthetic-focused offering that provides silent operation and balanced performance.
EK-Quantum Impulse fans have the VAPO™ bearing and Magnetic Levitation motor.

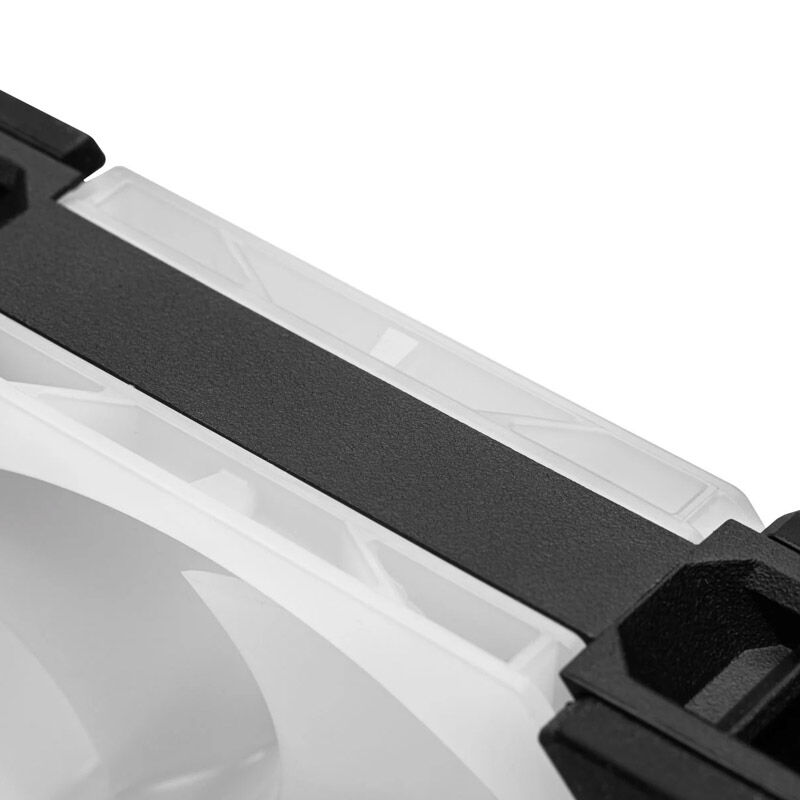

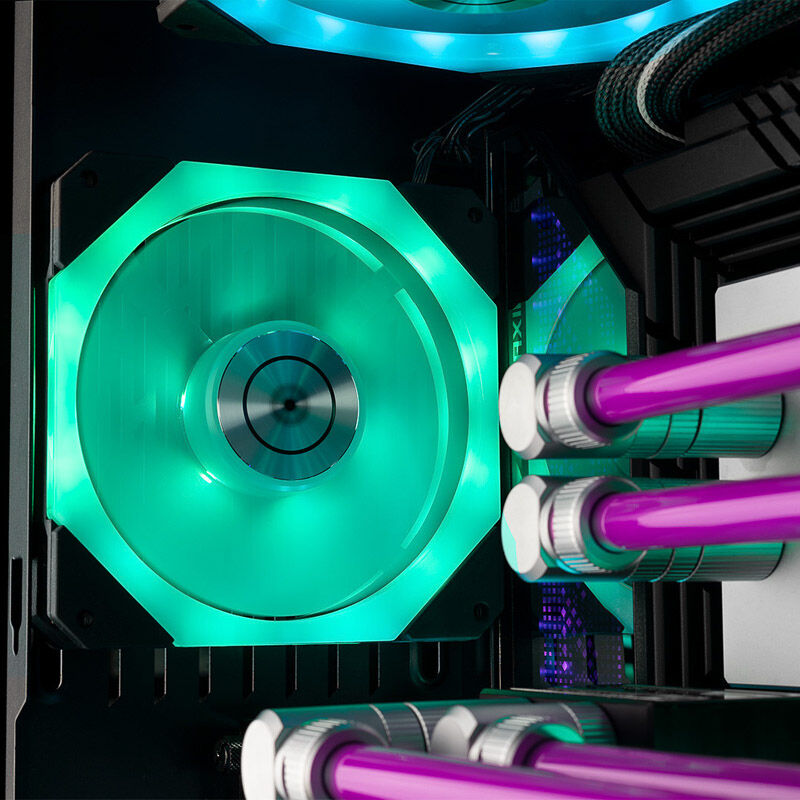

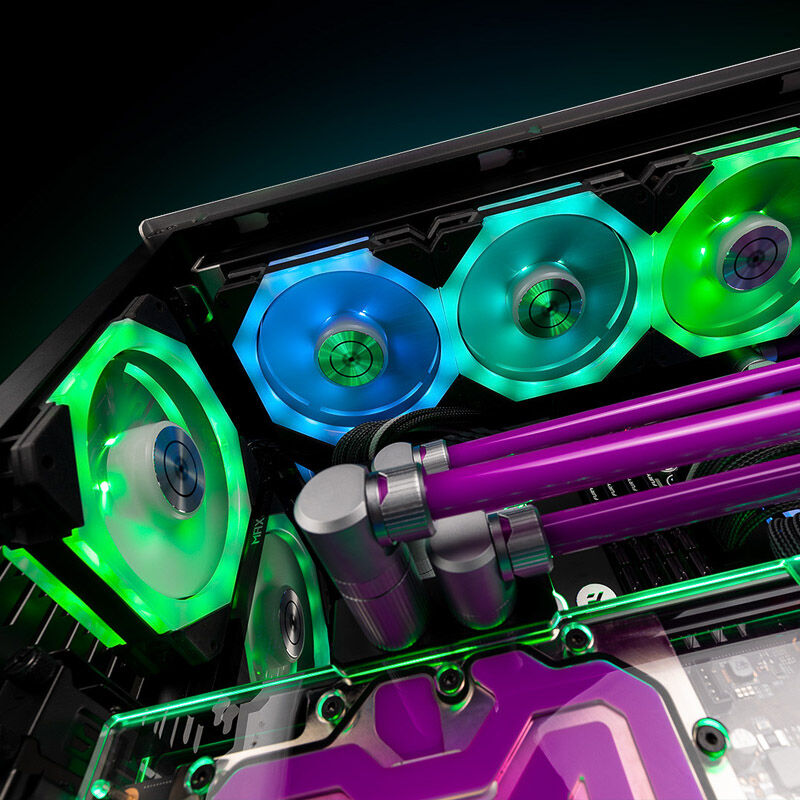

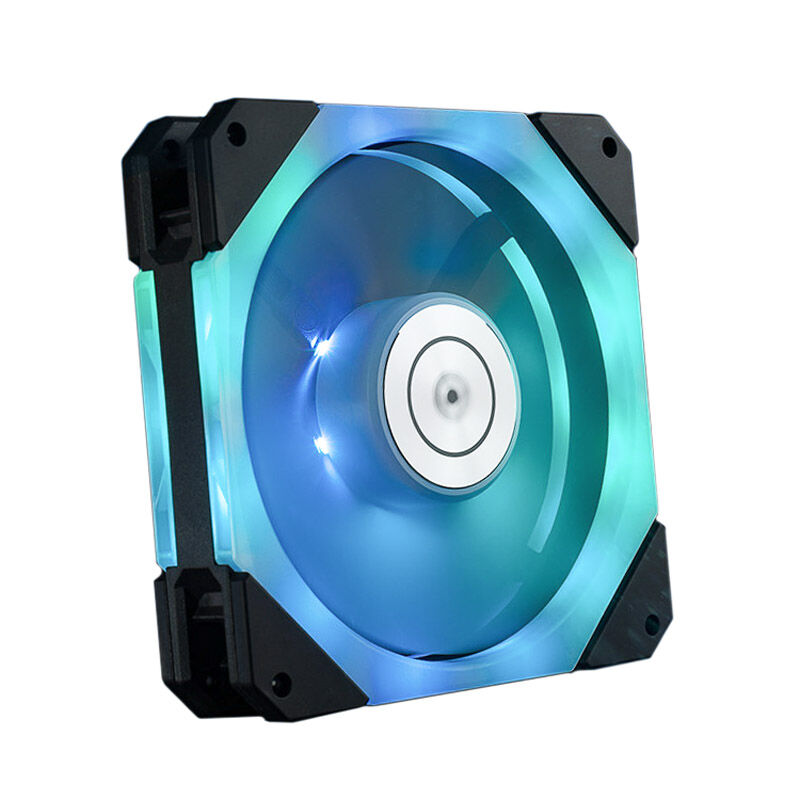

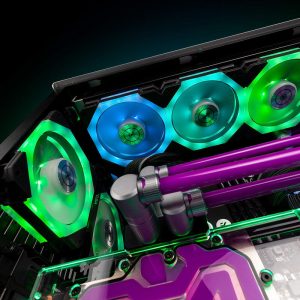

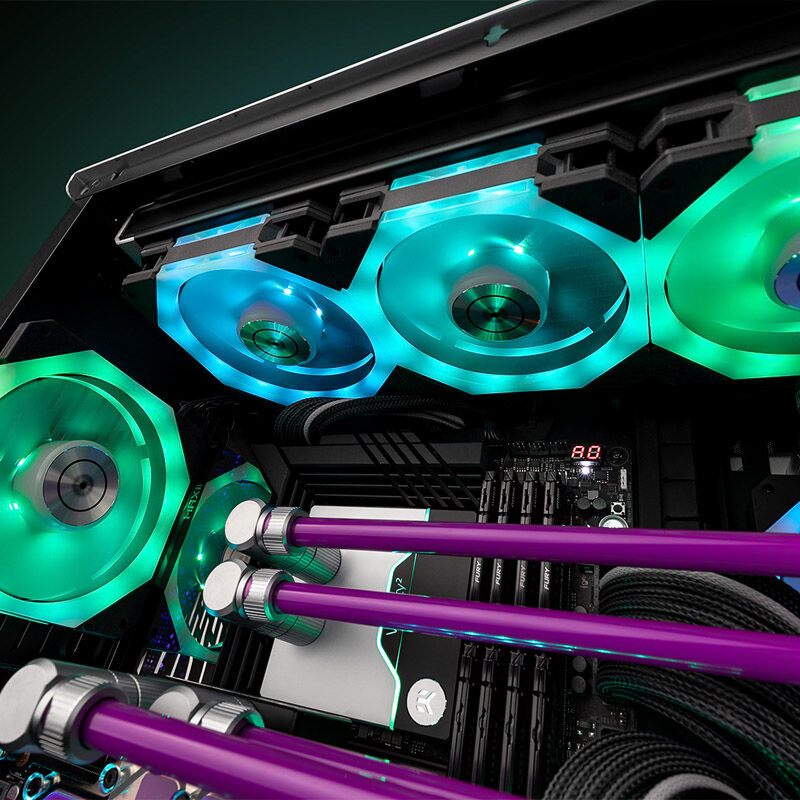

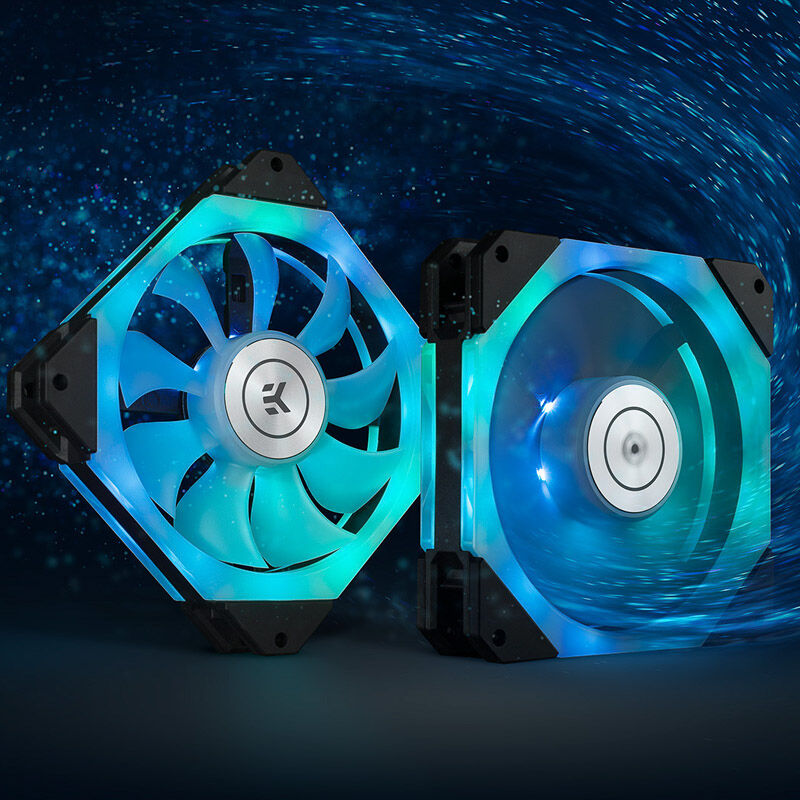

EK-Quantum Impulse are 120mm PC radiator and case fans optimized for rich and lush D-RGB effects while maintaining very silent operation across their entire operational range. There is one LED-lit zone around the frame on both sides of the fan, so no matter which fan orientation you require, youll get the rich illumination of the addressable RGB diffused through a milky white cover. The rotor is also illuminated by its own D-RGB strip for stylish aesthetics while spinning.
These fans use VAPO bearing, designed to virtually eliminate wobbling, so it stays incredibly stable in all applications. VAPO bearing adds a magnetic effect (magnetic levitation) to the bearing to reduce noise and increase shaft stability. Unlike the traditional ball-bearing fans that get noisier with time, VAPO bearings are dust-resistant and dont dry out.
As with FPT fans, Impulse fans also allow daisy-chaining, ultimately reducing cable clutter and easing cable routing through the EK-OmniLink, an 8-pin Micro-Fit connector ecosystem. All the signal and power wiring for the PWM and D-RGB runs on a single cable and connector, which then utilizes another single cable to connect to the source. Most importantly, the EK-OmniLink ecosystem doesnt require any special controllers since the connection ends in the standard motherboard connectors – a 4-pin PWM for the fan power and a 3-pin 5V D-RGB for the connectors.

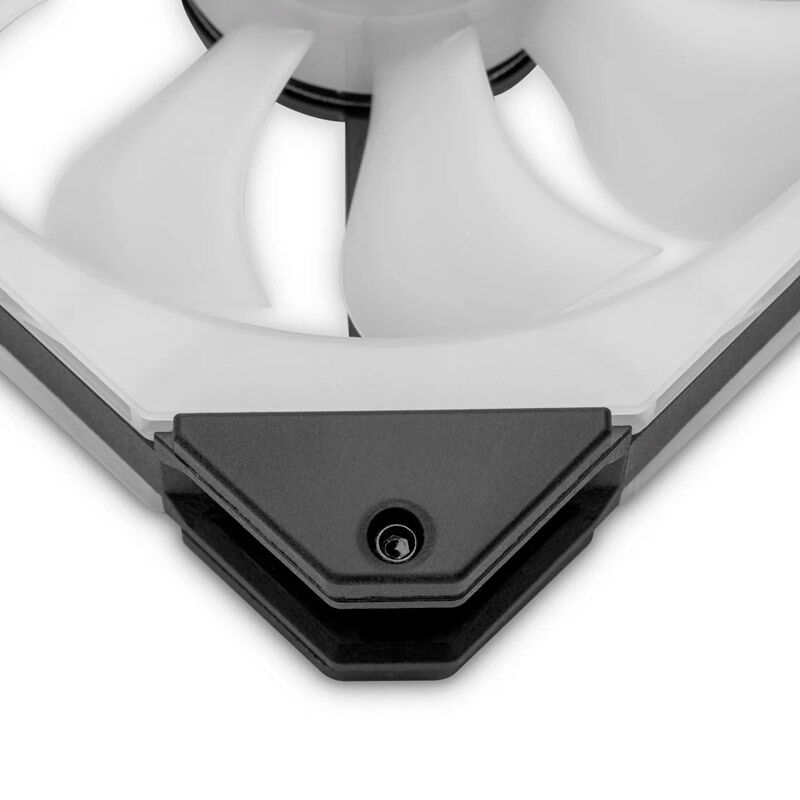

Thick rubber corners can be found on both sides of the fan to reduce vibration transfer to the rest of the PC. The fan itself is 26mm thick, with rubber corners protruding 1.5mm on each side for a total of 29mm in depth, bearing in mind that these rubber corners will squish down as you tighten the screws.

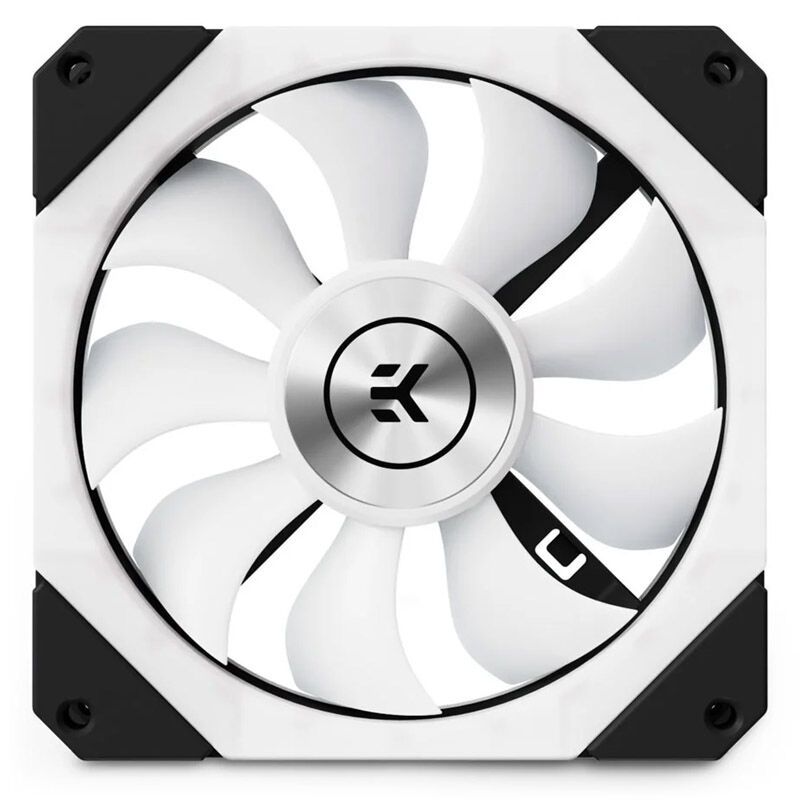

Unlike fans with circular or incomplete frames, this fans square frame reduces side air leakage.
EK-OmniLink – allows daisy chaining of multiple fans, thus reducing cable clutter and greatly easing cable management. The Omni-Link ecosystem of interconnects will be greatly expanded in the near future, allowing additional benefits to users. It uses Micro-Fit 8-pin connectors between products, but standard 4-pin for PWM and 3-pin for 5V addressable RGB at the end of the daisy chain.

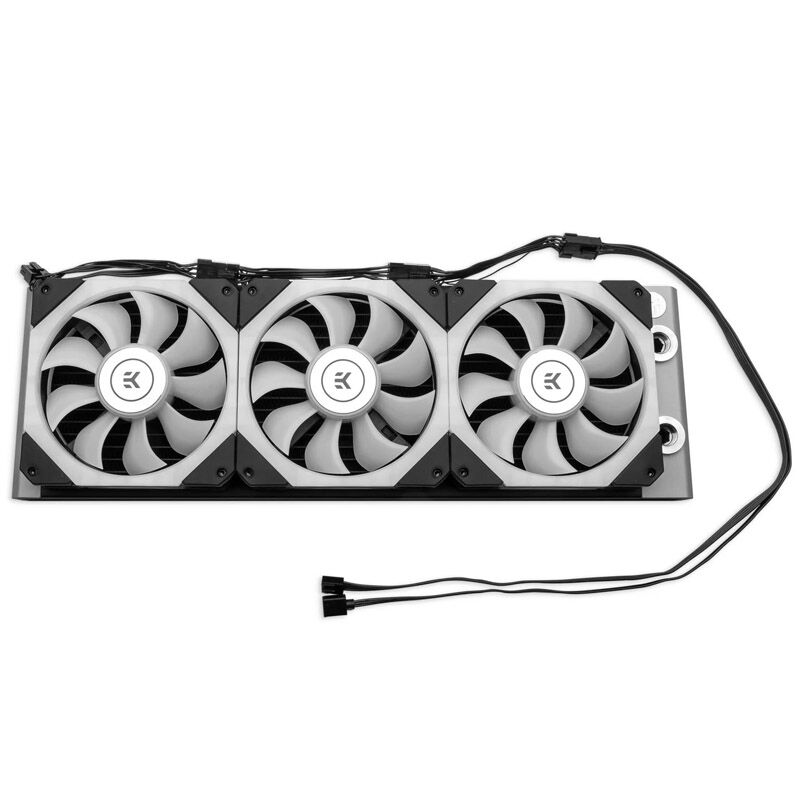

The EK-OmniLink design resolves the cable clutter issues of unifying the connection of multiple fans onto a single PWM and D-RGB header while still maintaining full flexibility if the user wants to remove a single fan from the chain. Other similar solutions on the market use interlocking mechanisms, which require the removal of the entire fan link if the user needs more room to tighten a fitting on a radiator.
One of the main features the new EK-Quantum Impulse 120 fan offers is its simplicity. It utilizes the standard 3-pin 5V D-RGB connection, meaning you can use it with any standard 3-pin 5V addressable RGB controller or any of the popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector should be aligned with the +5V marking on the D-RGB (ARGB) header.
EK Quantum Impulse 120 D-RGB Key Features
Three premium LED lit zones
– Unlike other EK fans, which have LEDs exclusively in the rotor, Impulse fans have additional LEDs on both sides of the frame.
MagLev and VAPO Bearing
– The VAPO bearing adds a magnetic effect (magnetic levitation) to the bearing to reduce noise and increase shaft stability.
Square Frame for Airflow Focusing
– The practical square shape of the fan frame provides optimal performance in either the pull or push regime without hydraulic losses, which ensures the optimal cooling capacity of your liquid cooling radiators.
Standard D-RGB connectors
The EK-Quantum Impulse 120 fans D-RGB lighting does not require any fancy or expensive additional controller for you to enjoy vibrant light effects. A simple 3-pin 5V addressable D-RGB connection for standard controllers or any popular D-RGB (ARGB) sync technology from major motherboard manufacturers is all you need.
OmniLink
The ability to daisy chain fan power, D-RGB, and even pump power across a single cable gives you the ultimate flexibility while reducing cable clutter. All the cables are flat ribbon style with no additional sleeving for an even better cable routing experience.
| Mechanical & Electrical Specifications | RPM range: 400 – 1800 RPM ±10% Rated voltage: 12V Power draw: 1.44W = 0.12A LED power draw: 2.3W (0.45A) PWM duty cycle: 25–100% Shaft bearing: VAPO Bearing durability: 60,000 hrs @ 40°C Dimensions: 120 x 120 x 29 mm (26 mm without dampers) Fan cable length: 100 mm Fan daisy-chain connector: Micro-fit 8-pin Extender cable length: 500 mm Extender connector: 4-Pin PWM + 3-Pin Addressable 5V D-RGB |
|---|---|
| Performance Characteristics | Max Air Flow: 57.5 CFM = 97.8 m³/h Static Pressure: 1.94 mm-H₂O Noise Level: 24.3 dBA (max RPM) |
| Enclosed | 1x EK-Quantum Impulse 120 1x Cable extender (PWM + RGB) 4x Self-tapping fan screws 7/32 – black |
£9.98£8.32 Inc VatEx Vat
