– Powerful ATX 3.1 power supply in the SFX form factor
– 1000 watts of rated power from a power supply thats only 100 mm deep
– Highly efficient gaming thanks to Cybenetics and 80 PLUS Platinum certification
– Fully modular cable management prevents cable clutter
– Includes 12V 2×6 cable for powerful graphics cards

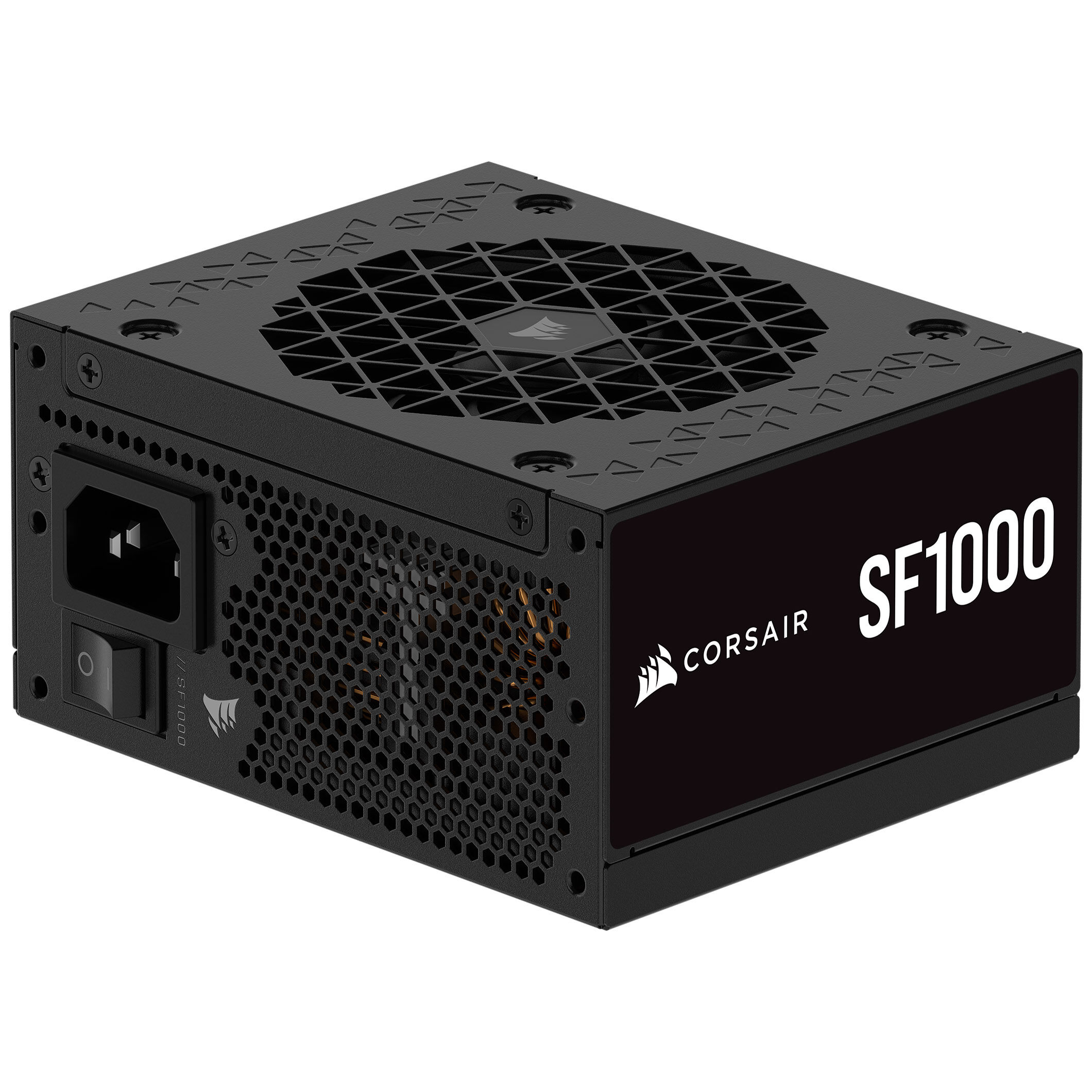

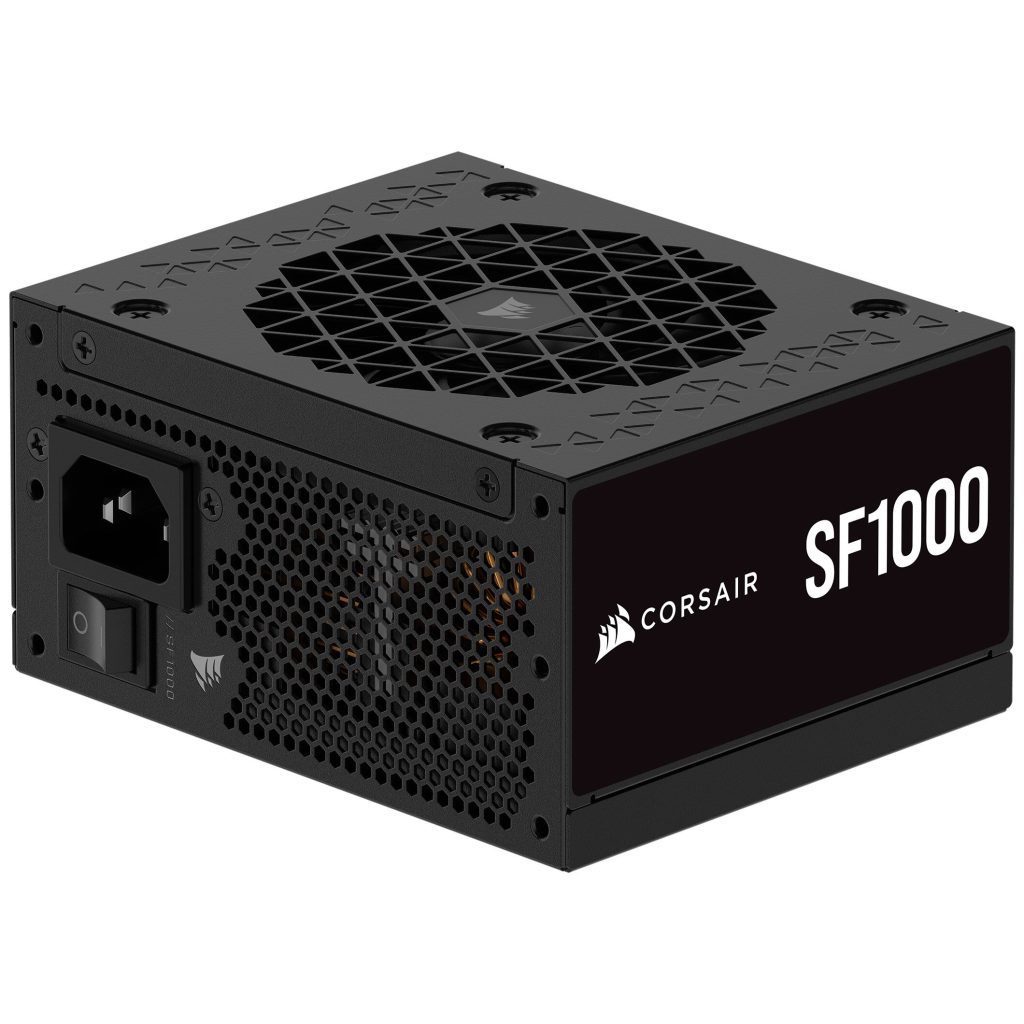

The Corsair SF1000 SFX power supply: Small form factor, big performance
For particularly small builds, its important to save as much space as possible for important components and easy cable management. The Corsair SF1000 power supply, with its depth of just 100 mm, is particularly well suited for this. However, there are no compromises with the SFX power supply: with 1000 watts of power, even high-end components with high power requirements are well-suited to your SFF build.

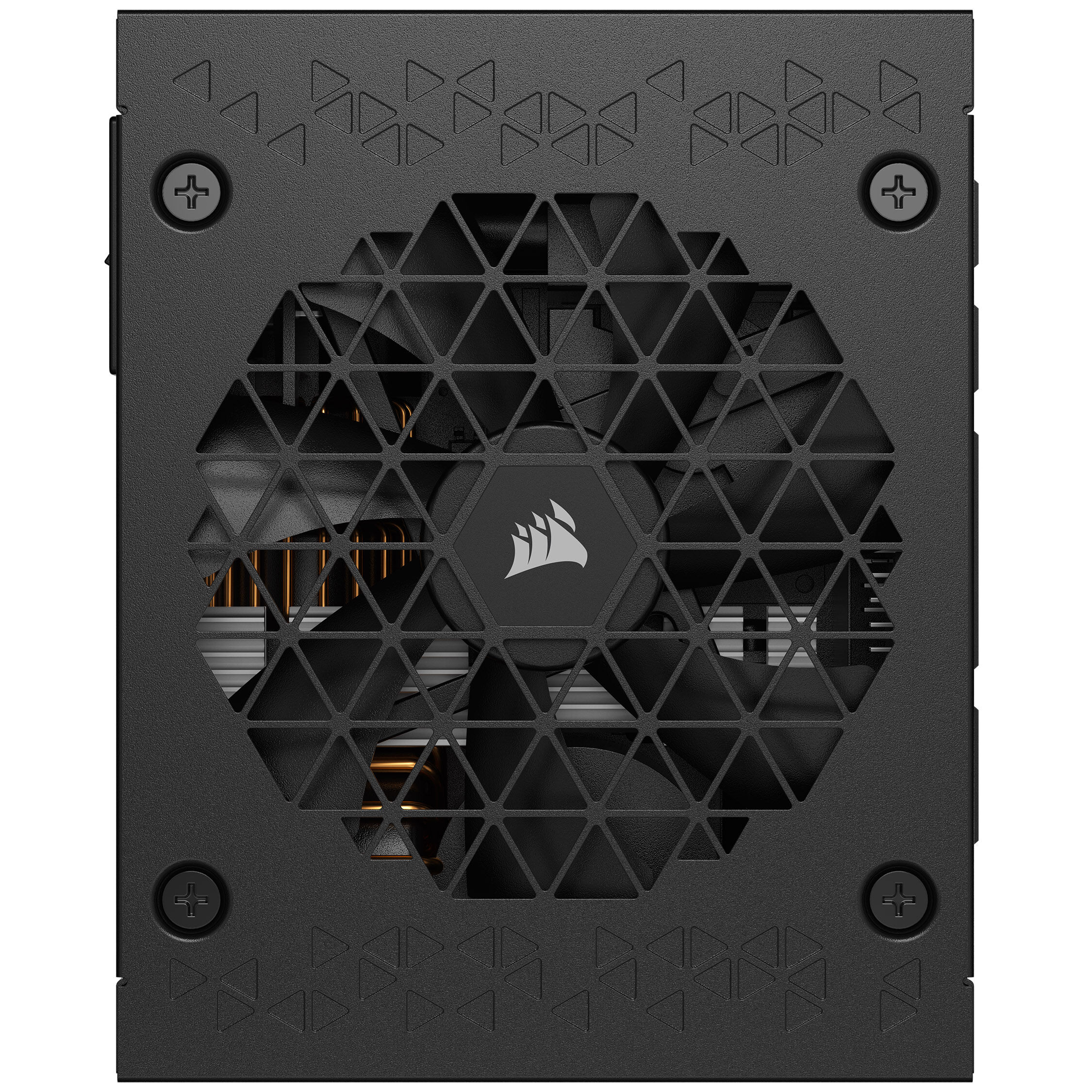

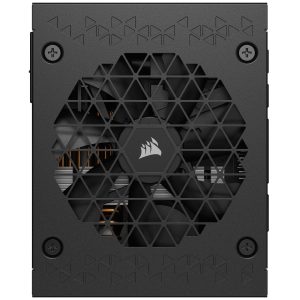

Corsair has also ensured sufficient cooling performance with a 92 mm fan. The hydrodynamic bearing efficiently and quietly supplies your power supply components with a large amount of cooling air. Zero RPM mode enables completely silent operation of the power supply below a certain load threshold. In addition to ensuring quiet operation of your PC, this also increases the lifespan of the power supply by preserving the fan.
ATX 3.1 and PCIe 5.1 for powerful graphics cards and high-end components

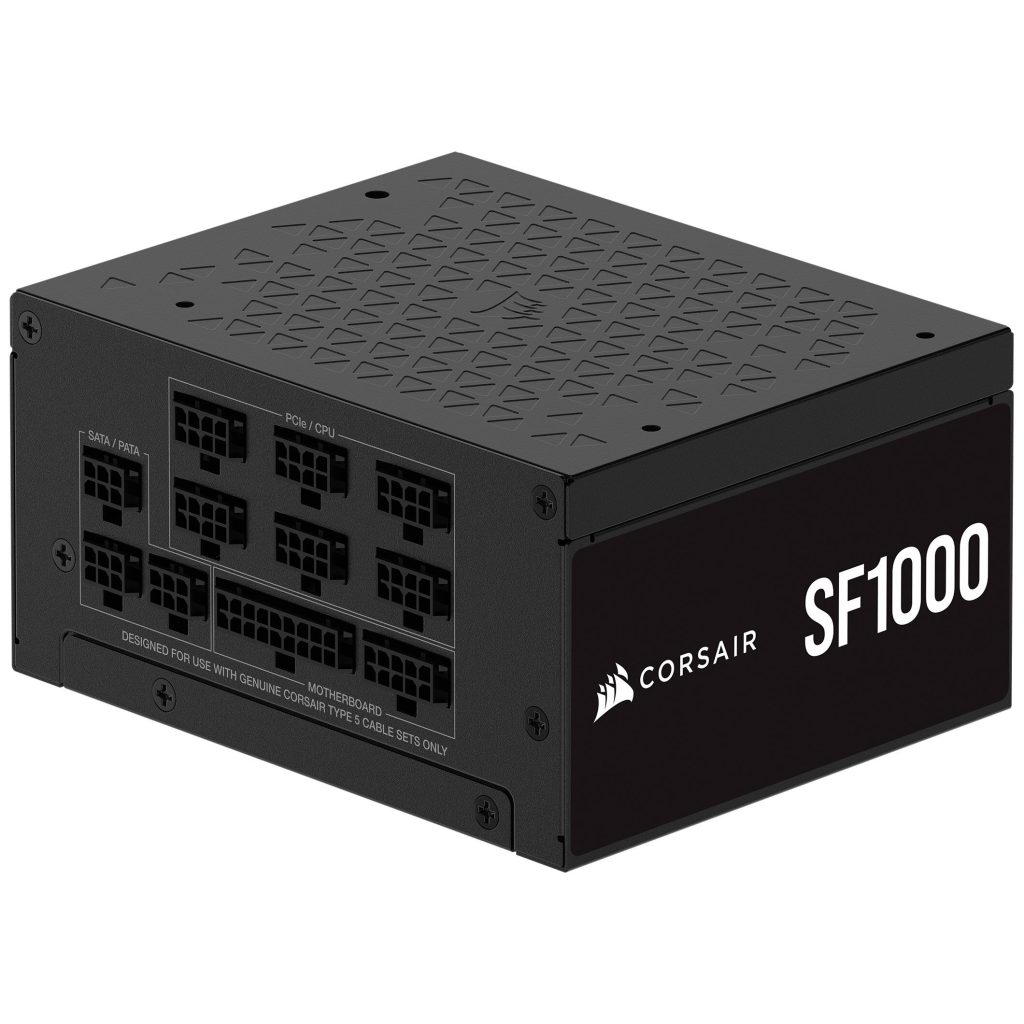

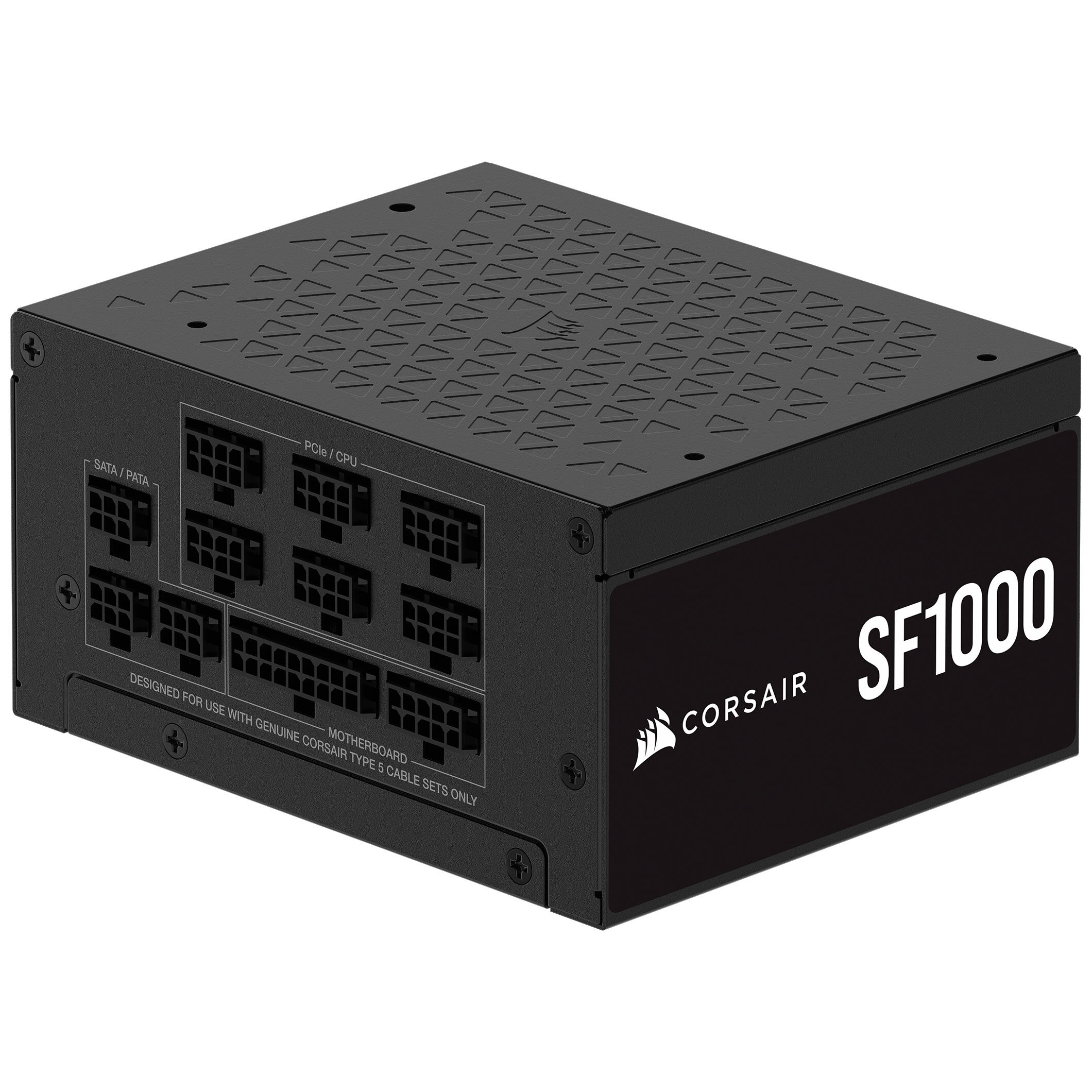

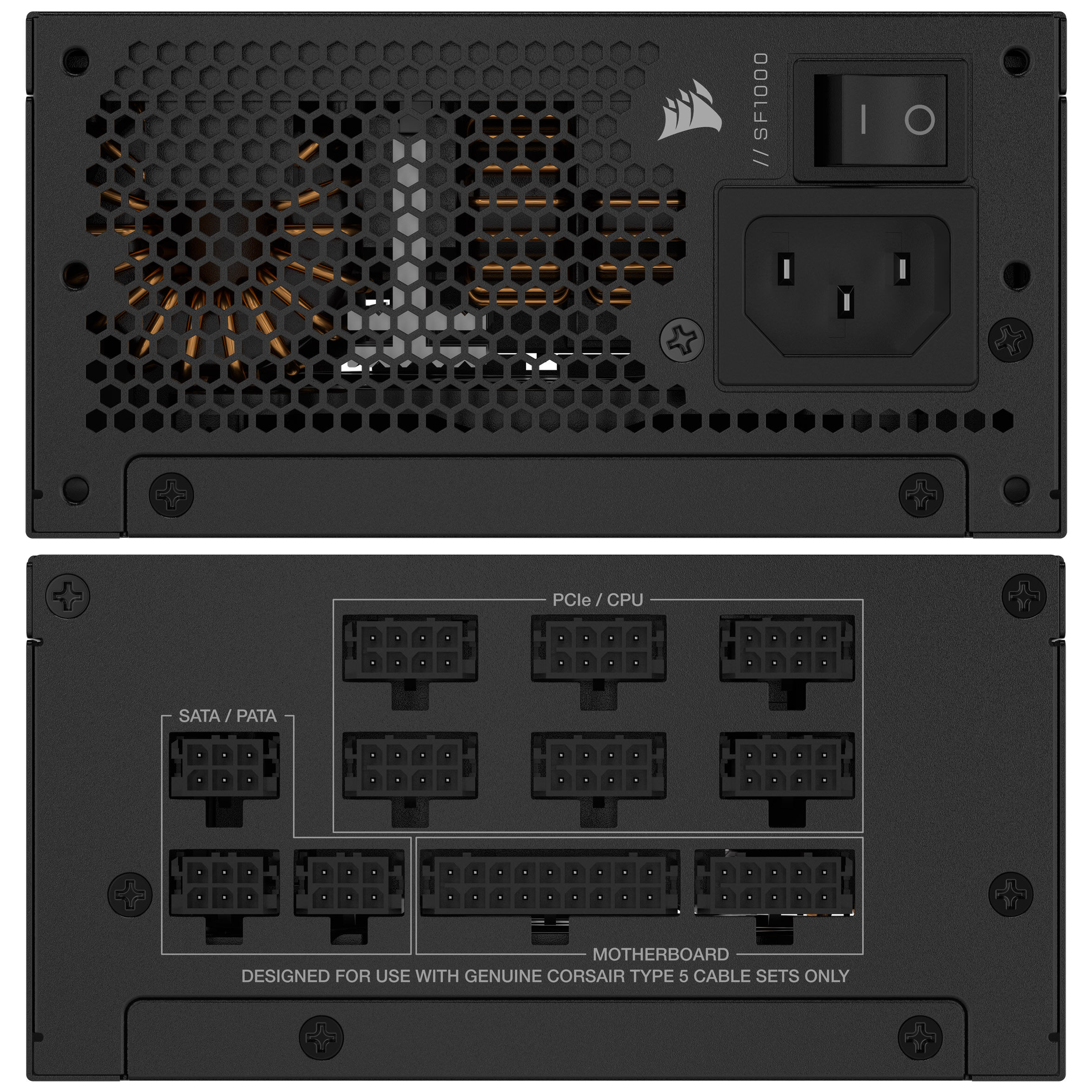

Even with the power supplys small size, there is more than enough connectivity. In addition to the standard 24-pin connector and the two 4+4-pin connectors for your CPU, four 6+2-pin connectors are available. An adapter from two 8-pin connectors to a 12V 2×6 connector is also included for powerful graphics cards. With a total of eight SATA and three Molex connectors from three 6-pin sockets, there are also enough connectors for your additional devices.
Specifications
| General | |
|---|---|
| Color | Black |
| Form Factor | SFX |
| Standard | ATX 3.1 |
| Dimensions & Cooling | |
| Dimensions (W x H x D) | 125 x 63.5 x 100 mm |
| Fan | 92 mm (FDB / Hydrodynamic Sleeve Bearing) |
| Efficiency | |
| Certification | 80 PLUS Platinum, Cybenetics Platinum |
| Power Output | |
| Total Power | 1000 W |
| +12 V Rail | 83.3 A / 1000 W |
| +5 V Rail | 20 A / 100 W |
| +3.3 V Rail | 20 A / 66 W |
| +3.3 V & +5 V Combined | 130 W |
| +5 Vsb | 3 A / 15 W |
| Internal Connectors | |
| Motherboard | 1x 18+10-pin (24-pin) |
| PCIe / CPU | 6x 8-pin |
| SATA / PATA | 3x SATA/PATA |
| Protection Features | |
| Safety Protections | OCP, OPP, OVP, OTP, SCP, UVP |
| Scope of Delivery | |
| Included Items | Corsair SF Series SF1000 SFX power supply, 18+10-pin to 24-pin cable (300 mm), 2x EPS/ATX 12 V to 4+4-pin CPU cables (400 mm), 8+8-pin to 12V-2×6 cable (400 mm), 4x 8-pin to 6+2-pin PCIe cables (400 mm), 6-pin to SATA cable (445 mm), 6-pin to SATA 90° cable (445 mm), 4-pin PATA 90° cable (330 mm), Accessory kit, Power cable |
