Corsair LL120 RGB Dual Light Loop PWM Fan, Triple Pack incl. Controller - 120mm white

The speed range between 360 and 2,200 rpm allows either whisper-quiet operation or outstanding cooling performance. The white fan with its 16 built-in RGB LEDs also provides a stunning visual effect, as both the outer ring and the hub of the rotor are illuminated. This triple pack includes three fans, a RGB Fan LED Hub and the Lighting Node PRO RGB LED Controller.

Overview of the Corsair LL120 RGB Dual Light Loop PWM Fan:
– Triple pack of three white LL120 RGB fans from Corsair
– Magnetic bearing ensures high performance, quiet operation and long life
– Custom rotor blades deliver the perfect balance between contact pressure and airflow
– Addressable RGB LED lighting with 16 individual LEDs and stylish effects
– Speed range from 360 to 2,200 rpm and 4-pin PWM connection
– Includes Corsair Lighting Node PRO and RGB Fan LED Hub
– Control and synchronization via Corsair iCUE software

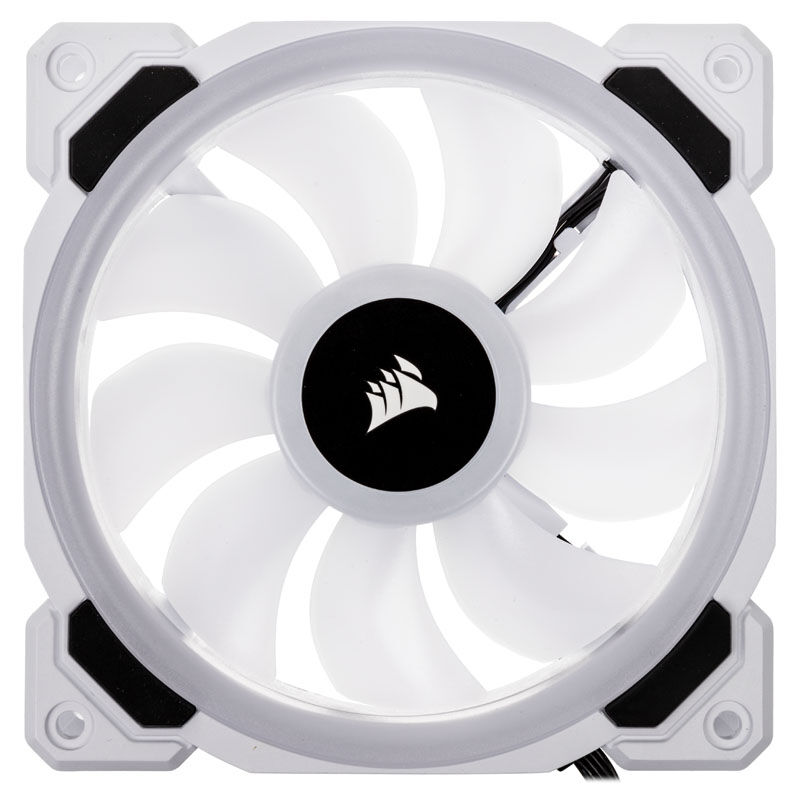

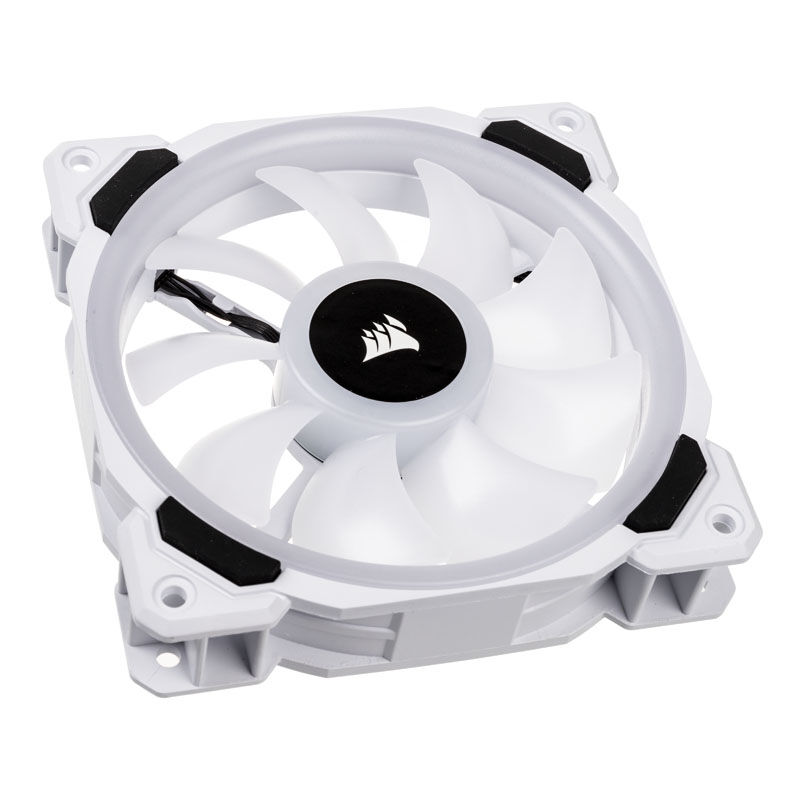

Powerful fan with stylish lighting
The LL120 RGB dual light loop fan is equipped with high-end technology and ensures a high contact pressure with up to 3.0 mm H2O, thanks to the special rotor design, and delivers a maximum flow of 107.3 m³ / H. The sophisticated hydraulic bearings also ensure a high level of performance and are extremely durable. It also produces a maximum volume of 36 dB (A), depending on the fan speed.

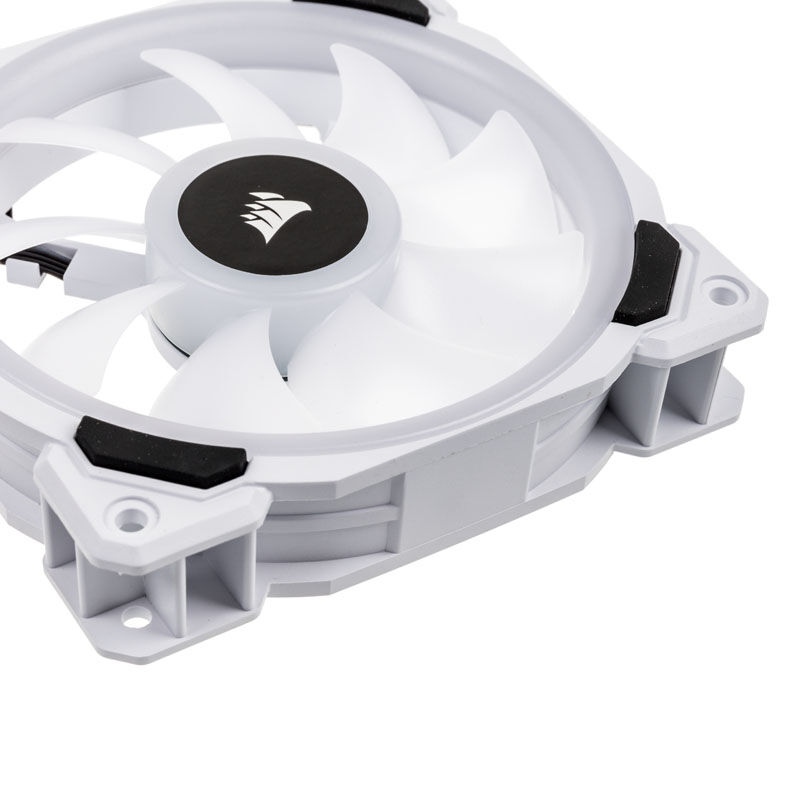

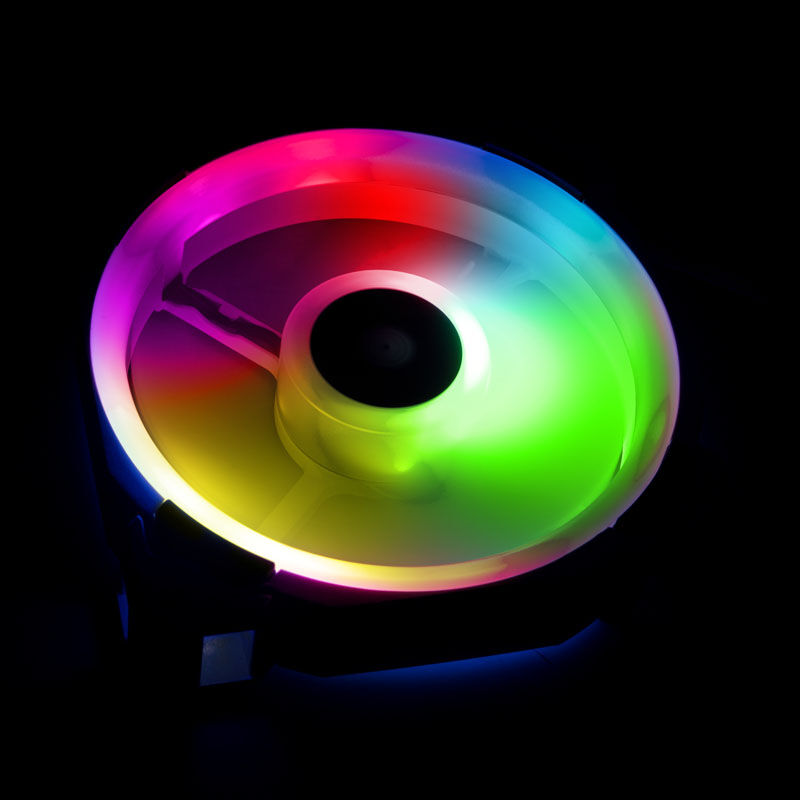

The fan in 12-centimeter format has rubber pads that provide a perfect, low-vibration run and make an excellent impression thanks to the black contrast. A particular highlight of the LL120 RGB is the extraordinary lighting in the form of 16 individually addressable RGB LEDs in a double loop: not only the outer ring of the rotor, but also the hub are provided with the bulbs. Both light loops can be individually adjusted in Corsairs iCUE software in terms of color, effect and speed of the effect according to the wishes of the user. Breathing, stroboscopic or color changing effects are available.

Corsair Lighting Node PRO and RGB Fan LED Hub

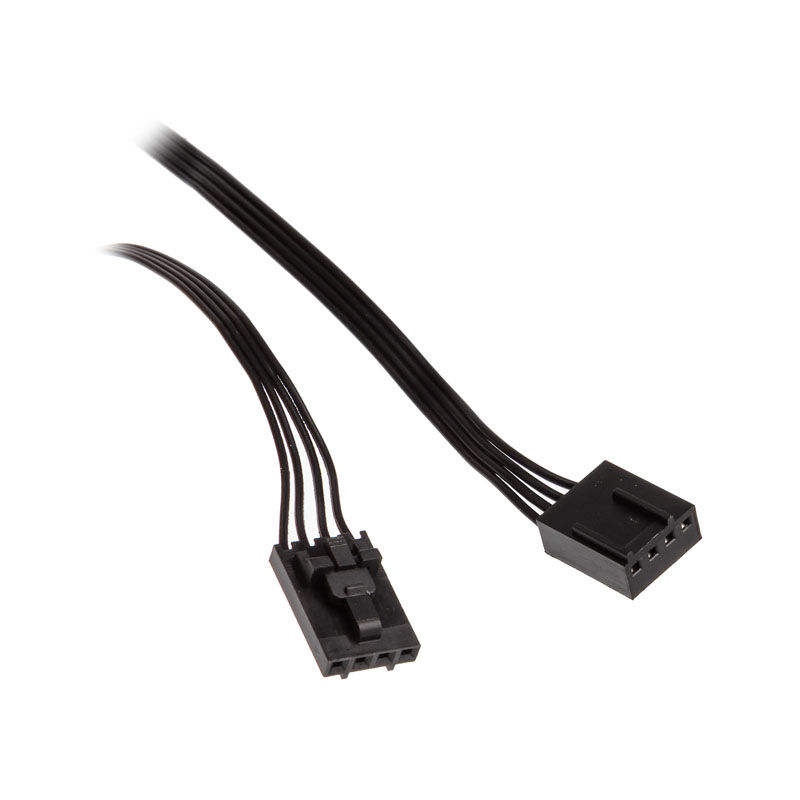

Corsair uses a proprietary 4-pin connector for RGB LED lighting. Each fan has two cables: a 4-pin fan connector with PWM signal and a 4-pin RGB connector in Corsairs own design. The latter is connected to the RGB Fan LED Hub. It is important to ensure correct order, because the lights are addressed in ascending numerical order. A lighting effect always starts with the fan in socket 1. The RGB LED lighting of a total of six fans can be synchronized via a RGB Fan LED Hub.

The hub connects to the Corsair Lighting Node PRO via a 3-pin cable. The Corsair Lighting Node PRO
is the actual RGB LED controller and has two ports for hubs, so it can address a total of twelve RGB LED fans. It is connected to a USB header on the mainboard and not to an RGB header and controlled by the iCUE software.

Technical details:
– Corsair LL120 RGB Dual Light Loop:
– Dimensions: 120 x 120 x 25 mm (W x H x D)
– Material: plastic, rubber
– Color white
– Volume: max. 36 dB (A)
– Speed: 360 – 2,200 rpm
– Delivery volume: 107.3 m³ / h
– Air pressure: 3.0 mm H2O
– Lighting: RGB
– Number of LEDs: 16
– Operating voltage: 7 – 13.2 V
– Current: 0.30 A
Connections:
– 4 pin PWM
– 4-pin RGB (Corsair)

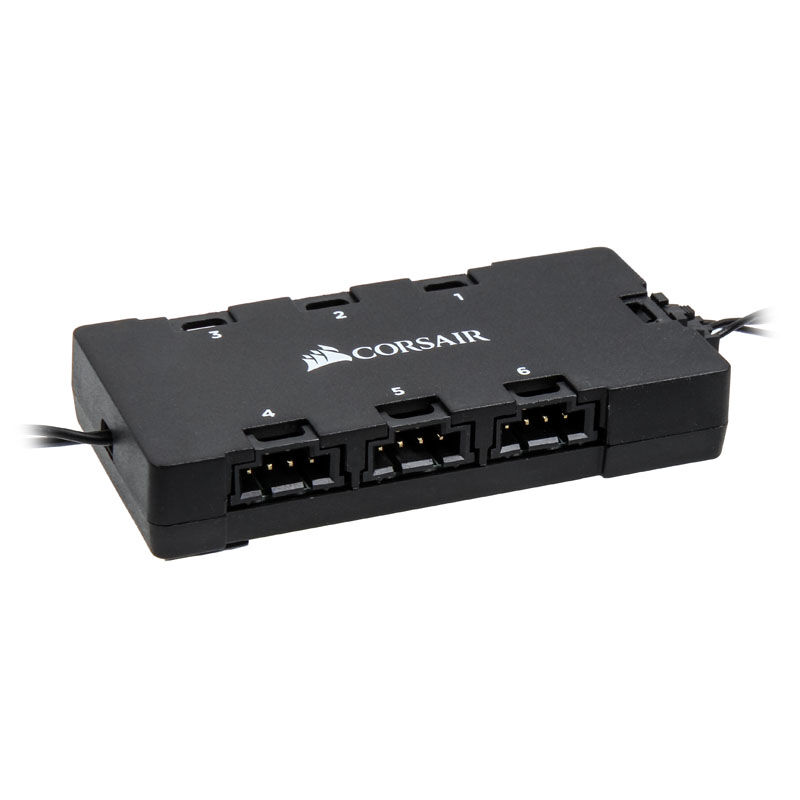

– Corsair RGB Fan LED Hub:
– Dimensions: approx. 70 x 12 x 50 mm (W x H x D)
– Weight: approx. 45 g
– Color: Black
Connections:
– 6x 4-pin (for fans)
– 1x 3-pin (for controller / remote control / JCORSAIR header)
– 1x SATA (for power connection)
Compatibility:
– Corsair Commander Pro RGB LED
– HD fan series from Corsair
– LL fan series from Corsair
– ML fan series from Corsair
– Corsair SP-RGB fan series
– Lighting Node PRO:
– Lighting Node PRO:
– Dimensions: 55 x 31 x 12 mm (W x H x D)
– RGB LED channels: 2
– Power consumption: 4.5 to 5.5 V

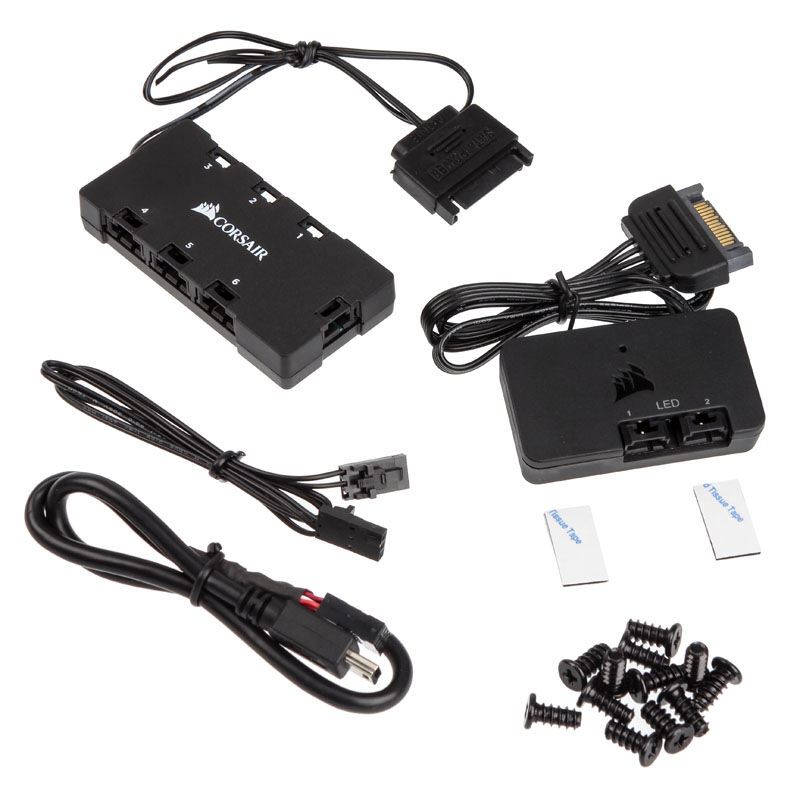

Delivery:
– 3x Corsair LL120 RGB Dual Light Loop Cooling Fan (White)
– 1x Corsair RGB Fan LED Hub
– 1x Corsair Lighting Node PRO
– 12x screws
– 2x double-sided adhesive tape
– Manufacturers warranty: 2 years
