The Corsair iCUE LINK 5000T LX Midi-Tower offers the perfect balance between size and functionality. With ample space for powerful hardware and efficient cooling, its the ideal choice for gaming and workstation builds.

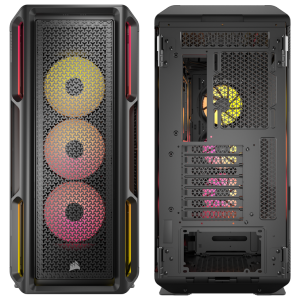

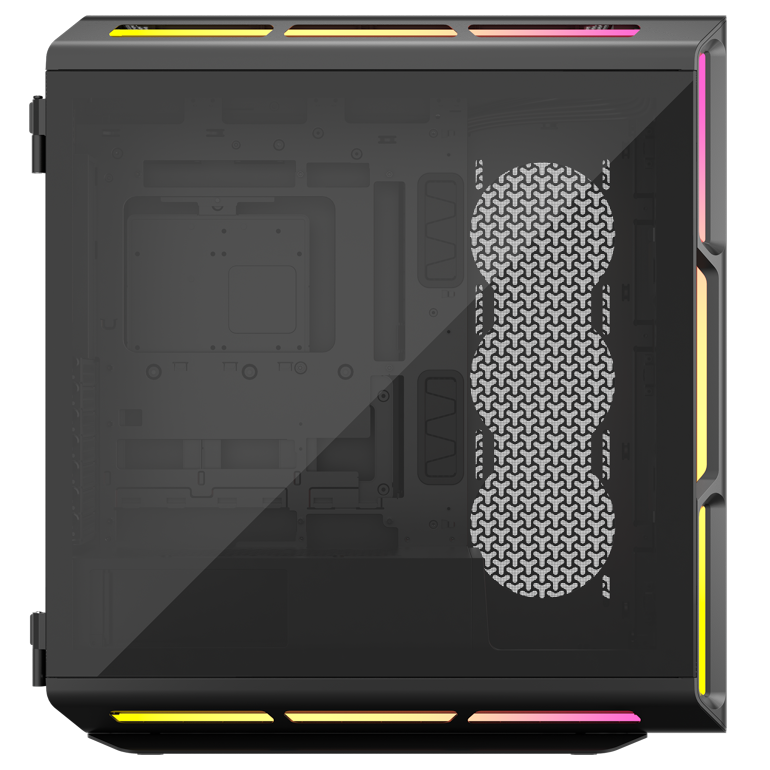

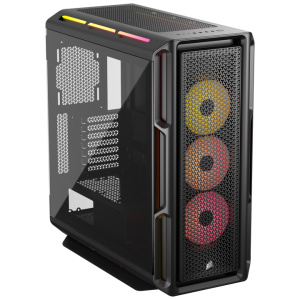

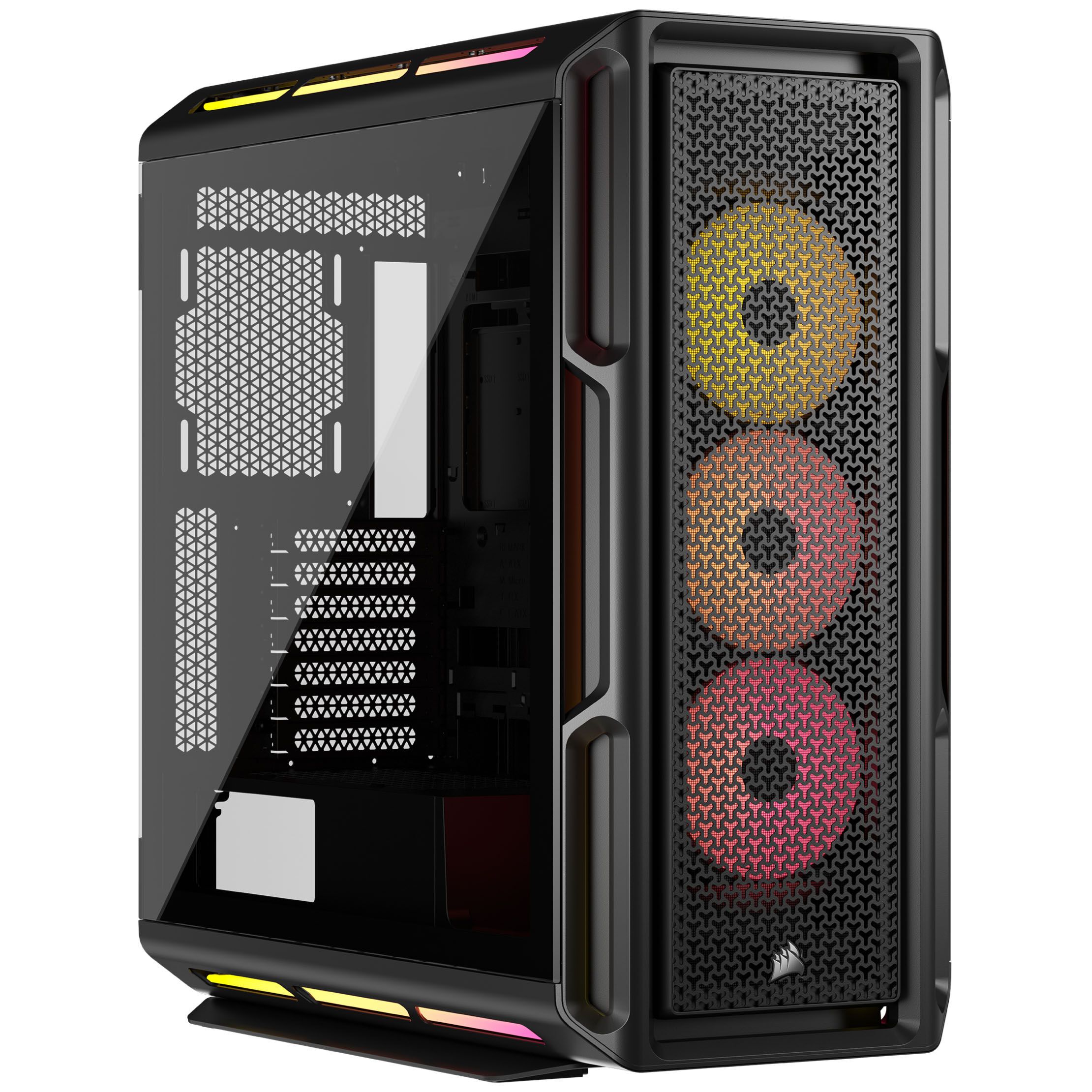

– Black midi-tower with tempered glass side panel
– Efficient cooling options with up to ten fans and radiators up to 360 mm
– Support for motherboards up to E-ATX and with a back-connect design
– Space for graphics cards up to 450 mm and CPU coolers up to 170 mm high
– Up to five drives possible
– Efficient cooling with fans and radiators in the Corsair iCUE LINK 5000T LX

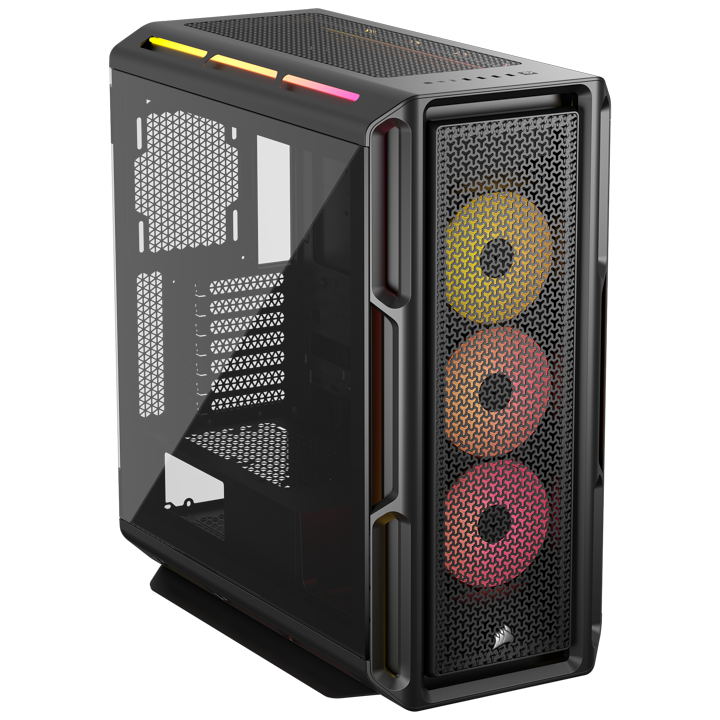

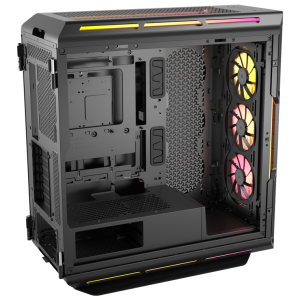

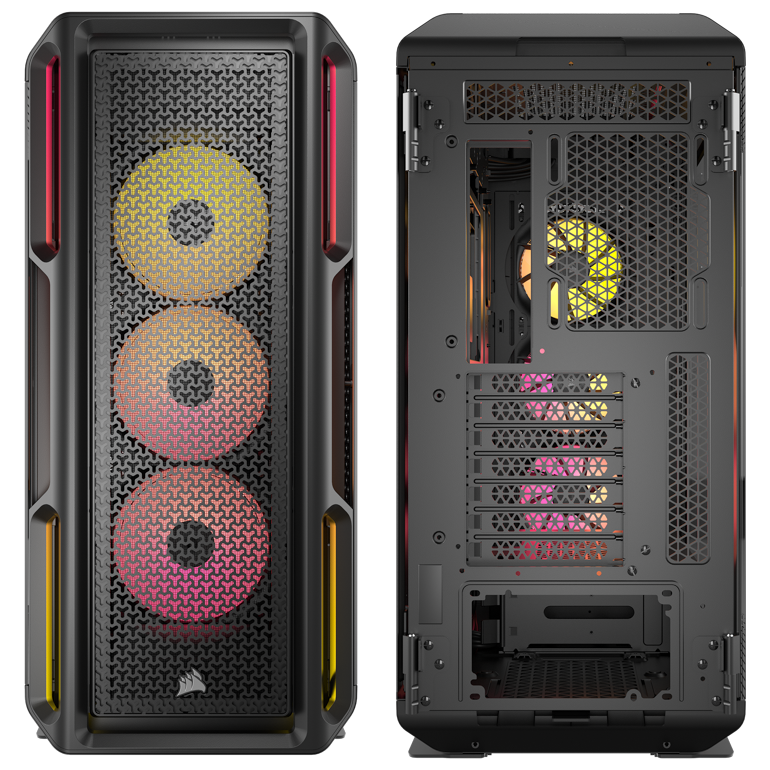

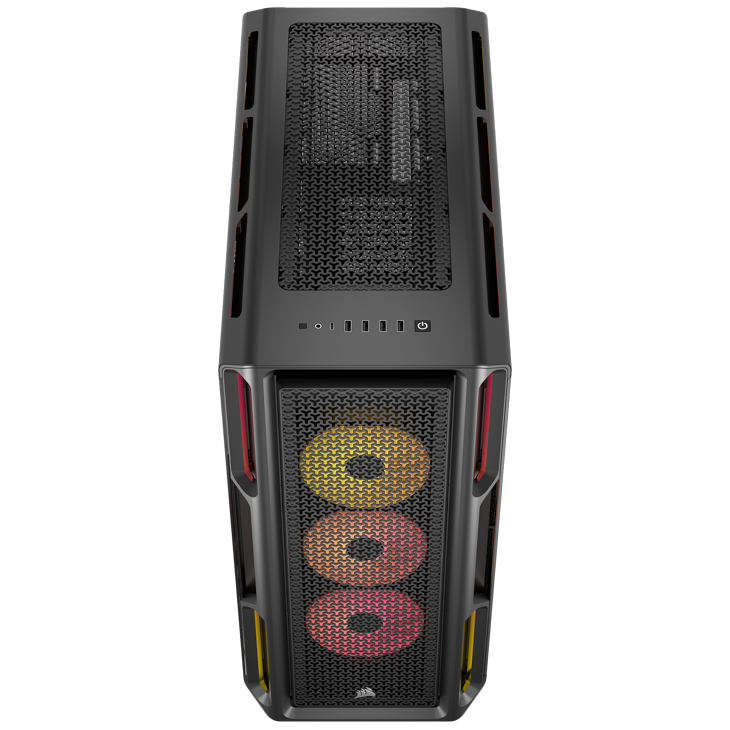

To keep your hardware cool under any load, the Corsair iCUE LINK 5000T LX supports up to ten fans. The top and front panels support the installation of three 120 mm or two 140 mm fans, while three 120 mm fans are possible at the front. You can install another 120 mm fan at the rear.

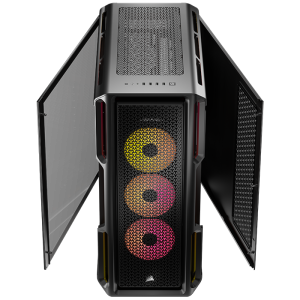

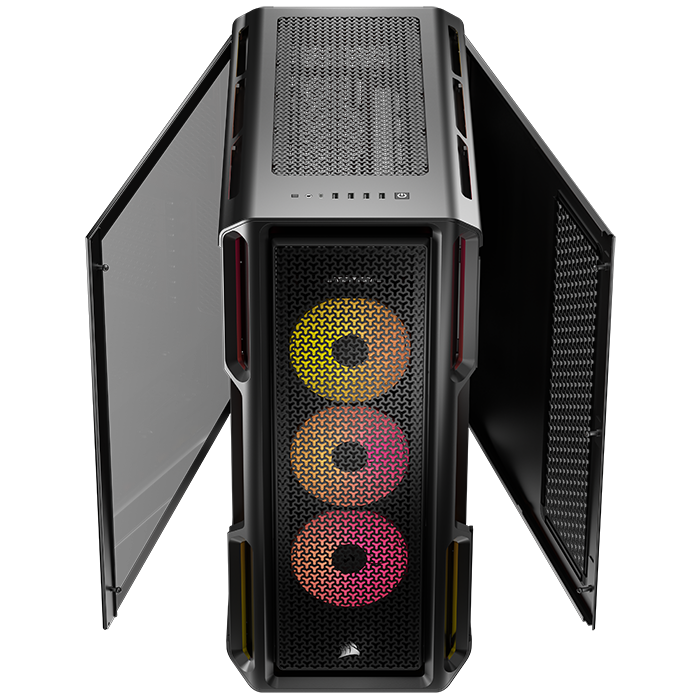

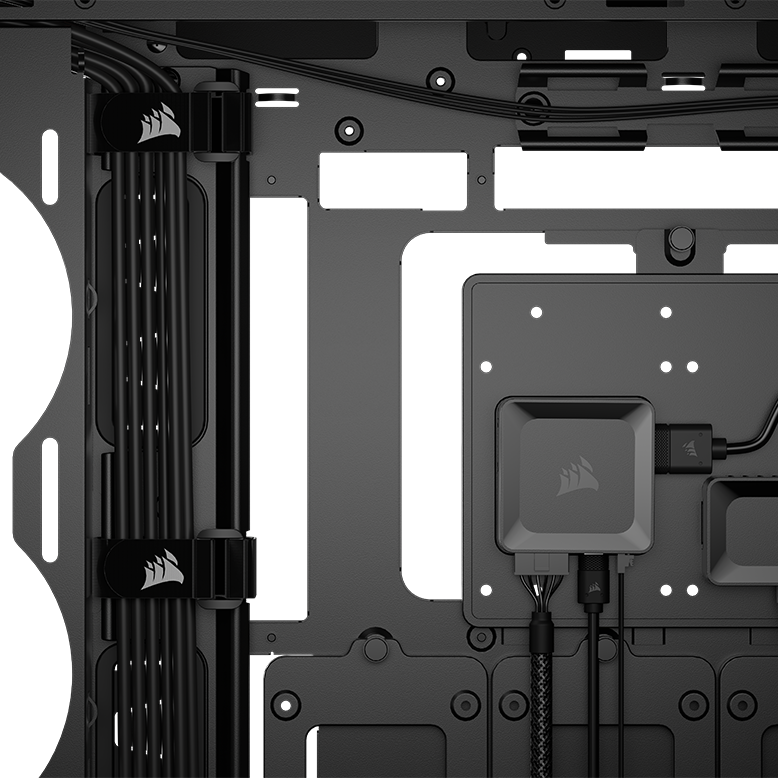

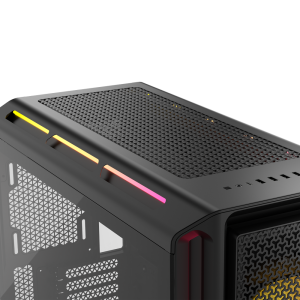

Three Corsair LX120 RGB fans are already included at the front, as well as Aurora RGB light strips. An iCUE Link Hub is included for controlling the RGB lighting.
If you prefer AiO water cooling, radiators can also be installed. Radiators up to 360 mm are possible at the front and top. You can also install a 360 mm radiator on the side. An additional 120 mm radiator can be mounted at the rear.

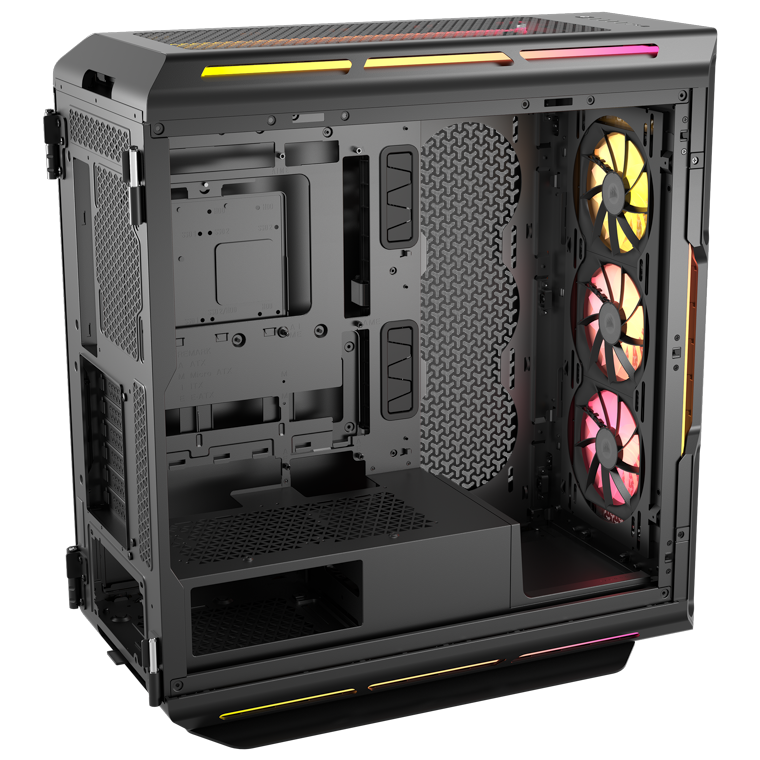

Installing Your Hardware

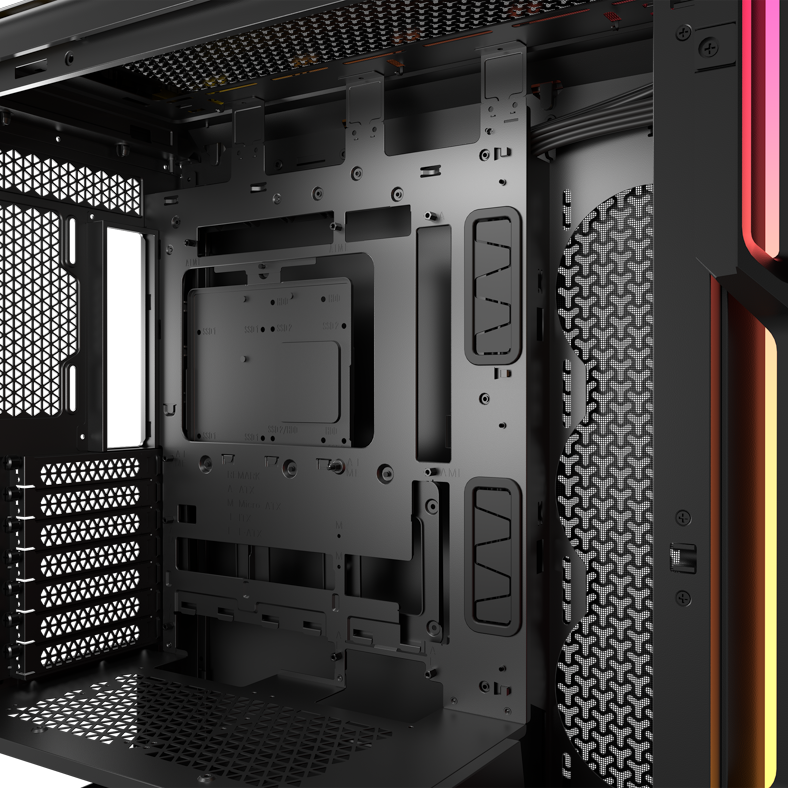

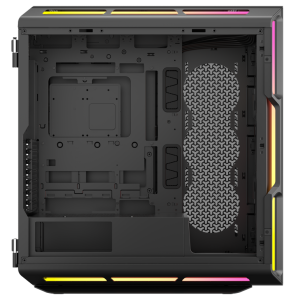

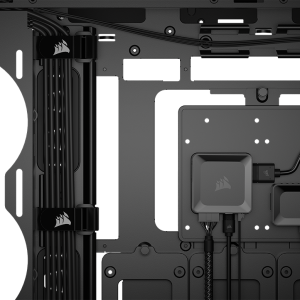

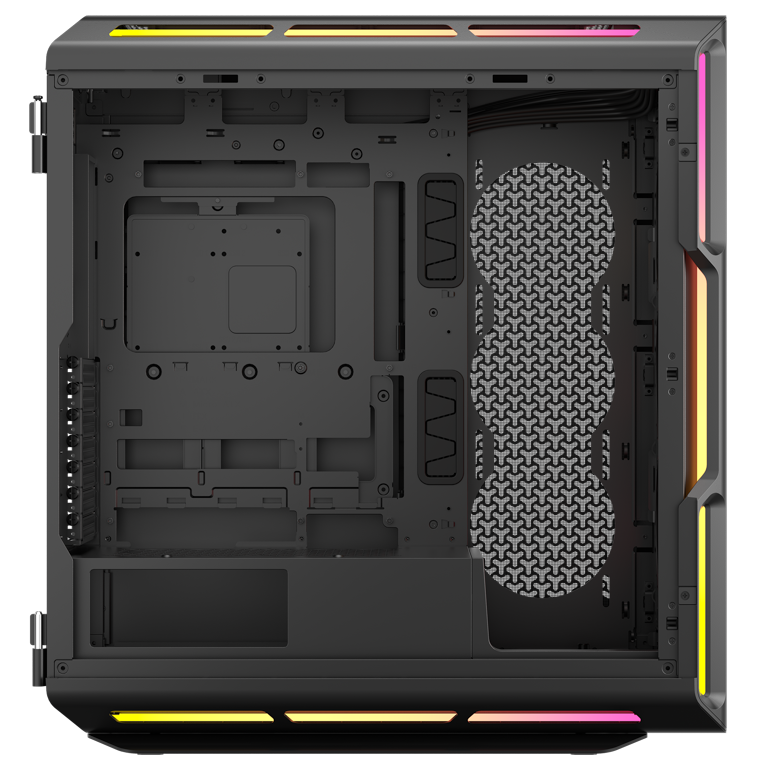

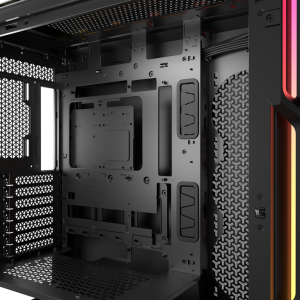

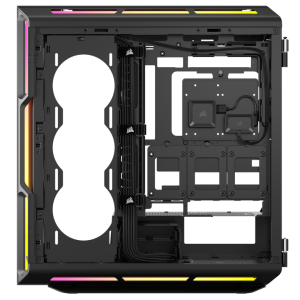

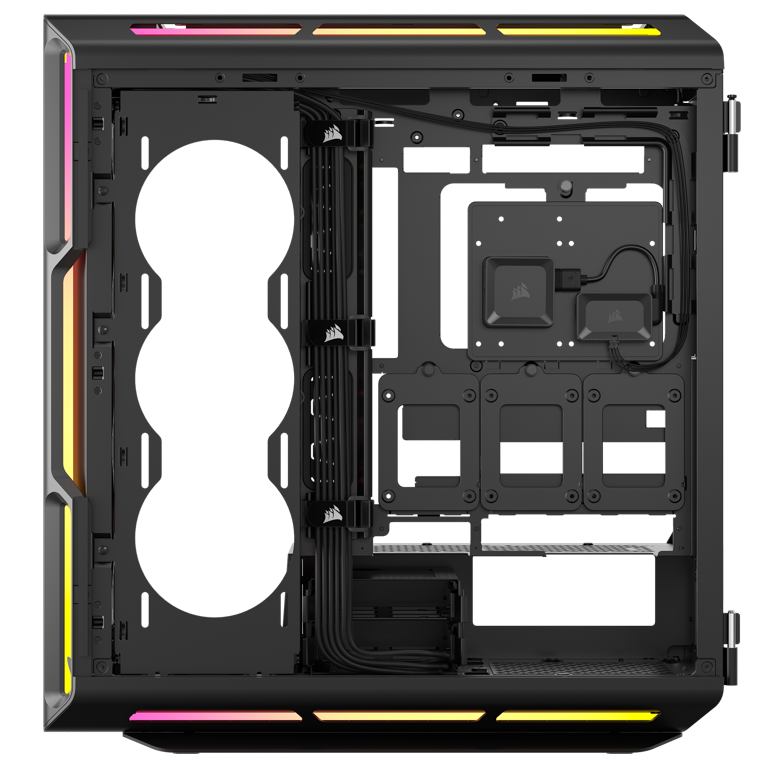

The case supports the installation of graphics cards up to 450 mm in size. The case is also BackConnect compatible, allowing for particularly neat cable management. All connectors are hidden behind the motherboard tray – for a clean build and maximum airflow.
The CPU cooler should not exceed a height of 170 mm. The power supply can be up to 250 mm long. Up to four drives can be installed for storing programs and games – three 2.5-inch and two 3.5-inch drives.
Specifications
| Color | |
|---|---|
| Main Color | Black |
| Dimensions & Weight | |
| Length / Depth | 530 mm |
| Width | 251 mm |
| Height | 560 mm |
| Weight | 14.04 kg |
| Case | |
| Case Type | Midi-Tower |
| Motherboard Support | |
| Compatible Motherboard Formats | ATX, E-ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Form Factor | E-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 170 mm |
| Max. Graphics Card Length | 450 mm |
| Max. Power Supply Length | 250 mm |
| Display | |
| Display Included | No |
| Fan & Cooling Support | |
| Fan Blade Orientation | Normal |
| 120 mm Fan Support | Up to 10 |
| 140 mm Fan Support | Up to 4 |
| Radiator Support | 1x 120 mm, 3x 360 mm |
| Power Supply | |
| Power Supply Included | No |
| Power Supply Format | ATX |
| Power Supply Position | Rear Bottom |
| Drive Bays | |
| 2.5-inch Internal | 3 |
| 3.5-inch Internal | 2 |

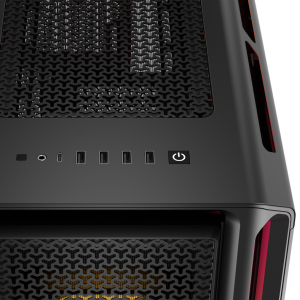

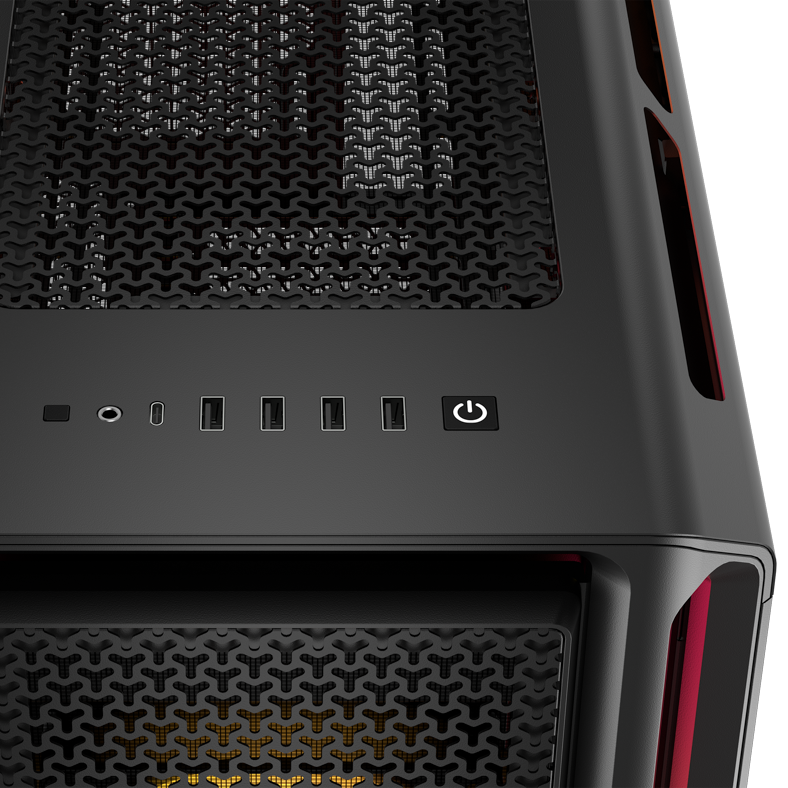

| Front I/O & External Ports | |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 4 |
| Audio | 1x 3.5 mm combo jack (TRRS) |
| Case Features | |
| I/O Location | Top |
| Side Panel | With Window |
| Dust Filter | Yes |
| Noise Insulation | No |
| Motherboard Tray | No |
| Remote Control | No |
| Carrying Handle | No |
| Back Connect Support | Yes |
| Expansion Slots | |
| Expansion / PCI Slots | 7 |
| Material | |
| Materials | Steel, Tempered Glass |
| Lighting | |
| Lighting / RGB | Yes |
| Lighting Compatibility | Corsair iCUE |
| Included | |
| Pre-installed Fans | 3x 120 mm |
