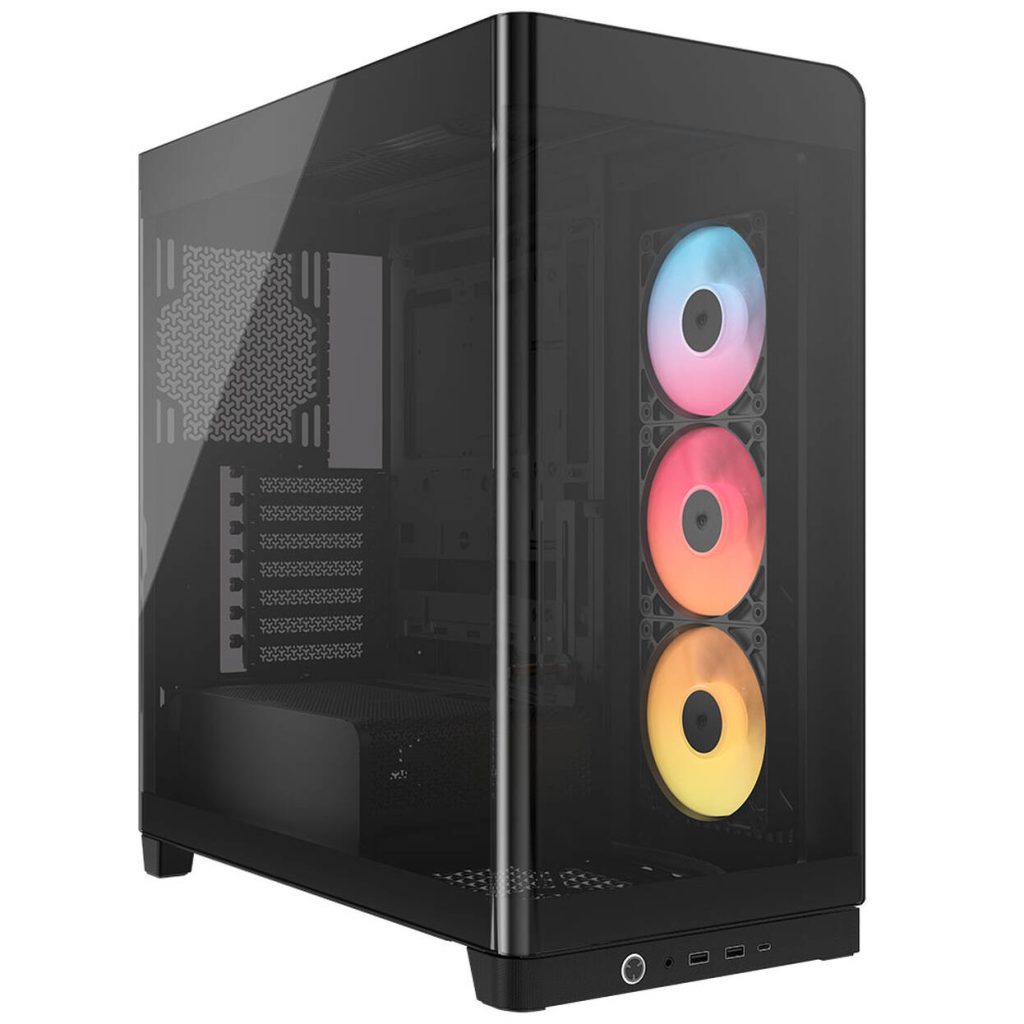

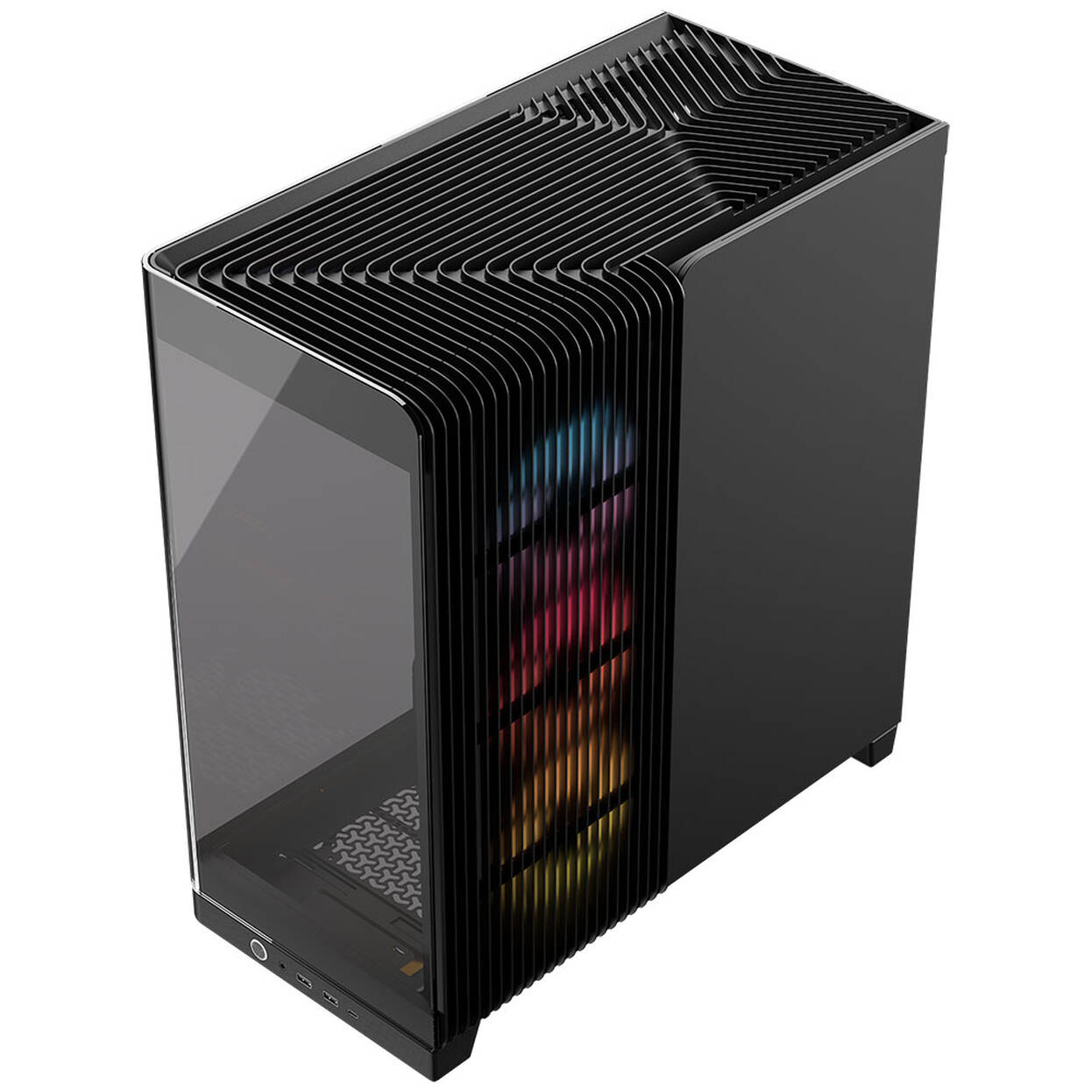

Showcase your hardware perfectly with the Corsair FRAME 4500X LX-R RGB PC case. The spacious panorama design with glass front and sides gives you a clear view of your components at all times – ideal for eye-catching builds with RGB lighting and custom water cooling.
Showcase your hardware perfectly with the Corsair FRAME 4500X LX-R RGB PC case. The spacious panorama design with glass front and sides gives you a clear view of your components at all times – ideal for eye-catching builds with RGB lighting and custom water cooling.
Showcase your hardware perfectly with the Corsair FRAME 4500X LX-R RGB PC case. The spacious panorama design with glass front and sides gives you a clear view of your components at all times – ideal for eye-catching builds with RGB lighting and custom water cooling.
Showcase your hardware perfectly with the Corsair FRAME 4500X LX-R RGB PC case. The spacious panorama design with glass front and sides gives you a clear view of your components at all times – ideal for eye-catching builds with RGB lighting and custom water cooling.
Features:
– Black mid-tower with panoramic design
– Effective cooling performance thanks to 10 fans and radiators up to 360 mm
– Supports motherboards up to E-ATX and back-connect design
– Space for graphics cards up to 460 mm and CPU coolers up to 185 mm in height
– Three pre-installed RGB fans with standard-oriented fan blades

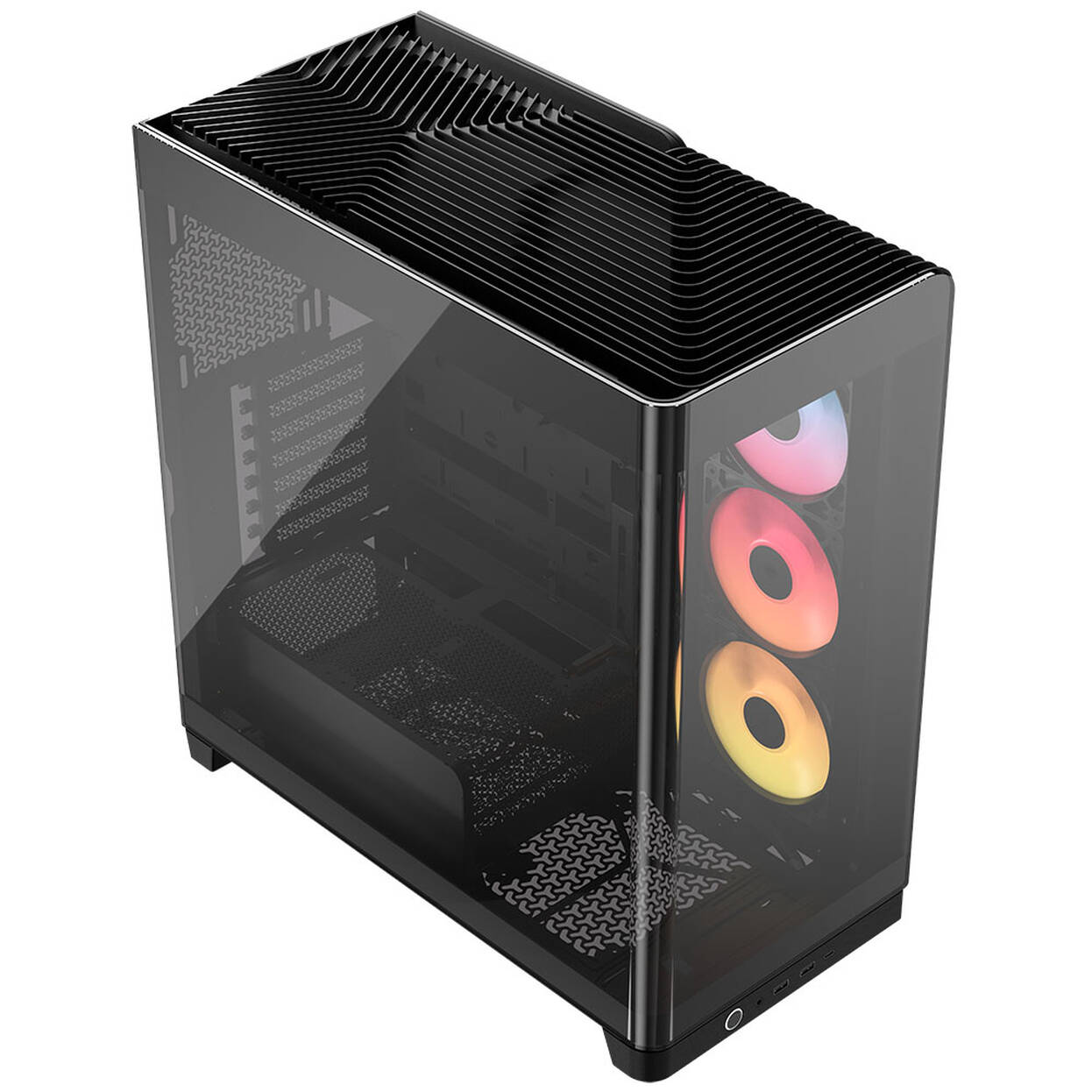

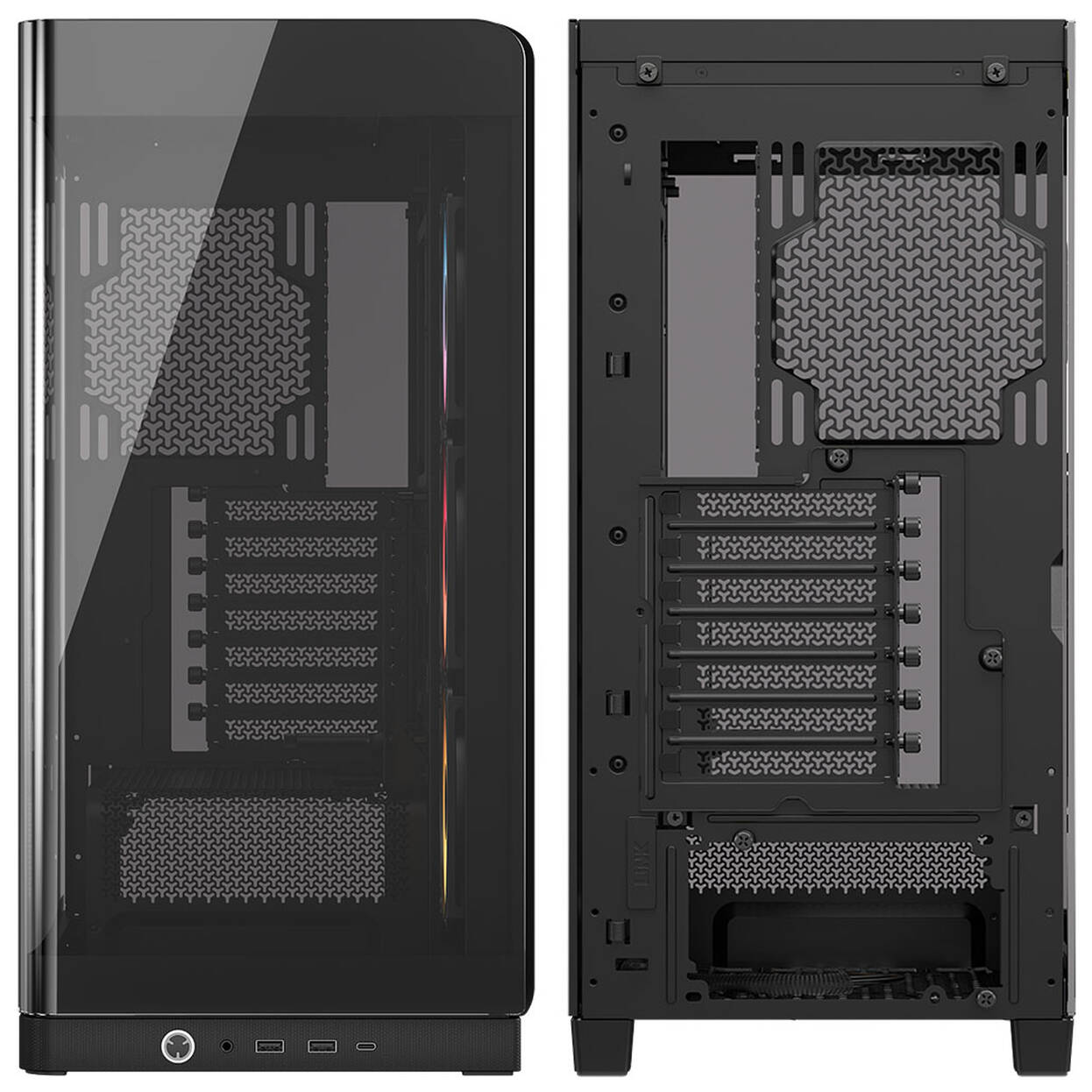

Corsair FRAME 4500X LX-R RGB: Mid-Tower with Panorama Design
The Corsair FRAME 4500X LX-R RGB mid-tower offers the perfect balance between size and functionality. With ample space for powerful hardware and efficient cooling, it is the ideal choice for gaming builds.
Extensive cooling options with fans and radiators

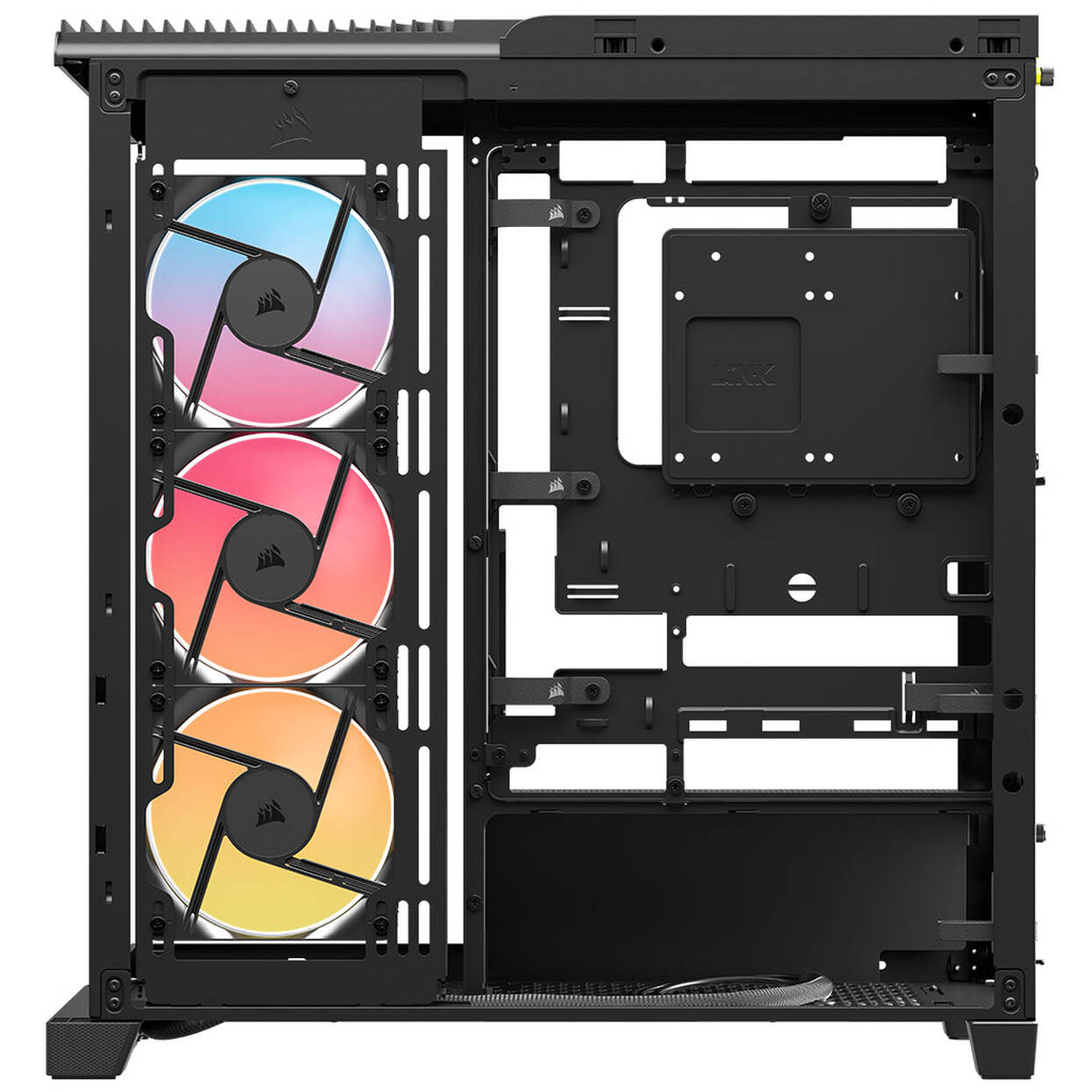

To keep your hardware cool under any load, the Corsair FRAME 4500X LX-R RGB can accommodate up to ten fans simultaneously. The top and side support three 120 mm or two 140 mm fans each. A 120 mm fan can be installed at the bottom, while two 120 mm fans can be mounted directly on the power supply cover. Additionally, there is space at the rear for a 120 mm or 140 mm fan.

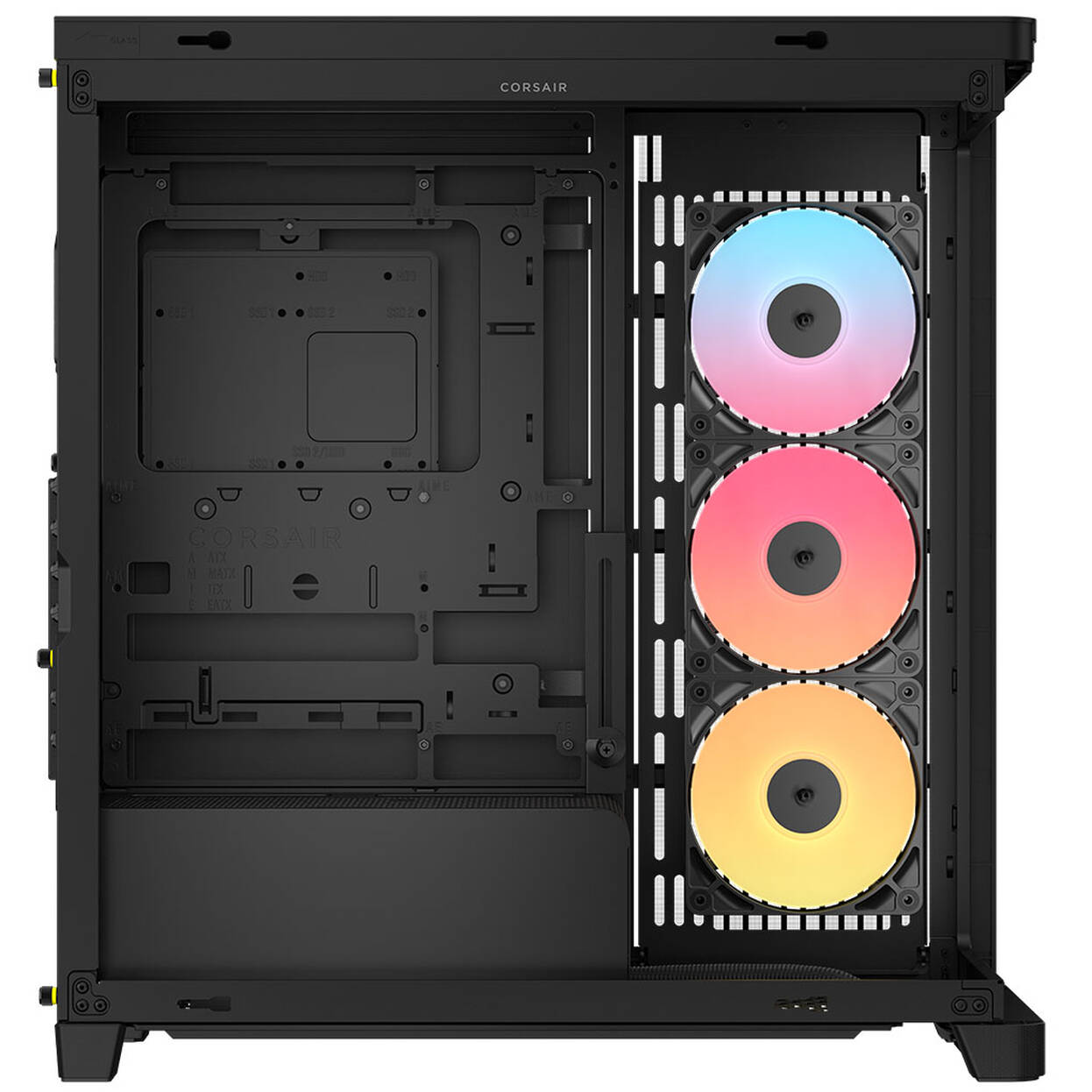

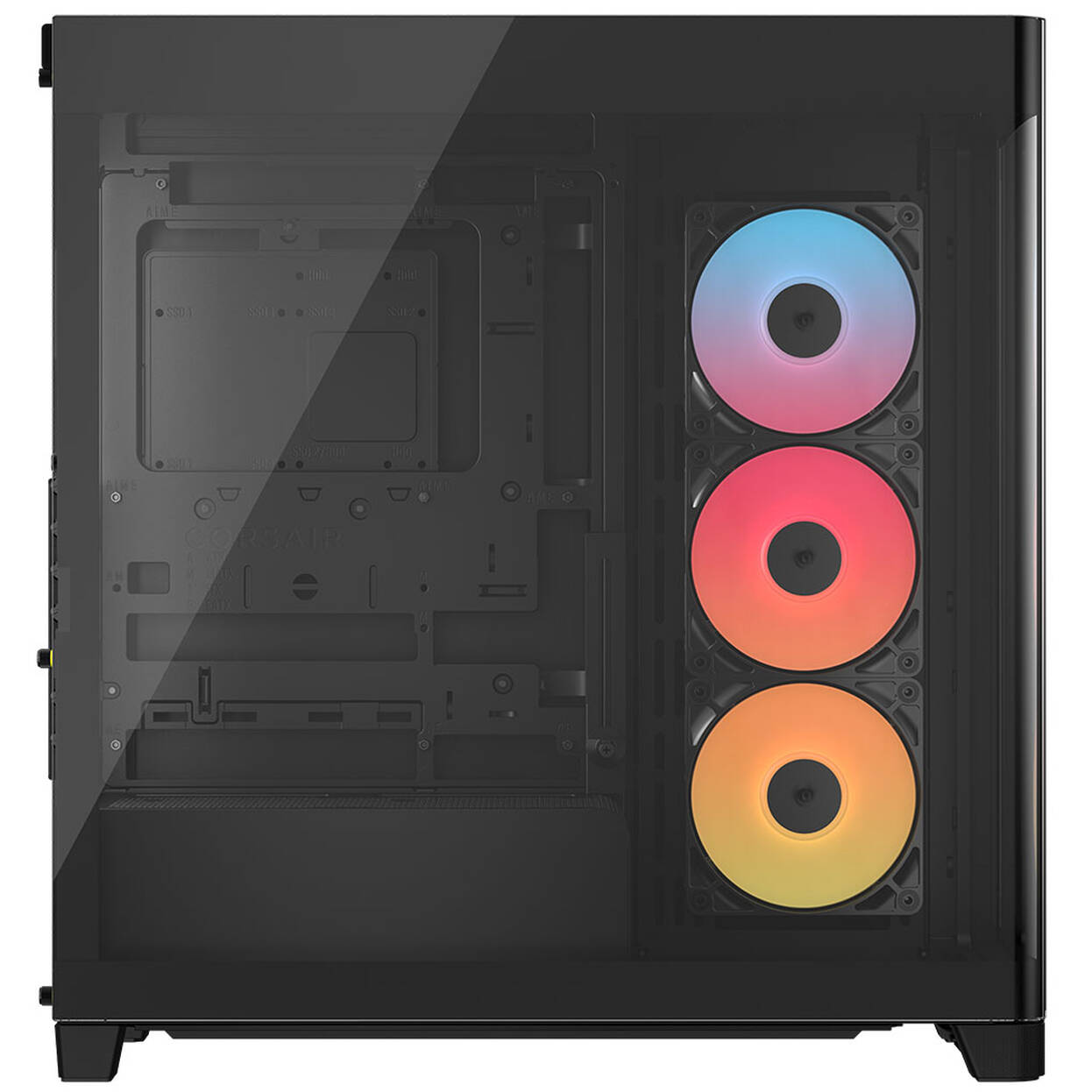

The LX-R variant comes with three built-in RGB fans equipped with standard-oriented fan blades.

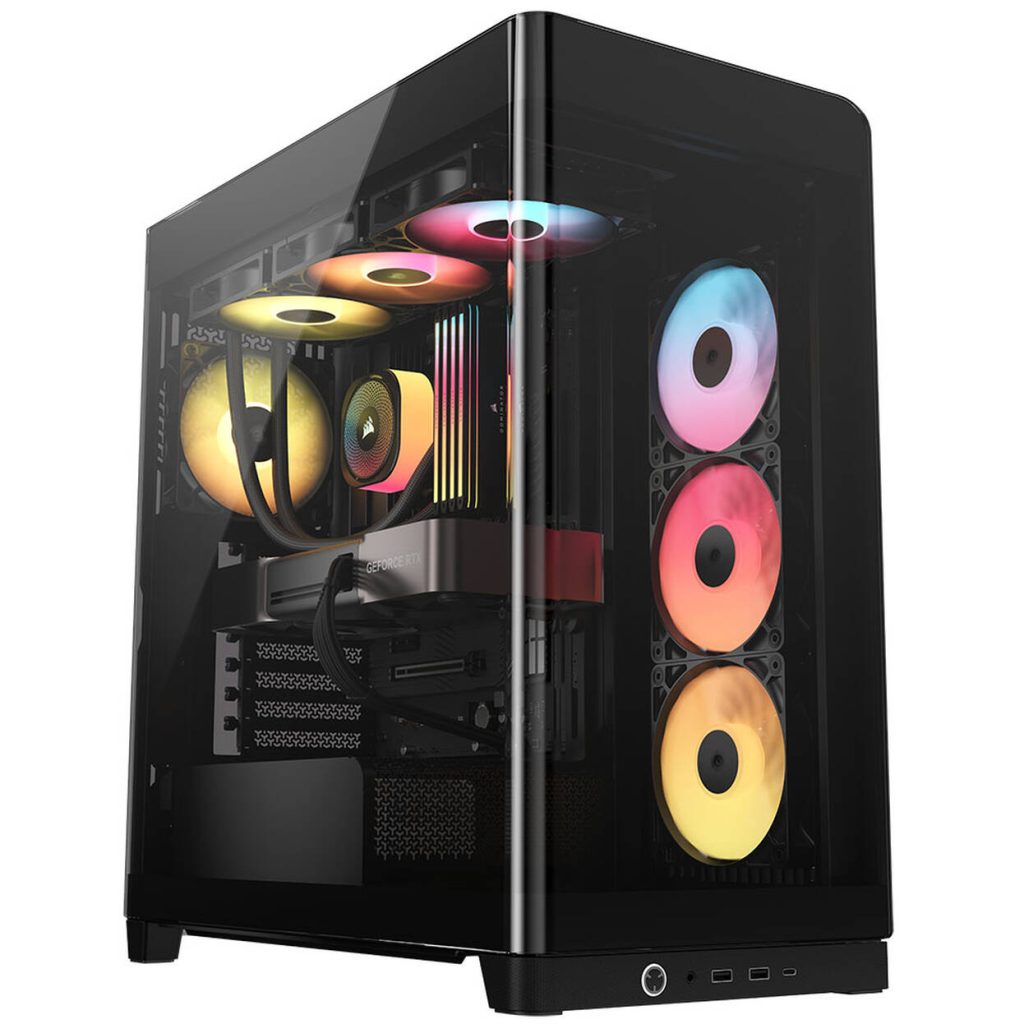

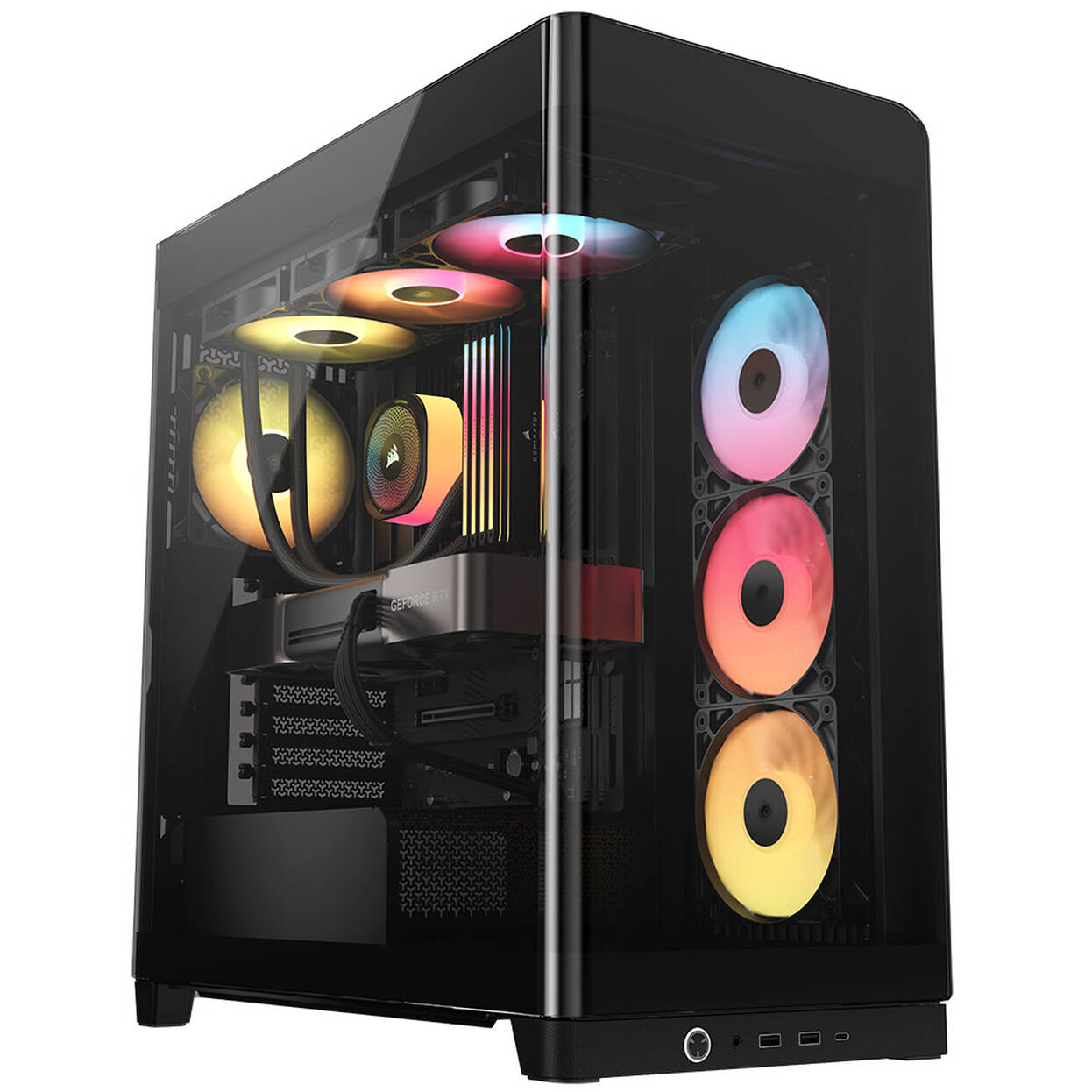

All-in-one water cooling systems can also be easily installed if you prefer to cool your powerful hardware with liquid cooling. The top and side each support the installation of a radiator up to 360 mm in size.
Installing Your Hardware

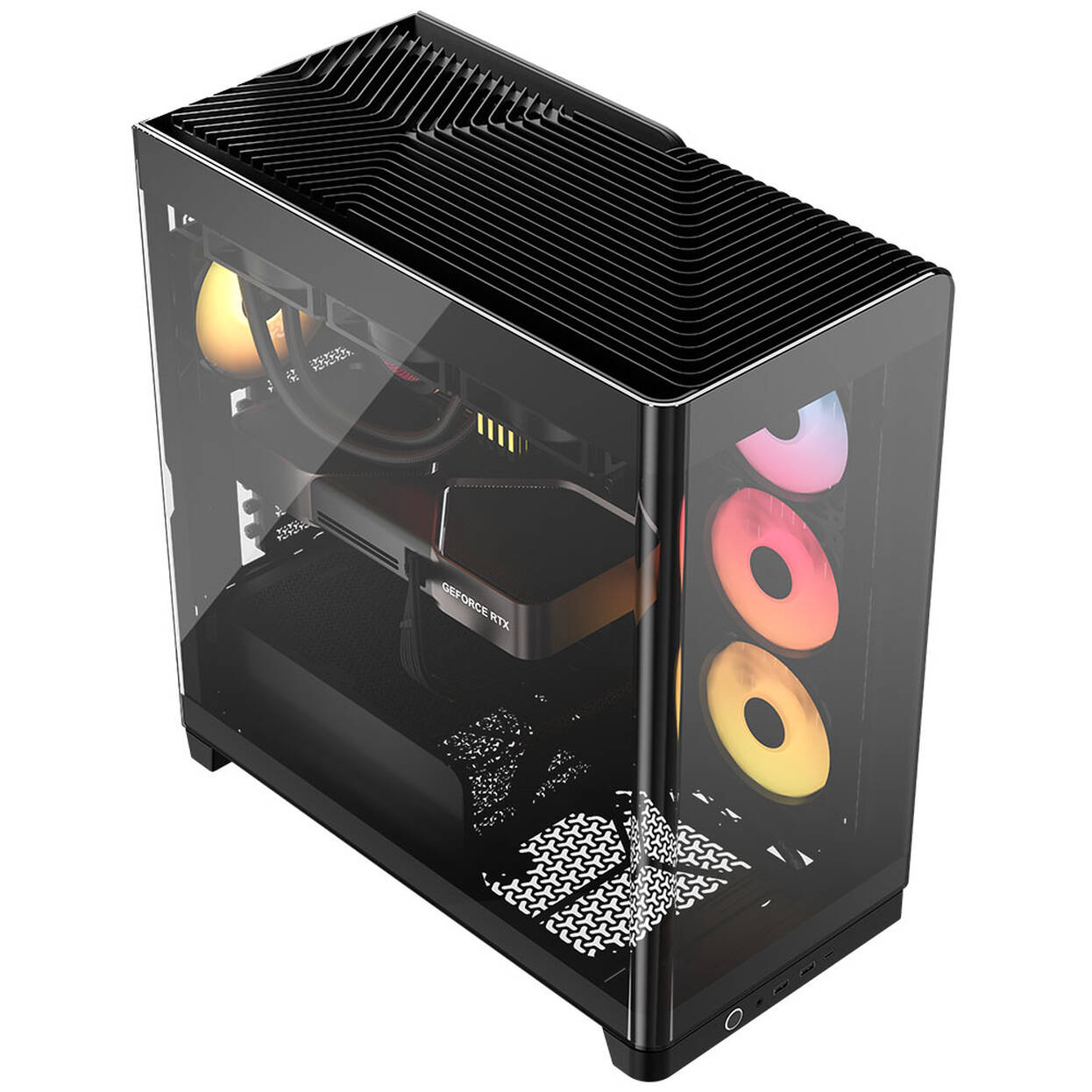

The case offers enough space for powerful gaming hardware. It supports the installation of large graphics cards up to 460 mm, allowing even the latest high-end GPUs from the RTX 5000 series to be installed.
Motherboards up to the E-ATX form factor are supported. The CPU cooler should not exceed a height of 185 mm. To store programs and games, a total of three drives can be installed – two 2.5-inch SSDs and one 3.5-inch HDD.
Modularity for a customized case
The Corsair FRAME 4500X LX-R RGB case is equipped with the well-known Frame System. This allows many parts to be swapped out, enabling you to customize your case, whether with side panels made from different materials or in different colors.
Corsair’s innovative fan mounting system is also supported: thanks to InfiniRail, an adjustable steel bracket for your fans and radiators, fans can be moved and positioned exactly where you want them.
Clean cable management

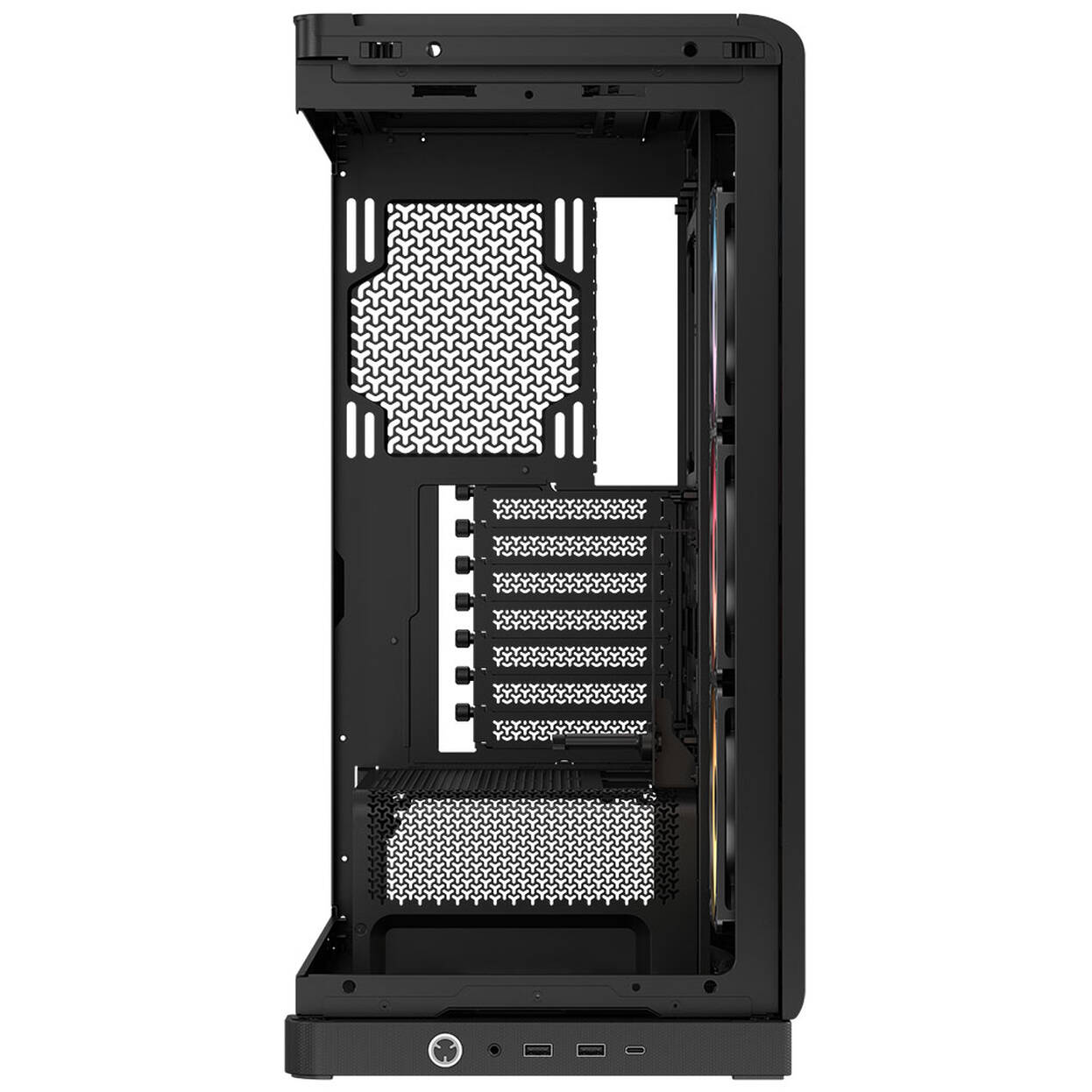

The mid-tower supports motherboards with back-connect design. The rear connectors allow for much easier and better cable management without having to spend hours routing cables. Various mounting options also ensure your cables stay where they belong – hidden and barely visible.
| Colour | |
|---|---|
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 542 mm |
| Width | 250 mm |
| Height | 556 mm |
| Weight | 11.68 kg |
| Case | |
| Type | Mid Tower |
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | E-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 185 mm |
| Max. GPU Length | 460 mm |
| Max. PSU Length | 250 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| PSU Position | Rear Bottom |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Max. Number of Fans | 10 |
| 120 mm Fans | 10 |
| 140 mm Fans | 5 |
| Radiator Support | |
| Max. Radiator Compatibility | 2x Triple (360 mm) |
| Drive Bays | |
| 2.5″ Drives | 2 |
| 3.5″ Drives | 1 |
| 5.25″ Drives | 0 |
| Hot Swap Bays | No |
| External Ports | |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 2 |
| Audio | 1x Combo (3.5 mm jack, 4-pin TRRS) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | With Window |
| Vertical GPU Mount | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise Dampening | No |
| Back Connect | Yes |
| Back-Connect Compatibility | ASUS BTF, Gigabyte Project Stealth, MSI Project Zero |
| Expansion Slots | |
| PCI Slots | 7 |
| Materials | |
| Materials | Steel, Tempered Glass |
| Lighting | |
| Lighting / RGB | Yes |
| RGB Controller | No |
| RGB Type | RGB |
| Additional Contents | |
| Included Fans | 3x 120 mm |
£197.15£164.29 Inc VatEx Vat
