With the revised Cooling Hydro Series H75 Corsair presents a compact complete water cooling with 120 mm radiator and two 120 mm PWM fans, which not only provides excellent cooling performance, but also an attractive price / performance ratio. It can be mounted very easily on modern AMD or Intel sockets and is therefore the ideal entry into the field of water cooling. Thanks to its compact design, the H75 is particularly well suited for use in enclosures that do not provide much space.
With the revised Cooling Hydro Series H75 Corsair presents a compact complete water cooling with 120 mm radiator and two 120 mm PWM fans, which not only provides excellent cooling performance, but also an attractive price / performance ratio. It can be mounted very easily on modern AMD or Intel sockets and is therefore the ideal entry into the field of water cooling. Thanks to its compact design, ...
With the revised Cooling Hydro Series H75 Corsair presents a compact complete water cooling with 120 mm radiator and two 120 mm PWM fans, which not only provides excellent cooling performance, but also an attractive price / performance ratio. It can be mounted very easily on modern AMD or Intel sockets and is therefore the ideal entry into the field of water cooling. Thanks to its compact design, ...
No products found

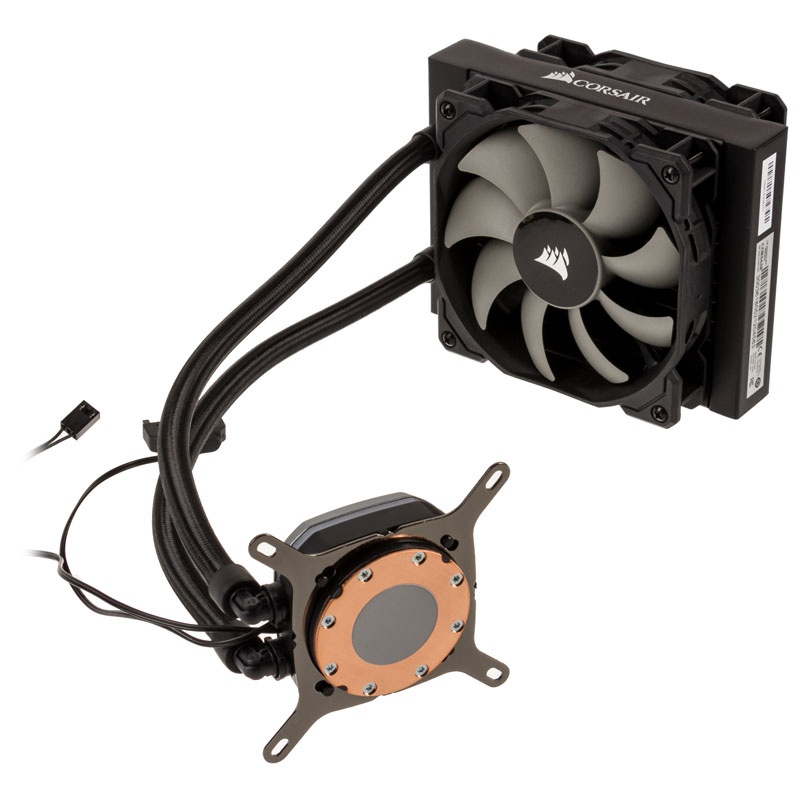

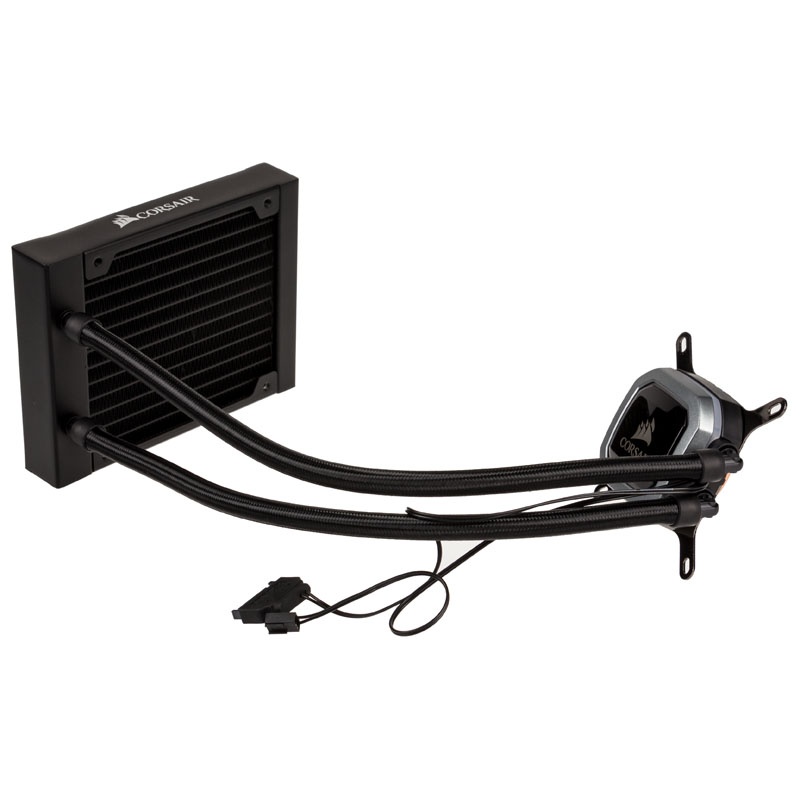

The Corsair Cooling Hydro Series H75 Complete Water Cooling Overview:
– Compact complete water cooling from Corsair
– Flat pump unit with support surface made of copper
– 120 mm slim radiator with integrated reservoir
– Fabric sheathed tubing
– White LED lighting
– Two powerful 120mm PWM fans
– Compatible with modern AMD and Intel sockets
Compact AiO water cooling with attractive price-performance ratio
All compact Wakü systems combine the basic design: they consist of two parts – the radiator and the heat sink. While the radiator on the H75 is mounted on a 120 mm fan slot – preferably on the back of the housing – the cooler can be accommodated on the CPU. The peculiarity of the H75, however, is that the expansion tank is located directly on the radiator and not as usual with AiOs, directly on the cooling block. This makes the pump unit particularly flat and can therefore be easily installed in systems with little space.
The bottom of the heatsink absorbs the waste heat from the processor and quickly conducts it to the coolant thanks to copper. This in turn is pumped by the pump in the direction of the radiator, where the cooling fluid flows through a fine lamellar structure and releases the heat to the air flowing through. In turn, the finely tuned PWM fans ensure that the radiator is constantly supplied with fresh air. The Hydro Series H75 uses a particularly slim slim radiator.
The powerful system with coolant for high-performance processors does not need complex line connections. The Hydro Series H75 is a prefilled closed system that never needs to be refilled. Specially designed wings in the 120mm fan provide a better balance between static pressure and noise levels for higher performance with less noise.
For reasons of space, tower air coolers can usually not be used, especially in compact housings. In the case of the H75, however, only the flat, illuminated cooler must sit directly on the CPU. The radiator can be placed quite freely considering the hose length. The modular design facilitates installation and is compatible with Intel and AMD processors. The H75 mounting system is suitable for the Intel Sockets 115x, 2011 (V3), 2066 and the AMD sockets AM2 (+), AM3 (+), AM4, FM1 and FM2 (+).
Technical details:
– Dimensions (radiator): 155 x 120 x 27 mm (L x W x H)
– Dimensions (fan): 120 x 120 x 25 mm (L x W x H)
– Fan speed: 600 – 1,900 rpm
– Air flow rate: 108.7 m³ / h
– Fan pressure: 2.46 mmH2O
– Noise level (fan): 31 dB (A)
Connections:
– 4-pin connector (pump)
– 4-pin PWM connector (fan)
Compatibility (socket):
– Intel (115x, 2011 (V3), 2066)
– AMD (AM2 (+), AM3 (+), AM4, FM1, FM2 (+))
