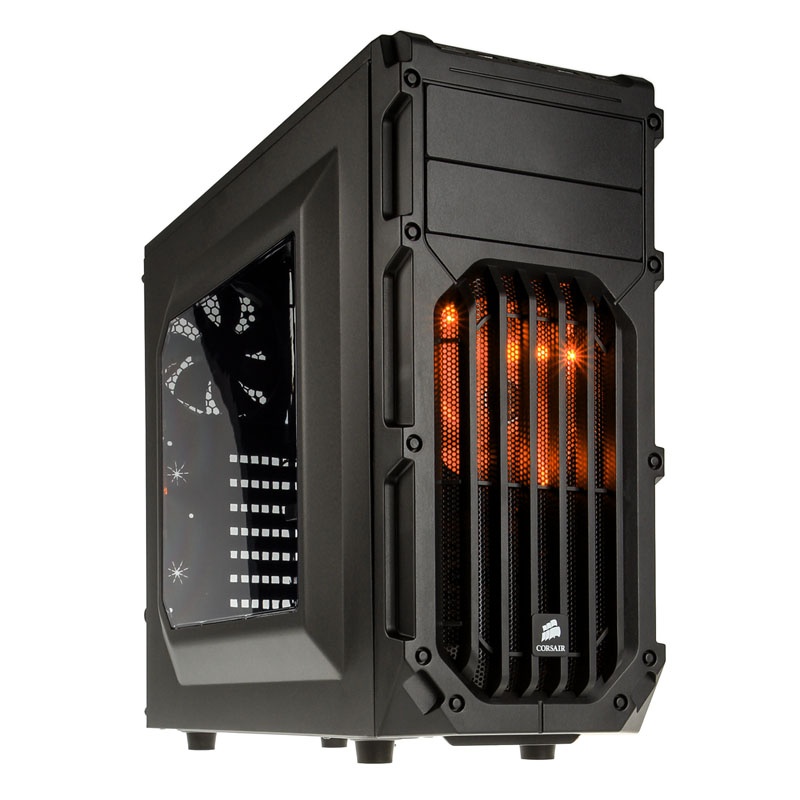

With the Carbide SPEC-03 is a mid-tower from Corsair, which combines a robust steel body with intelligent design for little money appears. The latter convinces especially with an aggressive gaming style by strong contours and yet elegant design in a holistic given matt black color.

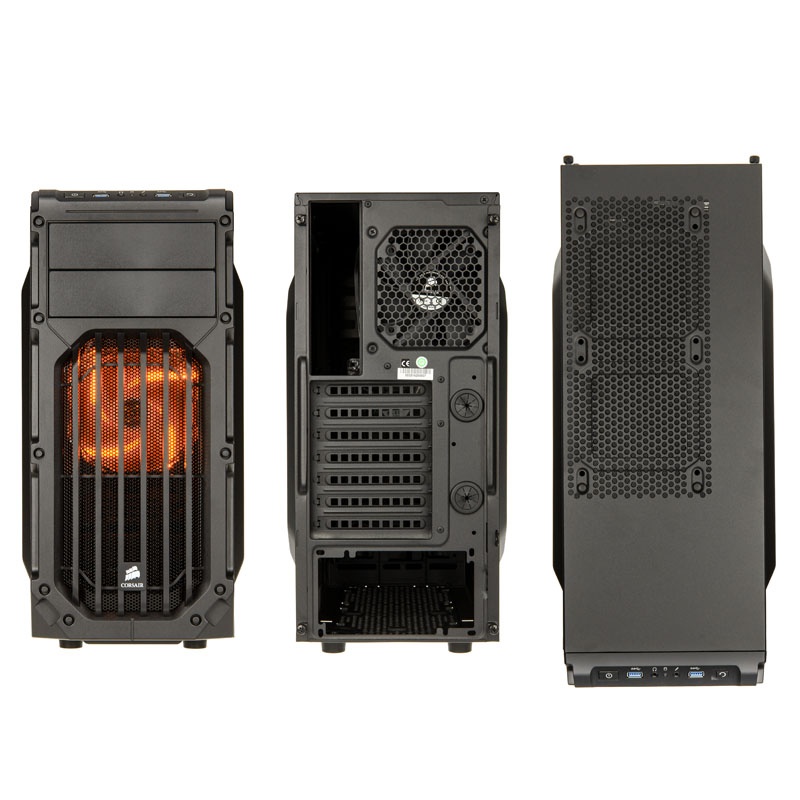

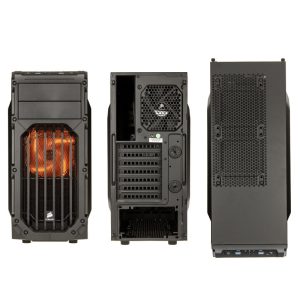

Thus we find at the front of the mid-tower under the two drive-panel a barred area with Corsair logo, behind which hides a preinstalled orange glowing LED fans. The I / O panel is located on the two drive-panel and includes two USB 3.0 ports and two audio jacks and power and reset button.
With the Carbide SPEC-03 is a mid-tower from Corsair, which combines a robust steel body with intelligent design for little money appears. The latter convinces especially with an aggressive gaming style by strong contours and yet elegant design in a holistic given matt black color.
Thus we find at the front of the mid-tower under the two drive-panel a barred area with Corsair logo, behind whic...
With the Carbide SPEC-03 is a mid-tower from Corsair, which combines a robust steel body with intelligent design for little money appears. The latter convinces especially with an aggressive gaming style by strong contours and yet elegant design in a holistic given matt black color.
Thus we find at the front of the mid-tower under the two drive-panel a barred area with Corsair logo, behind whic...
No products found
There is a generous cut window that provides a view of the internal components on the page. For the latter, the carbides SPEC-03 offers enough space in its interior. So you can install in the Midi-Tower Motherboard form factor ATX up. But even Micro-ATX and Mini-ITX boards can be installed easily, of course.
In addition to two 5.25-inch drives and three hard drives (3.5 inch) or two SSDs (2.5 inches) to be installed without tools in the lower drive cage. Special recesses in the housing interior enabling a excellent cable management.
For expansion cards are seven slots available. Graphics cards can thereby have a maximum length of 420 mm, which is sufficient slack for current high-end cards. CPU cooler, however, should not exceed a height of 157 mm. There is also a CPU cut-out to make cooling upgrades without having to remove the motherboard. Power supplies are installed back on the ground and can be up to 288 mm long.
Besides the two already pre-installed 120 mm LED fans in the front can be there to install either two 140 mm fans in the front. A 120 mm fan can be installed in the ground. On the cover, there are also two slots for 120-mm fan. In the back of a 120 pre-installed. Instead, you can install a 120 mm radiator also in the same place.
The Carbide Series SPEC-03 is once again proving that Corsair can combine great looks, intelligent design and a durable construction and at highly competitive pricing conditions in their products.
Technical Details:
Dimensions: 220 x 430 x 500 mm (W x H x D)
Material: Steel
Weight: 5 kg
Matte Black
Form Factor: ATX, Micro-ATX, Mini-ITX
Fan total possible:
2x 140/120 mm (front)
1x 120 mm (rear)
2x 120 mm (lid)
1x 120 mm (bottom)
Thereof pre-installed:
1x 120 mm (front, orange LED)
1x 120 mm (rear)
Radiator Mountings:
1x max. 120 mm (rear)
Filters: front, power supply (removable)
Drive bays:
2x 5.25 inch (external)
3x 3.5 inch (internal; tools)
2x 2.5 inch (internal; tools)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 7
I / O panel:
2x USB 3.0 (internal connection)
1x per Audio In / Out
Maximum video card length: 420 mm
Maximum CPU cooler height: 157 mm
Maximum PSU length: 288 mm
