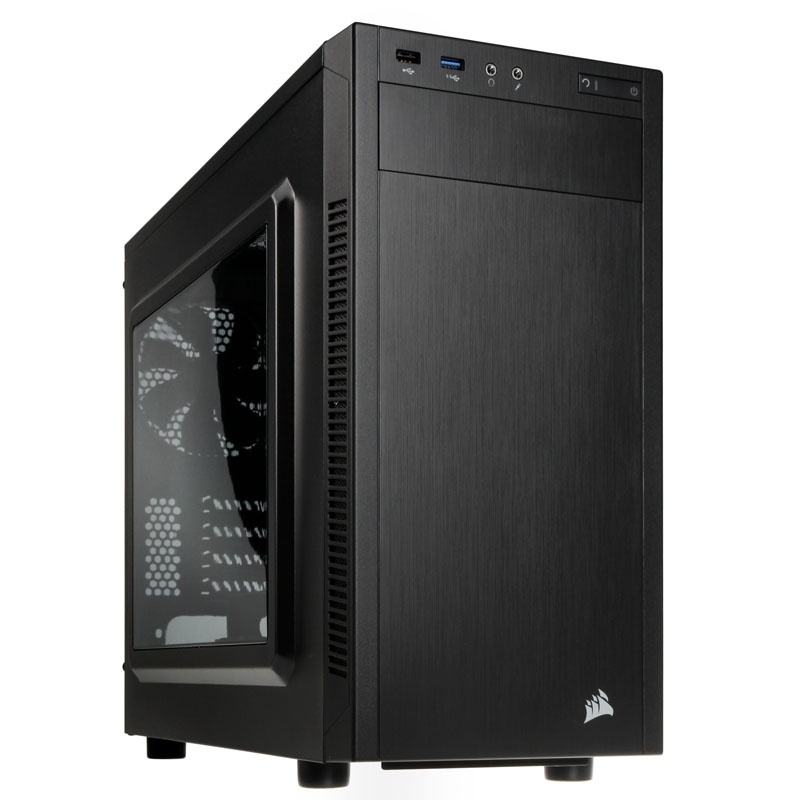

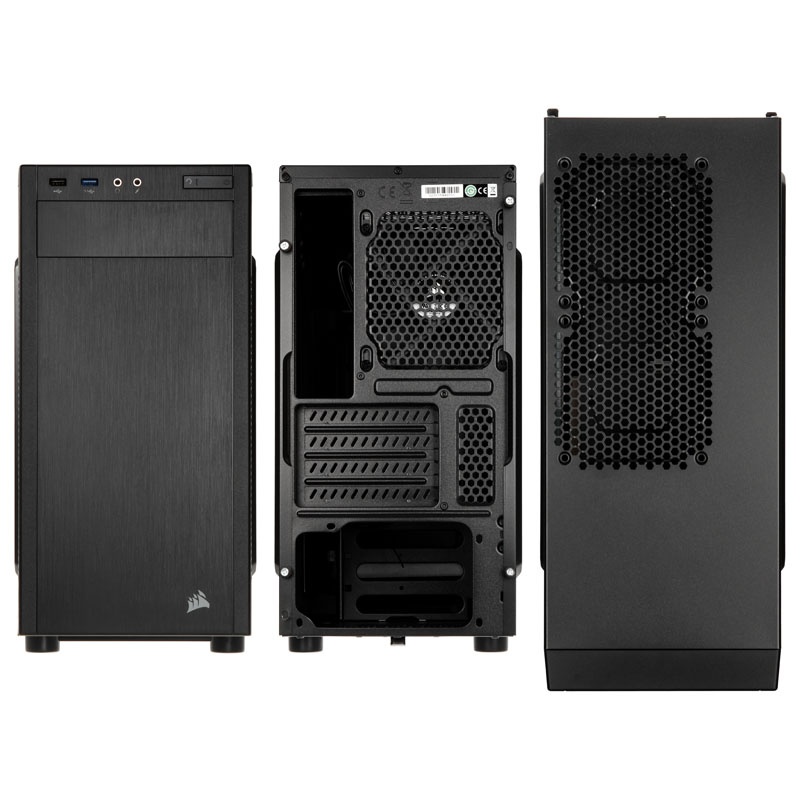

Corsair Carbide 88R Micro-ATX Case - Black

And that is the Carbide 88R, which comes here with a viewing window. Not only that, it impresses with its simplicity and the use of brushed aluminum on the front of the black steel bodysuits. Moreover, it is also a maximum practically designed, adapted extremely versatile and a super easy mounting of PC components out. Thus, for front panel, remove sitting in the bottom dust filter and side parts without tools easy.

Similarly, the 3.5 and 5.25-inch drives are used toolless, is served with a small cage at the bottom of the case for the two 3.5-inch hard drives ready. Incidentally, the 88R has integrated mounts for up to 2.5-inch SSDs, which is why no separate adapters are necessary.

The completely black case is equipped with a large window, whereby the thoughtful interior can admire wonderful. The modernized interior has ample space for powerful Pixel Accelerator to 383 mm length, CPU coolers up to 150mm height and power supplies up to 160 mm length.

The 88R is also offer comprehensive cooling options, whether air or water cooling. Thanks to intelligent design of the air stream is passed directly to the graphics card, so this is also supplied during intense gaming sessions with sufficient cooling capacity. The small case has space for two 120 mm fan in the front and in the lid as well as a pre-installed 120 on the back. Alternatively, a 120er- or 240-radiator can be installed in the front, at the back of a 120-radiator may also be installed.

Even the dust-proof ATX power supply in the bottom position are to make any compromises, 160 mm are available for PSU-Boliden with extreme power, who, if necessary to supply water-cooled graphics cards in multi-VGA composite. Plenty of space for cable routing behind the tray, a cutout for the cooler backplate reachability and each represents a modern USB 3.0 and USB 2.0 port on easily accessible, front I / O panel round out the picture of a brilliant and modern Micro- ATX Towers from.

Technical details:
Dimensions: 198 x 378 x 448 mm (W x H x D)
Material: Steel (Body, side parts), plastic (bezel), brushed aluminum (front panel)
Weight: approx 4.8 kg
Color: Black
Form Factor: Micro-ATX, Mini-ITX
Fan total possible:
2x 120 mm (front)
1x 120 mm (rear)
2x 120 mm (lid)
Of this pre-installed:
1x 120 mm (rear)
Radiator-Mountings:
1x 120/240 mm (front)
1x 120 mm (rear)
Dust filter: PSU
Drive Bays:
1x 5.25 inches (external, without tools)
2x 3.5 inch (internally, without tools)
3x 2.5 inch (internal)
Power Supply: 1x standard ATX (optional)
Extension slots: 4
I / O Panel:
1x USB 3.0
1x USB 2.0
1x per Audio In / Out
Maximum power supply Length: 160 mm
Maximum video card length: 383 mm
Maximum CPU cooler height: 150 mm
