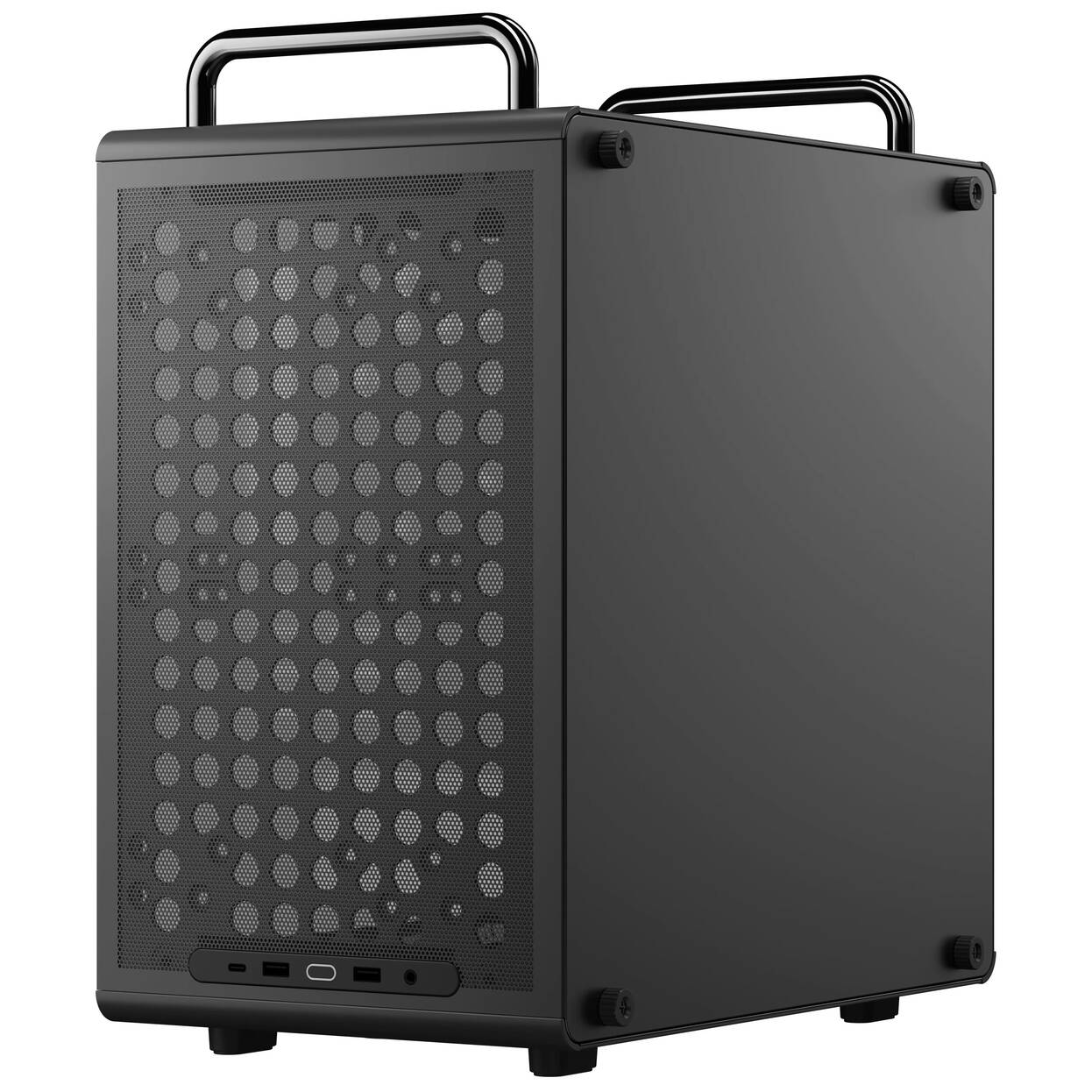

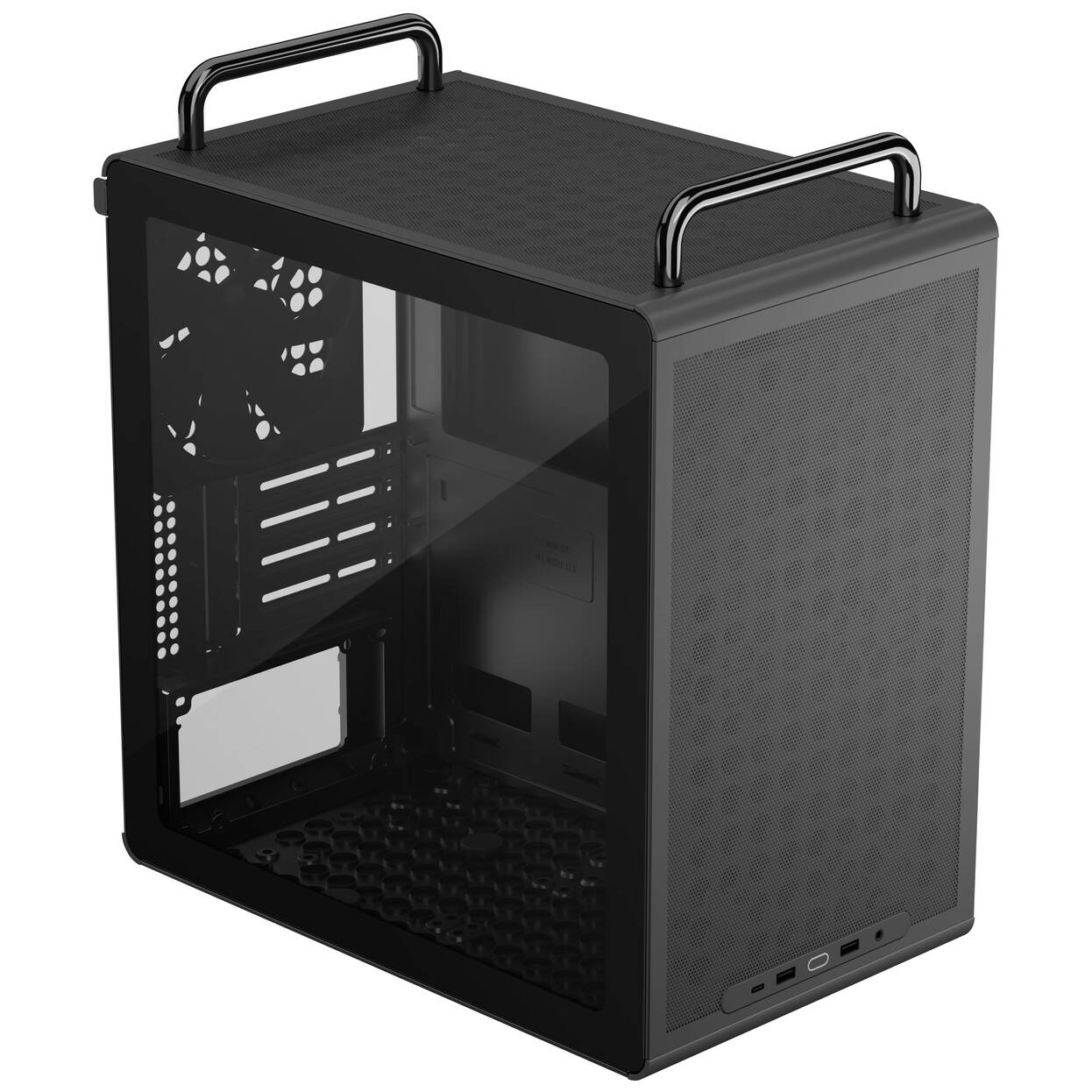

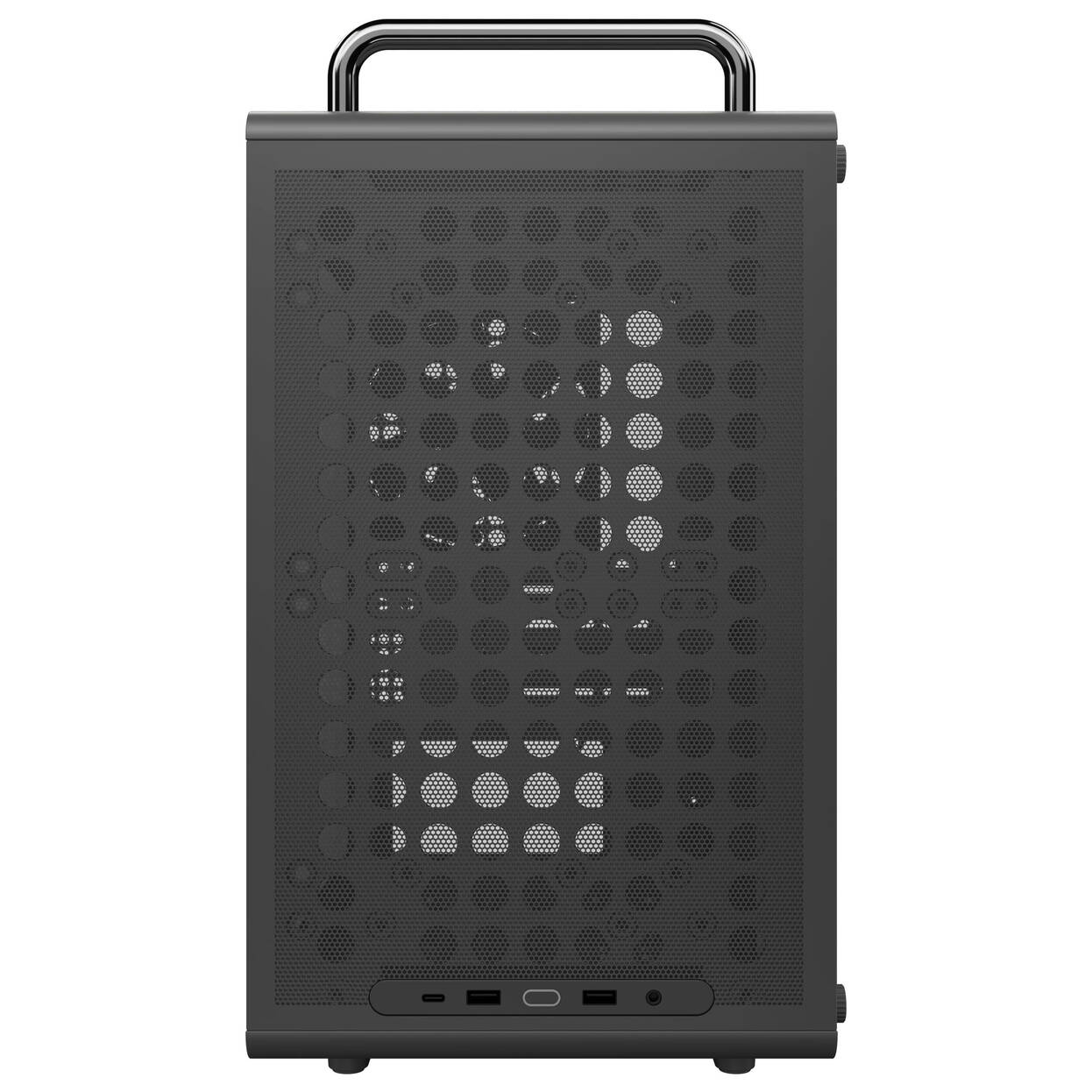

The Cooler Master QUBE 340 combines compact dimensions with plenty of space for powerful gaming hardware. The breathable mesh front supports airflow, and a 140 mm fan is already pre-installed at the rear. Thanks to the tempered glass side panel, your hardware remains clearly visible.
The Cooler Master QUBE 340 combines compact dimensions with plenty of space for powerful gaming hardware. The breathable mesh front supports airflow, and a 140 mm fan is already pre-installed at the rear. Thanks to the tempered glass side panel, your hardware remains clearly visible.
The Cooler Master QUBE 340 combines compact dimensions with plenty of space for powerful gaming hardware. The breathable mesh front supports airflow, and a 140 mm fan is already pre-installed at the rear. Thanks to the tempered glass side panel, your hardware remains clearly visible.
The Cooler Master QUBE 340 combines compact dimensions with plenty of space for powerful gaming hardware. The breathable mesh front supports airflow, and a 140 mm fan is already pre-installed at the rear. Thanks to the tempered glass side panel, your hardware remains clearly visible.
– Mesh front for high airflow
– Graphics cards up to 366 mm
– CPU coolers up to 178 mm
– Flexible horizontal or vertical positioning
– USB-C with 20 Gbit/s on the I/O panel
– Compact case with plenty of hardware space
The QUBE 340 supports Mini-ITX and Micro-ATX motherboards and offers up to 366 mm space for graphics cards if no fan is mounted at the front. CPU coolers can be up to 178 mm tall. This allows powerful hardware for gaming and demanding applications to be housed even in a compact system.
Flexible cooling with up to six fans
Two 120 mm or 140 mm fans can be mounted at the front and on the top panel respectively. Additional fans can be installed at the rear and bottom. Furthermore, the case supports 240 mm radiators at the front and top, allowing you to choose between strong air cooling and a compact water cooling solution.
Adapts to your setup
The case can be positioned horizontally or vertically, and the I/O panel can be placed at the top or bottom. This keeps USB-C, two USB-A ports, and the headset jack conveniently accessible depending on the location. Behind the motherboard, there is also 30 mm of space for cable management to keep the interior tidy.
Specifications
| Colour | |
|---|---|
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 386.1 mm |
| Width | 230 mm |
| Height | 429.4 mm |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 178 mm |
| Max. GPU Length | 366 mm |
| Max. PSU Length / Depth | 200 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear bottom |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Case Fan Support (Bottom) | 120mm Fan (1x), 140mm Fan (1x) |
| Case Fan Support (Front) | 120mm Fan (2x), 140mm Fan (2x) |
| Case Fan Support (Rear) | 120mm Fan (1x), 140mm Fan (1x) |
| Case Fan Support (Top) | 120mm Fan (2x), 140mm Fan (2x) |
| Max. Number of Fans | 6 |
| 120 mm fans | 6 |
| 140 mm fans | 6 |
| Radiator Support | |
| Max. Radiator Compatibility | 1x Single (120 mm), 2x Dual (240 mm) |
| Radiator/AIO Support (Front) | 120mm Radiator, 240mm Radiator |
| Radiator/AIO Support (Rear) | 120mm Radiator |
| Radiator/AIO Support (Top) | 120mm Radiator, 240mm Radiator |
| Drive Bays | |
| Max. 2.5 Inch Drives | 4 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| Hot swap drive bays | No |
| External Ports | |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Case Features | |
| I/O position | Front |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Bottom, Front, Top |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | Yes |
| Back Connect | |
| Back Connect | No |
| Expansion Slots | |
| Expansion slots / PCI slots | 4 |
| Features | |
| Housing Feedthrough | No |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. |
| Connectivity | |
| Card reader | No |
| Fan Header | |
| Fan Controller / Fan Hub | No |
| Mounting | |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | |
| Materials | SGCC (Steel), Tempered Glass |
| Lighting | |
| Lighting / RGB | No |
| Additional Contents | |
| Fans Included | Yes |
| Included fans | 1x 140 mm |
