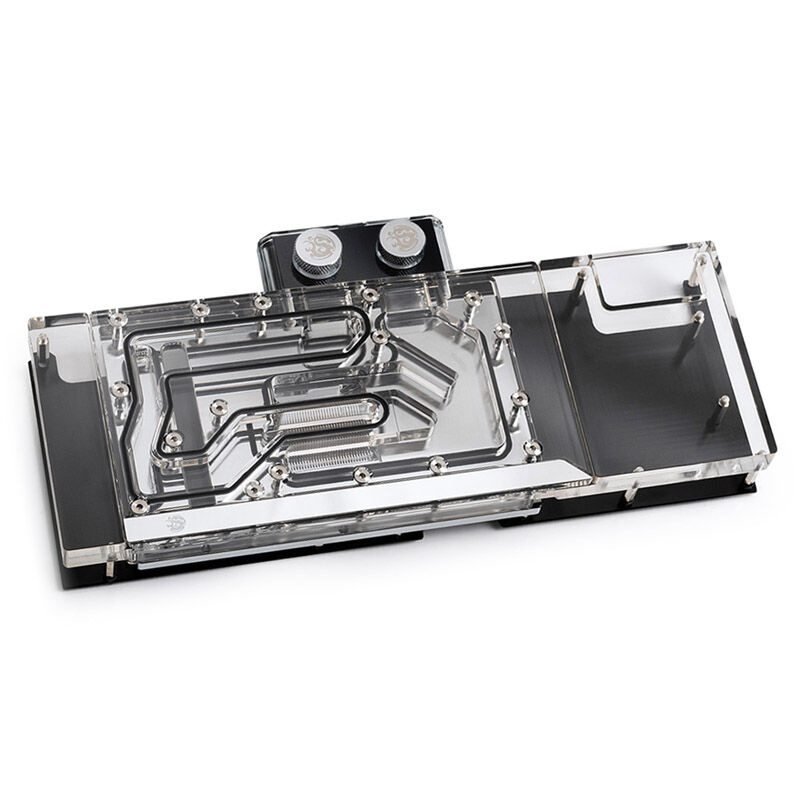

BitsPower Classic EVGA RTX 3090 XC3, ARGB - acrylic

– Effective cooling performance thanks to nickel-plated and chrome-plated copper base
– Impressive look thanks to the transparent acrylic lid
– Four G1/4 connections to be included in the circuit
– Digitally addressable RGB LED lighting (3-pin, 5VDG)
– Including backplate made of black anodized aluminum

The Bitspower Classic EVGA RTX 3090 XC3 water cooler in detail
The Bitspower Classic is a high-quality and powerful heatsink for custom water cooling that fits on the PCBs of the EVGA RTX 3090 XC3 graphics cards. Thanks to the nickel-plated and chrome-plated copper block, efficient cooling of the GPU, memory and voltage converter is guaranteed. The heat sink provides a chic look with its cover made of transparent acrylic glass and the integrated DRGB LED lighting. The included backplate made of black anodized aluminum increases stability and contributes to the elegant appearance of the cooler.

Optics and connections of the Bitspower Classic water cooler

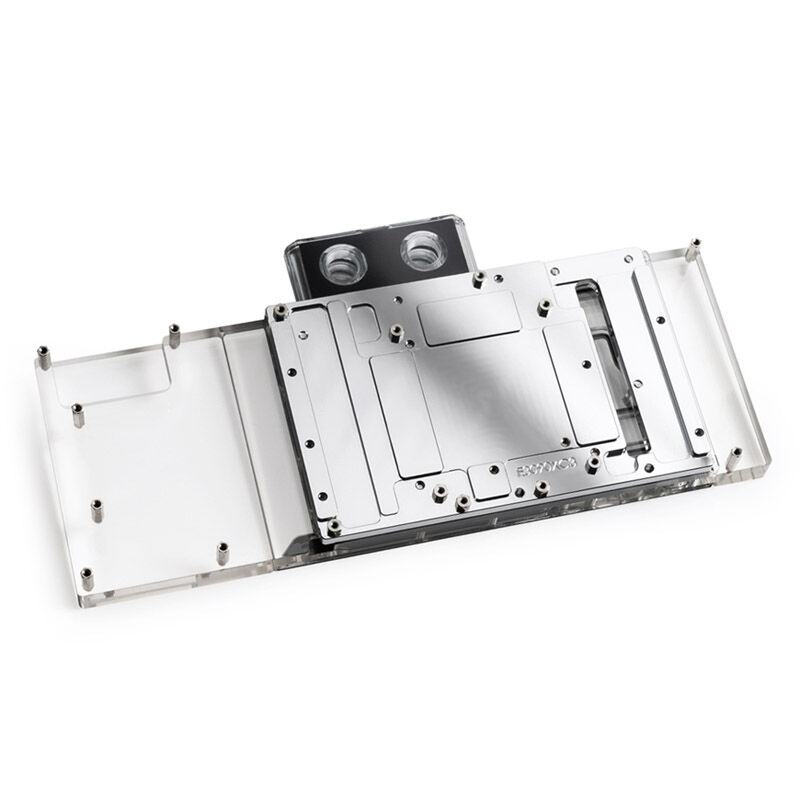

It is a full-block design that covers all relevant heat sources of the graphics card and thus cools them effectively – i.e. the GPU, the memory and the voltage converters. Nickel-plated and chrome-plated copper is used to optimally transfer the heat.

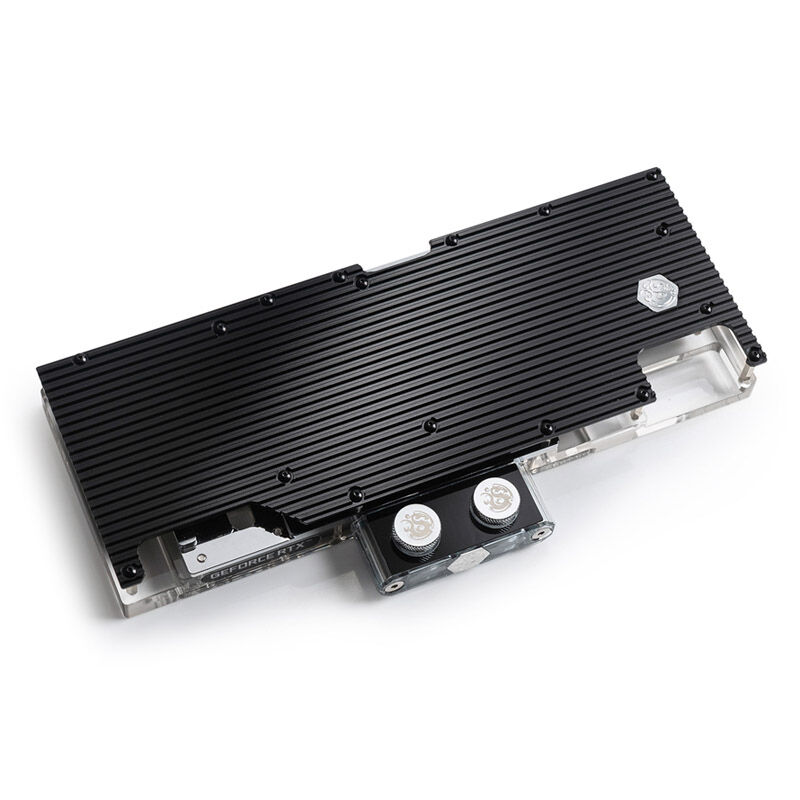

The cover is made of transparent acrylic glass, which allows a view of the coolant flowing through. The connection terminal has four holes (G1/4 inch thread). Due to the flat design of the cooler, it is also possible to connect several graphics cards in a network without any problems. The included backplate is made of black anodized aluminum and covers the back of the graphics card, contributing to the coolers elegant look. In addition, it increases the stability of the graphics card with built-in cooler.

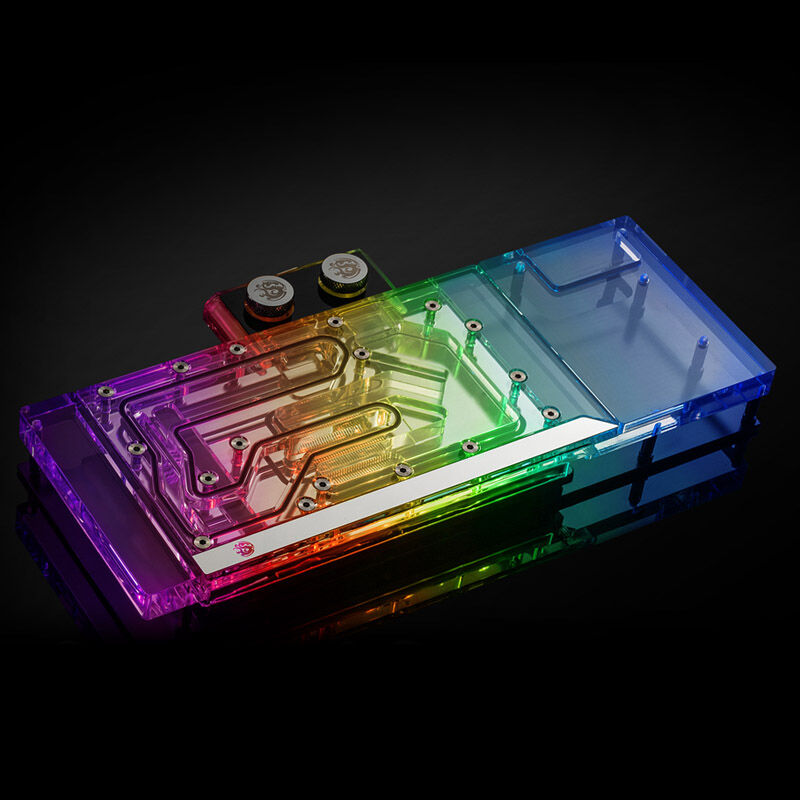

The digitally addressable RGB LED lighting is connected to a mainboard or RGB controller via a 3-pin connector (5VDG). Compatibility with GIGABYTE RGB Fusion 2, ASRock Polychrome Sync, ASUS Aura Sync, MSI Mystic Light, Biostar Vivid LED DJ and Razer Chroma is also available.

Why should I cool my graphics card with water?
Top performance in the graphics card segment is still bought with a top heat development. Because only when the clock screw is turned to the stop and the calculation units are used up to the last segment can the decisive advantage over the competing products be achieved. Smaller structure widths and more efficient layouts can limit this problem, but not completely eliminate it. As expected, the next generation will also be pushed to the maximum.

The problem is exacerbated by your own overclocking, because the temperatures can reach critical values. In short: If you also want a low volume in gaming or even when benching and possibly want to turn the clock at the same time, you can hardly avoid water cooling. In addition to the usual components (radiator, pump, expansion tank), a suitable cooler for the EVGA RTX 3090 XC3 graphics cards is of course necessary – such as this model from the water cooling specialist Bitspower.

Note: Connections that are not included in the scope of delivery are required for integration into the cooling circuit. The original cooler must be removed prior to assembly, which may void the manufacturers warranty.

Note: Some coolers are delivered with a protective film on the bottom. This must be removed before installation and commissioning in any case. We assume no liability for damage caused by faulty or incorrect assembly and improper use!
