The be quiet! Silent Wings 3 case fans combine again unsurpassed cooling at virtually inaudible operation. The third generation of the Silent-Wing series, continues to place high-end claim and offer some improvements compared to previous models. The black Silent Wings 3 offer not only superior performance, but also look very good, so that the installation nothing should stand in the way.
The be quiet! Silent Wings 3 case fans combine again unsurpassed cooling at virtually inaudible operation. The third generation of the Silent-Wing series, continues to place high-end claim and offer some improvements compared to previous models. The black Silent Wings 3 offer not only superior performance, but also look very good, so that the installation nothing should stand in the way.
The be quiet! Silent Wings 3 case fans combine again unsurpassed cooling at virtually inaudible operation. The third generation of the Silent-Wing series, continues to place high-end claim and offer some improvements compared to previous models. The black Silent Wings 3 offer not only superior performance, but also look very good, so that the installation nothing should stand in the way.
The features of the be quiet! Silent Wings 3 case fans
High quality 6-pole fan motor
Durable fluid dynamic bearing
Unique airflow-optimized fan blades
Rubberized fan frame with funnel-shaped air inlets
Three years warranty

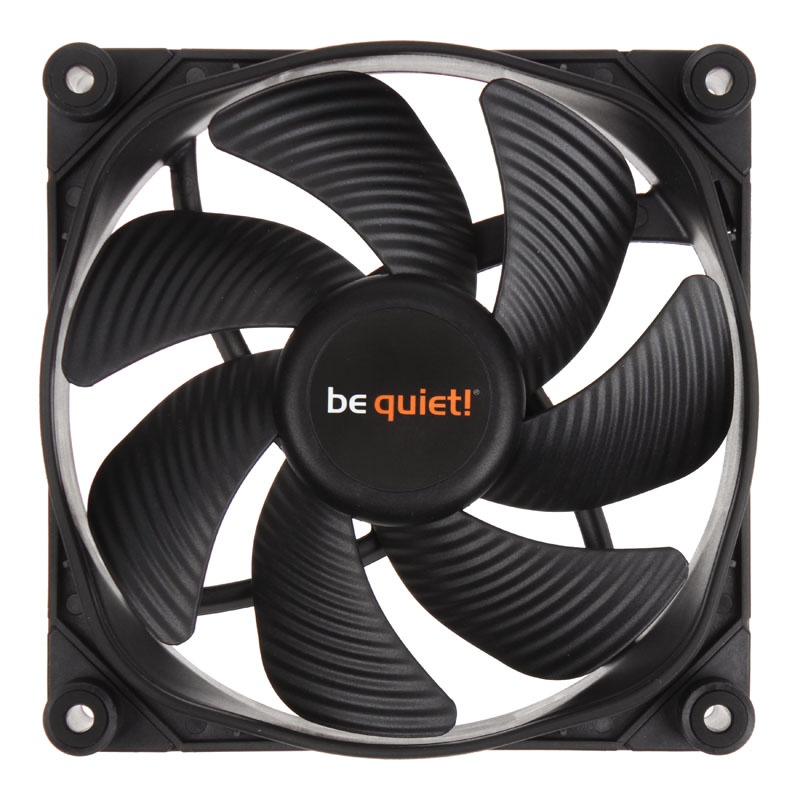

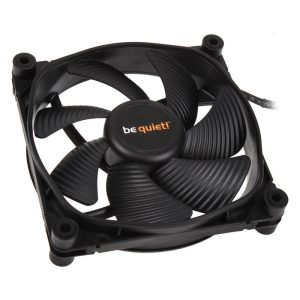

be quiet! Silent Wings 3: Case fan of superlatives
Even the design of the black fan differs significantly from the standard design and could be further perfected compared to its predecessor. The fan blades are not smooth, but provided with grooves to allow air movement. For this purpose also contributes the rounded hub.
The same applies to the frame. The vibration dampers are now easily changeable by simply deducted or upturned. They are each directed forwards and backwards, thus enabling a fixture which transmits little vibration. For this purpose, no screws are used, but plastic pins that are pushed into the gray attachments.
Additionally a special slide bearings made of copper was installed that no mechanical contact to the axis and thus has worked quiet and durable. The rotor slides on a film of lubricant, from be quiet! FDB (Fluid Dynamic Bearing) called. This is a major reason for the rated life of fabled 300 thousand hours, which corresponds to about 34 years of continuous operation. A special IC controls the motor and also reduces noise.
The controlled by pulse width modulation Silent Wings 3 Wings fans in the 12-centimeter format rotates at 12 volts at up to 1,450 revolutions and thereby promotes 80.47 cubic meters of air per hour. He is the manufacturer no louder than 16.4 dB (A). The voltage range in which the fan operates, is between 4 and 12 volts.
Technical details:
Dimensions: 120 x 120 x 25 mm
Material: Plastic
Volume: 16.4 dB (A)
Speed: 1450 U / min
Airflow: 80.47 m³ / h
Pressure: 1.79 mm-H2O
Voltage: 4-12 V
Power consumption: 0.12 A / 1.44 W
Connection: 4-pin PWM
Life expectancy: 300,000 hours
Manufacturer Warranty: 3 years
