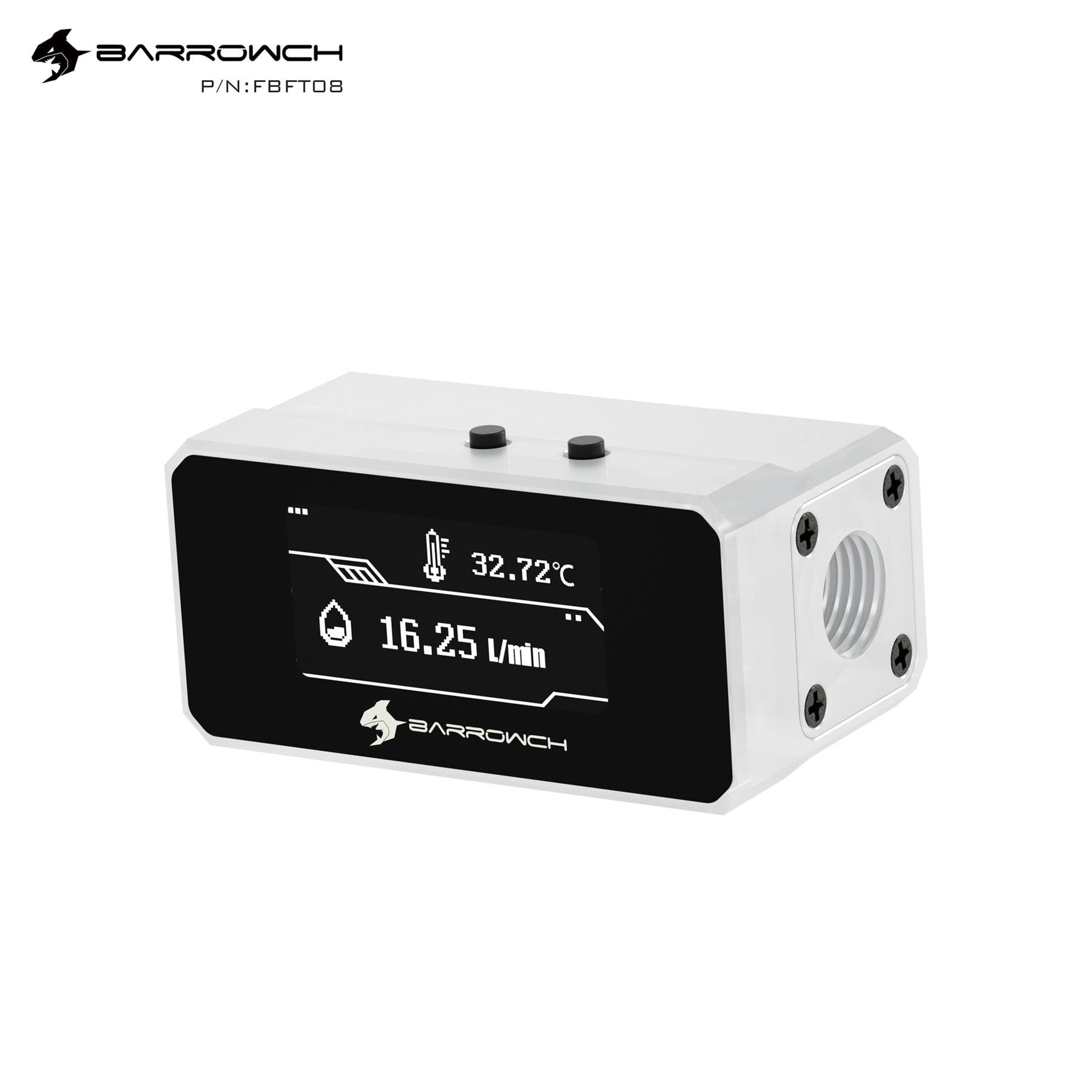

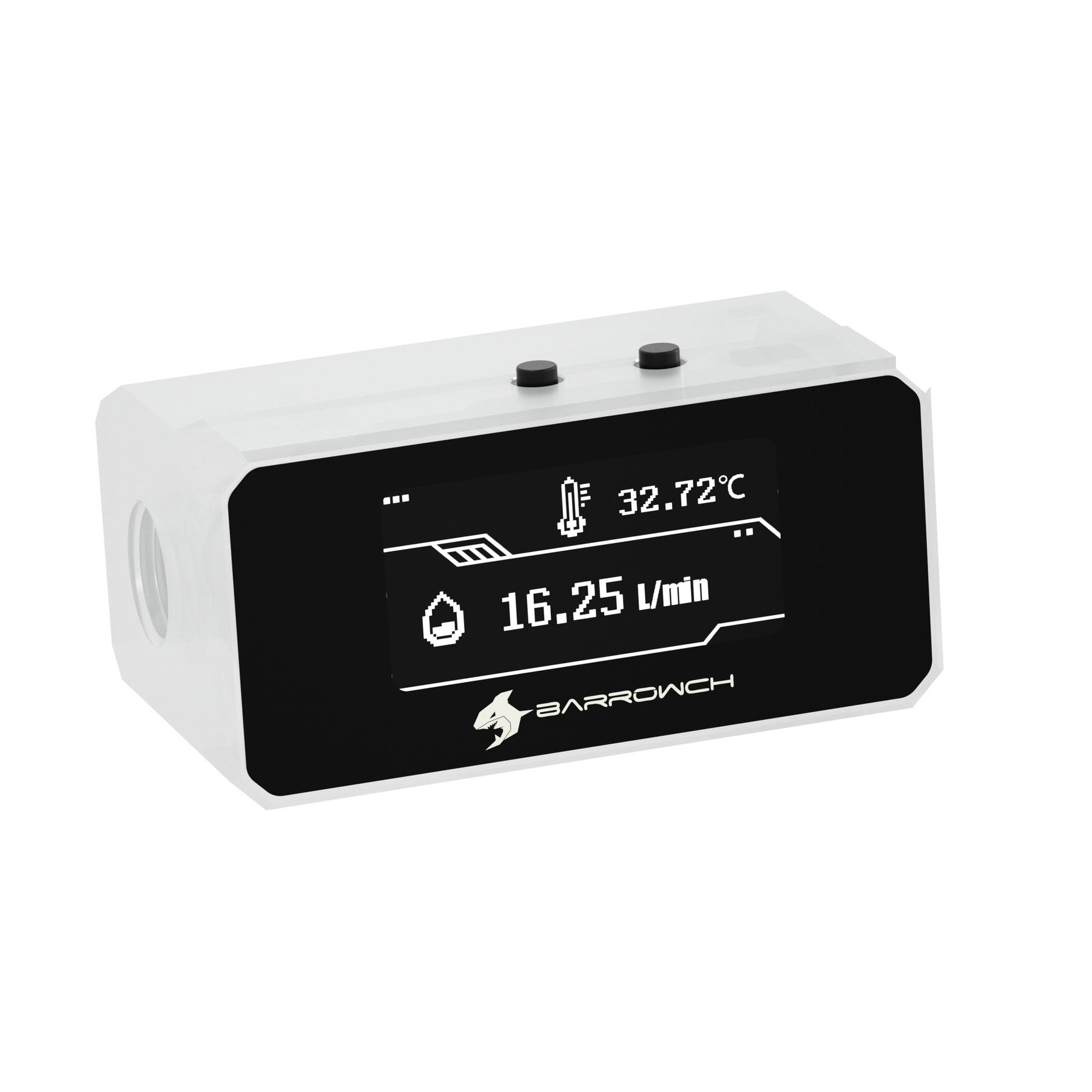

BarrowCH G1/4 Multimode OLED Display, Flow / Overheat Alarm with Intelligent Shutdown - White

Barrow and Barrowch was established in 2010. It is an export-oriented and domestically-manufactured manufacturing enterprise specializing in computer and industrial water cooling equipment and precision hardware components. The advanced design concept and internal structure are deeply loved by domestic and foreign enthusiasts of water cooling players.

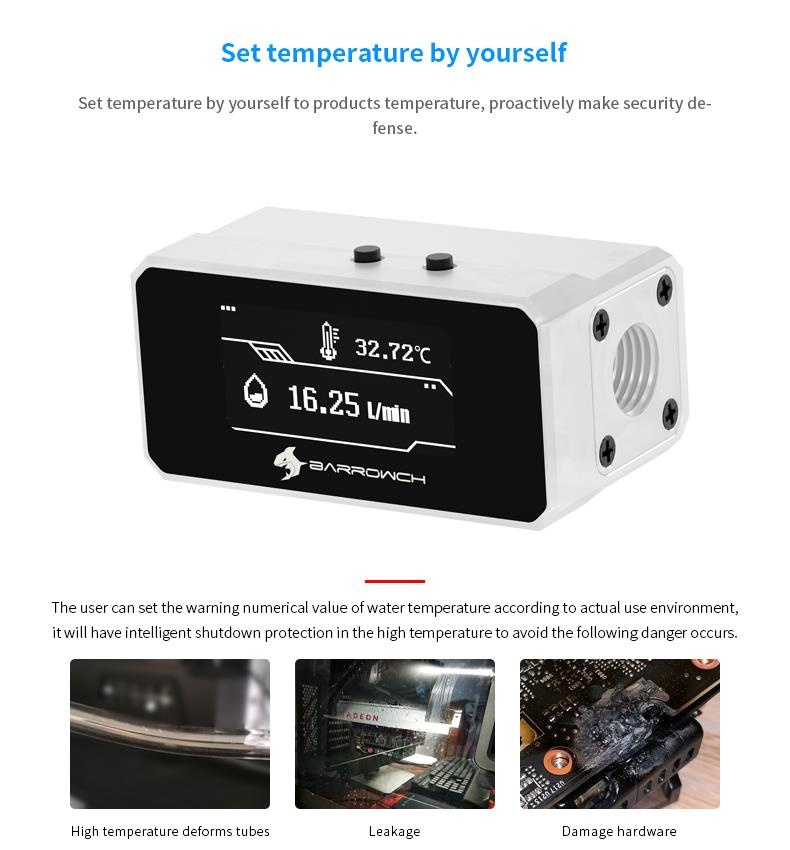

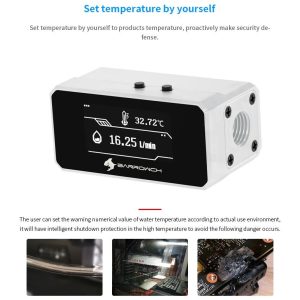

By installing this high quality OLED Display anywhere in your loop, you can set a shut down temperature, which when connected to your motherboards fan header, in combination with your PWR header can shut down the PC at any temperature you set as a fail safe. It will also display the system flow rate on one of the multiple screens you can choose from.

Features:
– Either side can be used for IN/OUT
– 40mm Screen Size
– Temperature read out
– Flow rate read out
– 80CM cable length
– High production quality and strict QC ensure 100% no cracks or leaks
– G1/4 ports for ultimate flexibility

Technical Data:
Material: POM Body, Black Aluminium Panel
Thread Size: G1/4

Connection:

Function:
Click the A Button: Enter the high temperature warning setting interface, press B button to set the range of temperature from 0c to 99c, long press the B button to operate quickly.

Double-click the A button: Enter the alarm mode to select the interface, press B button to set, select three modes between the following, after finishing setting, click A button to save and exit.

Under Mode 1 or Mode 2, when alarm in the high temperature, press A button to stop buzzing, then press A and B buttons to reset interface.

Mode 3, when alarm is the high temperature, Click A button to cancel shutdown.
(After triggering alarm and protection functions, it needs to reset the warning display value.)

Included:
1x BarrowCH G1/4 Multimode OLED Display, Flow / Overheat Alarm with Intelligent Shutdown – White
