ASUS TUF Gaming A620-PRO WIFI, AMD A620 motherboard, socket AM5, DDR5

– 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 (x2), 2x PCIe 3.0 x1
– Supports up to 192 GB DDR5 RAM up to 6,400 MHz (OC)
– 2x M.2 PCIe 4.0 / 4x SATA 6G
– 2x USB-A 3.1, 1x USB-C 3.0, and 3x USB 2.0 on the I/O panel
– A total of 6x 4-pin PWM fans possible
– ASUS TUF Gaming A620-Pro WiFi: ATX motherboard with AMD AM5

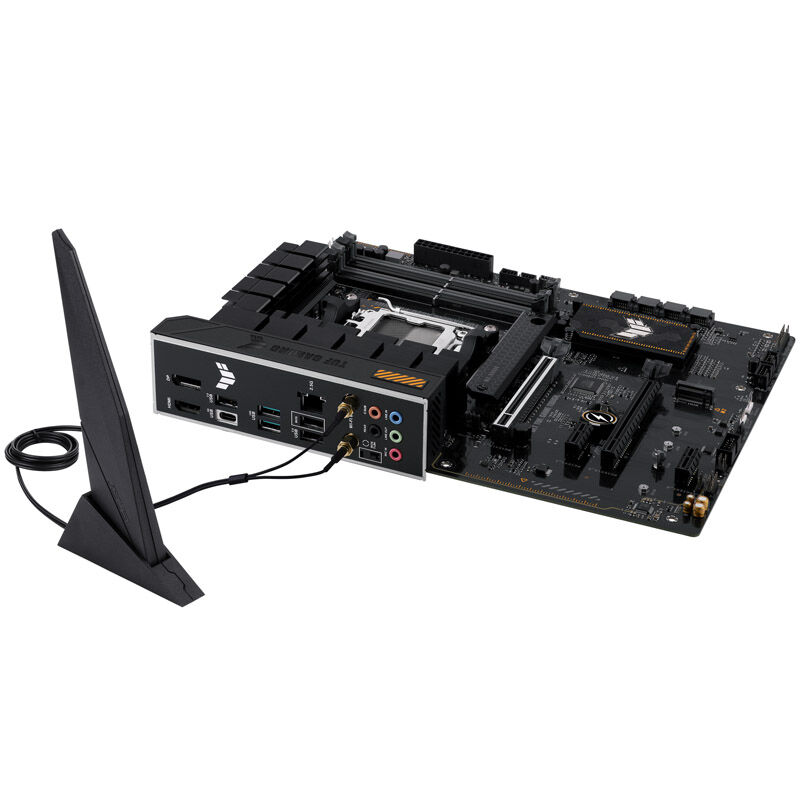

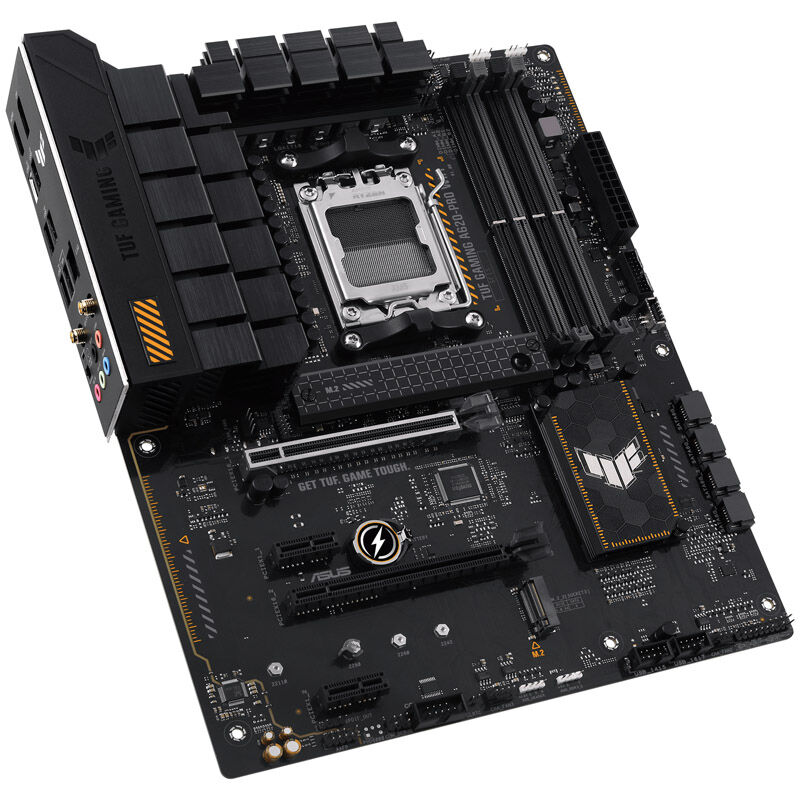

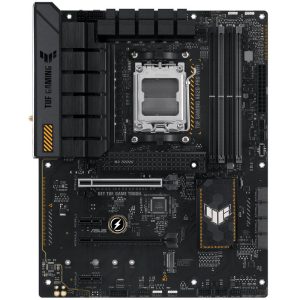

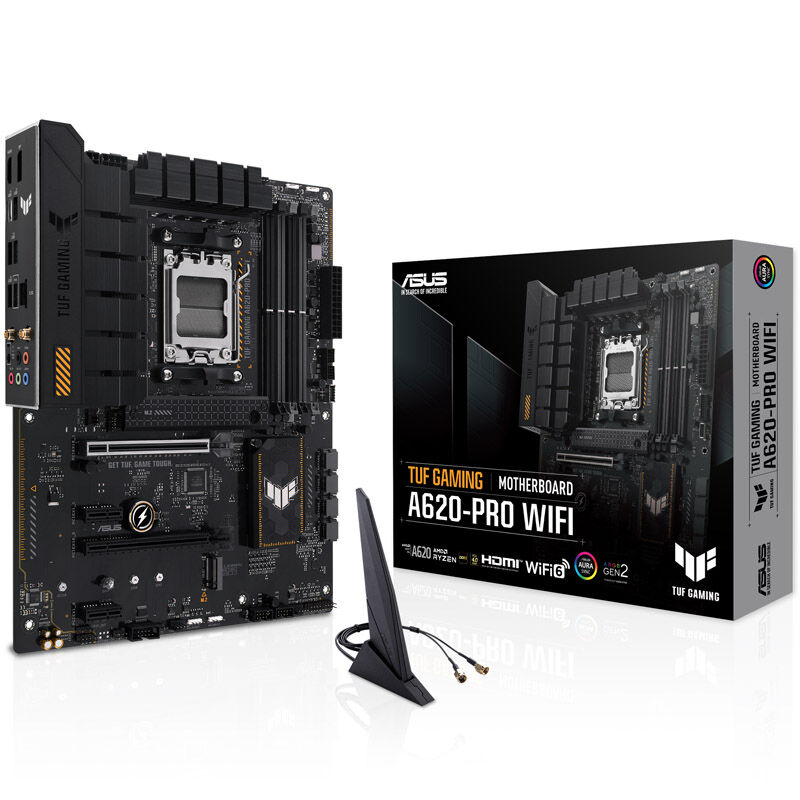

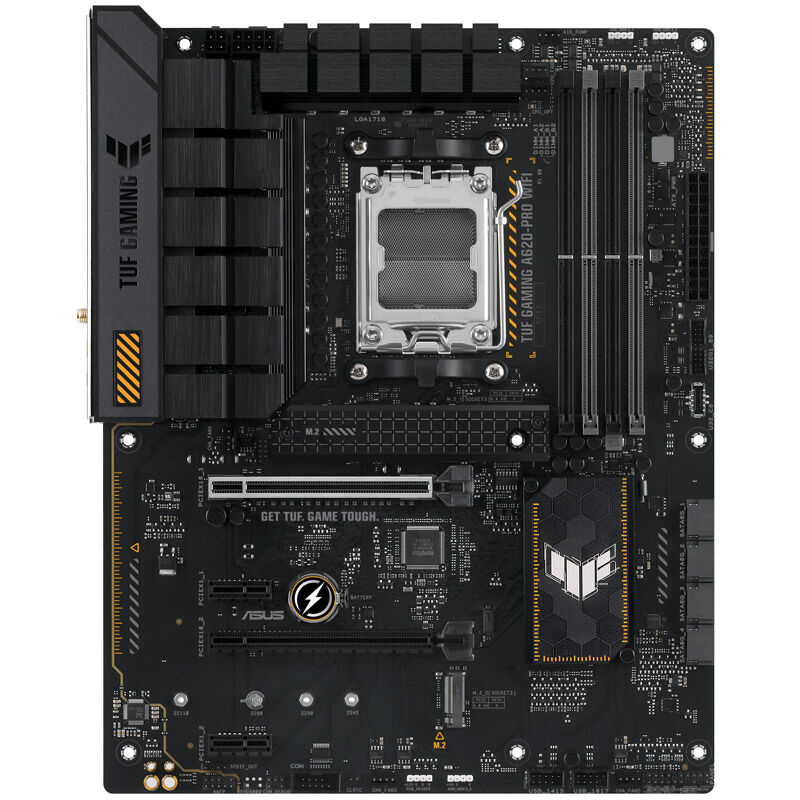

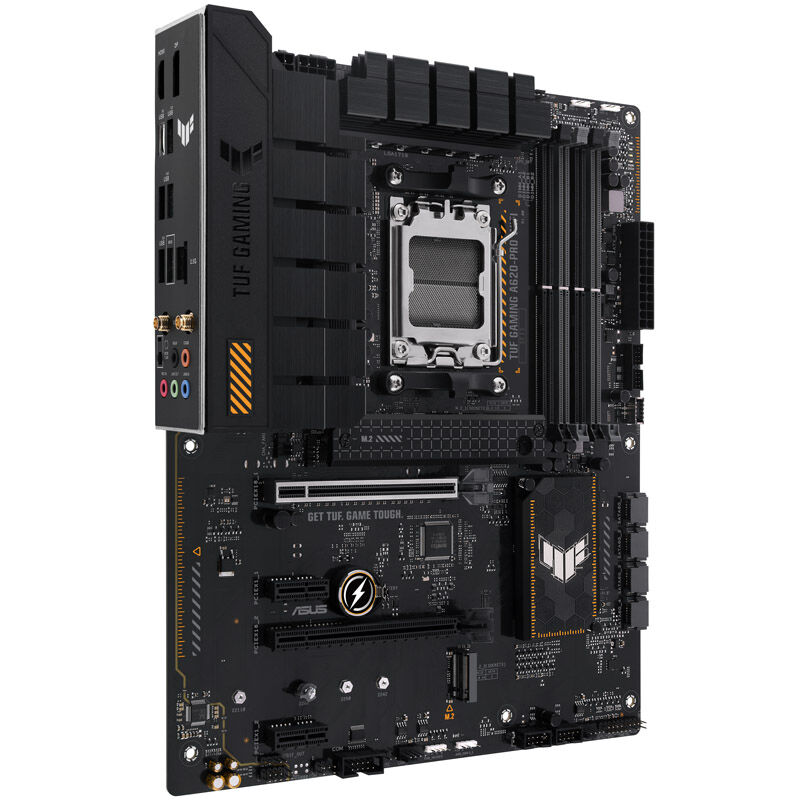

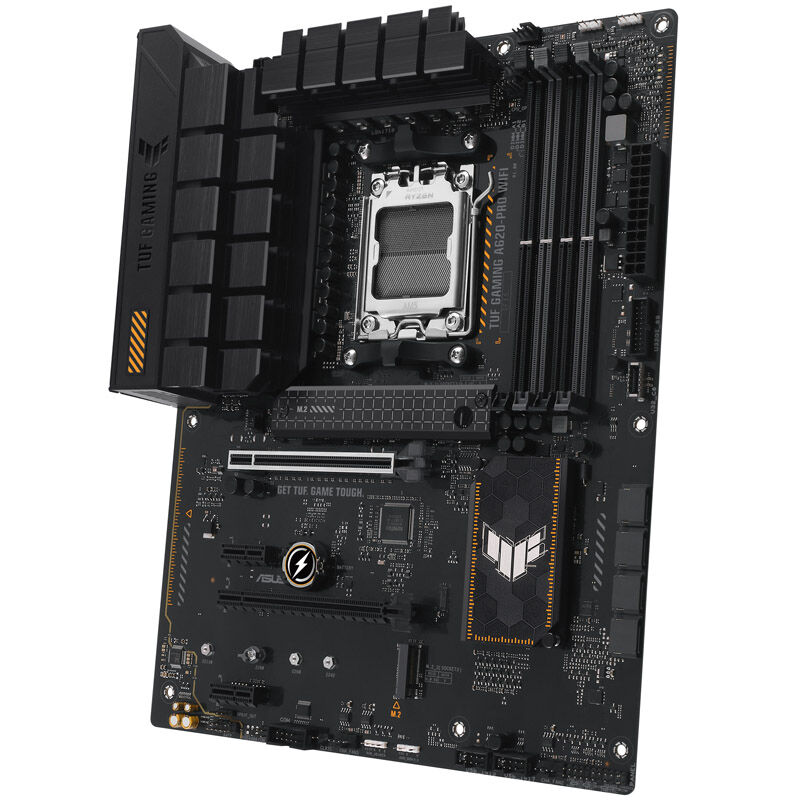

The image shows the ASUS TUF Gaming A620-Pro WiFi motherboard.
The ASUS TUF Gaming A620-Pro WiFi is equipped with the A620 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, Socket AM5 (LGA 1718) is used on the 600 series motherboards.

Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD A620
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5200 MHz, validated up to 6400 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 1x PCIe 3.0 x16 (electrical x2, chipset)
– 2x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4; 2242 – 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 – 22110, CPU)
– 1x USB 3.0 (Type C, USB) 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x system panel header with chassis intrusion header (20-3 pin)
– 1x Clear CMOS header
– 1x COM port header
– 1x Front Panel Audio Header (AAFP)
 -1x S/PDIF Out Header
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU OPT fan header (4-pin)
– 1x AiO pump header (4-pin)
– 3x fan header (4-pin)
– RGB header:
– 3x 3-pin ARGB headers
– 1x 4-pin RGB header

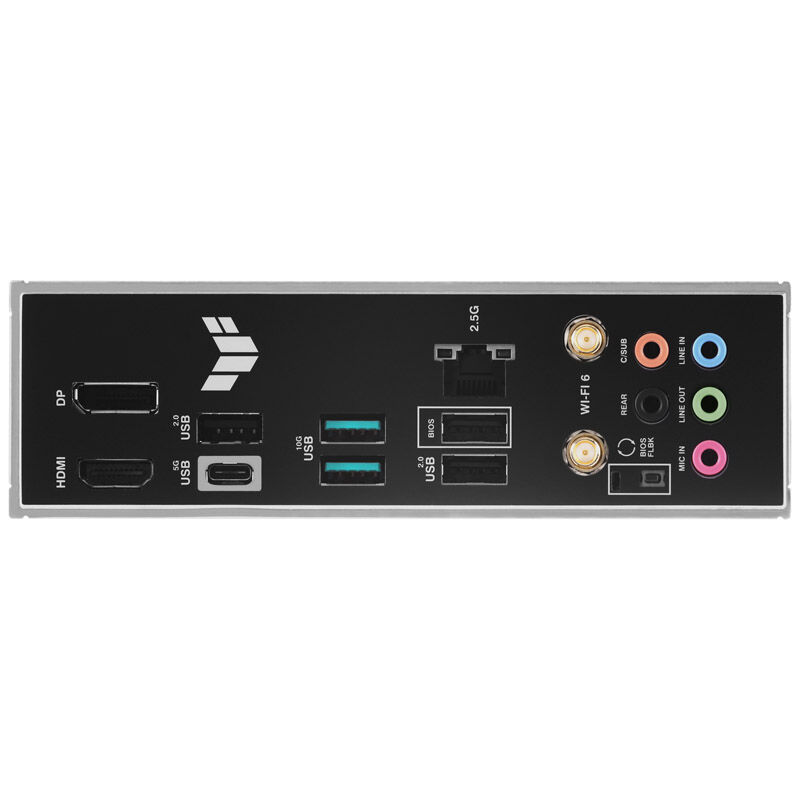

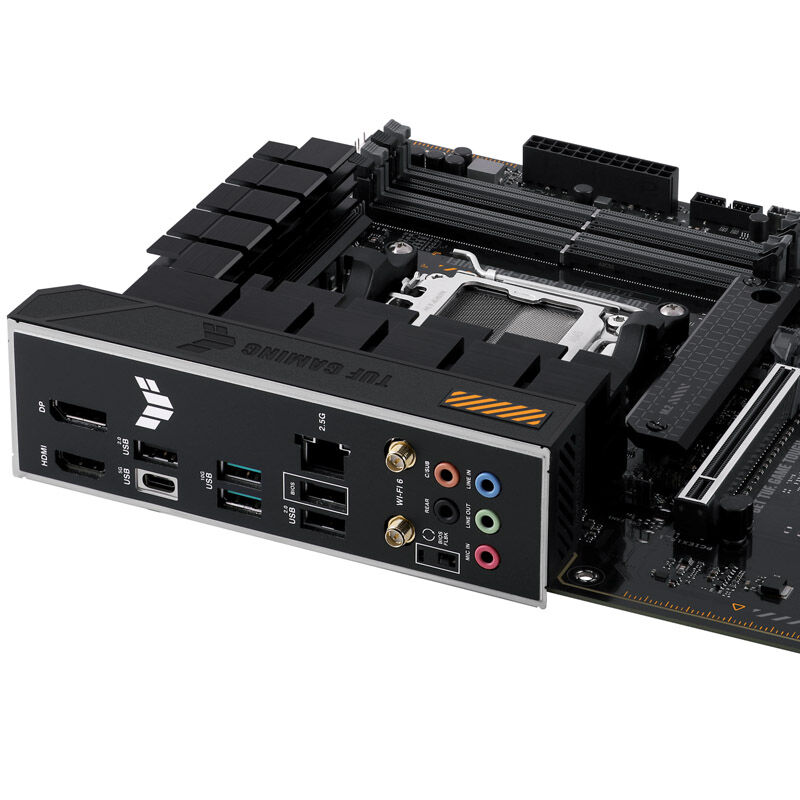

– External connections:
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.0 (Type C, USB 3.2 Gen1, max. 5 Gbit/s)
– 3x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x RJ45 (2.5 Gbit, Realtek)
– 2x WLAN antenna (Wi-Fi 6, Bluetooth 5.3)
– 5x 3.5 mm jack (Realtek 7.1 Surround Sound)
– 1x BIOS flashback button
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– 1x 4-pin ATX12V
