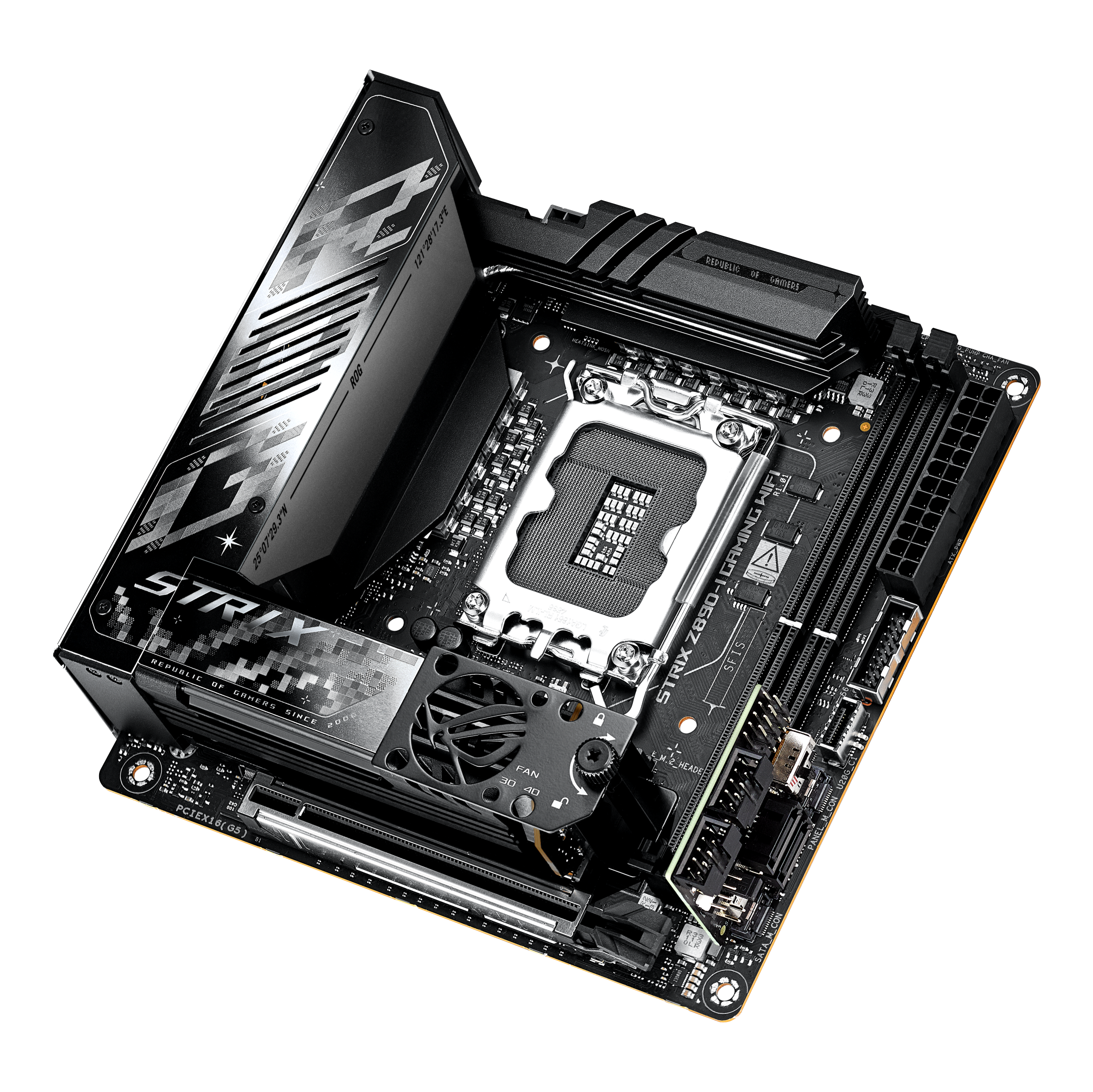

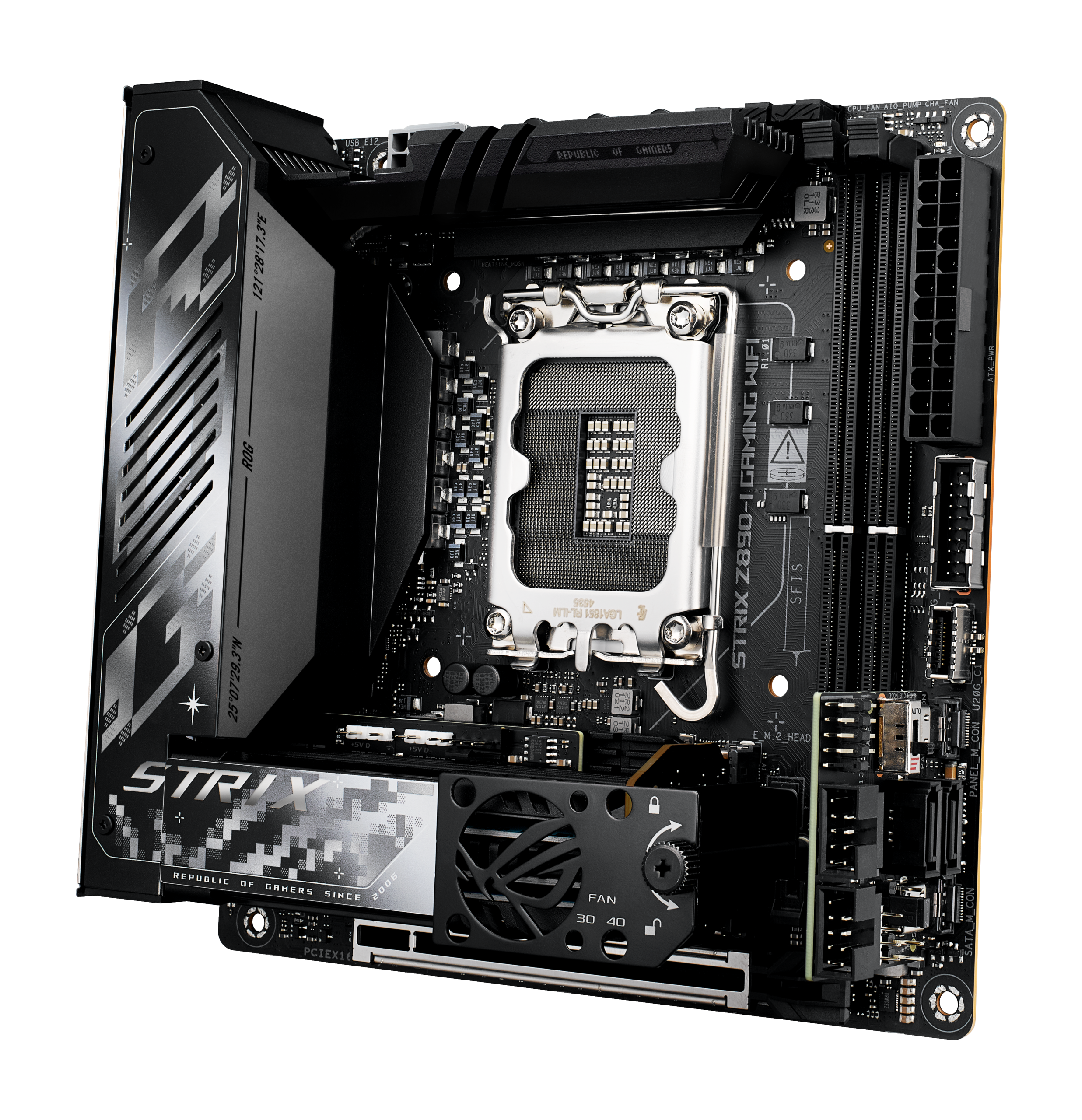

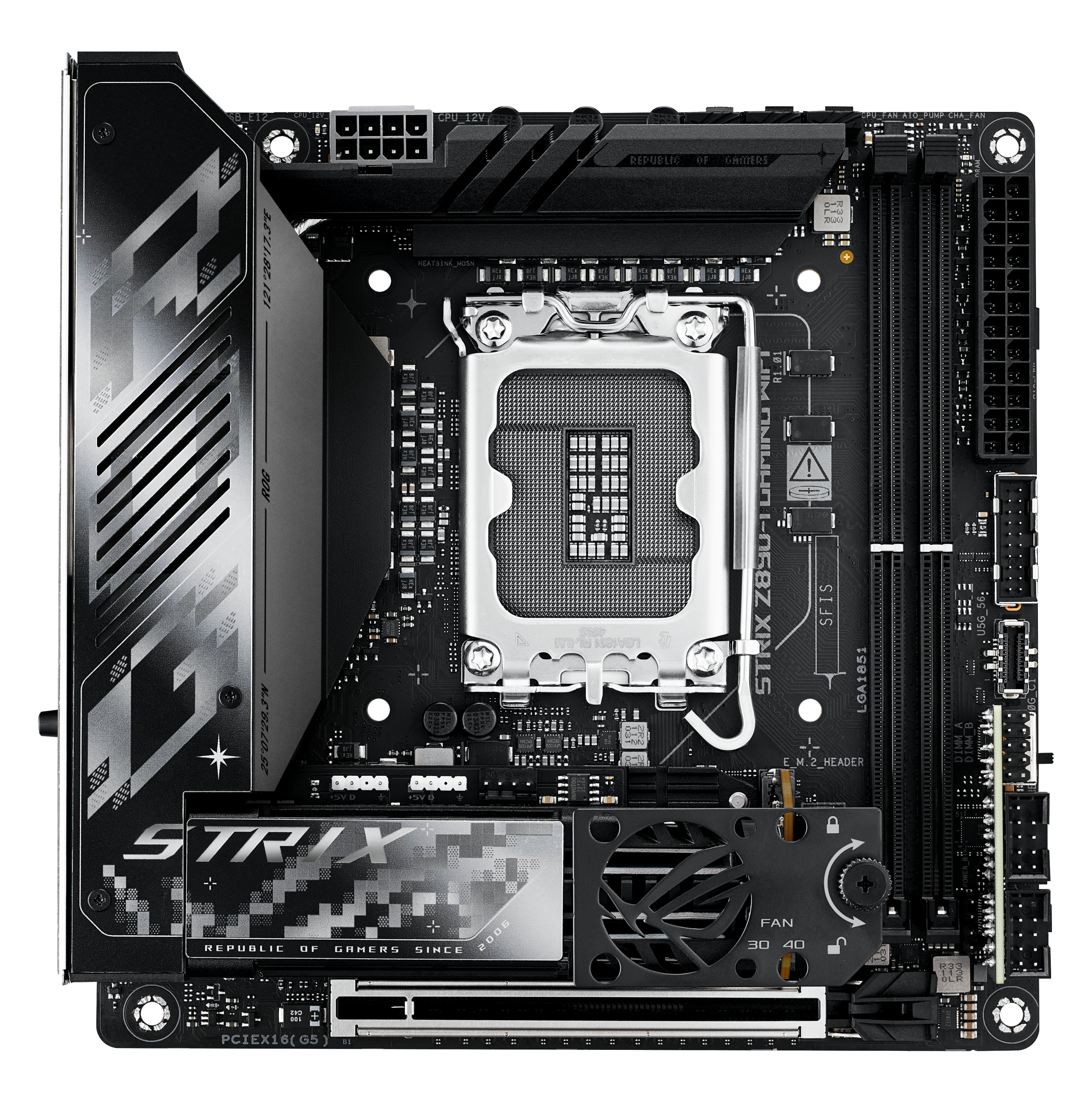

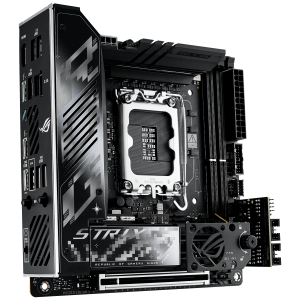

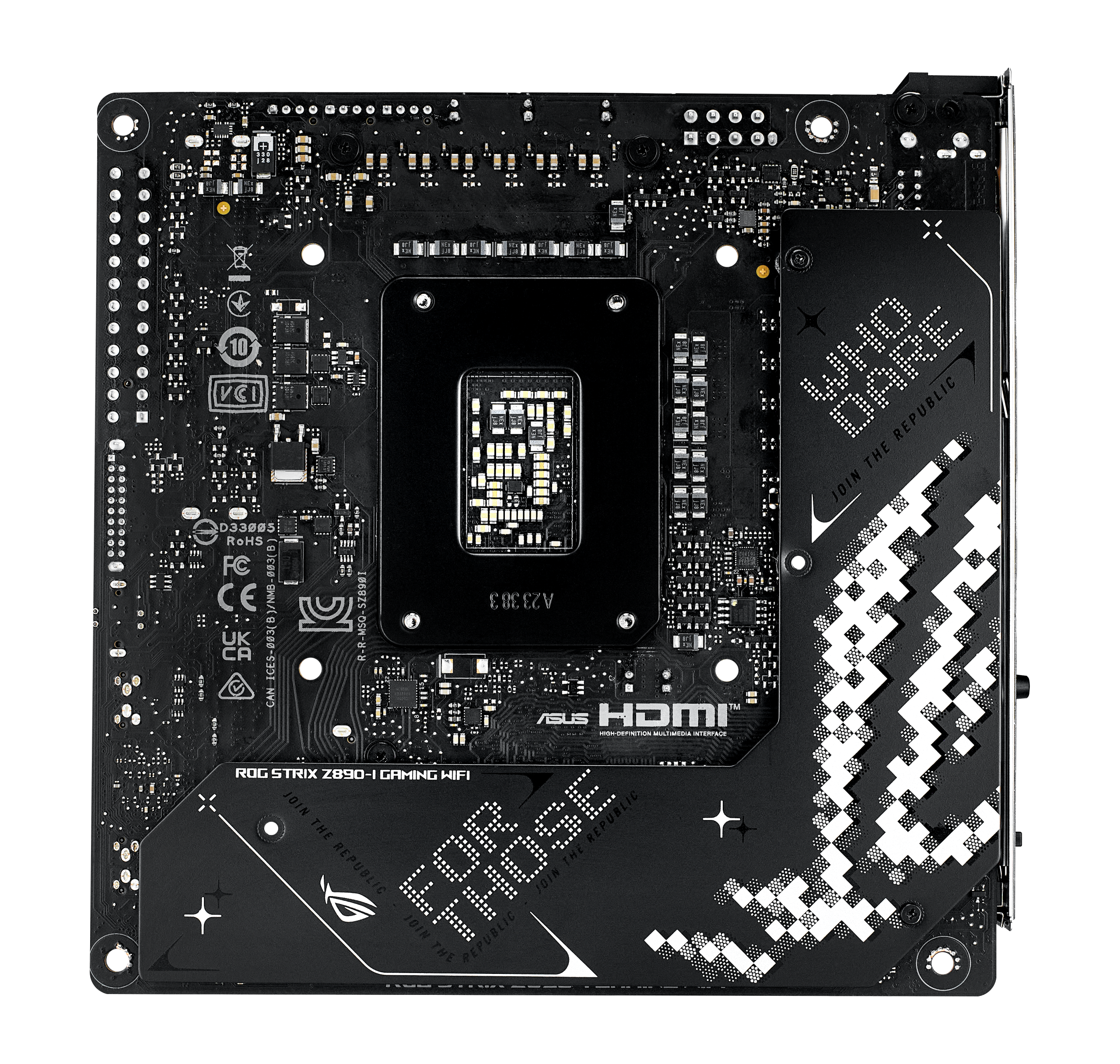

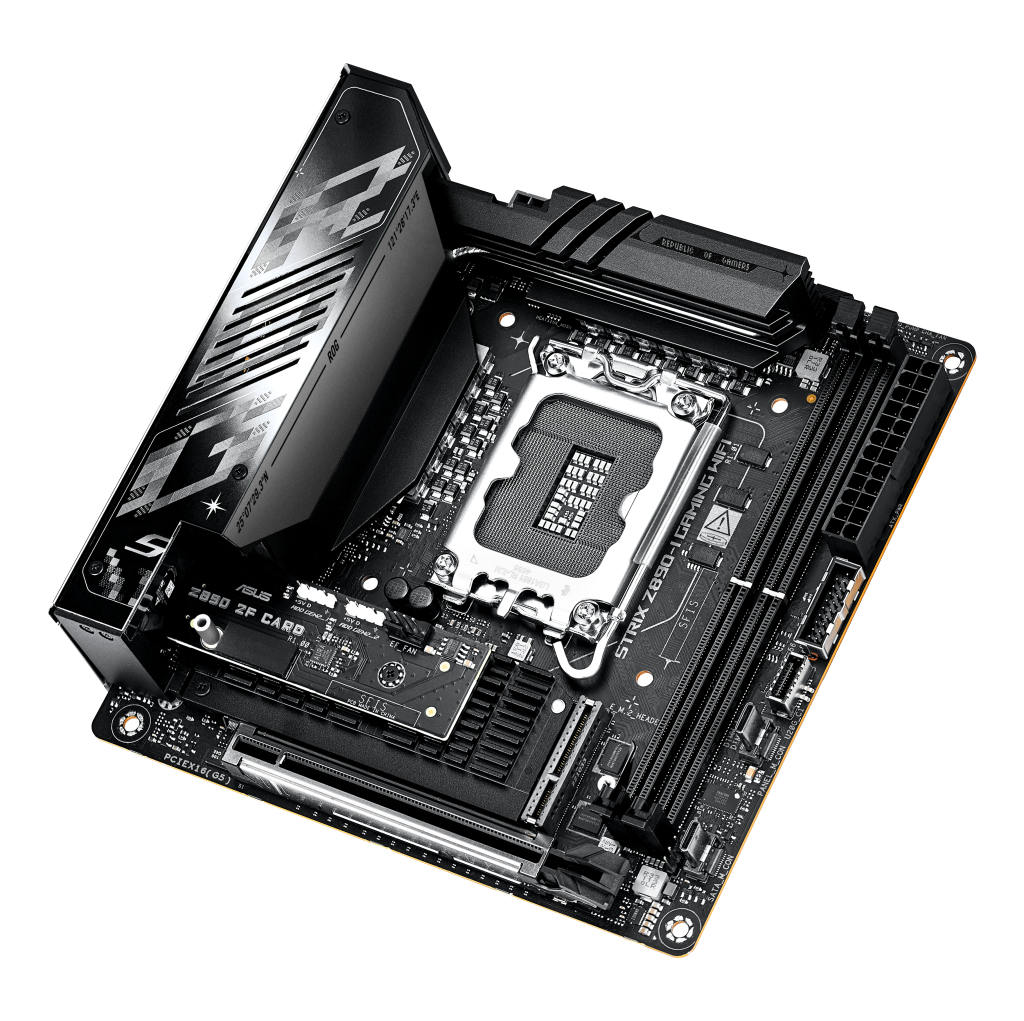

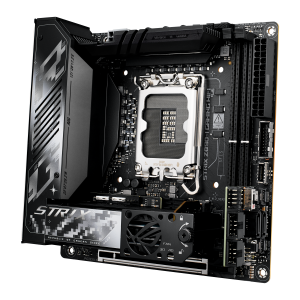

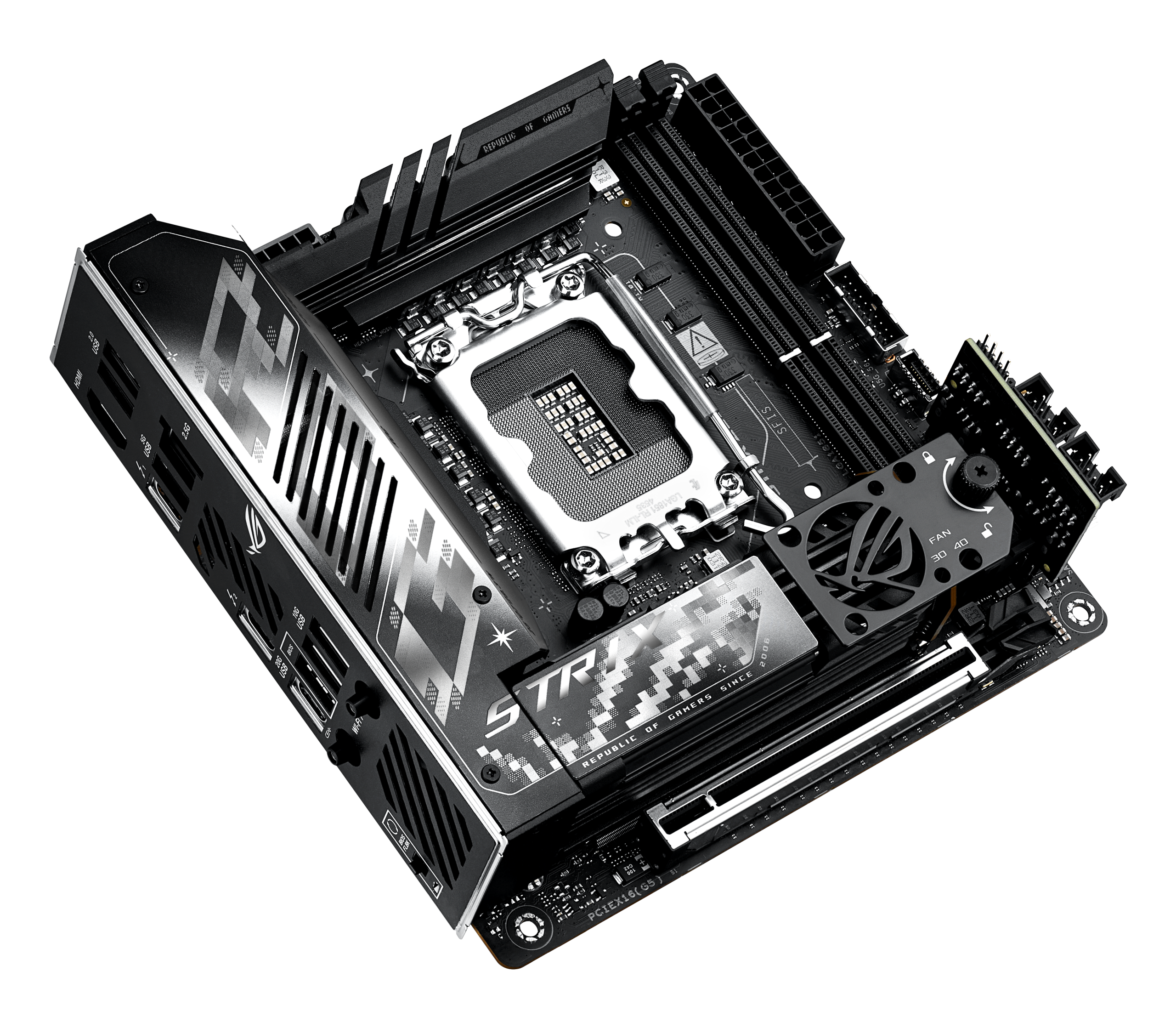

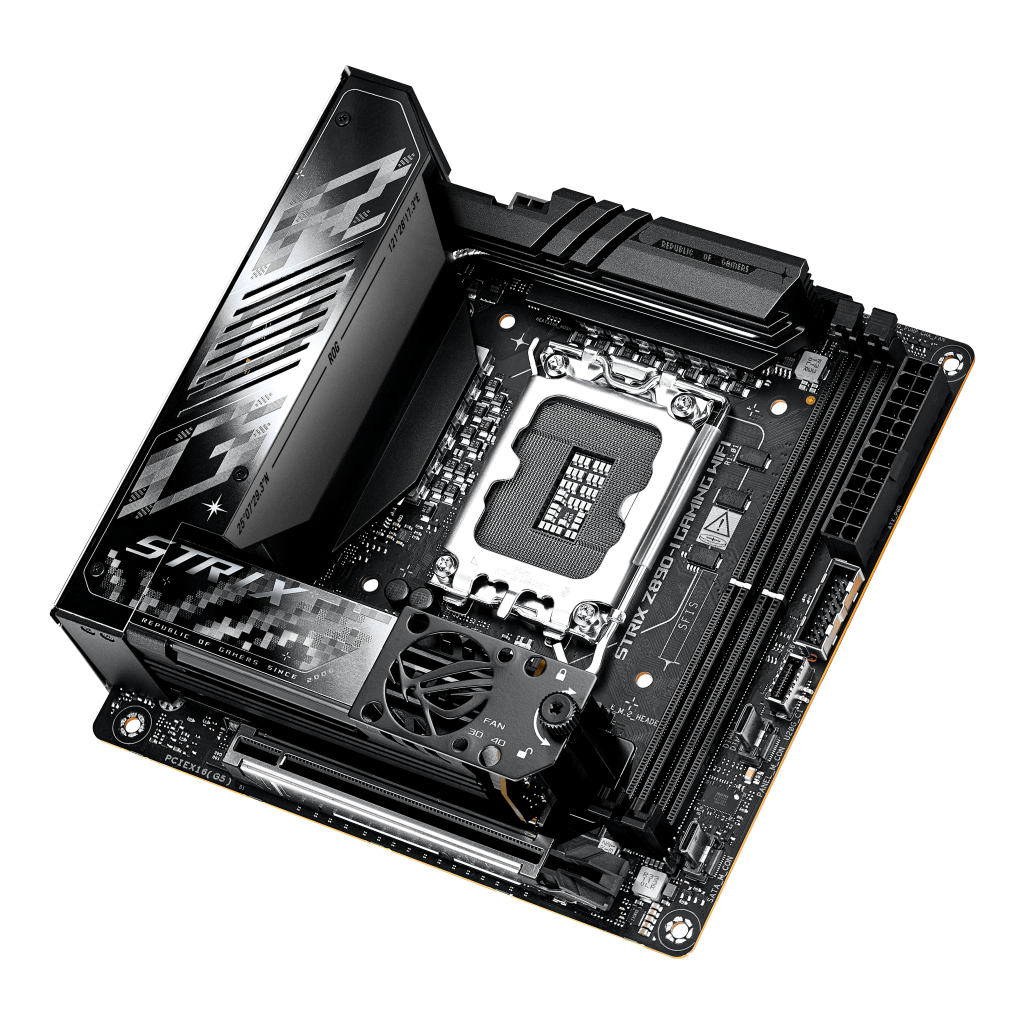

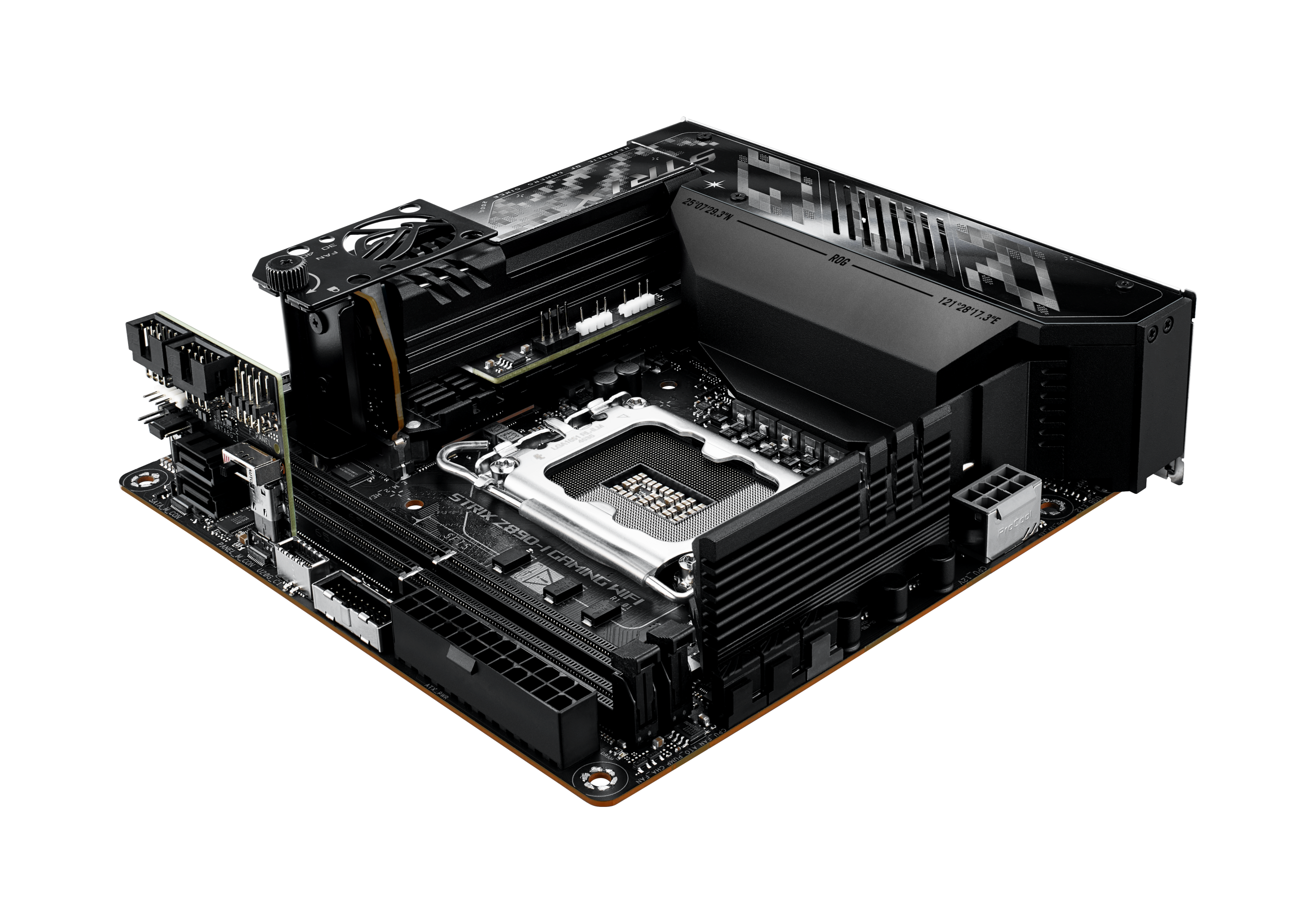

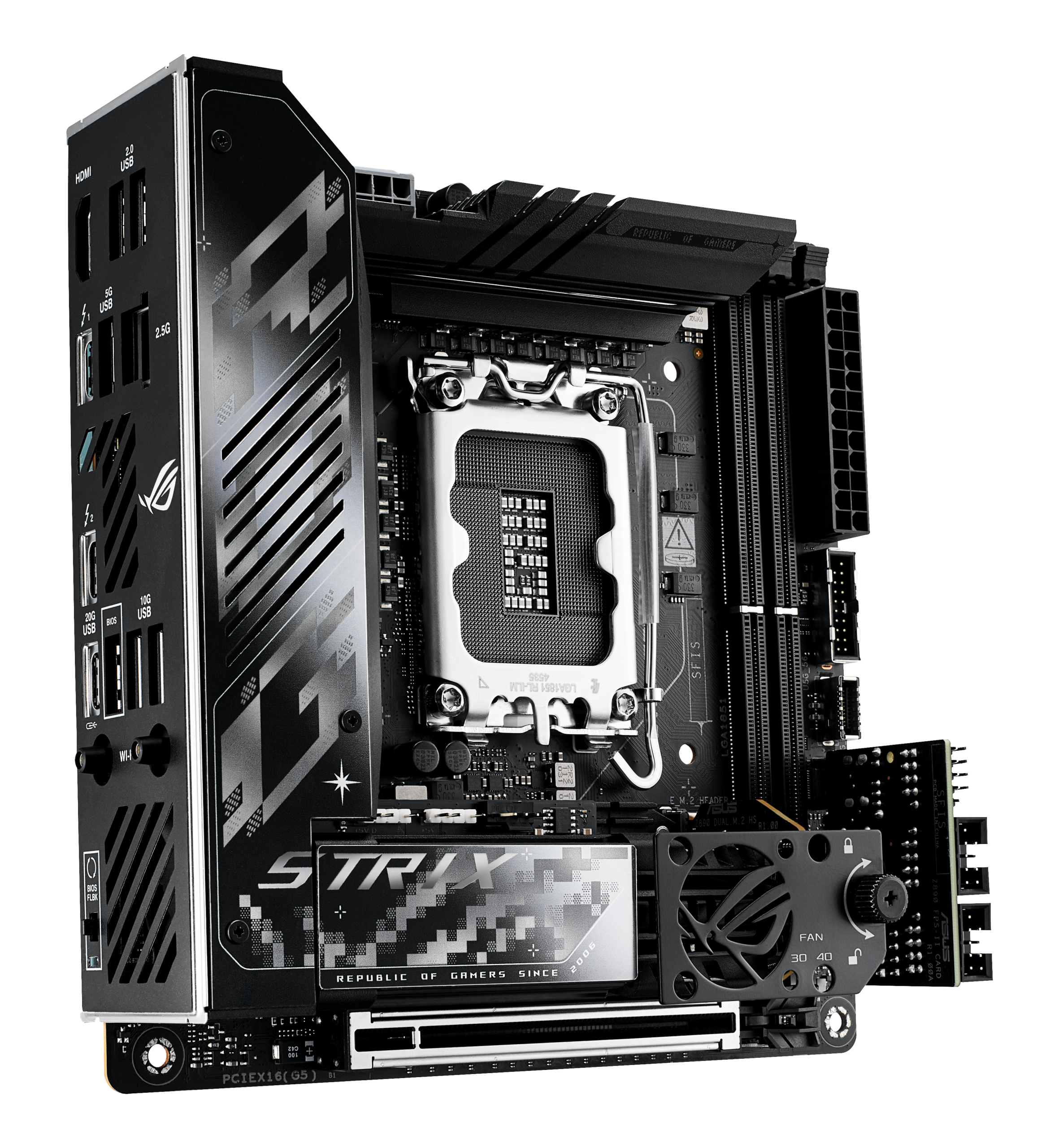

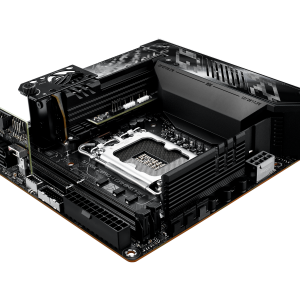

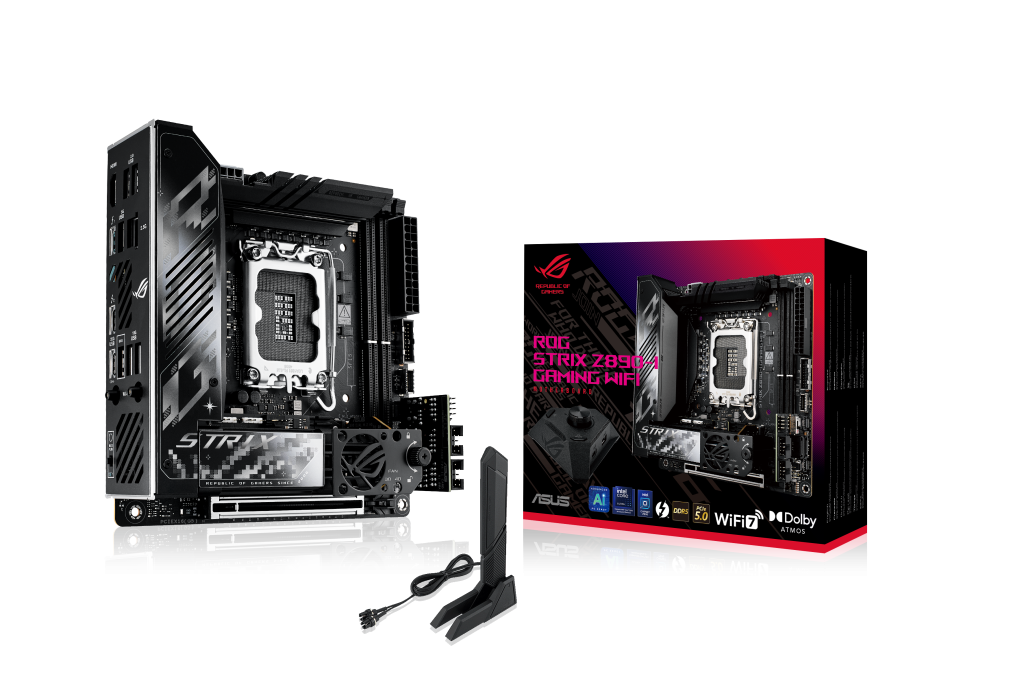

ASUS ROG Strix Z890-I Gaming WiFi motherboard, socket LGA 1851, Intel Z890, Mini-ITX, DDR5

This motherboard is ideal for gamers with a small case.

– 1x PCIe 5.0 x16 (x16)
– 2x DIMM slots for up to 96 GB DDR5 RAM up to 8800 MHz
– 2x M.2 (including 2x PCIe 5.0) / 2x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4, 1x USB-C 3.2, 3x USB 3.1, 1x USB 3.0, and 2x USB 2.0
– A total of 4x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

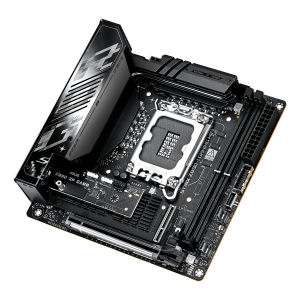

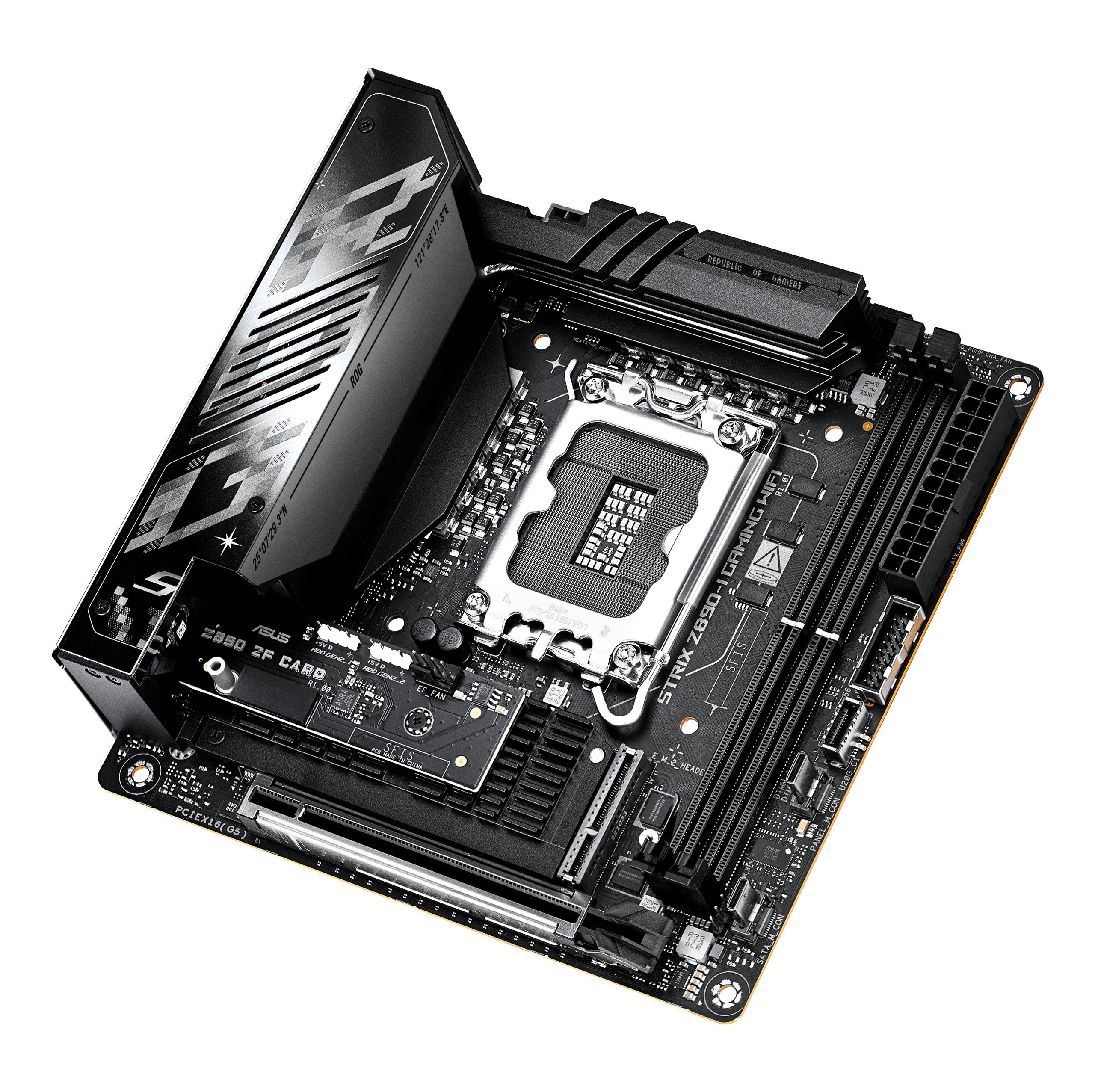

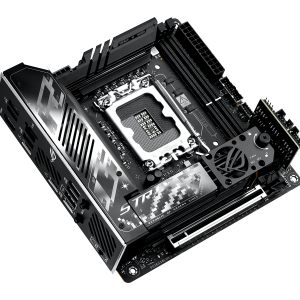

A ASUS ROG Strix Z890-I Gaming WiFi: Mini-ITX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ROG Strix Z890-I Gaming WiFi is a Mini-ITX motherboard with the high-end Intel Z890 chipset and the socket LGA 1851. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG Strix Z890-I Gaming WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
Form Factor:
– Mini-ITX (170 x 170 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 2x DDR5 DIMM (up to 8800 MHz with overclocking)
– Dual-Channel
– Max. 96 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– Total Maximum Usable PCIe Lanes: 44

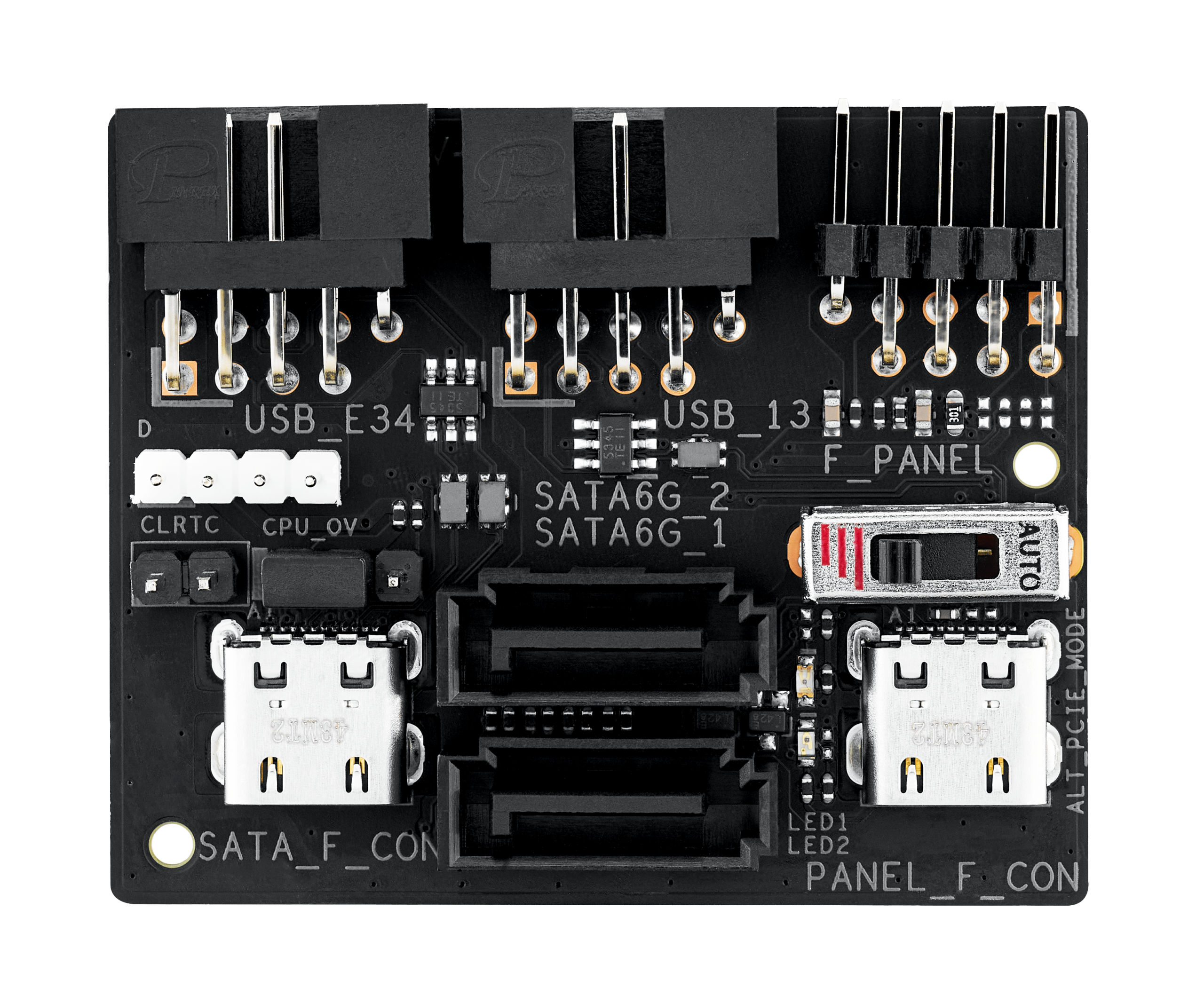

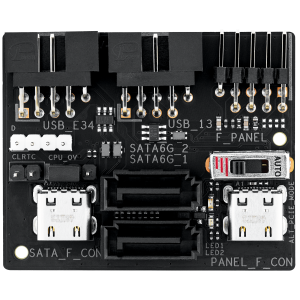

– Internal Connectors:
– 2x SATA 6G (max.)

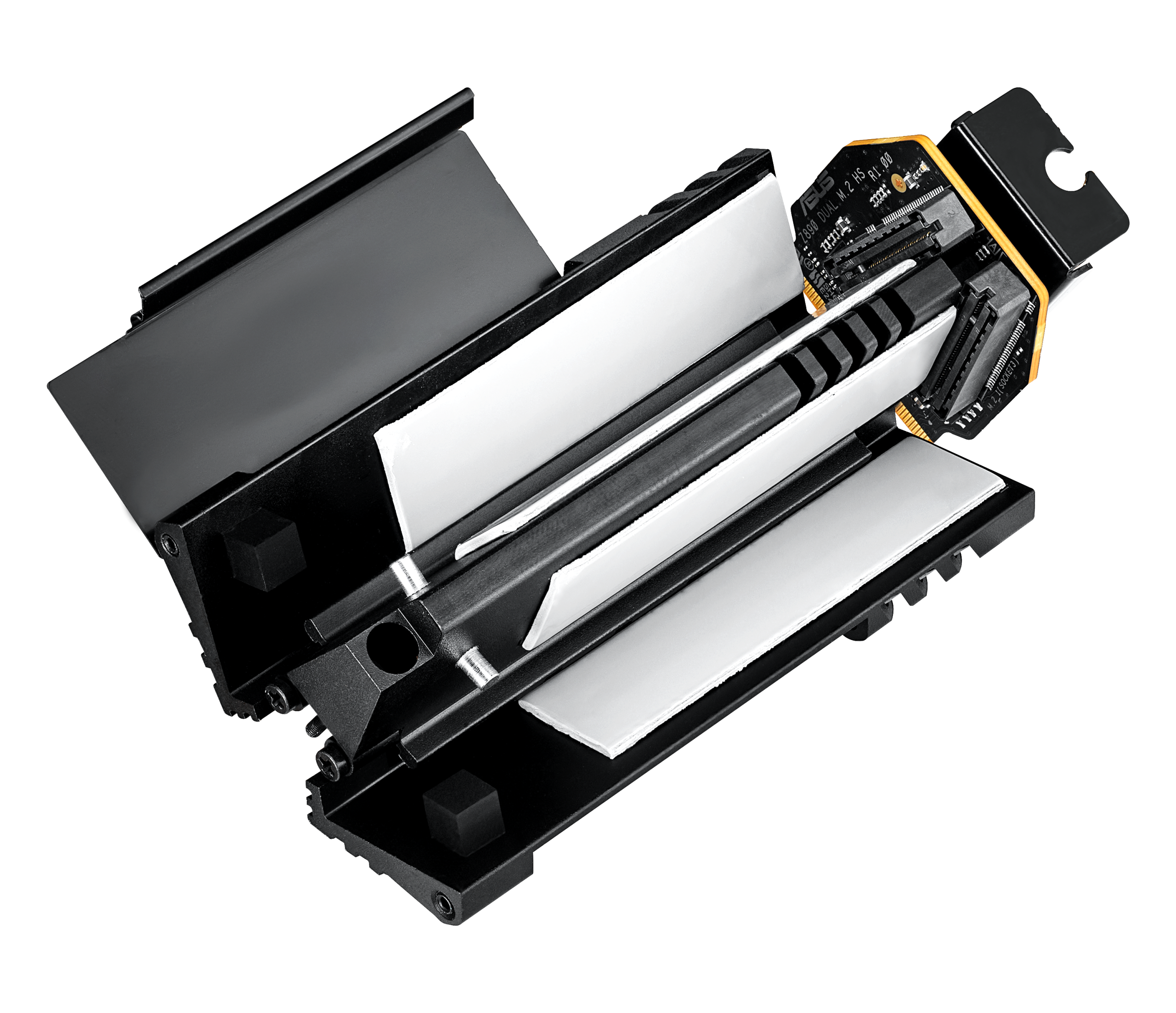

– 2x M.2 (PCIe 5.0 x4; 2230 / 2242 / 2260 / 2280, CPU)
– – 1x USB 3.2 (1 header, USB 3.2 Gen 2×2, max. 20 Gbps)
– 2x USB 3.1 (1 Header, USB 3.2 Gen 2, max. 10 Gbit/s, 1x USB-C / 1x USB-A)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 3x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Themal Sensor Header
– 1x 2-pin power button header
– 1x CPU Over Voltage Jumper
– 1x Clear CMOS header
– 1x front panel header
– 1x Alteration PCie Mode Switch
– Fan header:
– 1x CPU fan (4-pin)
– 1x AIO pump (4-pin)
– 1x case fan (4-pin)
– 1x Extra Flow Fan Header
– RGB header:
– 2x 3-pin ARGB (5V)

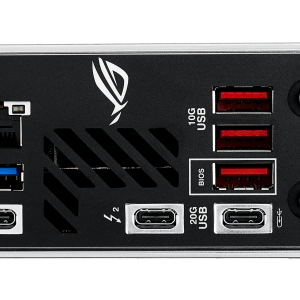

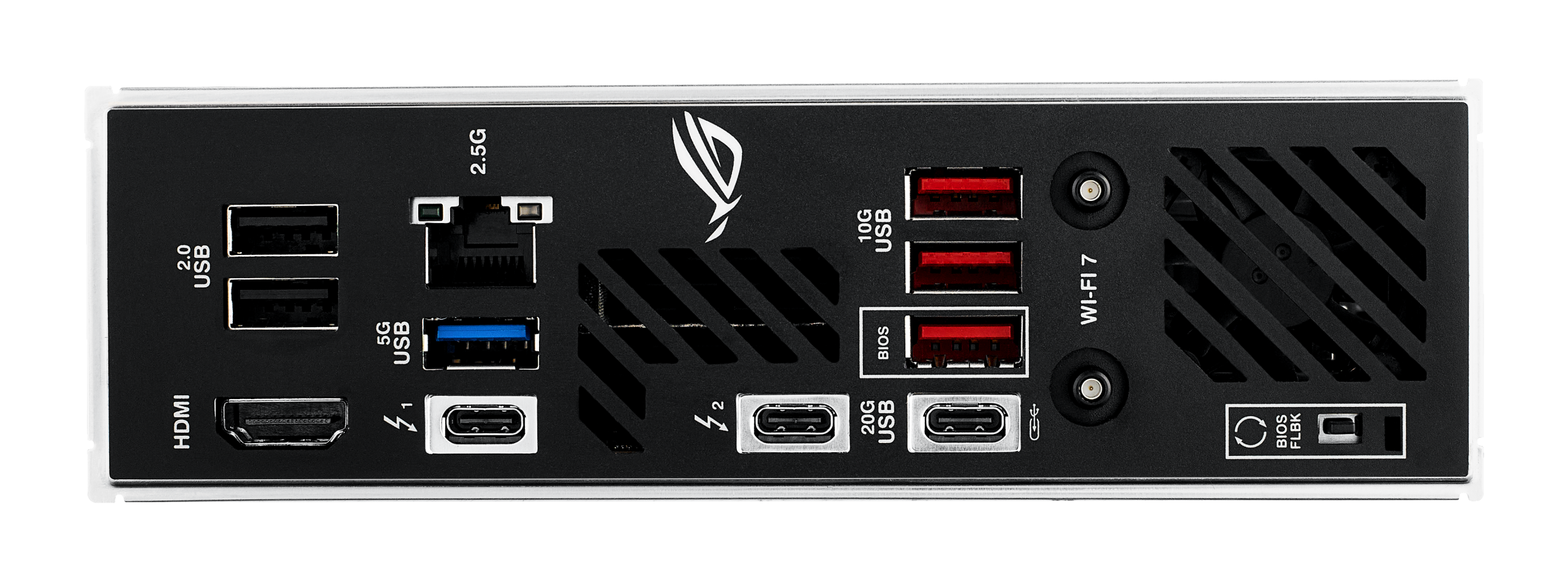

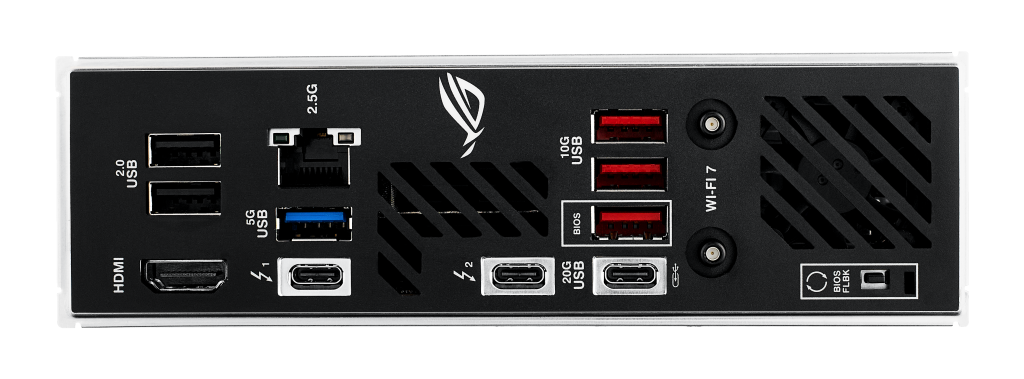

– External connections:
– 2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
– 1x USB 3.2 (Type-C, USB 3.2 Gen 2×2, max. 20 Gbps)
– 3x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 1x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (Type-A, max. 480 Mbit/s)
– 1x 2.5 Gigabit LAN
– 1x 3.5 mm jack
– 1x BIOS Flashback button
– 1x HDMI
– 1x FlexKey button
– 1x Power button
– 1x Wi-Fi/Bluetooth module
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin +12V CPU

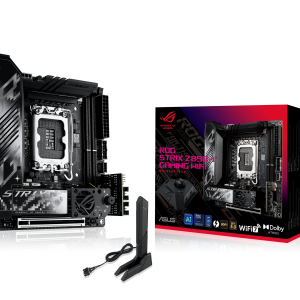

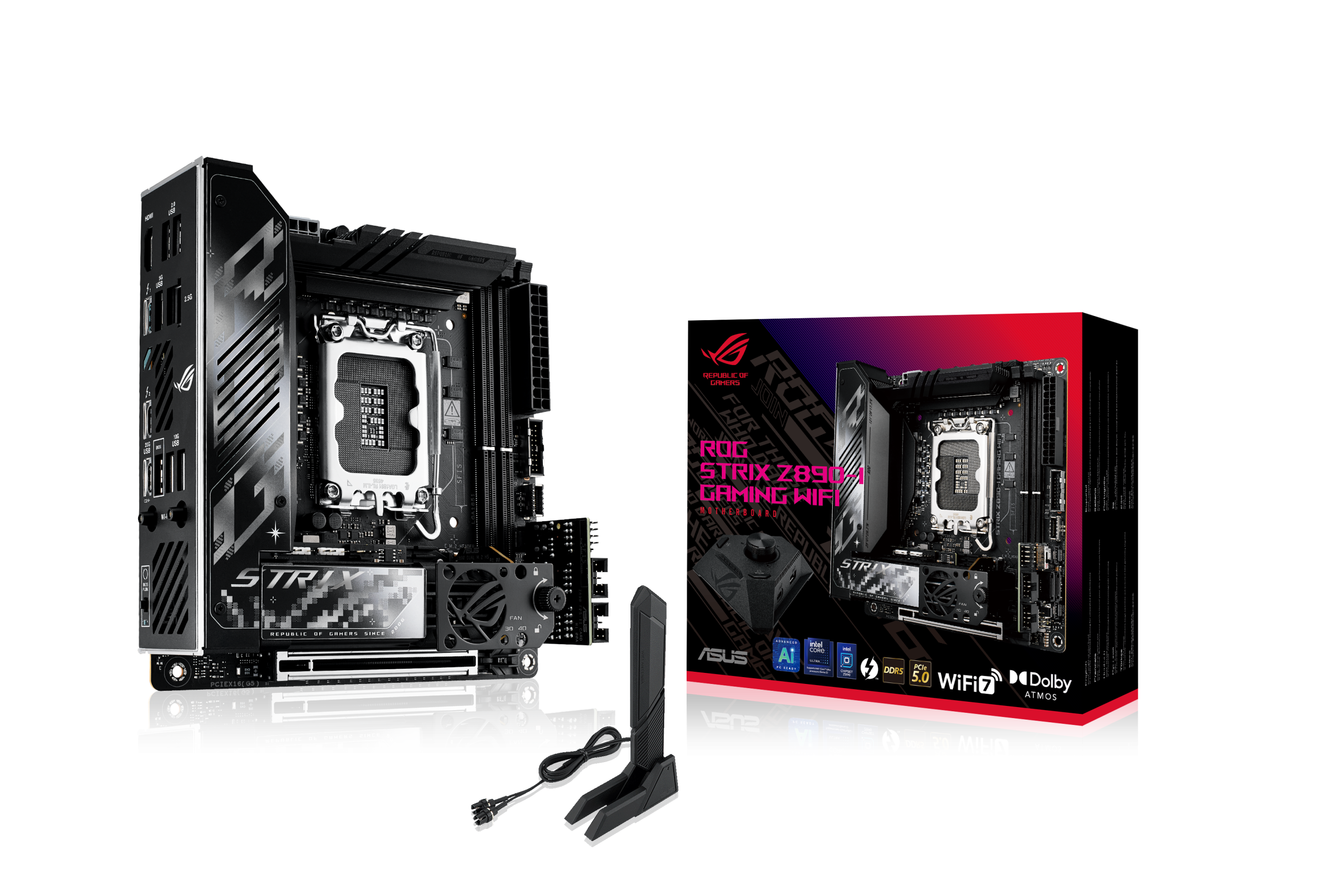

– Accessories:
– 1x Antennas
– 1x Cable ties
– ROG keychains and stickers
