ASUS ROG Strix B650E-F Gaming WiFi, AMD B650E - motherboard - socket AM5, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 2x PCIe 4.0 x1)
– Supports up to 128 GB DDR5 RAM up to 6400 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) and 4x SATA 6G
– 1x USB 3.2, 3x USB 3.1, 4x USB 2.0 on the I/O panel
– OC features: 12+2 phase VRMs, dual BIOS, CMOS reset, Digi+ VRM
– A total of 7x 4-pin PWM fans possible
– ROG Strix B650E-F Gaming WiFi: ATX motherboard with AMD B650E chipset for AM5 CPUs

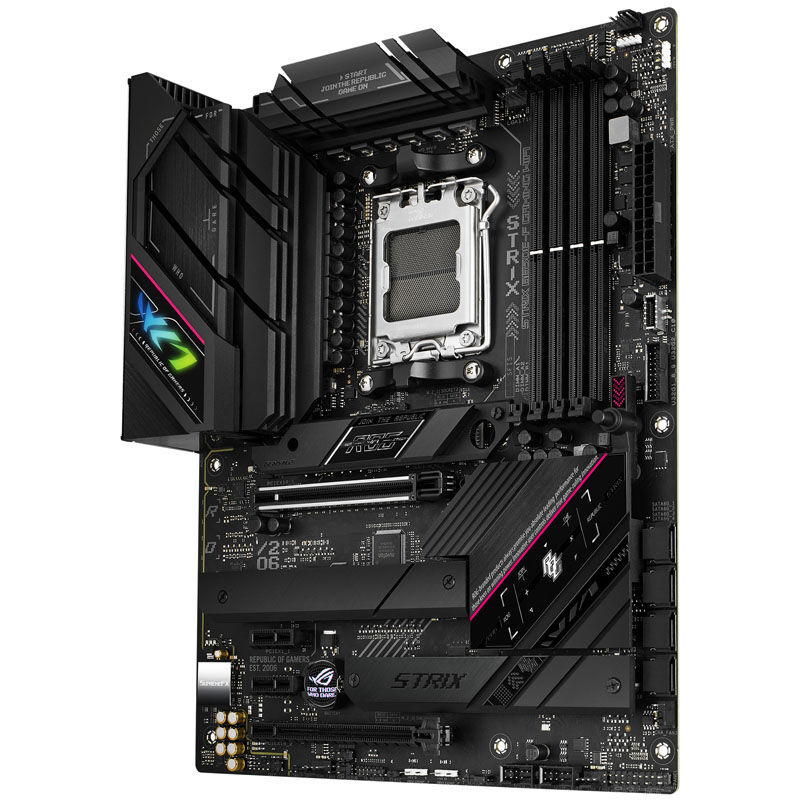

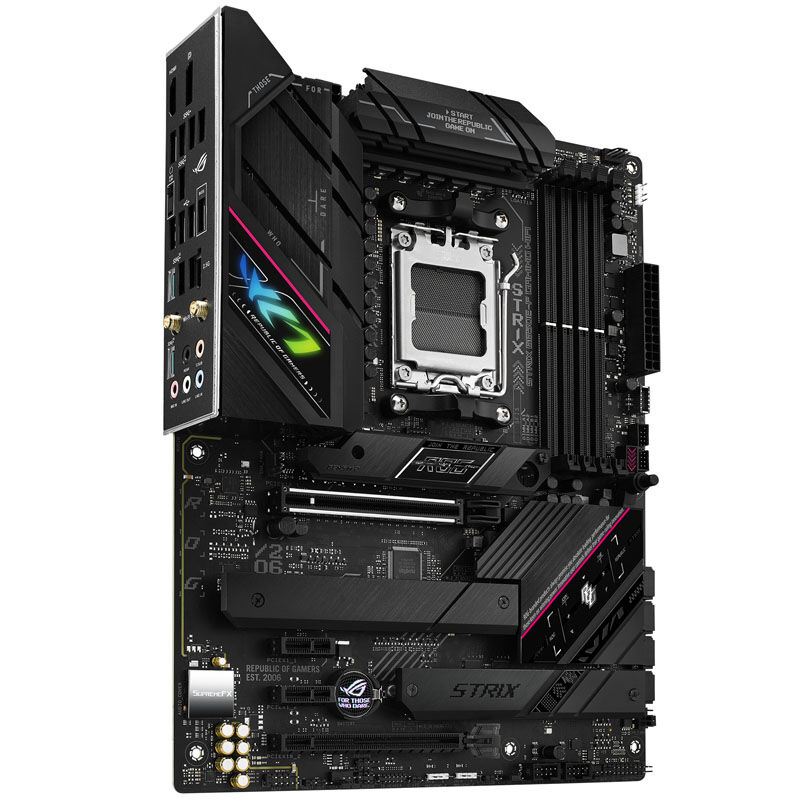

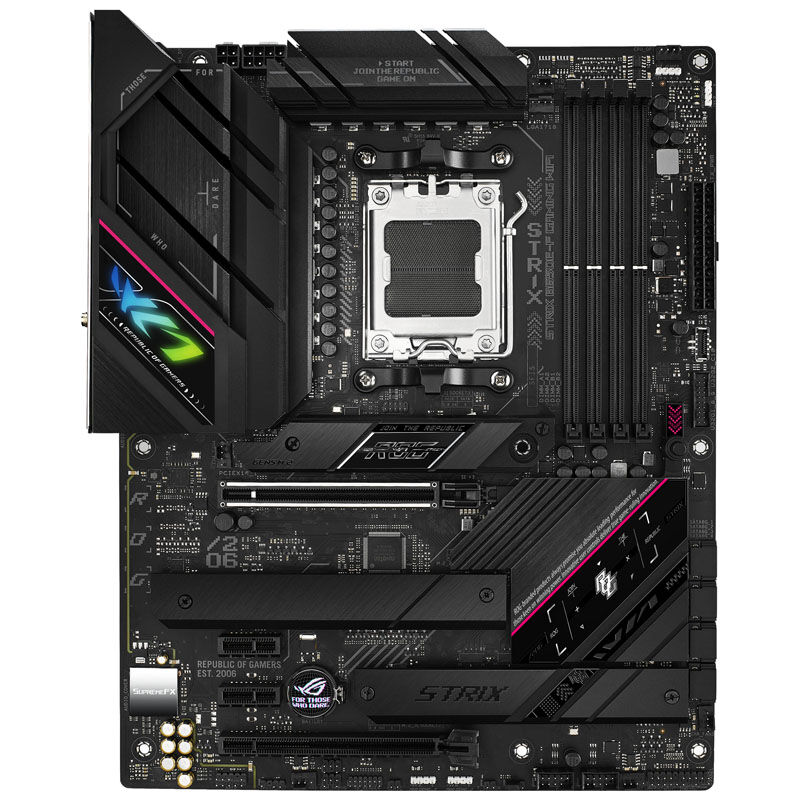

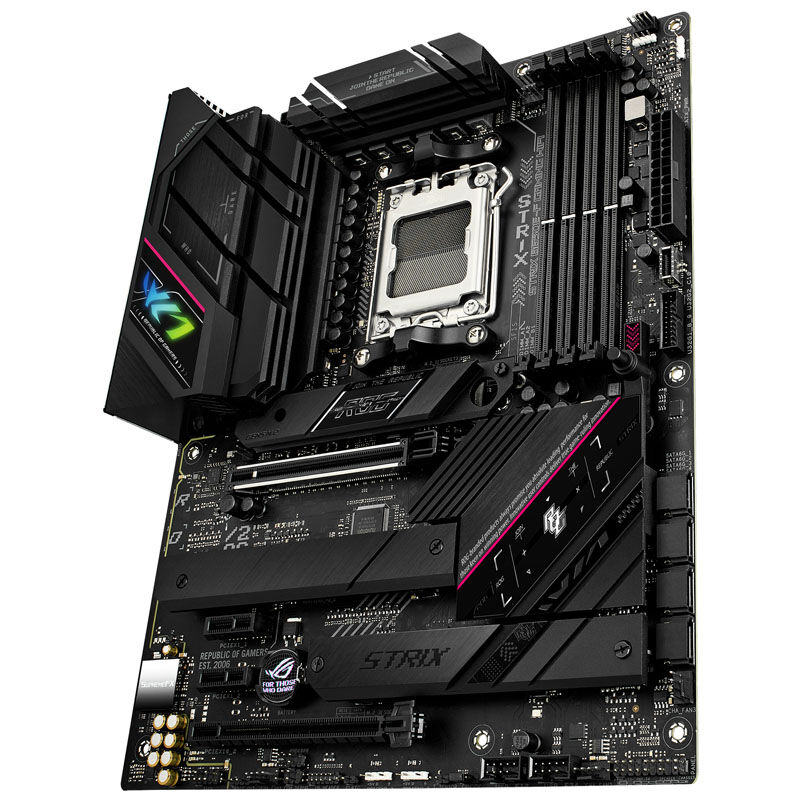

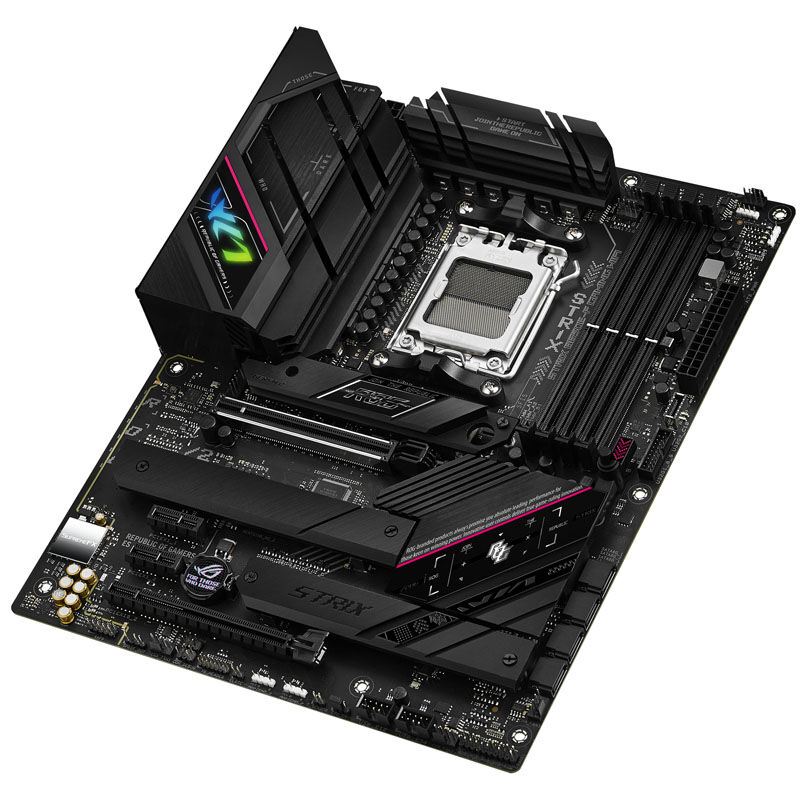

– The image shows the ROG Strix B650E-F Gaming WiFi Motherboard.

The ROG Strix B650E-F Gaming WiFi is equipped with the B650E chipset for AMDs Ryzen 7000 processors and offers numerous features for overclockers and gamers. Since the Ryzen 7000 processors require a new socket due to support for PCIe 5.0 and the enhanced power supply, the 600 series motherboards use the AM5 (LGA 1718) socket.

Despite the higher pin count in AM5, the actual size of the socket remains identical to the older generation, allowing most CPU coolers for Socket AM4 to be installed on the motherboard.

The ASUS Prime B650E WiFi is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, so you can use the PC again if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds. Only compatible with AMD Ryzen 7000 series CPUs!

BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD B650E
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (4800 MHz, validated up to 6400 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 4.0 x1 (chipset)
– 1x PCIe 3.0 x1 (chipset)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280 / 22110, chipset)
– 1x USB-C 3.2 (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU OPT fan header (4-pin)
– 1x AiO pump header
– 4x Chassis fan header (4-pin)
– RGB header:
– 1x 3-Pin ARGB Header (5V)
– 3x 4-pin RGB headers (12 V)
– Status displays:
– Q LED
– BIOS FlashBack LED
– External connections:
– 1x PS/2 keyboard/mouse
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Intel I219V)
– 1x WiFi/Bluetooth module (Realtek AC9560)
– 5x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC S1220A)
– 1x Clear CMOS button
– 1x reset
– 1x BIOS flashback
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin 12V
– 1x 4-pin 12V
