ASUS Prime X670-P WiFi, AMD X670 motherboard - Socket AM5

– 1x PCIe 4.0 x16 (x16), 2x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 (x1)
– Supports up to 128 GB DDR5 RAM up to 6400 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 6x SATA 6G
– 1x USB 3.2 Type-C, 3x USB 3.1, 4x USB 3.0, and 2x USB 2.0 on the I/O panel
– OC features: Clear CMOS, BIOS FlashBack, DIGI+ VRAM
– A total of 6x 4-pin PWM fans possible
– ASUS Prime X670-P WiFi: ATX motherboard with AMD AM5

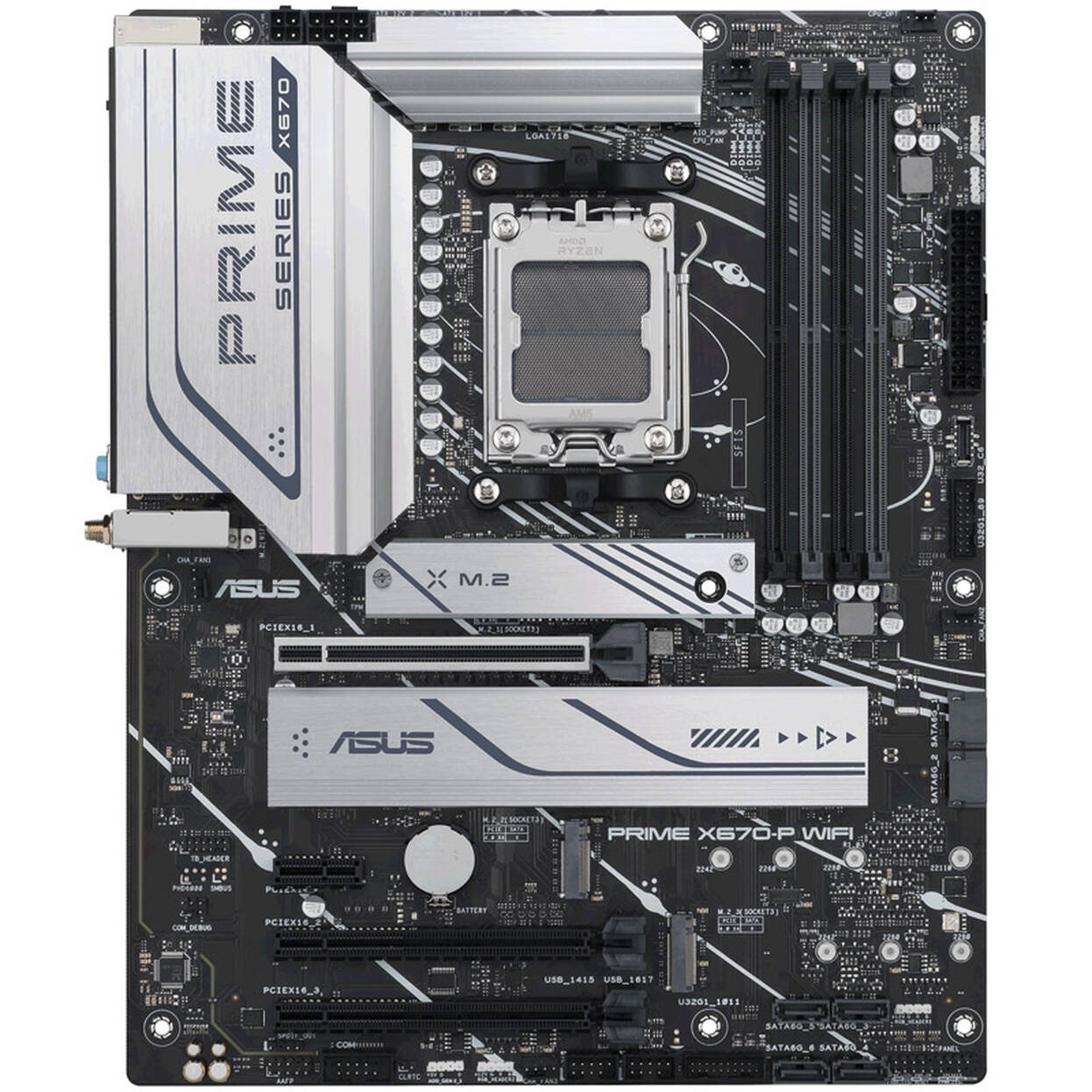

The image shows the high-end gaming motherboard ASUS Prime X670-P WiFi.
The ASUS Prime X670-P WiFi is equipped with the high-end X670 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers and content creators. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the enhanced power supply, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most Socket AM4 CPU coolers to be installed on the motherboard.

The ASUS Prime X670-P WiFi is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality 12+2 phase, 60 A voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, so you can use the PC again if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X670
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5200 MHz, validated up to 6400 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16)
– 2x PCIe 4.0 x16 (electrical x4)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 6x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280/ 22110, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s) 1x Thunderbolt 4 (USB4-C)
– 1x Clear CMOS header
– 1x COM port header
– 1x Front Panel Audio Header (AAFP)
– 1x S/PDIF Out Header
– 1x SPI TPM header (14-1pin)
– 1x 20-5 pin system panel header
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU OPT fan header (4-pin) 3x fan header (4-pin)
– 1x AiO pump header (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 2x 4-pin RGB headers (12 V)
– Status displays:
– Q LED Core

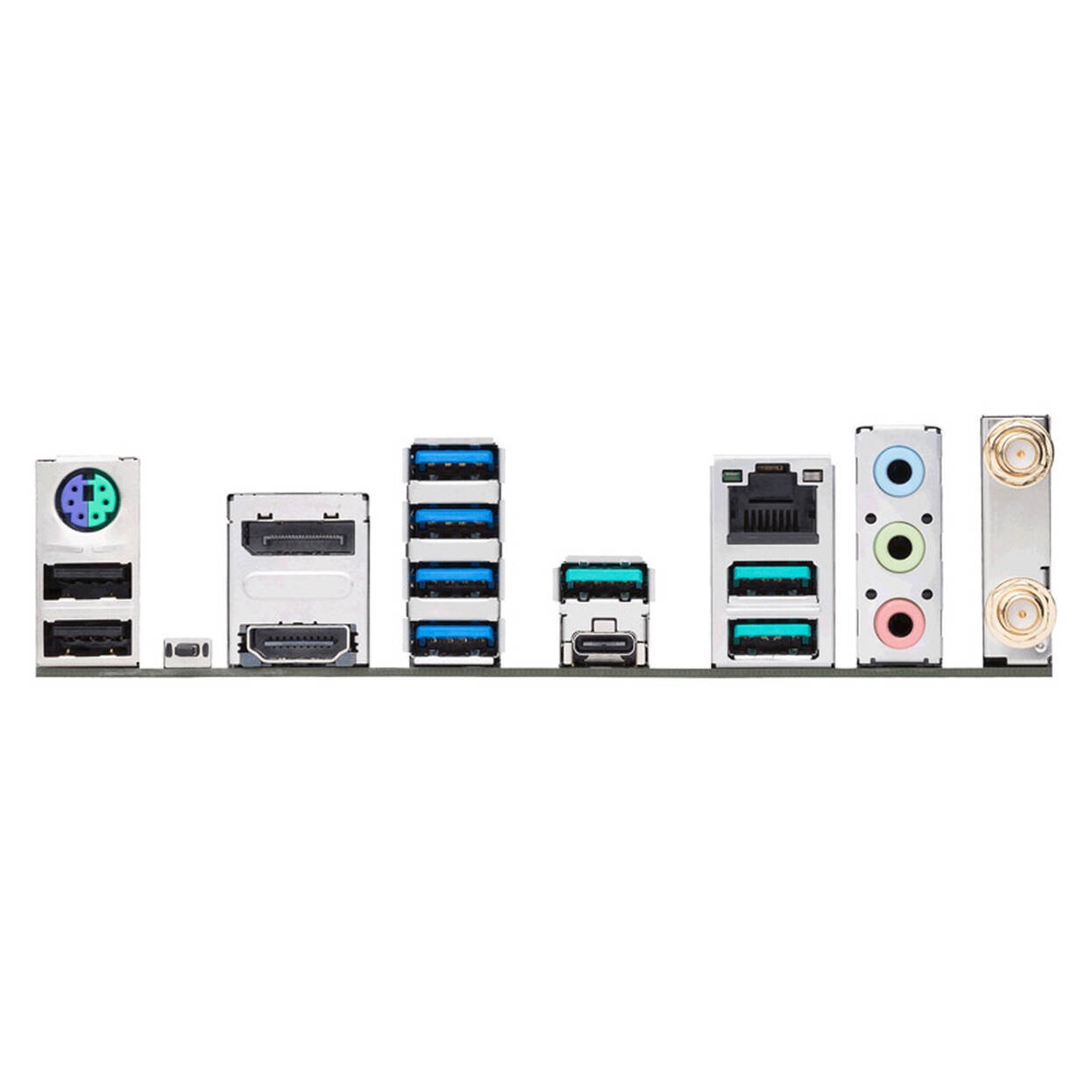

– External connections:
– 1x PS/2 keyboard/mouse
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 3x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek)
– 1x WiFi/Bluetooth module (Wi-Fi 6)
– 3x 3.5 mm jacks (Realtek 7.1 Surround Sound)
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin 12V
– 1x 4-pin 12V
– Accessories:
– 1x ASUS WiFi antenna
