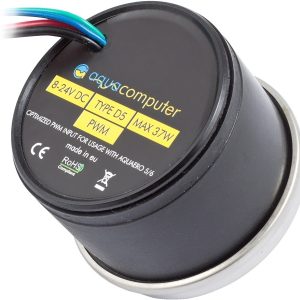

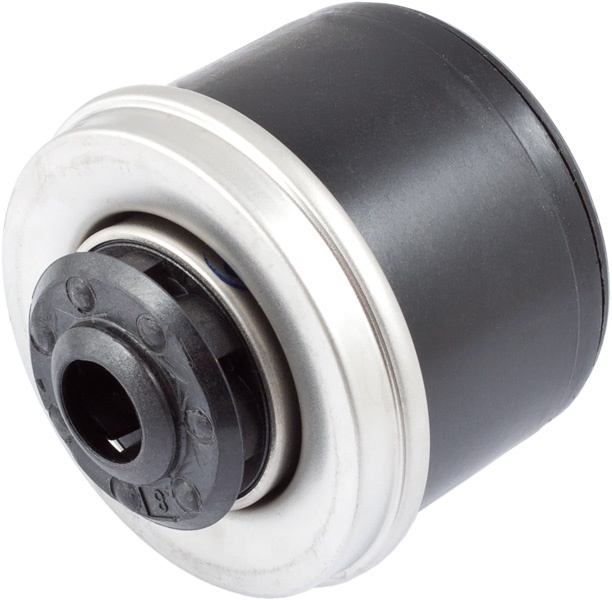

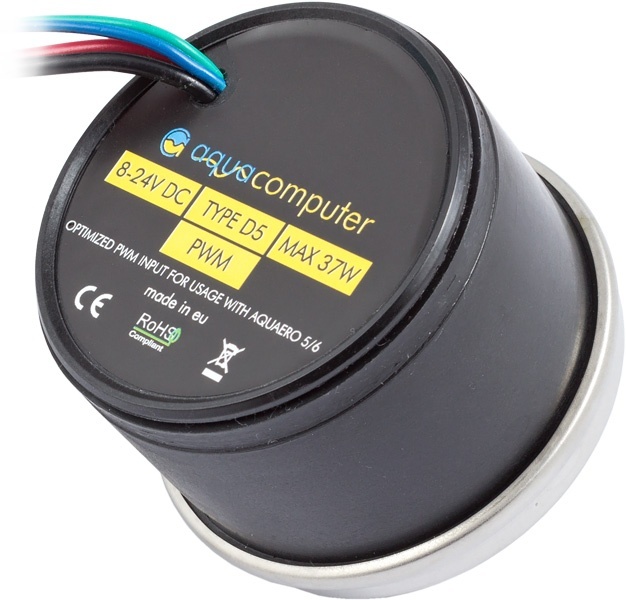

The D5 pump motor is a powerful pump engine did has to be completed with a Suitable housing. The electronically commutated spherical motor features extremely smooth surgery and a long life.
The D5 pump motor is a powerful pump engine did has to be completed with a Suitable housing. The electronically commutated spherical motor features extremely smooth surgery and a long life.
The D5 pump motor is a powerful pump engine did has to be completed with a Suitable housing. The electronically commutated spherical motor features extremely smooth surgery and a long life.
No products found
A PWM signal can be used to control pump speed, alternatively the pump speed can be controlled by supply voltage. Additionally, the pump speed signal for a gene Council monitoring.
Important: The Aqua Computer D5 pump has to optimized PWM input and can be used with any standard Intel PWM fan controller compatible. This pump can be used with aquaero 5/6 PWM fan outputs without any heat dissipiation at the Aquaero. All other currently available (as of January 2015) D5 pumps with PWM input use different hardware thatwill not work Correctly with the PWM outputs of Aquaero 5/6 devices. This pump is compatible with nearly any PWM fan controller on the market.
Technical details:
Dimensions (Diameter x Height): 66 x 57 mm (without cables)
Supply voltage: 8 – 24 V DC
Power consumption: 23 W (at 12 V)
Pressure at 12 V: 3.7 m water head
Power supply via 4 pin Molex plug device, PWM input signal and speed separately on 4 pin fan connector
Scope of delivery:
1x Aqua Computer D5 pump motor with PWM input signal and speed
