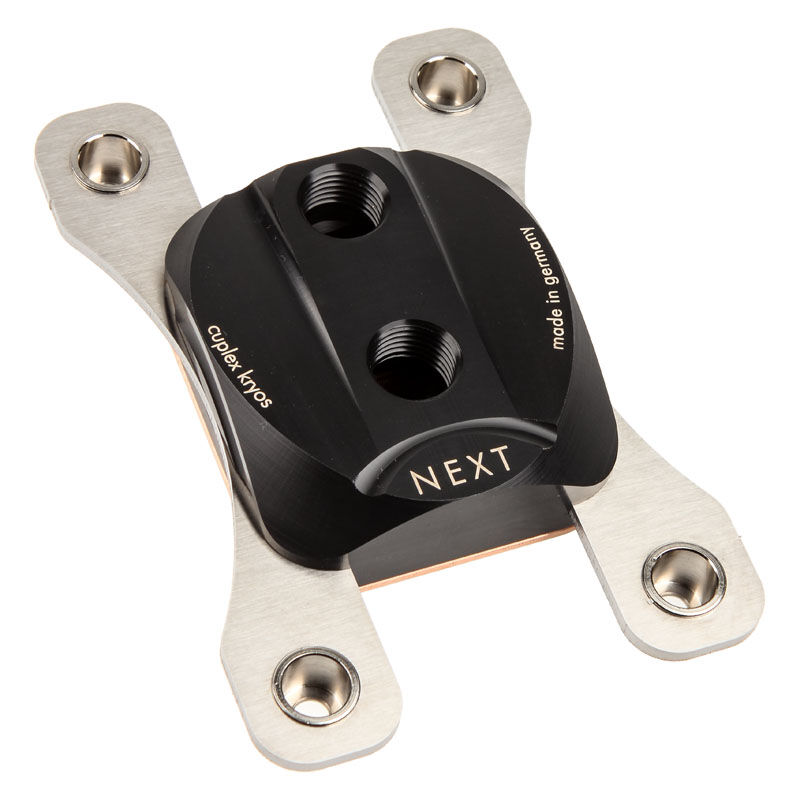

The cuplex kryos NEXT marks a new milestone in CPU waterblock development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance, installation procedure and product features.
The result is not just a CPU waterblock with outstanding performance - it is a product series with various models differing in color and functionality. The VARIO models are the first CPU water blocks to become a CPU, CPU, and CPU. Models with VISION module are equipped with modern electronics: High resolution OLED display, integrated water temperature sensor and USB interface are just three of the features.
The cuplex kryos NEXT marks a new milestone in CPU waterblock development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance, installation procedure and product features.
The result is not just a CPU waterblock with outstanding performance - it is a product series with various models differing in color and functionality. The VARIO models are the f...
The cuplex kryos NEXT marks a new milestone in CPU waterblock development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance, installation procedure and product features.
The result is not just a CPU waterblock with outstanding performance - it is a product series with various models differing in color and functionality. The VARIO models are the f...
The result is not just a CPU waterblock with outstanding performance – it is a product series with various models differing in color and functionality. The VARIO models are the first CPU water blocks to become a CPU, CPU, and CPU. Models with VISION module are equipped with modern electronics: High resolution OLED display, integrated water temperature sensor and USB interface are just three of the features.

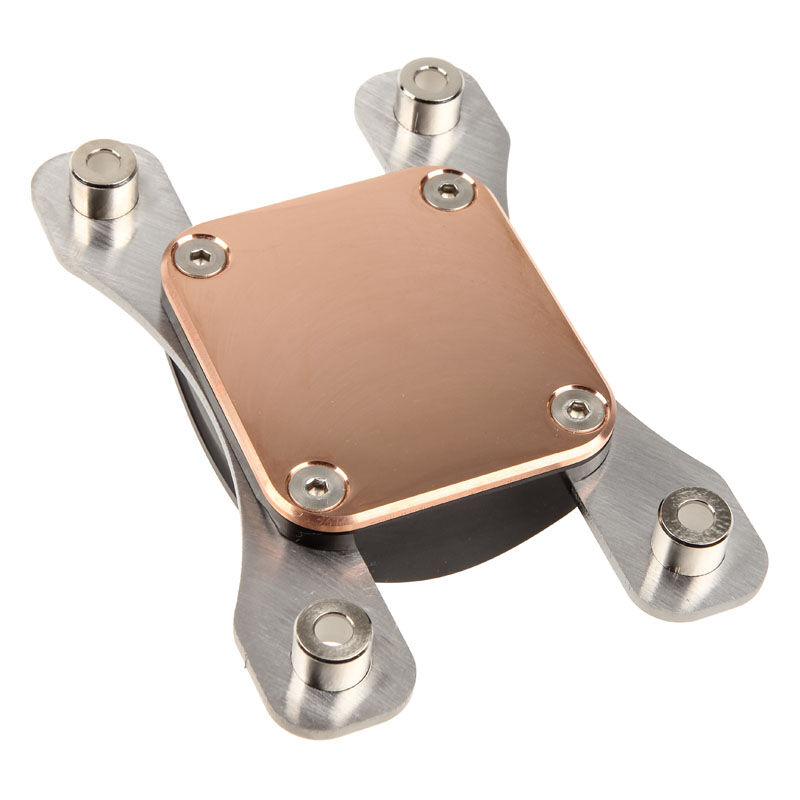

Base part of the micro structure
The base part of the cuplex kryos NEXT is equipped with an extremely fine microstructure, the structural width is lower than 200 μm. The coolant is injected through a slot-shaped nozzle and then runs to both sides of the structure. The base is made of copper, nickel plated copper or .925 sterling silver depending on model.
Retention system

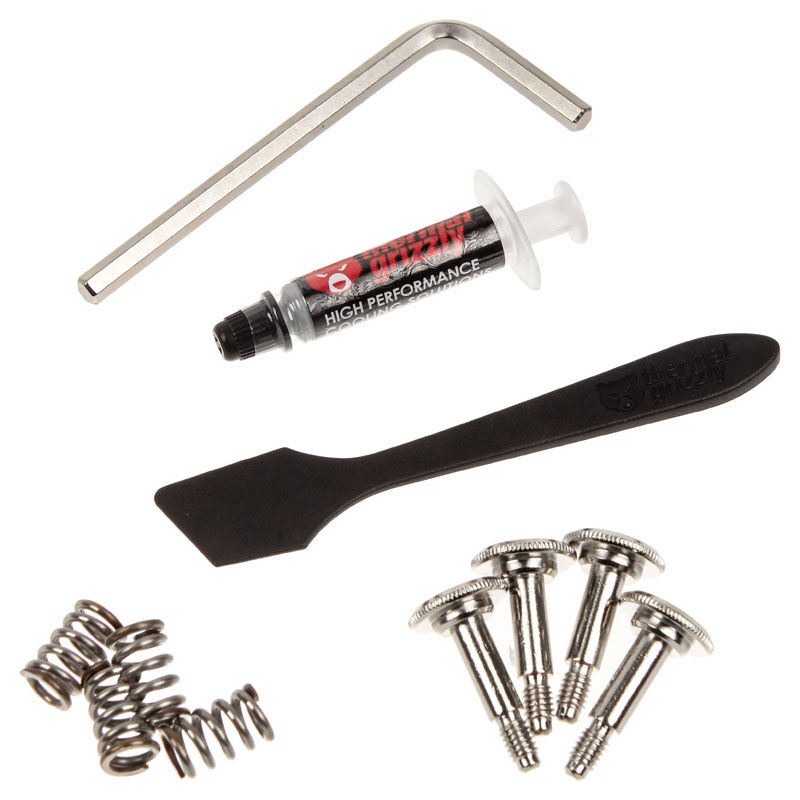

The cuplex kryos NEXT retention system. 2.5 mm thick stainless steel plates with nickel plated spring cups. Springs and knurled screws secure the waterblock on the motherboard, the retention system has a very clean look when installed. All retention system versions feature a mechanical stop for optimum clamping force and even force distribution. The knurled screws can be installed by hand, additionally a hexagon socket wrench can be used for easy installation.
Water blocks for sockets 115x or AM3 include a steel backplate with silicone to stabilize the CPU region of the motherboard. Socket 2011 or AM4 motherboards already have a backplate as part of the CPU socket, therefore no additional backplate is required.
For optimum performance, every cuplex kryos NEXT ships with outstanding thermal compound. A syringe with 0.5 grams of Thermal Grizzly Kryonaut is included, complete with plastic spatula. This compound has a high thermal conductivity and spreads out of thin and evenly between CPU and water block due to its low viscosity. The amount is sufficient for approximately five applications.
Color variants

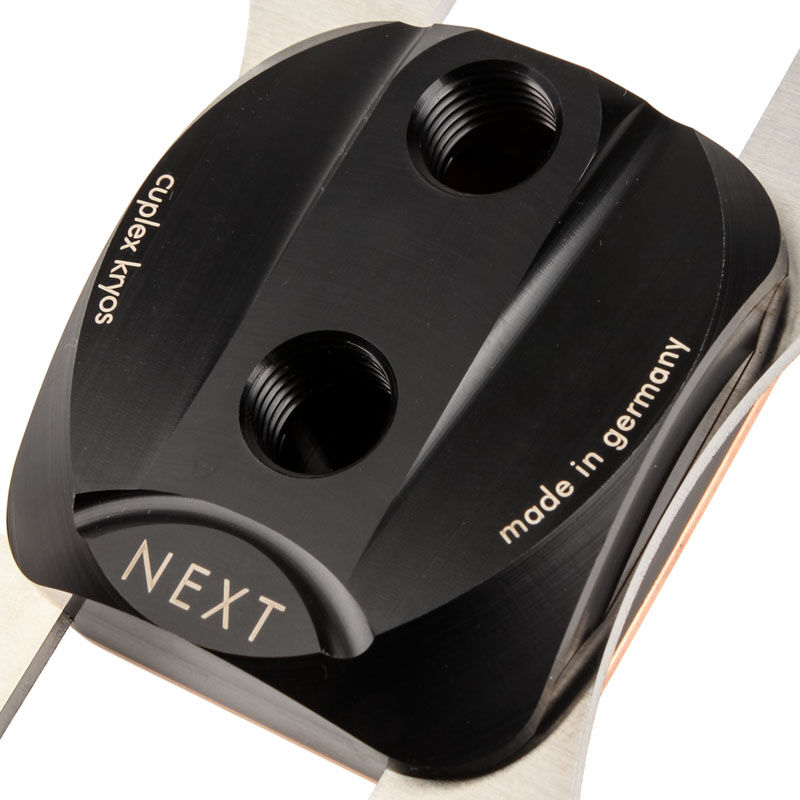

The top part of the water block is available in various materials and coatings:
Acetal black: Shiny black high-tech plastic
Acrylic glass: transparent body suitable for illumination
Copper: Reddish gloss
Nickel plated brass: Bright metallic gloss
PVD plated brass: High quality multilayer coating, dark metallic gloss
Material combination
Acetal / copper: Top part black acetal, base copper
| Technical Details | |
|---|---|
| Compatibility | AMD Socket AM4 |
| Dimensions (L × W × H) | 111 × 75 × 22 mm (excluding screws) |
| Connection Threads | G1/4 inch |
| Thread Spacing | 28 mm (center-to-center) |
| Scope of Delivery | |
| Water Block | 1 × CPU water block |
| Mounting Hardware | Screws, springs, and required mounting materials |
| Thermal Compound | Thermal Grizzly Kryonaut, approx. 0.5 g (syringe) |
| Accessories | Plastic spatula |
| Documentation | Instruction manual |
£67.27£56.06 Inc VatEx Vat
