Combined GPU / RAM / VRM-cooler for graphics cards of the ATI / AMD HD 7970 and 7950 with 3072 MB reference design.

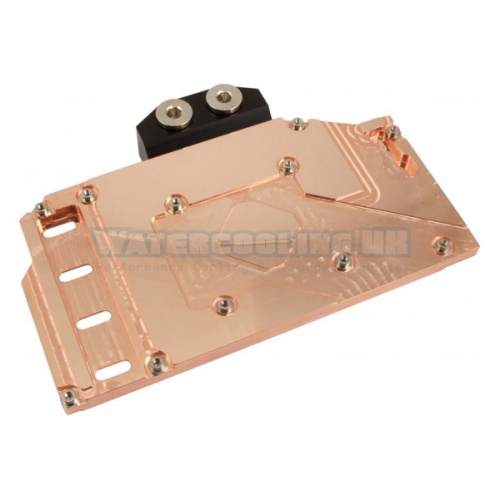

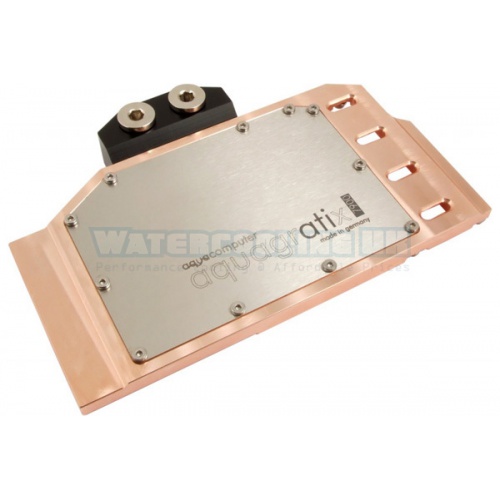

This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat water cooler.
Combined GPU / RAM / VRM-cooler for graphics cards of the ATI / AMD HD 7970 and 7950 with 3072 MB reference design.
This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat water cooler.
Combined GPU / RAM / VRM-cooler for graphics cards of the ATI / AMD HD 7970 and 7950 with 3072 MB reference design.
This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat water cooler.
The aquagratix for HD 7970 and 7950 was developed based on our cooler cooler for HD 6970 and 6950.
All are equipped with threaded mounting spacers, because the graphics card can thus no longer practically forgiven and installation is easy. The contact surfaces for the GPU and RAM are polished for optimum contact. Included is a high-end thermal pad for the voltage regulator area.
The cooler is equipped with the aquagraFX for GTX 480 and GTX 470 known connecting terminal made of Delrin. This is fixed from the side with three mounting screws and provides the opportunity to screw terminals on both sides. Correspondingly, two screw plug are included. The connecting threads are executed in G1 / 4. The connecting terminal can be exchanged for Crossfire mode against twinConnect direct connection kits (Art. 17 110 or 17 117 not included).
Materials:
Body copper
stainless steel lid
Delrin connector terminal
Delivery:
Cooler without fittings (G1 / 4)
Assembly materials including thermal pad
two locking screws
