The aquaduct 360 XT Mark IV ceramic belongs to the fourth generation of the aquaduct XT series. Main goals of development are and always have a compelling design and a cooling performance that sets new standards for minimum noise level. It is easy to operate the aquaduct, compact and extremely functional reliability. Got the name is a kind of bridge that runs the water and then falls on the other side.
The aquaduct is a combination of passive and active radiator which combines the advantages of both technologies in one product. The side profile with large integrated cooling expansion tanks form the passive component in the inner-mounted radiator with microprocessor-controlled fans is the active component. For the excellent maintenance make the large volume of the reservoir as well as many small Deteil such as in the base of the aquaduct built-in ball valves.
The aquaduct 360 XT Mark IV ceramic belongs to the fourth generation of the aquaduct XT series. Main goals of development are and always have a compelling design and a cooling performance that sets new standards for minimum noise level. It is easy to operate the aquaduct, compact and extremely functional reliability. Got the name is a kind of bridge that runs the water and then falls on the ...
The aquaduct 360 XT Mark IV ceramic belongs to the fourth generation of the aquaduct XT series. Main goals of development are and always have a compelling design and a cooling performance that sets new standards for minimum noise level. It is easy to operate the aquaduct, compact and extremely functional reliability. Got the name is a kind of bridge that runs the water and then falls on the ...
No products found

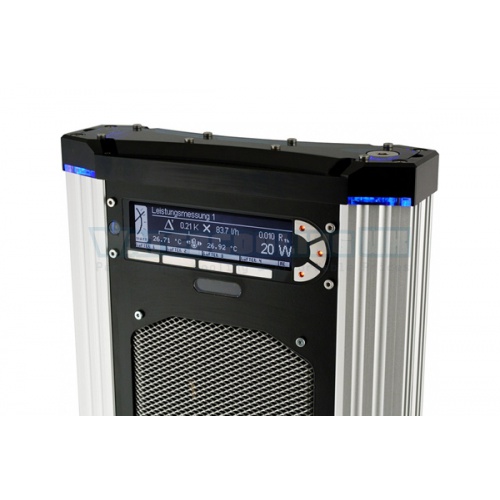

The aquaduct 360 XT Mark IV includes a ceramic-ceramic bearing micro-processor controlled 12V pump, a radiator and a triple to the special requirements of the external watercooling systems control and monitoring electronics. May mark the IV line is equipped with a comparison to previous generations newly developed control system, which significantly increased functionality and a graphical display exhibit. The new controller can be optionally operated via touch controls on the device or via the included infrared remote control with the remote control can also be operated via USB to the aquaduct connected PC (keyboard and mouse function). For integration into your home entertainment system, the aquaduct control via built-in IR transmitter other components. The Mark IV generation neuerste now expands continuously monitors the quality of the coolant. Furthermore, of course, are all known control and monitoring functions of the Mark III series, such as flow measurement, multi-point temperature measurement, parametric fan control and USB connection to PC software aquasuite available. The Vario-lighting function of the previous generation (dependent on temperature with alarm function) was upgraded by an RGB output. The lighting is integrated on both sides in the upper part of the aquaduct and provides a very attractive visual effect, both inside the visible through the Plexiglas lid, and reservoir in the upper part of the lateral rip. The new aquasuite 2012 offers a completely revised user interface with user-configurable summary pages for a better overview about the current condition of your cooling system.
For installation in the PC is a PCI (e)-slot bracket on. About these the aquaduct power. To supply the board a free power connector of the PC power supply is needed. The board has connectors for an additional fan and two other temperature sensors (each sold separately) that can be evaluated and controlled by the integrated control unit. A tachometer output signal with artificially generated speed signal also allows, for example, the BIOS of the motherboard to implement an emergency shutdown of the PC. A shutdown of the system also offers the capability of connecting the isolated output of the aquaduct aquaero mounted, can be turned on, for example in case of failure of the entire PC (aquaero PowerConnect cable as an additional accessory required). In the case of an alarm (user configurable) can also be an audible and visual signal output from the device. The alarm analysis is very extensive and includes also a temperature and fan monitoring.
In addition, two cutouts in the mounting bracket allow the easy implementation of the plug & cool water hoses into the housing interior.
Important notes:
The given dissipated power of 700 W refers NOT to the size of your power supply, but indicates the dissipated heat power. This is determined in this indication at only 15 degrees C temperature difference between air and water. Problems are quite tolerable in general and 30 degrees C, so that they can Dubail Double again. It is then possible to dissipate to 1.4 kW of heat. The aquaduct itself requires only max. 20 W of power for pumps, fans, and electronics, which is negligible at current PC power supplies sooner.
Details:
Radiator: airplex per 360
Fan: airstream 120 mm, temperature-dependent or manual speed control possible
Pump: 12 V, microprocessor controlled with adjustable power and function monitoring
Control: Standalone control with graphic display, USB 2.0 interface to PC
Internal temperature sensors for water supply and return temperature, air temperature and exhaust air
Integrated flow sensor
Dimensions:
590x224x108mm
Weight 9.5 kg
Delivery:
aquaduct 360 XT Mark IV external water cooling completely assembled
aqua remote infrared remote control
two connectors plug & cool straight G 1 / 4 (mounted on the device)
PCIe Slot plate with board
Cable aquaduct to slot bracket (length about 2 m)
USB connection cable (length 2 m)
plug & cool-tube flow and return pipe (length of about 2 m)
Coolant Double Protect Ultra (1000 ml)
