Advanced fan blade shape for optimal performance
- SKU: LUCS-132
- MPN: CO-9051011-WW
- EAN: 0840006680857
The Alphacool Rise Aurora fan offers a wide range of control as well as superior Digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fans special design can create some unique effects whilst offering performance.
Brilliant illumination

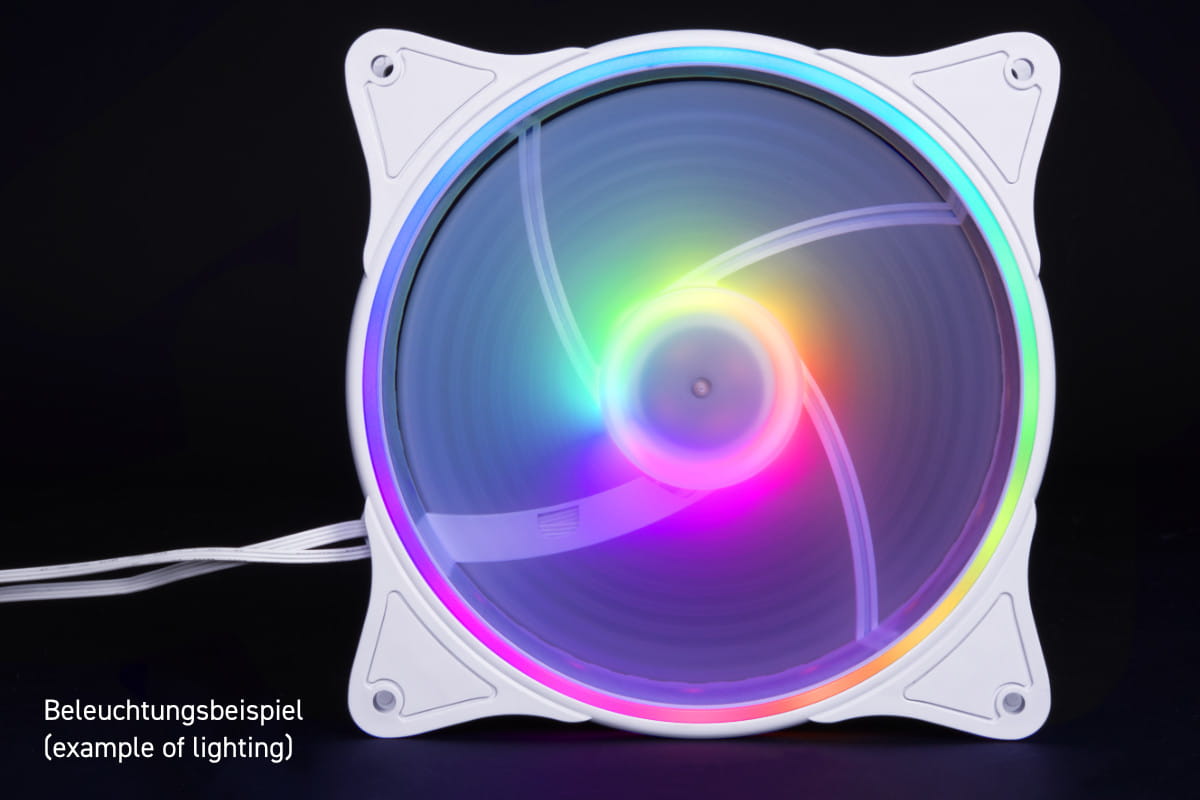

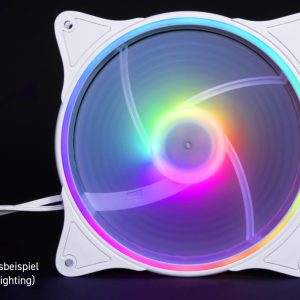

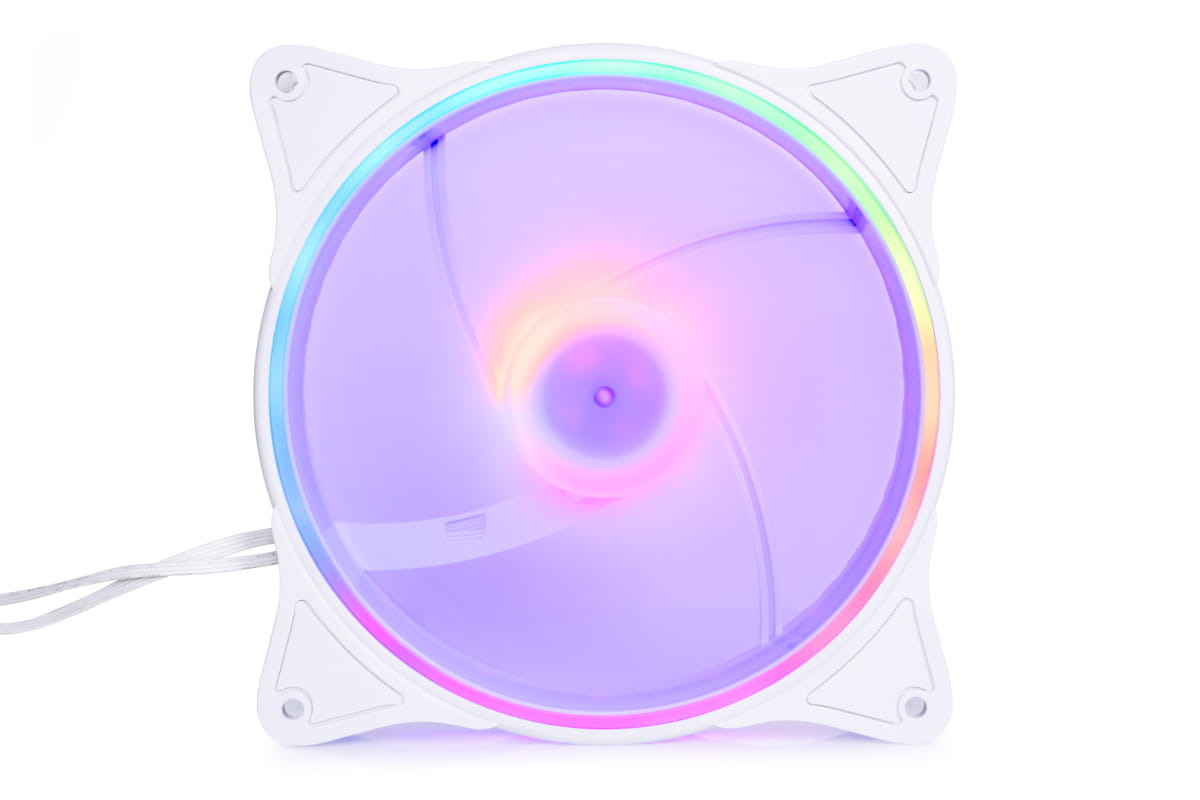

There are 20 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a unique illumination that looks very impressive. Thanks to the recessed light diffusers, the light is distributed evenly, and you will not see sporadic uneven lighting.
Alphacool Rise Aurora 140mm Fan White (140x140x25mm)
The Alphacool Rise Aurora fan offers a wide range of control as well as superior Digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fans special design can create some unique effects whilst offering performance.
Brilliant illumination
There are 20 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a uniq...
The Alphacool Rise Aurora fan offers a wide range of control as well as superior Digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fans special design can create some unique effects whilst offering performance.
Brilliant illumination
There are 20 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a uniq...
Earn 14 Points
We price match UK retailers. Try It Now!
- SKU: 1022444
- MPN: 24851
- EAN: 4250197248518
- Warranty: 12 Months
Details
The Alphacool Rise Aurora fan offers a wide range of control as well as superior Digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the fans special design can create some unique effects whilst offering performance.
Brilliant illumination
There are 24 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a unique illumination that looks very impressive. Thanks to the recessed light diffusers, the light is distributed evenly, and you will not see sporadic uneven lighting.
Wide control range and silent

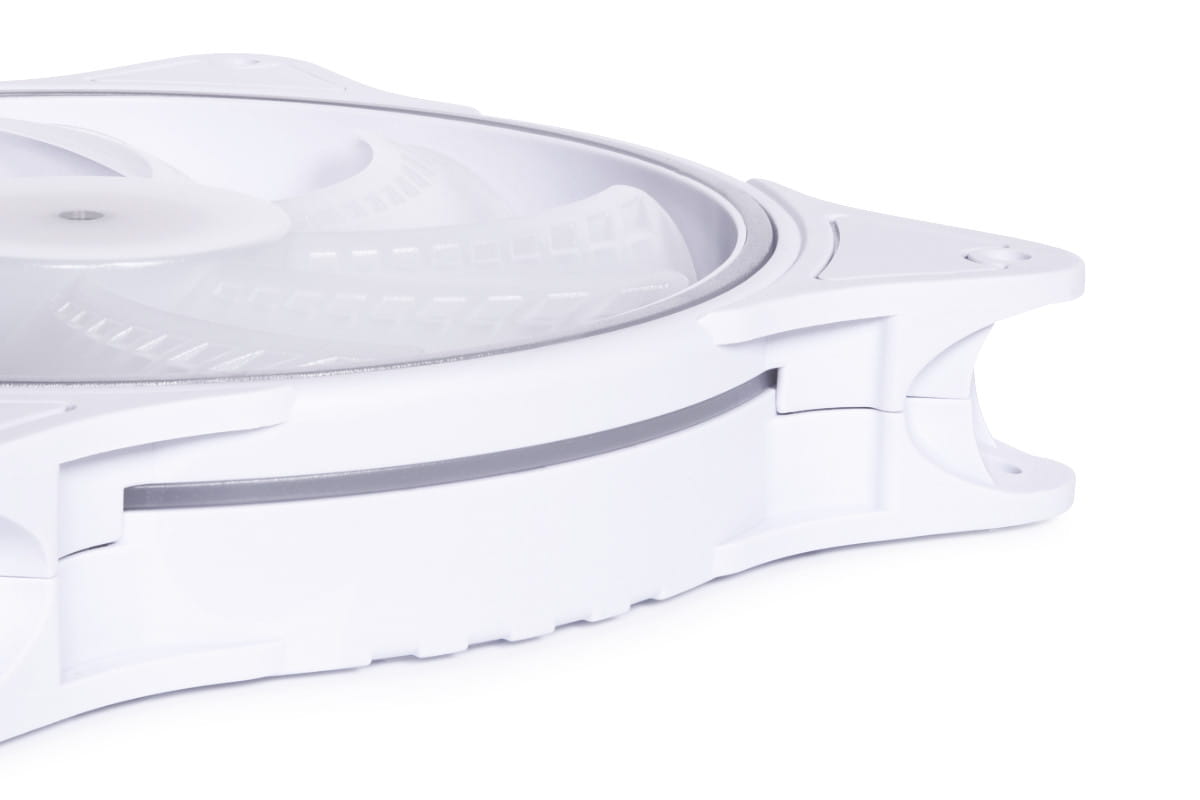

The fan can be controlled from 0 to 2000 rpm via the 4-pin PWM connector. In addition, it offers a silent mode, with which the fan can be regulated down to 0 rpm and then they will only start when they are needed above 600rpm. At 800 rpm, the fan is almost silent. At 2000 rpm, it offers an air flow rate of 154.1m³/h coupled with a high static pressure of 2.20mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for alternatively, as a case fan. Decouplers are located directly on the corners of the frame. The soft foam pads reduce the transmission of vibrations to the case, which in turn reduces noise. Tear-off edges on the fan blades also provide a significant reduction in noise.
Connectors?
The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected to the motherboard or a fan controller without the need for additional adapter cables or extensions. The digital aRGB LED illumination is controlled via a JST 3-pin connector and adapters are available to change this into a standard 3 pin aRGB connector if required.
Technical data aRGB illumination
LED type 5V aRGB
Connection 3-Pin JST
Cable length 50cm (Splitter after 40cm)
Max. current consumption LEDs 3,5W
LED quantity Frame: 16 / Hub: 8
| General Specifications | |
|---|---|
| Dimensions (L × W × H) | 140 × 140 × 25 mm |
| Weight | 206 g |
| Color | White |
| Performance | |
| Speed Range | 0 – 2000 RPM (±10%) |
| Maximum Airflow | 154.1 m³/h |
| Static Pressure | 2.20 mm/H₂O |
| Noise Level | Up to 38.4 dB(A) |
| Electrical Specifications | |
| Rated Voltage | 12V DC |
| Power Consumption | 6.6 W (max) |
| Current Consumption | 0.50 A (0.55 A max) |
| Connection & Control | |
| Connector | 4-Pin PWM |
| PWM Cable Length | 40 cm |
| Speed Signal | Yes |
| Auto-Restart | Yes |
| Reliability | |
| Bearing Type | Sleeve Bearing |
| MTBF | 30,000 hours |
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Guides
Related Products
£36.28£30.23 Inc VatEx Vat
Available

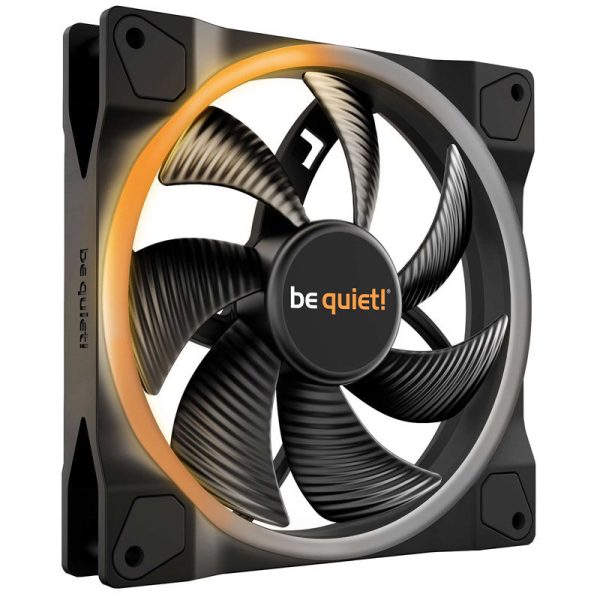

The first RGB lighting that be quiet! launched on the market Thanks to ARGB control, individual LEDs can be varied in color
