The second version of the Alphacool Repack Single Bayres 5,25 is now available!
Based on the development of the Alphacool Repack Dual 5.25 Bay Station, this Bay reservoir also brings its advantages to the table: Easy mounting, compact dimensions and appealing design! All of these features and many more are implemented in the Alphacool Repack Single Bayres.
The second version of the Alphacool Repack Single Bayres 5,25 is now available!
Based on the development of the Alphacool Repack Dual 5.25 Bay Station, this Bay reservoir also brings its advantages to the table: Easy mounting, compact dimensions and appealing design! All of these features and many more are implemented in the Alphacool Repack Single Bayres.
The second version of the Alphacool Repack Single Bayres 5,25 is now available!
Based on the development of the Alphacool Repack Dual 5.25 Bay Station, this Bay reservoir also brings its advantages to the table: Easy mounting, compact dimensions and appealing design! All of these features and many more are implemented in the Alphacool Repack Single Bayres.

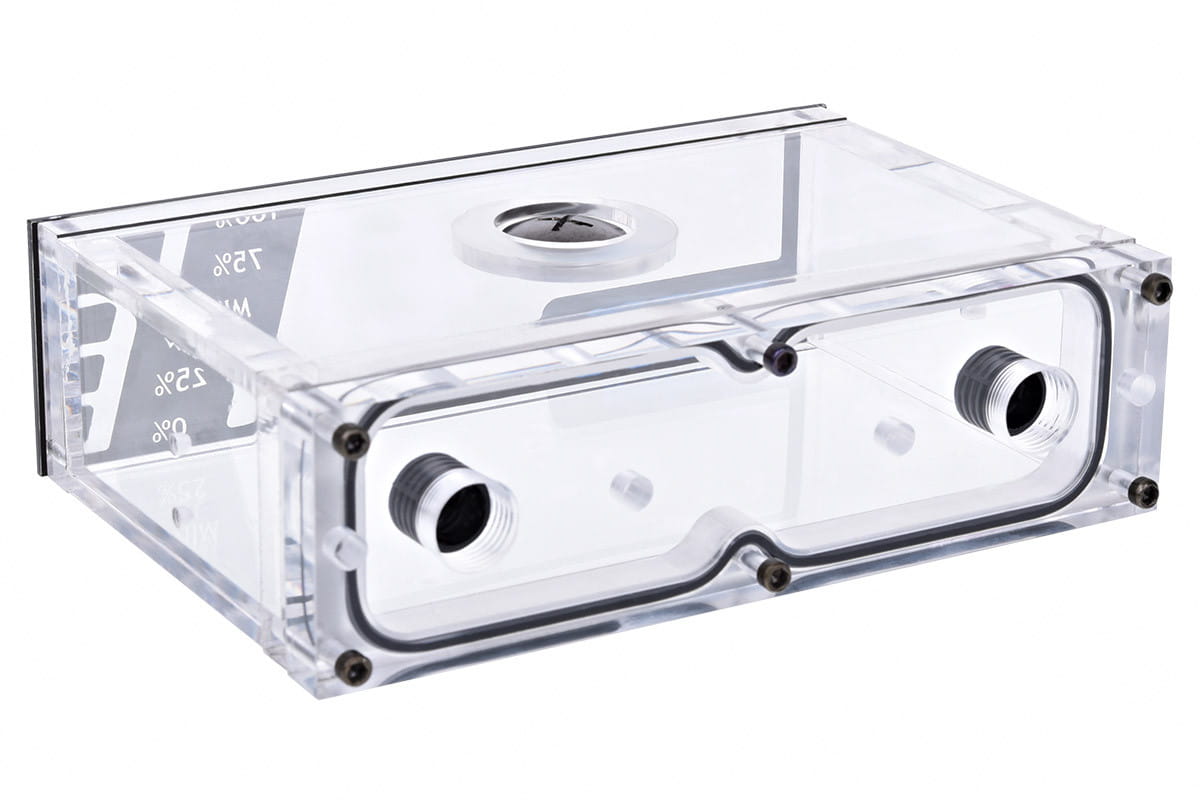

Designed for installation in a vacant 5.25 drive bay, this reservoir allows compact installation and is a great addition to the front of your enclosure. Connection to the reservoir can be achieved via the implemented ¼ threads for maximum compatibility and flexibility.
Construction-wise, this reservoir is also a great piece of hardware: Extra-strong Plexi increases stability of the reservoir and ensures extra rigidity. Filling can be done via the 3/8 thread in the front third of the reservoir, which is sealed with a black nickel plated screw plug during operation. By simply pulling the reservoir forward from the drive bay, it can be filled easily. Make it even easier for yourself by connecting a Fillport!
Installation of the reservoir is done just like mounting on an optical drive, making it quick and easy for any user!
Design:

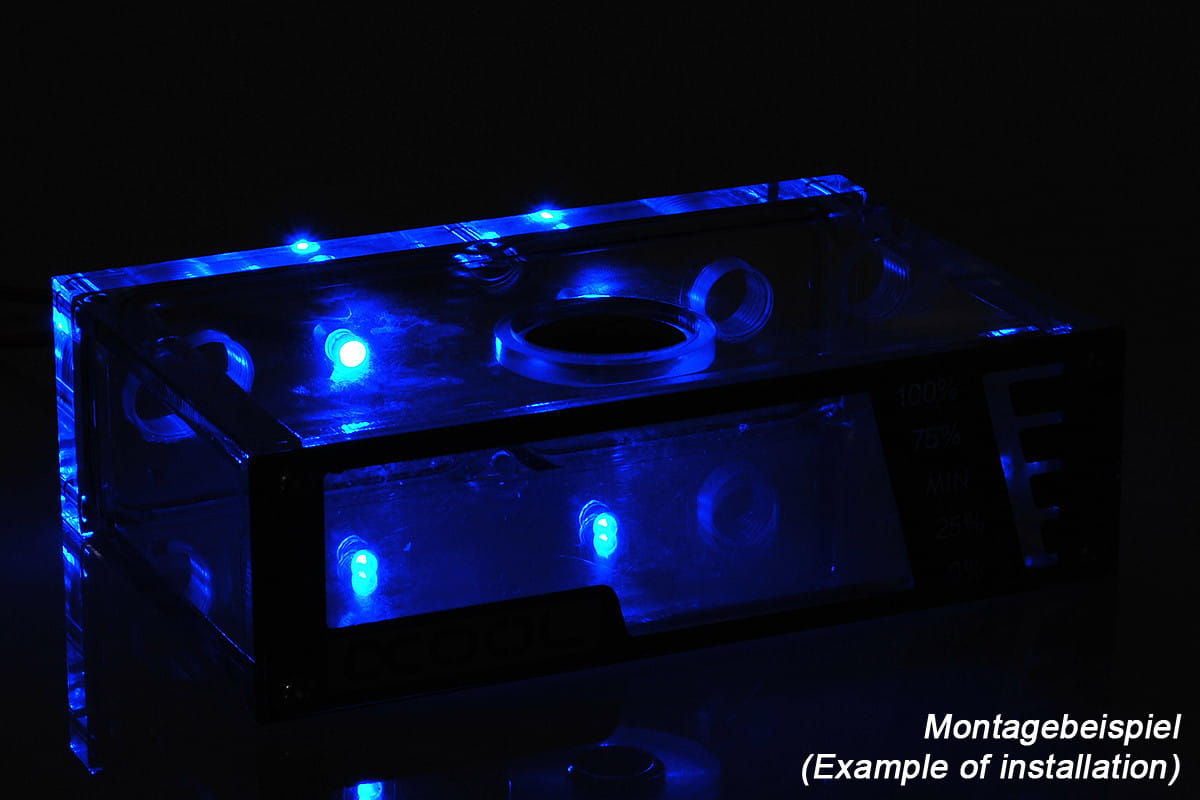

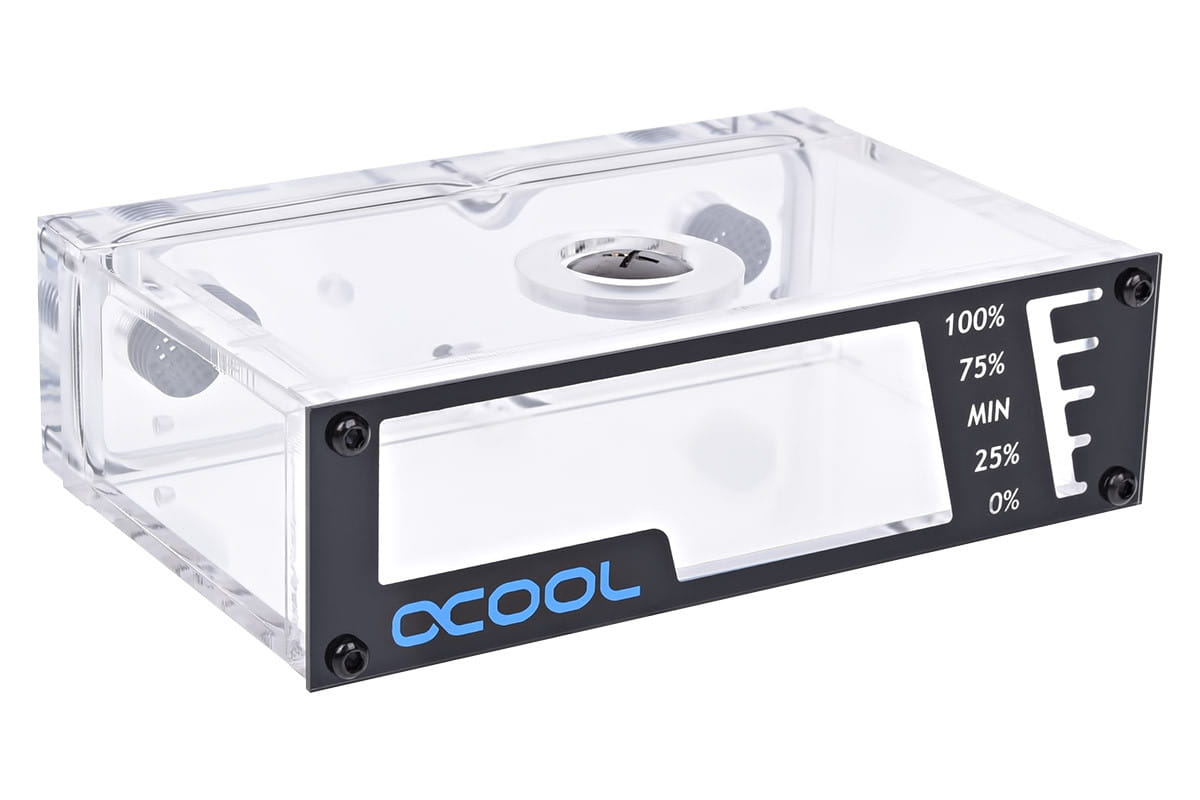

The front of the reservoir, the component which mainly remains visible after installation, is just beautiful to look at: Plexi, Acetal and a fill level indicator in combination with the typical Alphacool copper create a truly elegant design. Lighting is the next step towards a perfect system: At the rear of the reservoir, two 5mm LEDs can be inserted.
Modular design:

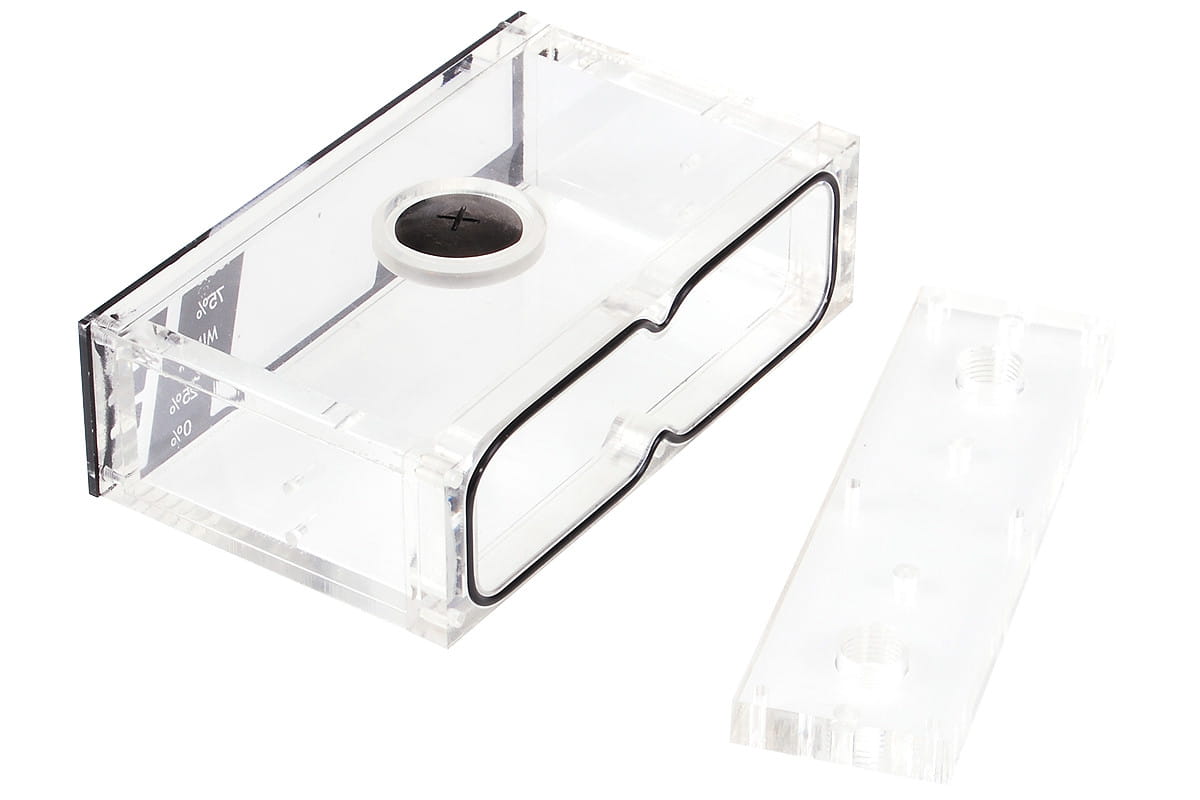

All Alphacool Repack Bayres of the second revision feature a modular design. This means that a standard of this reservoir can be rebuilt to e.g. a pump reservoir. Different pump reservoirs can also be made compatible with other pump types, or be transformed into a standard reservoir. This is possible, as the reservoir is not glued together at the back, but rather screwed together and sealed by a gasket.
Technical specifications:
Material: Plexiglas/Acetal, brass
Colour: transparent/black/copper
Connection threads: 2x ¼
Dimensions (L x W x H): 99 x 148 x 43mm
Pre-drilled holes for 2x 5mm LEDs
Conforms with ROHS
Extent of delivery:
1x Alphacool Repack Single Bayres 5,25 – Rev. 2

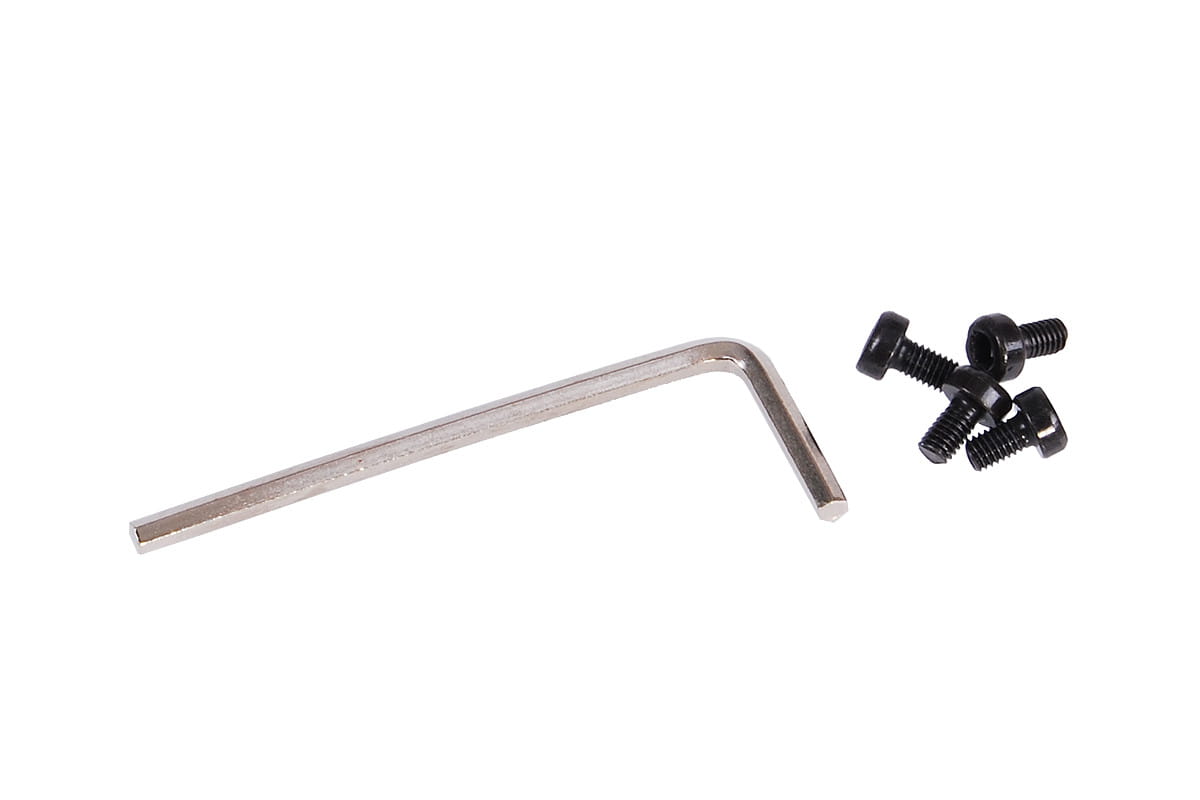

2x Mounting screws
Allen key
