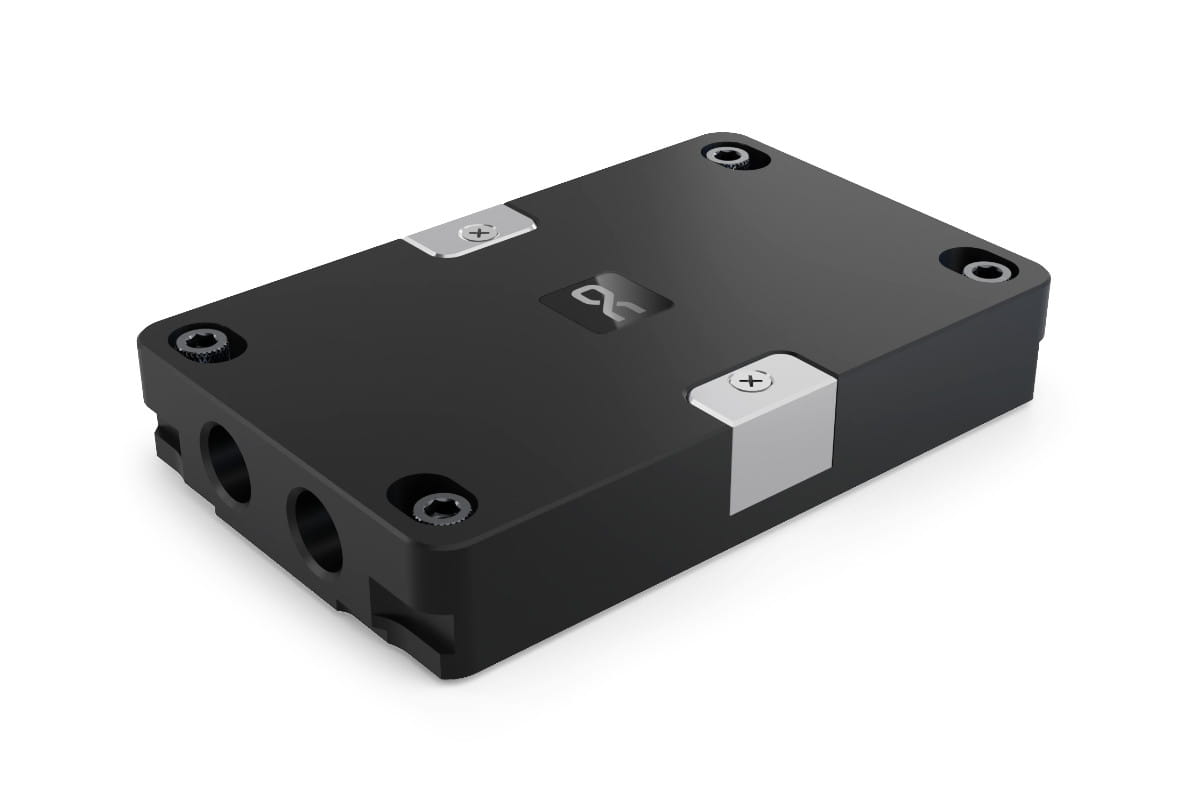

The Alphacool ES Stream is designed for server and workstation processors on Intels LGA 4677 socket with large processor cores.
The Alphacool ES Stream is designed for server and workstation processors on Intels LGA 4677 socket with large processor cores.
The Alphacool ES Stream is designed for server and workstation processors on Intels LGA 4677 socket with large processor cores.

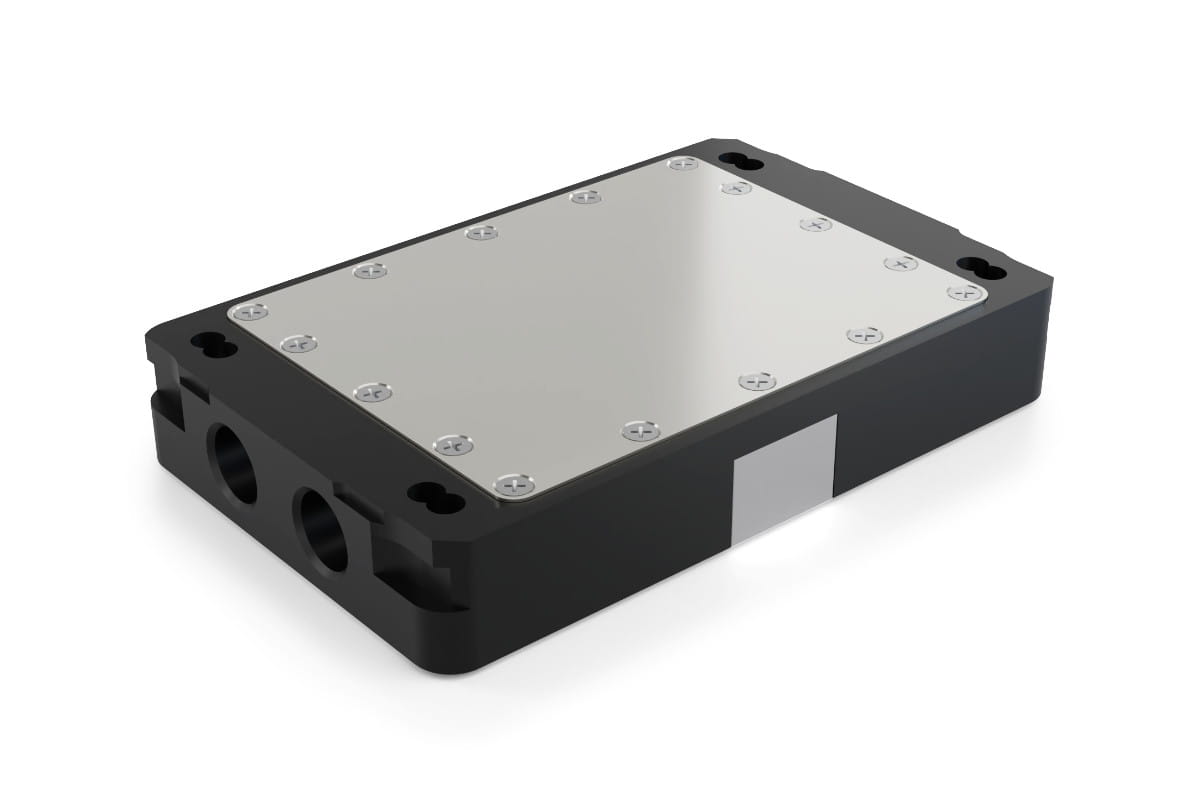

Due to the large cooler bottom, the processor is completely covered. The ES Stream is a flow-through cooler, which can reliably dissipate waste heat of up to 600 watts. The entire cooler is made of nickel-plated copper and not aluminum. The thermal conductivity of copper is almost twice as high as that of aluminum.
Flexible application!

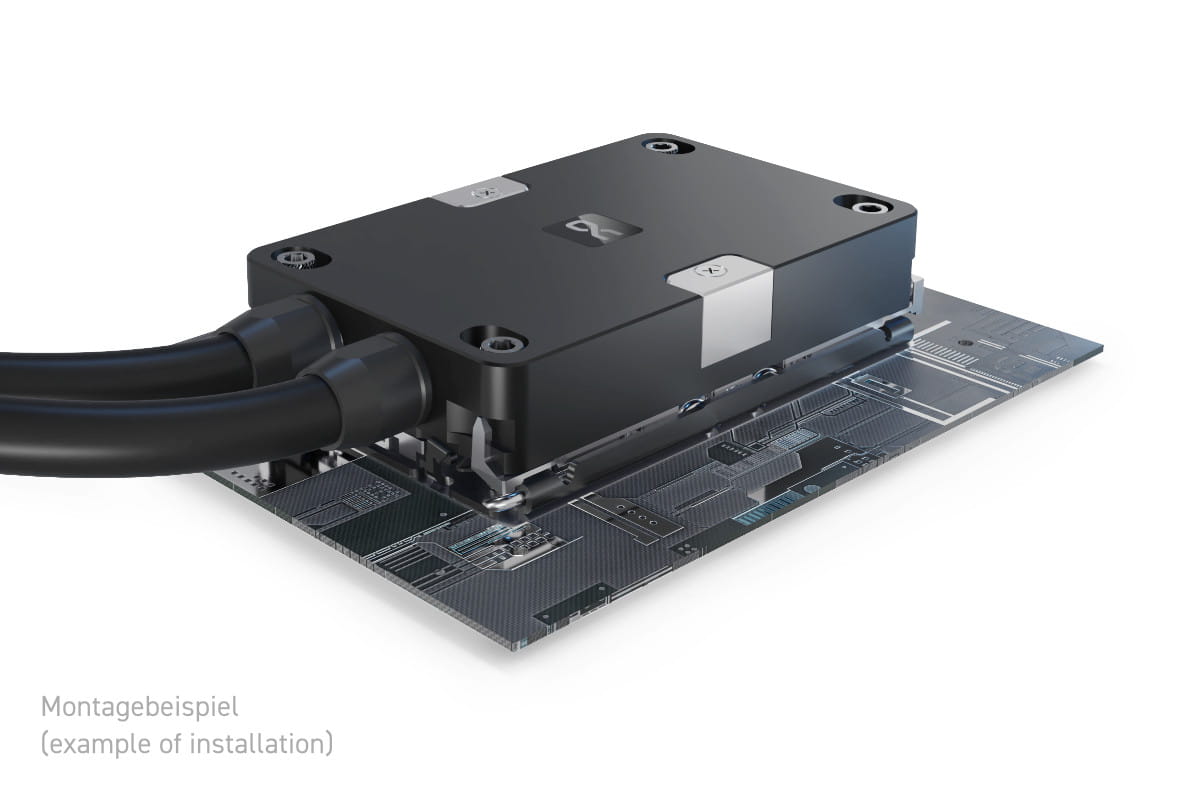

The ES Stream has a flat and compact design and therefore fits well in server racks. Particularly noteworthy is that the flow direction of the cooling water is not predetermined. The inlet and outlet of the connections can be exchanged as desired. This provides flexible mounting options.
Thermal paste
The included thermal paste is Alphacools Subzero with a thermal conductivity of 16 W/mK. The electrically non-conductive Thermal Grease is particularly well suited for high contact pressures, but can still be processed perfectly due to the viscosity of 3,000,000 mPa. s.
Compatibility:
Intel: LGA 4677
AMD: SP5 LGA 6096 (optional, if available)
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
| Cooler Specifications | |
|---|---|
| Dimensions (L × W × H) | 118.50 × 75.50 × 20.50 mm |
| Cooler Material | Nickel-plated Copper |
| Cooler Top Material | Acetal |
| Cooling Capacity | Up to 600 W |
| Connections | 2 × G1/4″ |
| Fin Thickness | 0.4 mm |
| Fin Spacing | 0.4 mm |
| Pressure Tested | 0.8 bar |
| Maximum Working Temperature | 60°C |
| Colour | Black |
